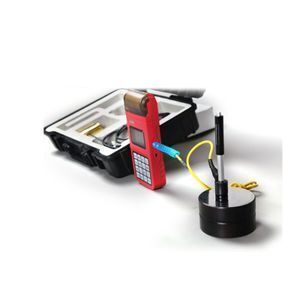

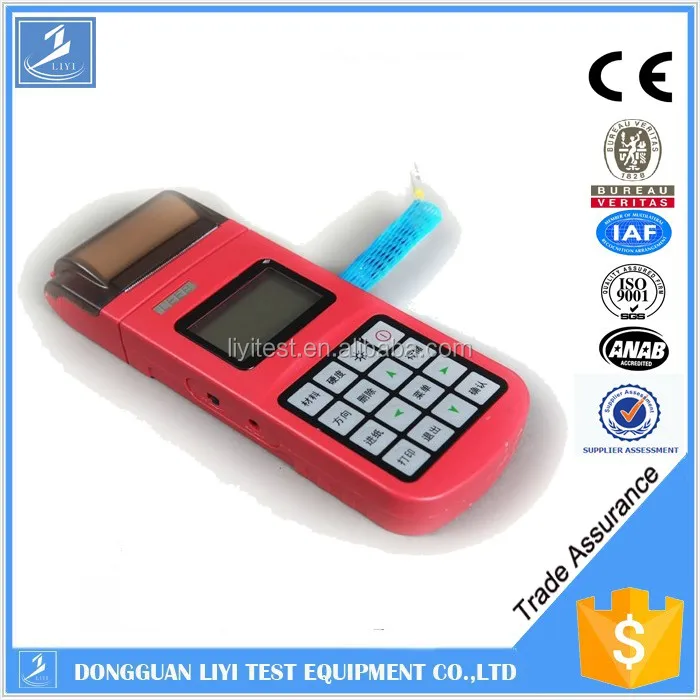

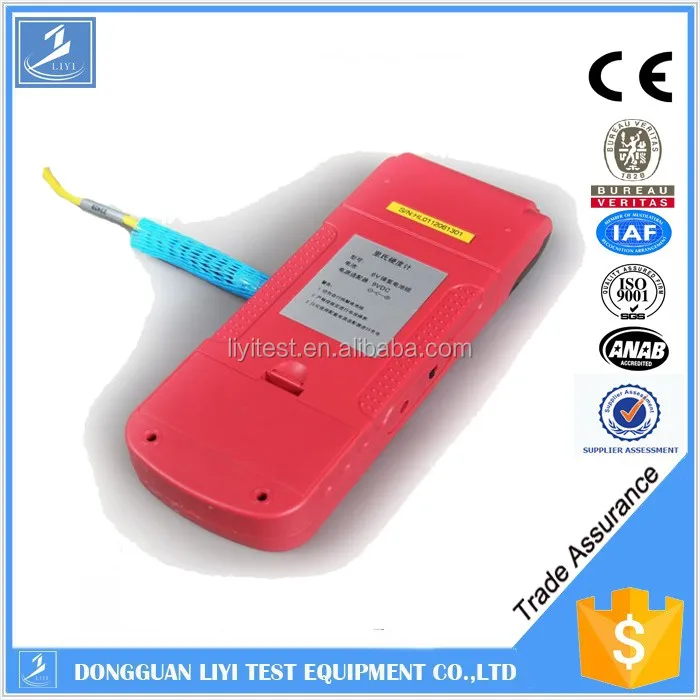

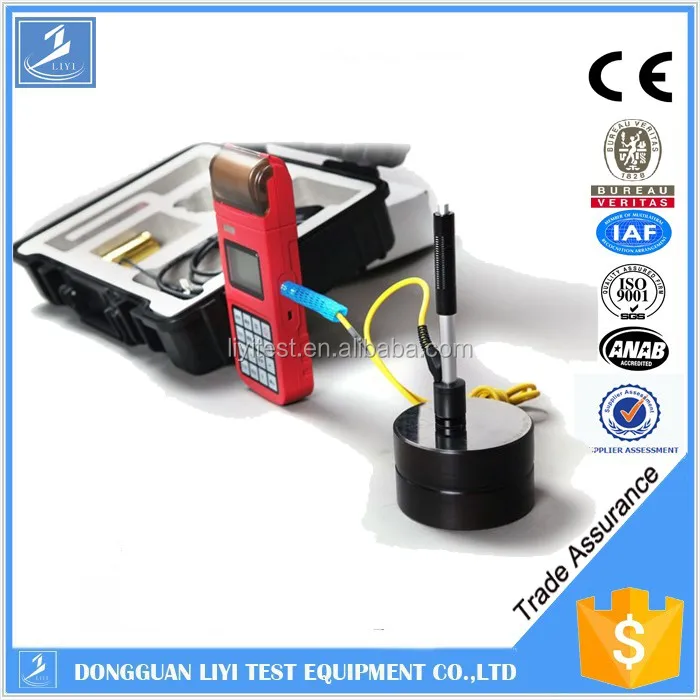

Portable Digital Leeb Hardness Tester/ Leeb Hardness Testing Machine

Leeb hardness tester according to the Leeb hardness measurement principle can be easily and quickly measure a variety of metal materials, and instantly display the value of measured hardness. And it can swiftly convert the hardness value in different hardness scales.

ADVANTAGES

1.Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic materials.

2. Large screen LCD, showing all functions and parameters.With EL background light.

3.Seven impact devices are available for special application. Automatically identify the type of impact devices.

4. Test at any angle, even upside down.

5. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.

6. Large memory could store 100 groups (Relative to average times 32~1 ) information  including single measured value,  mean value, impact direction, impact times, material and hardness scale etc.

7. Battery information showing the rest capacity of the battery and the charge status.

8. User calibration function.

9. Software to connect to PC via USB port.

10. Thermal printer integrated, convenient for in field printing.

11. NI-MH rechargeable battery as the power source.  Charge circuit integrated inside the instrument. Continuous working  period  of no less than 150 hours (EL off and no printing).

12. Auto power off to save energy.

13. Outline dimensions:212mm×80mm×32mm

Error and repeatability of displayed value see Table1-1 below.

Table 1-1

1. Measuring range:HLD(170~960)HLD

2. Measuring direction:0°~360°Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

3. Display:segment LCD

4. Data memory:500 groups max.(relative to impact times 32~1)

5. Printing paper: width is (57.5±0.5)mm, diameter is 30mm.

6. Battery pack: 6V NI-MH

7. Battery charger: 9V/500mA

8. Continuous working period:about 150 hours(With backlight off, no printing)

9. Communication interface:USB1.1

SAFETY INSTRUCTIONS

The instrument can only work with the specially designed battery pack and power adapter (charger) supplied by Mitech Co. LTD.

Working with others may result in damage of the instrument, battery leakage, fire or even explosion.

1. Do not cast the battery pack into fire and do not short circuit, disassemble or heat the battery pack, otherwise battery leakage,

fire or even explosion may occur.

2.Do not open the cover of the paper compartment or come into contact with the heating head of the printer by hand or any part of

 your body to avoid burns due to high temperature when the printer is printing.

     Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

     Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

     Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

     Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

 During the whole business process, we offer Consultative Selling service.

4)Production and delivery process:

      We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

      After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

      Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

      Defines installing those products in the field and providing after-sales support.
