LIYI Vicker Microhardness Tester Price

Supplier: Guangdong Liyi Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Victoria Lee
Price: $580.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Warranty:	12 months
duration:	1-99s	Name:	Vickers Micro Hardness Tester Price
Supply capacity:	100 sets per month	Reading hardness value:	Digital LCD screen
place of origin; place of origin:	Guangdong, China	model:	LY-1000
scale:	HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T	Hardness value range:	1HV-4000HV
Custom Support:	OEM, ODM, OBM	net weight:	45kg
port:	Shenzhen, Guangzhou, Hong Kong	Dimensions:	490185515mm(LWH)
power supply:	110V/220V + 5%, 50/60 Hz	Packaging Details:	wooden box
Load method:	Automatic (load, pause and unload test force)	Packaging Preview:
brand:	conception	Specimen with maximum allowable height:	85mm
type:	Hardness Tester

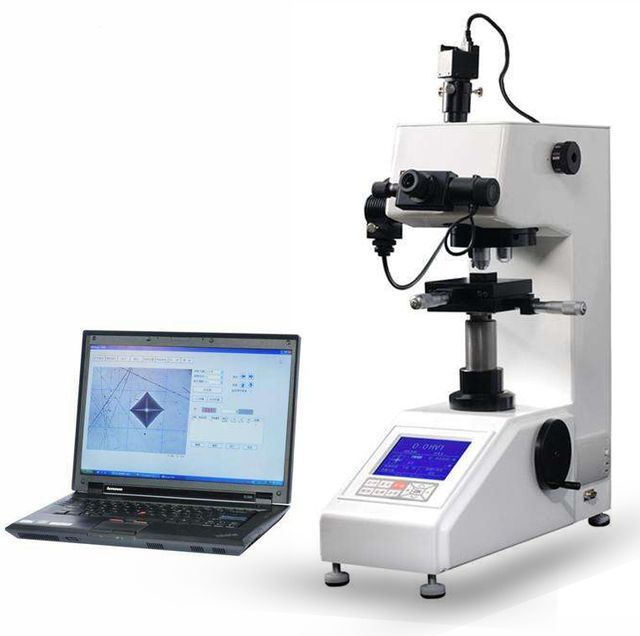

LIYI Vickers Micro Hardness Tester Price

Product Description

feature:

1. The machine has a self-checking function. When the machine is turned on, the tool holder will automatically check whether the position of the tool holder is correct and automatically calibrate.

2. Using a 5.6-inch full-color high-resolution touch screen, the operation interface has a new and advanced design.

3. With HV&HK scale & hardness conversion function.

4. Digital eyepiece with encoder, D1, D2 data do not need to be manually input into the machine, and the operation is simple.

5. RS232 interface, the test results can be saved to the PC device.

6. Menu structure interface, all data can be displayed on the screen.

7. One-time cast aluminum shell, more stable structure.

8. Car spray painting process, looks more decent and bright.

9. Reserve optical path for adding CCD camera and connecting with PC (optional function).

Product effect

Specification

Model		LY-5.6
Hardness Tester		HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
conversion scale		HRA, HRB, HRC, HBS, HBW, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK
Test force	girlfriend	10, 25, 50, 100, 200, 300, 500, 1000
	n	0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8
Operation	focus	Manual focus
	loading	Auto load-dwell-unload test force
	turret	automatic turret

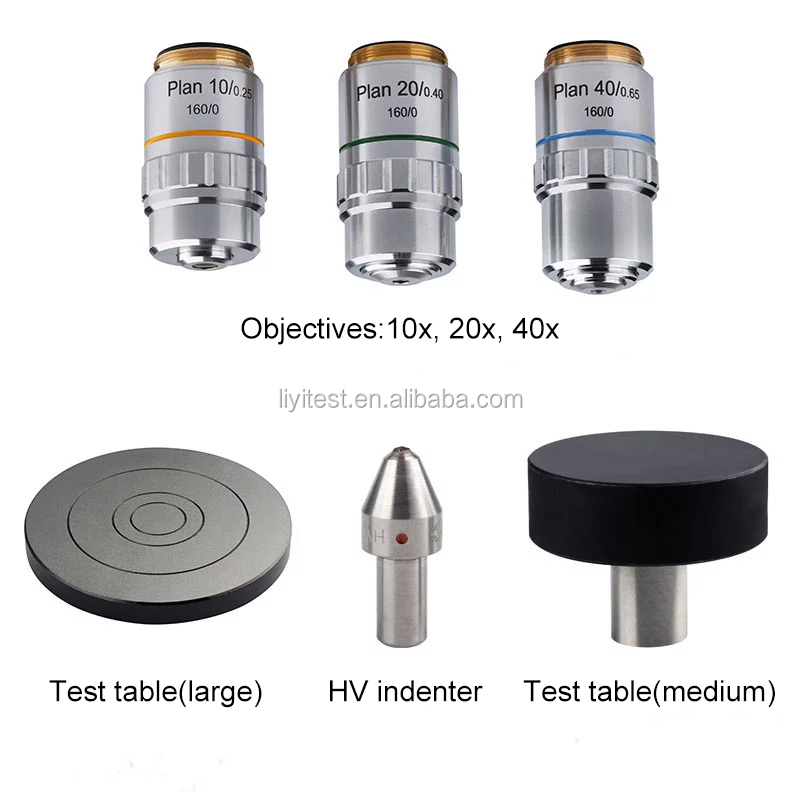

enlarge		10X digital eyepiece; 10X, 40X objective Total magnification: 100X (observation), 400X (measurement)
indenter		Standard Micro Vickers Diamond Indenter 136°±0.5°
dwell time		1-99s (unit: 1 second)
Data Display		5.6-inch digital touchscreen
data storage		Yes, turning off the machine memory will automatically save
data output		Built-in printer
XY table		Size: 100x100mm; maximum. Movement range: 25x25mm
light source		Halogen lamp (more real and clear image, adjustable light source intensity)
test space		85x115mm (HxD)
weight		Net weight: 52kg; Gross weight: 61kg
size		Machine size: 490185515mm; Packing size: 630430860mm (LxWxH)
