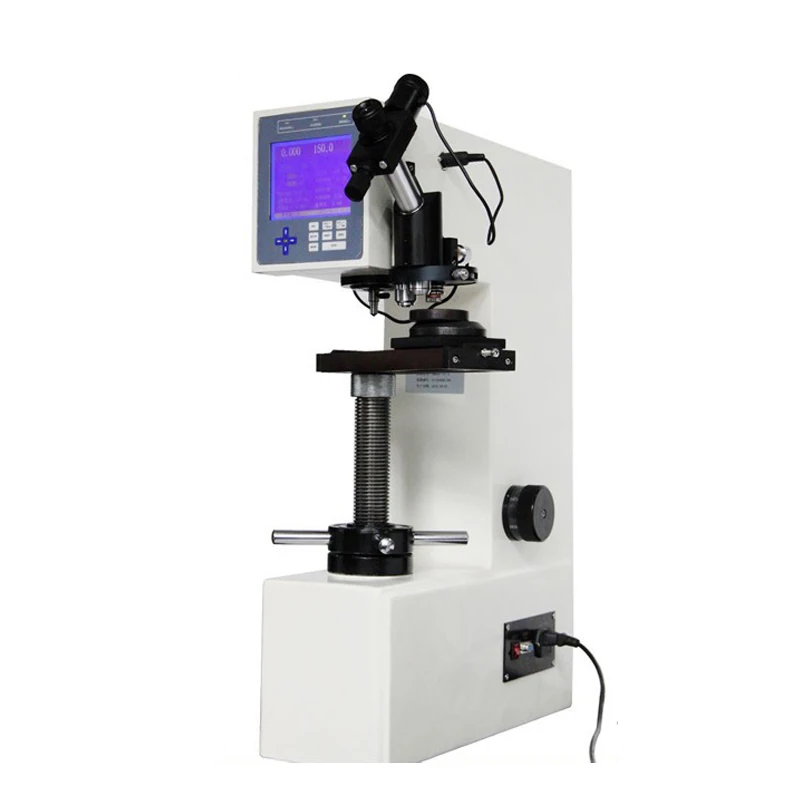

LIYI Manufacture Brinell, Rockwell, Vicker All In One Digital Universal Hardness Tester Price

Product details
Dwell time:1~60s;Packaging Detail:Standard export carton box;
Rockwell scale:HRA, HRB, HRC, HRD,HRE, HRF,HRG,HRH,HRK;Customized support:OEM,ODM;
Vickers scale:HV30, HV100;Brand Name:LIYI;
Vickers Test force:30Kg(294.2N),100Kg (980.7N);Amplification times:37.5X,,75X;
Certification:ISO;Brinell scale:HBW2.5/31.25,HBW2.5/62.5,HBW5/62.5, HBW2.5/187.5;
Specimen maximum height allowed:Rockwell: 170mm Brinell, Vickers: 140mm;Hardness data read:Big digital LCD;
Type:Universal Hardness tester;Supply Ability:100 Set/Sets per Month;
Brinell Test force:31.25Kg(306.5N),62.5Kg (612.9N), 187.5Kg (1839N);Rockwell Test force:60Kg (588N),100Kg (980.7N),150Kg(1471N);
Package Preview:;Place of Origin:Guangdong China;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Escrow;Warranty:12 months;
Port:Shenzhen,guangzhou,hongkong;

LIYI Manufacture Brinell, Rockwell, Vicker All In One Digital Universal Hardness Tester Price

Product Description



     Multi-function digital display universal hardness tester have high degree of automation, stable and reliable performance, equipped with sophisticated sensors, test is more accurate; A 5.6 inch industry screen provide comprehensive data for quality control, through hardness transmission software export test data into the computer conveniently, easy to long term preservation.

Main Uses:

1. Chilled steel, quenched and tempered steel, annealing steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.

2. Cast iron, nonferrous metal, especially for soft metal, such as pure aluminum, lead, tin, etc.

3. Carburizing, nitriding and decarburization layer, the surface hardening layer, electric plating and coating.

Specifications



Rockwell scale

Test force

HRA, HRB, HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR

60Kg (588N),100Kg (980N),150Kg(1471N)

Brinell scale

Test force

HBW2.5/31.25,HBW2.5/62.5,HBW5/62.5, HBW2.5/187.5

31.25Kg(306.5N),62.5Kg (612.9N), 187.5Kg (1839N)

Vickers scale

Test force

HV30,HV60,HV100

30Kg(294.2N),60kg(588N),100Kg (980N)

Conversion Scale

HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T

Initial test force

10Kg(98.0N)

LCD Screen size

118x99mm

Resolution ratio

0.1HR

Amplification of microscope

37.5X, 75X

Hardness value range

Rockwell: 20~88HRA 20~100HRB       20~70HRC

Brinell: 8~650HB

Vickers: 8~3000HV

Hardness value read

Big digital LCD

Loading method

Full automatic (load, dwell, unload)

Specimen maximum height allowed

Rockwell: 170mm

Brinell, Vickers: 140mm

Throat depth allowed

130mm

Dwell time

1~99S ( each step is 1 second)

Power supply

AC220V + 5%, 50~60 Hz , (AC110V available)

Data output

Built-in printer, RS-232 interface (Export data to the computer for long time preservation)

Executive standard

GB/T230.2,GB/T231.2,GB/T4340.2,ASTM E18,ISO 6508,JJG112,JJG150,JIS B-7734

Optional accessories

Hardness measurement software, brand computer, printer, standard hardness block, standard indenter

Product Effects



Related Products

Company Information

     Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

     Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

     Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

     Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



FAQ
1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
     Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven, vacuum oven, Universal Tensile testing machine, Environmental Climatic chamber, Muffle furnace etc. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

     Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What’s the delivery term?
     For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
     Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4.How can I install and use the machine?
     Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
     Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
Our Services

 During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

      Discussing testing requirements and technic details, suggested suitable products to customer to confirm.   Then quote most suitable price according to customer requirements.

2)Specifications customize process:

      Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

     We offer below business term:

+

Accepted Delivery Terms:

FOB, CFR, CIF, EXW, DDP

Accepted Payment Currency:

USD, EUR, HKD, CNY

Accepted Payment Type:

T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow

Nearest Port:

Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

      We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

      After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

      Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

      Defines installing those products in the field and providing after-sales support.
