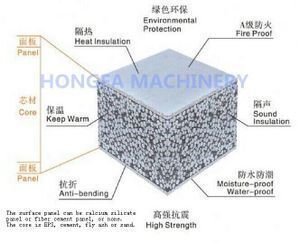

Light weight foam/eps wall panel production line by the programmable control of the electromechanical hydraulic integration of hydraulic molding machine, with a variety of random mold, the production of lightweight composite wall panels. Based on the combination of light high strength, thermal insulation, sound insulation and other properties of the comprehensive requirements to the most advanced with a light high strength, good stability of non-asbestos fiber cement board for the external structure of the panel to take the styrene particles light Concrete for the core material of the new energy-saving solid light composite wall panels. Through the deep research of the system, the composite structure and the splicing structure, the ratio of the panel and the core material and the preparation process parameters are further optimized to improve the mechanical, thermal, sound insulation, fireproofing and durability of the composite strip wall. Is currently the world's most promising new wall materials.
The composition and function of equipment
1, the equipment composition: from the mixing floor, vertical double-panel wall forming machine, mobile flip stripping platform, ferry, hydraulic system, electrical system composed of six parts.
1.1 mixing plant by the cement warehouse, metering system, mixer, stirring support platform and other components, the raw materials for measurement and mixing.

1.2 vertical double-panel wall forming machine from the rack, fixed plate, the middle plate, the activity board, hydraulic system and other components, the mold clamping fixed.

1.3 mobile flip stripping platform by the mobile rack, flip platform, hydraulic system and other parts, the shape of the wall after the demoulding.

1.4 pouring ferry, for the delivery of vertical double-wall forming machine to the mixing tower below the casting and pouring out after the completion of the group set the resting.

1.5 hydraulic system consists of hydraulic stations, pipelines and cylinders and other components, all using well-known brands at home and abroad, its reliable performance, accurate control. The hydraulic station consists of a fuel tank, a motor high pressure pump group, an integrated valve block group, a cooler and an oil return filter. At the same time, the fuel tank is equipped with a temperature measuring and liquid level gauge and a filter plugging device. When the filter is blocked, Filter element.

The machine layout, inspection, installation and preparation
     The installation of the machine layout should be based on the production site, product process requirements to determine, in principle, require mixing, ferry pouring, wall forming, stripping flip, maintenance turnover does not interfere with each other, it is recommended to install the base map layout.
Before installation, the installation and operation personnel should carefully read the relevant information, make the installation plan and the necessary preparatory work. According to the basic figure to check the basic size, in which the level of each part of the plane should meet the requirements of the drawings, the base surface should be used cement pouring.
Note: The embedded parts and guide rail position to be accurate, solid, the basis to meet the design requirements to achieve the required installation strength.

Production process
The different requirements of the raw materials required to measure and then placed in the mixer mixing, vertical double open wall forming machine equipped with a good mold, ferry transport vertical double open wall forming machine along the guide to move to the bottom of the mixing floor for grouting, grouting Complete the wall forming machine to rest. After the hardening of the wallboard, the vertical double-wall forming machine is started to start on both sides. The mold is turned to the two sides of the molding machine, the product is stripped, the platform is rotated 90 degrees and the forklift moves to the rear of the turning platform The wall will be forked, thus completing a working cycle.

Technical Parameters

1, hydraulic system rated pressure: 20Mpa
2, voltage: 380V
3, the production specifications:
Length: 2440 ~ 3000mm
Width: 610 mm
Board thickness: 60 ~ 150 mm

Raw Materials
foam(eps)crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
