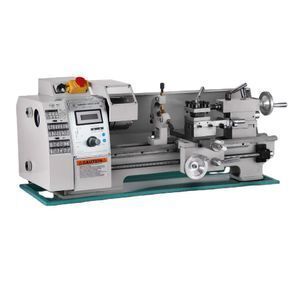

8 x 16 Inch 750W Precision Mini Metal Lathe 2500 RPM Micro Metal Milling Bench Top Lathe Machine with Digital Display (8 x 16 In
-
Supplier: Shanghai Sihao Machinery Equipment Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Marketing VEVOR -
Price: $599.00 /set -
Min. Order: 1 set
Product details
| Travel (X Axis)(mm): | 54; | Brand Name: | sihao; |
| Port: | shanghai; | Max. Swing Diameter (mm): | 210 mm; |
| Marketing Type: | Ordinary Product; | Distance Between Centers: | 15-3/4inch (400 mm); |
| Power(W): | 750w; | Max. Length of Workpiece (mm): | 400 mm; |
| Number of Axes: | 2; | Width of bed (mm): | 100; |
| Footprint: | 31-1/2 x 10-1/2 inch; | Swing Over Bed: | 8-1/4inch (210 mm); |
| Year: | new; | Key Selling Points: | Easy to operate; |
| Spindle Speed Ranges: | Low 50-1250, high 100-2500 RPM; | Machinery Test Report: | Provided; |
| Machining Capacity: | Light Duty; | Certification: | CE Certificate; |
| Place of Origin: | Shanghai China; | After-sales Service Provided: | Online support,Video technical support; |
| Video outgoing-inspection: | Provided; | Weight: | 76kg; |
| Type: | HORIZONTAL; | Voltage: | 220V; |
| Supply Ability: | 100000 Set/Sets per Month; | Warranty: | 2 years; |
| Weight (KG): | 76; | After Warranty Service: | Online support; |
| Max. Spindle Speed (r.p.m): | 2250 r.p.m; | Dimension(L*W*H): | 84*47*38cm; |
| Structure: | Flat Bed Lathe; | Warranty of core components: | 1 YEAR; |
| Inch Threads: | 8-44 TPI; | Core Components: | other; |
| No. of Spindles: | 2; | Cross Slide: | 4-5/8inch (117 mm); |
| Spindle Motor Power(kW): | 750; | Spindle Bore(mm): | 21 m'm; |
| Metric Threads: | 0.5-3.0 mm; | Packaging Detail: | one set in a carton box; |
| Travel (Z Axis)(mm): | 76; | Applicable Industries: | lathe; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Tool Post Stations: | 4; |
| Local Service Location: | none; | Showroom Location: | none; |
| Condition: | New; | Tailstock: | Taper MT#2; |
| Model Number: | 210ZXJCC000000001V2; |
8 x 16 Inch 750W Precision Mini Metal Lathe 2500 RPM Micro Metal Milling Bench Top Lathe Machine with Digital Display (8 x 16 In
Product Description
This precision 8" x 16" Variable-Speed Lathe is designed to perform various types of metal, jade and wood turning. It is perfect for a sturdy workbench or as a stand-alone unit when mounted on a suitable stand. It can be used in areas such as mini precision parts processing, sample processing and modeling works. It is both perfect for hobbyists and modelers who is looking to add finite detail to their construction project. It features variable-speed spindle with high and low speed ranges and convenient quick-lock tailstock.
Application
- Suitable for turnings of metal, wood, jade, etc.
- Ideal for use in labs, workshops, engineering and education.
- Can be turned within foreign aid, turning thread, turning taper and so on.
Product Advantages
- Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized or adjusted by lateral movement.
- Spindle speed can be adjusted from 50 to 2500 RPM (50-1250 low, 100-2500 high).
- Equipped with all-metal gears, this machine is wear-resistant, durable, more accurate rotation and professional.
- Multi-function automatic tool.
- Accurate operation and professional performance.
Features:
- Variable spindle speed of 50-2500 RPM
- All metal gears, shell and hand wheel
- High precision, able to turn out standard qualified works
- 750W strong power, 400mm (15-3/4") processing distance
- Automatic tool, infinitely variable, professional tool post
- Telescopic sets with scale
- Wear-resistant, durable, accurate and professional
Technical:
- Swing Over Bed: 8-1/4" (210 mm)
- Cross Slide 4-5/8" (117 mm)
- Distance Between Centers: 15-3/4" (400 mm)
- Motor Power: 750W
- Spindle Speed Ranges: Low 50-1250, high 100-2500 RPM
- Travel: compound rest 2-1/8" (54 mm), cross slide 3" (76 mm)
- Tailstock: Taper MT#2
- Tail Sleeve: φ1" (25 mm)
- Hole Thru Spindle: φ0.83" (21 mm),taper MT#3/MT#5
- Feed speeds: (3) 0.0037"–0.0071"/rev
- Inch Threads: 8-44 TPI
- Metric Threads: 0.5-3.0 mm
- Footprint: 31-1/2" x 10-1/2"
- Spindle Accuracy: 0.0004-0.0012" (0.01-0.03 mm)
- Main Engine Gross Weight: 128 lbs (58 kg)
- Main Engine Package Dimensions (L* W* H): 36* 19* 17" (91* 48* 44 cm)
- Standard Equipment:
- 4" 3-Jaw and 4-jaw chucks
- Steady rest & follow rest
- 4-Way turret tool post (3/8" max tool size)
- MT#2 & MT#3 dead centers
Packaging & Shipping
- 1 X 8" x 16" Variable-Speed Lathe
- 1 X Tool Storage Box
- 1 X 4" 3-Jaw Chuck
- 1 X 4" 4-Jaw chuck
- 1 X Oil Can
- 1 X Set of Accessories
- 1 X User Manual
Company Information
| Company Name | Shanghai VEVOR Machinery Equipment Co., Ltd. |
| Business Model | Manufacture |
| Place of Origin | Shanghai,China(Mainland) |
| Delivery Time | 5~10days |
| Minimun Order Quantity | 1 set |
| Payment | T/T ; L/C; PayPal |
| Warranty | 2 Years |
