SJ 25 Mini Plastic Extruder

Supplier: Zhangjiagang Friend Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Wei Yuan
Price: $3200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Jiangsu China;	Package Preview:	;
Power (kW):	1.5;	Screw diameter (mm):	25;
Condition:	New;	Packaging Detail:	SJ 25 Mini Plastic Extruder will be packed by standard wooden case.;
Dimension(LWH):	1100X800X1200mm;	Warranty:	1 YEAR;
Voltage:	380v 50hz;	Color:	Can be customized;
Temperature Control Meter:	RKC;	Type:	SJ 25 Mini Plastic Extruder;
Weight:	200kg;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Power:	1.1KW-5.5KW;	Contactor:	Siemens Contactor;
Plastic Processed:	PE, PP, PVC ABS and so on;	Screw and Barrel:	Jinjiu Screw;
Certification:	IS09001,ISO9001;	Brand Name:	Friend Mini Plastic Extruder;
Key Selling Points:	Easy to operate;	Screw L/D Ratio:	28:1;
Converter:	ABB Frequency Converter;	Screw Design:	Single-screw;
Payment Terms:	L/C,T/T,Western Union;	Application:	BAR,wire,PIPE,Marking Line,Use in lab, or extruding marking line;
Output (kg/h):	0.5 - 3;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Screw Material:	38CrMoAl;

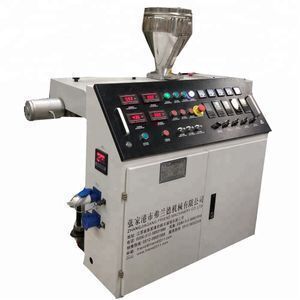

SJ 25 Mini Plastic Extruder

1. Simple description of Mini Plastic Extruder :

The SJ25 Mini Plastic Extruder is mainly used for experiment, that used for testing and extruding thermo-plastic such as soft hard polyvinyl chloride (PVC) and polystyrene(PE) coordinated with the appropriate auxiliary machine,(including the die).

This Mini Plastic Extruder is advanced in design, good in plasticization and low in energy consumption. The extruder is characterized by low noise, stable working, big bearing capacity and long service life.

2. Mini Plastic Extruder Main Technical Standards:

Model No. SJ25 Mini Plastic Extruder

25 mm

30:1

38CrMoAlA

HV900-1000

0.4-0.7 mm

<0.015 mm

1.1KW

Casting Aluminum Heater

3Periods(Screw Barrel 2periods,Head Piece 1 Periods)

1.5KW*3=4.5KW
