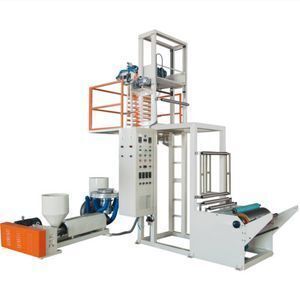

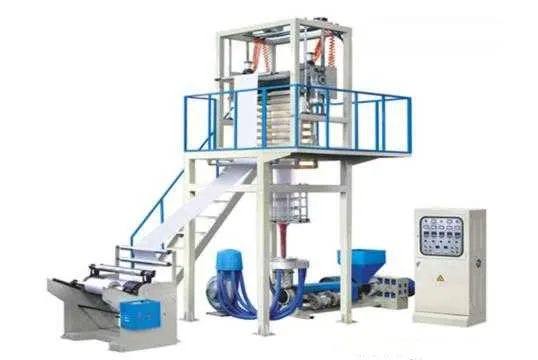

LDPE/LLDPE blowing film extrusion line/production line/making machine

Supplier: Zhangjiagang Friend Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Wei Yuan
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	optional;	Voltage:	380V 50HZ or required;
Port:	shanghai;	Weight:	3t;
Condition:	New;	Warranty:	1 Year;
Packaging Detail:	LDPE/LLDPE film blowing extrusion line with plastic film and wooden case;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	Friend;	Suitable for:	plastic film making;
Application:	Film;	After-sales Service Provided:	No after-sales service,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;	Screw Design:	Single-screw;
Dimension(LWH):	CAPACITY;	Certification:	CE;
Power(W):	11-55KW;	Place of Origin:	Jiangsu China;
Plastic Processed:	PVC/TPU/TPO/LDPE/LLDPE;	Automatic Grade:	Automatic;
Supply Ability:	90 Set/Sets per Year LDPE/LLDPE film blowing extrusion line;

LDPE/LLDPE blowing film extrusion line/production line/making machine

Product Description

High and low-pressure polyethylene dual-purpose film blowing machine unit is used to blow various plastic films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE). The films can be widely applied to packaging for industrial products, textiles, apparel and food and agricultural coverage. The cylinders and screw rods of extruders in mentioned models are all made from high-quality alloy steel through precision machining and nitriding, so as to ensure optimal hardness and corrosion resistance. The auxiliary extruder is provided with a platform rail worktable to be operated more conveniently. The winding device adopts torque motor as the power to keep suitable tension, orderly winding and convenient roll replacement.

Main Technical Variables:

Model	SJ-50/FM600	SJ-55/FM800	SJ-60/FM1000
Screw diameter(mm)	Φ50mm	Φ55mm	Φ60mm
Screw L/D Ratio	L/D28:1	L/D28:1	L/D28:1
Screw speed	10-100r/min	10-100r/min	10-100r/min
Power of main motor	11kw	15kw	18.5kw
Max. Output	35kg/h	50kg/h	65kg/h
Film thickness	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Film Folding width	600mm	800mm	1000mm
Total Power	18kw	22kw	28kw
Machine of weight	2800kg	3200kg	3800kg
Overall Dimension(L×W×H)	4200×1800×3600mm	4400×2000×3800mm	4600×2300×4500mm
