Road Construction 80TPH Asphalt Mixing Plant Machine

Product details
Warranty:1 Year;UNIQUE SELLING POINT:High operating efficiency;
Machinery Test Report:Provided;Product name:Road Construction 80TPH Asphalt Mixing Plant Machine;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,INSTALLMENT;Warranty of core components:1 Year;
Burner:ITALY EBICO;After-sales Service Provided:Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Video outgoing-inspection:Provided;Application:High-grade Asphalt Road Paving;
Showroom Location:Egypt,Philippines,Peru,Indonesia,Russia,Thailand,Kyrgyzstan,Malaysia,Morocco;Supply Ability:10 Set/Sets per Month Asphalt Mixng Plant Machine;
Voltage:220V/380V-50Hz;Package Preview:;
Local Service Location:Egypt,Philippines,Peru,Indonesia,Mexico,Russia,Thailand,Malaysia,Morocco,Kyrgyzstan;Bitumen Storage and Supplying system:30m3 Bitumen Tank;
Weight:50-130T;Marketing Type:Hot Product 2019;
Mixing Type:Batch Mix;Color:Client's Customized;
Dust Collection System:NOMEX Bag House Filter;Brand Name:SINOSUN;
Certification:ISO9001,CE,EAC;Core Components:PLC,Engine,Motor;
Mixer capacity:1000kg/batch;Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ,Highways airports;
Capacity:80t/h;Dimension(L*W*H):40X38.4X15.5m;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Condition:New;
Packaging Detail:Road Construction 80tph Asphalt Mixing Plant Machine is packed by 40HQ Container and 20GP container.;Power:250kw;
Control system:Full-automatic control system;Place of Origin:Henan China;
Port:Qingdao, Tianjin, Shanghai Port,or other China port;

Road Construction 80TPH Asphalt Mixing Plant Machine

Product Description

SINOSUN machinery has been engaged in manufacturing asphalt mixing plant for many years.

SAP80 asphalt mixing plant is stationary type asphalt plant.



The characteristics of SAP80 asphalt mixing plant

1. The SAP series asphalt plant adopts modular structure, 3d drawing software of three-dimensional design, the layout can be combined to form a variety of configuration according to the construction requirements.

2. Smaller working site occupied, compact structure, it solves the difficulties due to the lack of space.

3. Simple foundation, easy to be installed and maintenance , easy-transportation and transfer.

4. Rational layout, novel and decent appearance

5. This series asphalt plant weighing system is more accurate.

6. Energy saving, environment protection, easy for operate, safty.

7. Main reducers/bearing/air system/weighing/PLC can adopt international famous brand according to the client’s demand.

Main components of SAP80 asphalt mixing plant

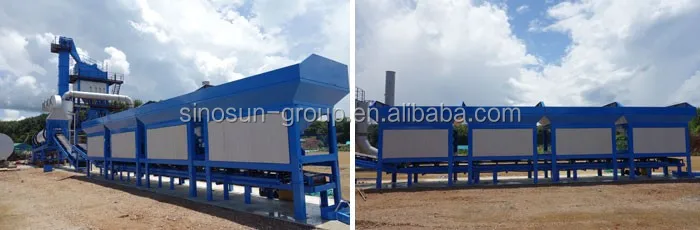

Cold aggregate supply system

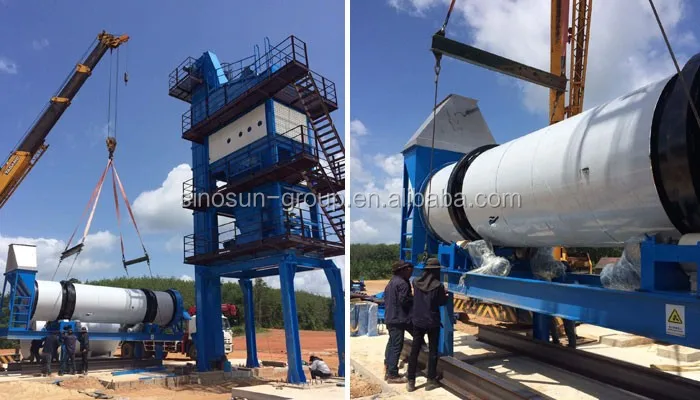

Mixing tower                                                                                            Dryer drum

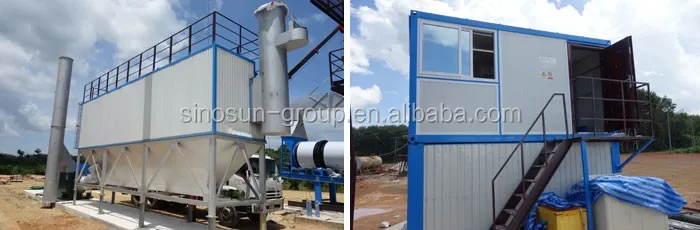

Bag house filter                                                                                       Control room

Technical Parameter

Technical parameter of SINOSUN SAP80 fixed asphalt mixing plant

Capacity

SAP80

80t/h
Water rate<5%

Max capacity of oblique belt machine

Width 500mm

80t/h

Max capacity of dry roller( mm)

1600×6800

80t/h

Max burning amount of burner

Coal burner

1300kg/h

Filtrating area of bag dust collector( m2)

Pulse Jet

400

Recycling screw conveyor

12t/h

Blower

900m3/(m)
×3500pa

Flue pipe( mm)

1200×9600

Max. capacity of hot aggregate elevator

Chain elevating

110t/h

Max. capacity of vibrating screen

80t/h

Interval capacity of hot aggregate hopper

4 interval type

Weighting device

Remote display of electronic gauge)

Aggregate:±0.3%

Bitumen :±0.15%

Fine aggregate:±0.3%

Mixer

Double-axis forcing stirring batch

Single-unit drive 1000kg/lot

Discharging amount of bitumen injector

Self-flow

300L/min

Max. capacity of filler elevator

Hopper elevating

15t/h

Spiral conveyor

15t/h

Operating panel

Computer display

Drive panel

Indoor type

248kw

Packaging & Shipping

Project

For over years, we supplied the asphalt industry with high quality asphalt batching plant parts, mobile asphalt mixing plant,continous asphalt mixing plant and other reletaed products.

Our asphalt  plant products are cost effective, user friendly, easy to maintain and strong after - sales services.

Now these asphalt plant products  have been widely used in home and abroad road construction project, such as Russia, USA,Thailand, Romania , Poland , Brazil , Philippines , Indonesia, Peru, Canada, Bangladesh etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya etc.





Related Products
40-400TPH Stationary Asphalt Plant 40-160TPH Mobile Asphalt Plant 20-120TPH Drum Mix Asphalt Plant
6-10TPH Emulsion Bitumen Plant 4-10 TPH Bitumen Melting Machine Bitumen Tank for Asphalt Plant



Company Information

SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.

We mainly supply:

1.Stationary asphalt batching plant (SAP series)

2.Recycle asphalt mixing plant (RAP series)

3.Mobile asphalt mixing plant ( MAP series)

4.Continuous asphalt mixing plant (CAP series)

5.Twin-shaft asphalt mixing plant (QLB series)

6.Twin-drum asphalt mixing plant (SLB series)

Our Services

FAQ

Q:Which countries your equipment have been exported?



A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.



Q:How many workers are needed to operate one set of asphalt plant?



A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.



Q:How many days are used for installation of one set asphalt plant?



A:Around 20-30 days, according to local situation.



Q:Do you provide overseas erection and training service?



A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.



Q:How long is the delivery time?



A:30-40 days, according to different configuration. We promise to delivery on time.



Q:Can you sent me some spare parts freely?



A:Some spare parts will be sent to you together with asphalt plants freely.



Q:How to go to your asphalt plant factory easily?



A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.



Q:Can I visit your factory?



A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.



Q:How long is the warranty of your asphalt plant?



A:12 months



Q:What payment terms you accept?



A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways  according to the practical situation.
