Voltage: | 110/220v; | Local Service Location: | none; |
Packaging Detail: | pack with PE and Carton; | Core Components: | Gearbox,Motor; |
Video outgoing-inspection: | Not Available; | Package Preview: | ; |
Payment Terms: | D/P,T/T,Western Union,Paypal; | Suitable for: | Medical; |
Function: | Packing Filling; | Application: | Packing Capsule; |
After-sales Service Provided: | Video technical support,Online support; | Brand Name: | Aguide; |
Port: | Shanghai Port; | Showroom Location: | none; |
Power: | 80w; | Applicable Industries: | Pharmacy & Clinic & Hospital; |
Condition: | New; | Bag type: | Stand-up Bag; |
Machinery Test Report: | Not Available; | Key Selling Points: | Easy to Operate; |
Marketing Type: | New Product 2020; | After Warranty Service: | Video technical support; |
Power Supply: | 220V/380V/110; | Product name: | Auto-print Packing Machine Powder filling packing machine for pharmacy; |
Usage: | Capsule; | Supply Ability: | 200 Carton/Cartons per Week; |
Weight: | 100kg; | Packing material: | PE Material; |
Dimension(L*W*H): | 1105*360*1270mm; | Warranty of core components: | 1 Year; |
Warranty: | 1 Year; |

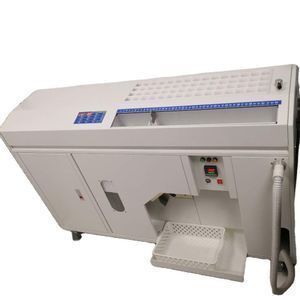

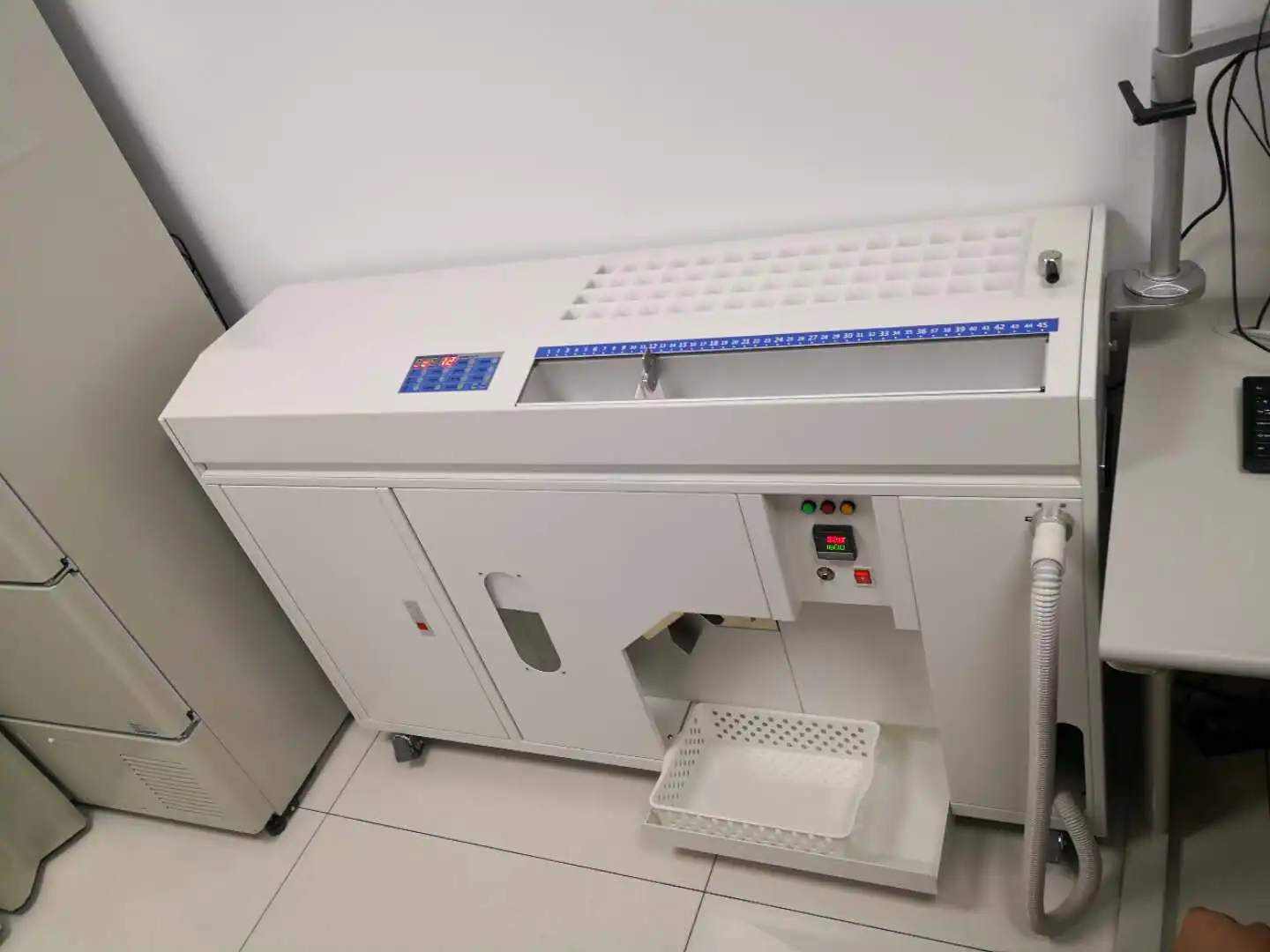

Amazon pillpack Auto-print Packing Machine Powder filling packing machine for pharmacy hospital
Model | Tablet&Powder packing machine |
Size of package | 7*7,7*9,7*10(cm) |
packing paper | Folded Glassine Cellophane,Aluminium Foil |
Operation |
1.Stand-alone Operation 2.Online Operation |
Package | Tablet,Powder |
Print method | Termal Transfer Printing |
Packing Speed | 30-40 per minute |
Printing Speed | the same speed |
Print content | Name of Pharmacy,User name,Date,Administration,Medicine Name(Support 5 lines) |
Size of Machine |
W*D*H:1000*360*870mm With PC W*D*H:1105*360*1270mm |
Total Weight |
97kg-130kg |
Rated Voltage |
AC/110V /220V 50/60HZ 50W |
Vacuum set |
Built-in Industrial Vacuum Cleaner Durable than household Vacuum Cleaner |
Print set | with button | PC |
Printer content | Administration,date, Number of packages | Name of Pharmacy,User name,Date,Administration,Medicine Name,Number of packages,Tel, address,URL |
Display Function | LCD display,separate button | connection,receive infomation of medicine from Hospital ,Pharmacy |
Print direction | landscape orientation | landscape orientation |
Print area | 56*70 mm | 56*70 mm |
Print size | Fullwidth form up to 100 times | set by yourself |

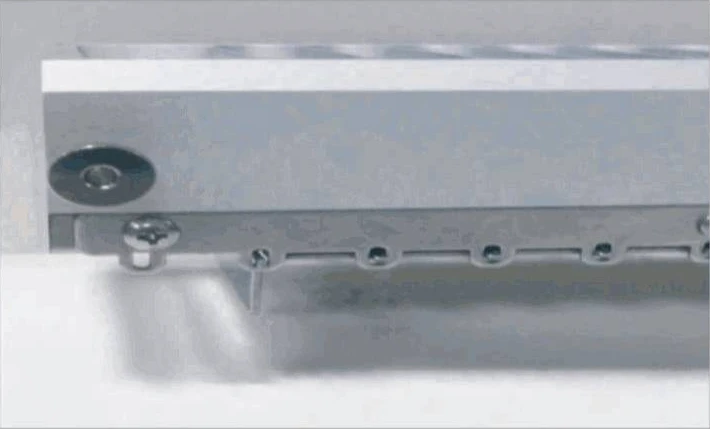

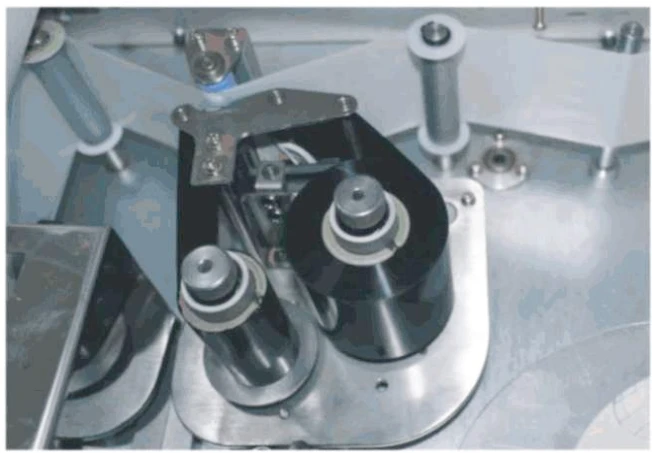

Thermal Printer Module
User can print the information (ex. Anamnesis No, Name, Date, Medicine name,Administration, bar code, etc…) on the packing paper.
And we use the small size print heat to make the cleaning and changing ribbon easier.

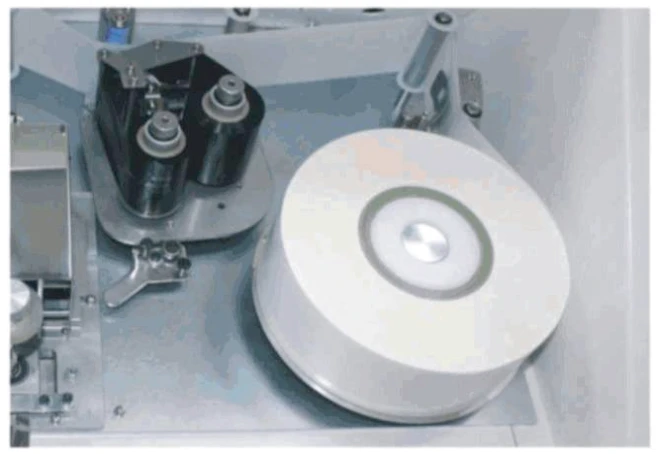

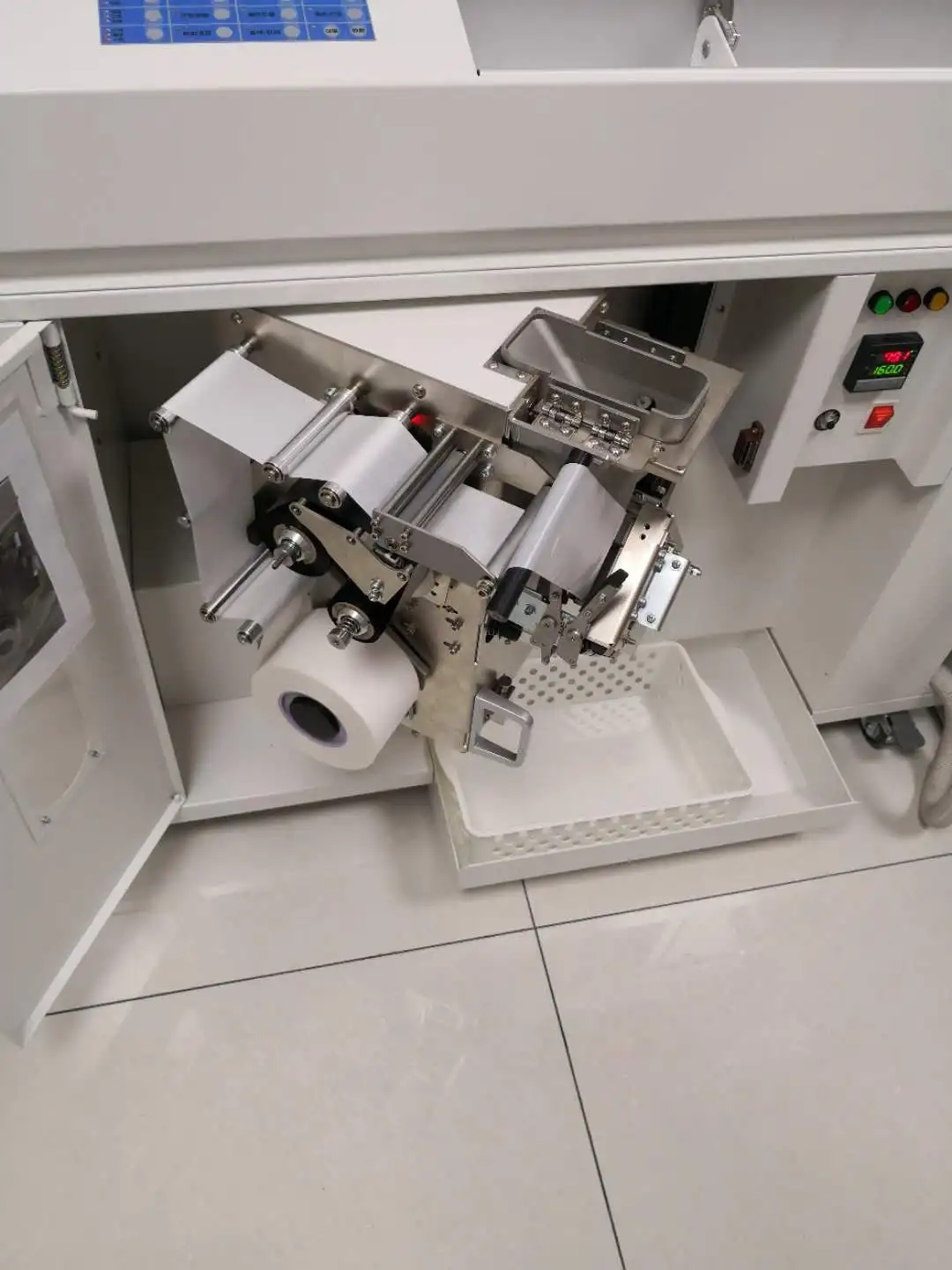

Brand New Mechanical Structure
We use the folded packing paper to make changing packing paper easier. Packing paper can be divided into 3 sizes: 7X7, 7X9, 7X10(cm).
Temperature sensor is fixed on pressure sealer. According to different material of packing paper, user can control the temperature via panel.

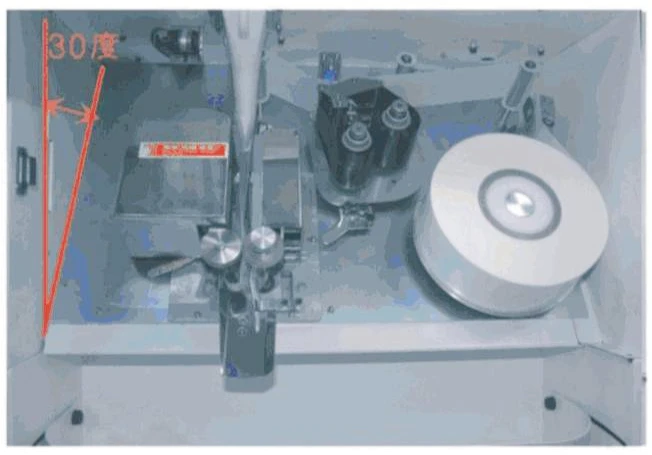

An Innovative Board Set Up
Packing paper and heat sealer are parallel assembly, making the print more clearly to see.
The board is setting on machine by 30° tilt, and make the cleaning and changing packing paper/ribbon easier.

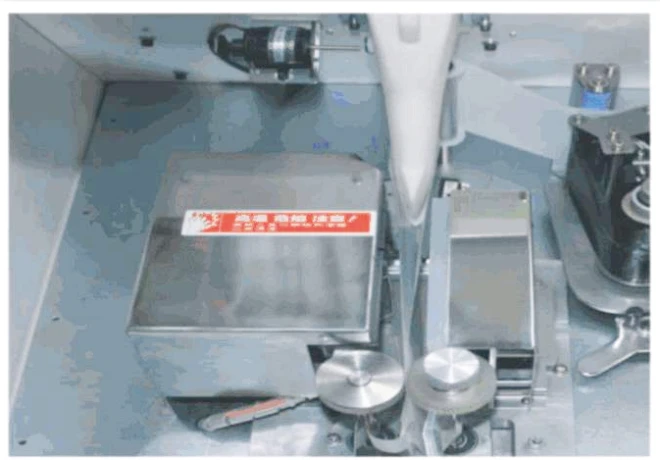

Brand New Sealer Design
Design patent of the Bilateral Opened Pressure Heat Sealer can pack without touching the medicine and increase the package capacity of medicine.

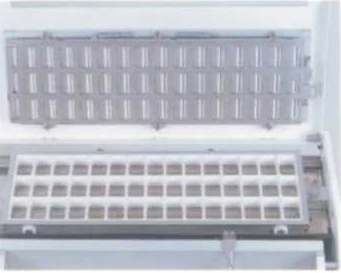

wo-tier Tablet Plate
A new design patent of the Bilateral Movable Tablet Plate can reduce the volume of machine, save time and improve work efficiency.
Straight Drop Powder Groove
Powder Groove is corrosion resistance with aluminum alloy. The movable back cover can open 90° horizontally, so the powder isn’t easier to be left over.
(Capacity of powder container is at least 8g.) Powder splitter slot moves with the number of packages. Machine can clean the powder groove automatically.
When the moveable back cover is misdirected, machine will automatic guide it back to right position.
Machine without Network Operation Mode
This machine can perform medicine packaging operation independently. The operation on panel display in Chinese.
And it also displays the Code of device failure, temperature of the heat sealer.

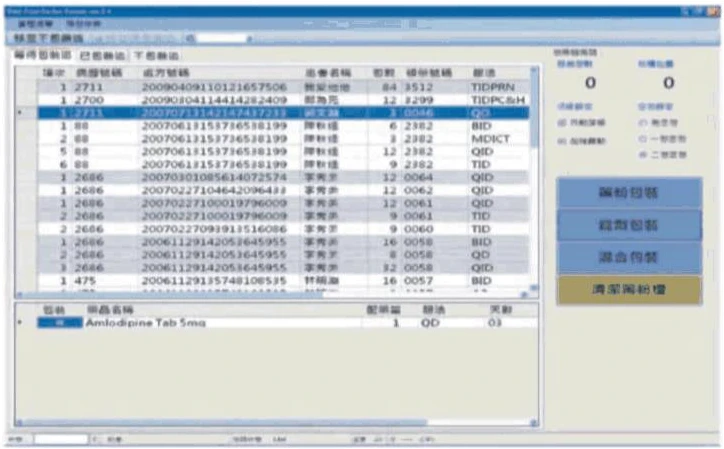

Connection Operating System (Touch Screen)
It can connect to HIS and other system for data transmission. So the information can be print on packing paper.
And user also can select empty packaging or prepackaging in operating system.
