Input voltage: | 100v~240v wild range; | product name: | MINI DC POE UPS; |
Application: | Networking; | Single package size: | 10.7X16.8X3.1 cm; |
Phase: | Single Phase; | Weight: | 0.6kg; |
transfer time: | 0ms; | Place of Origin: | Guangdong China; |
Package Preview: | ; | Brand Name: | SKE; |
Single gross weight: | 0.6 KG; | Protection: | Short Circuit; |
Battery Type: | Lithium Battery; | Color: | Black; |
case: | Black; | warrenty: | 1 year; |
Warranty: | 1year; | Type: | On-line; |
Model Number: | POE 30W; | dimensions: | 105*160*28mm; |
Selling Units: | Single item; | Packaging Detail: | 1.Inner: color box; 2.Outer: Standard export carton; 3.Customized package.; |
battery capacity: | 2200mah*4pcs; |
•With Li battery 8800mAH

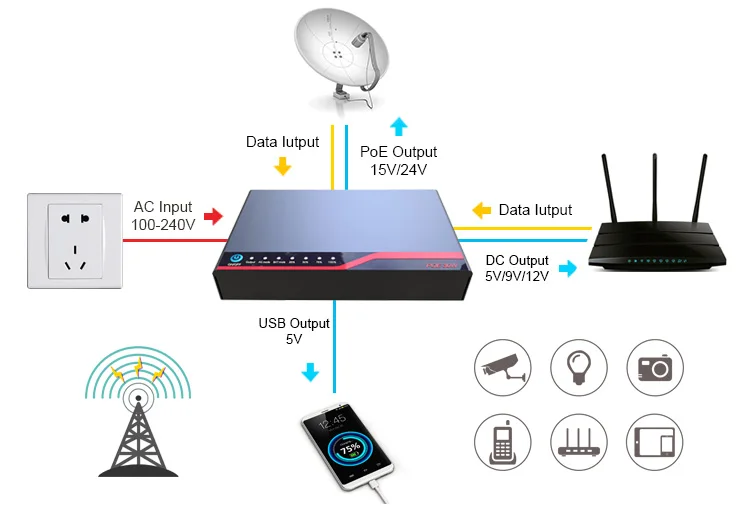

•DC 5v,9v/12v15v/24v selectable
•With POE port
•Input Voltage :100V - 240V AC

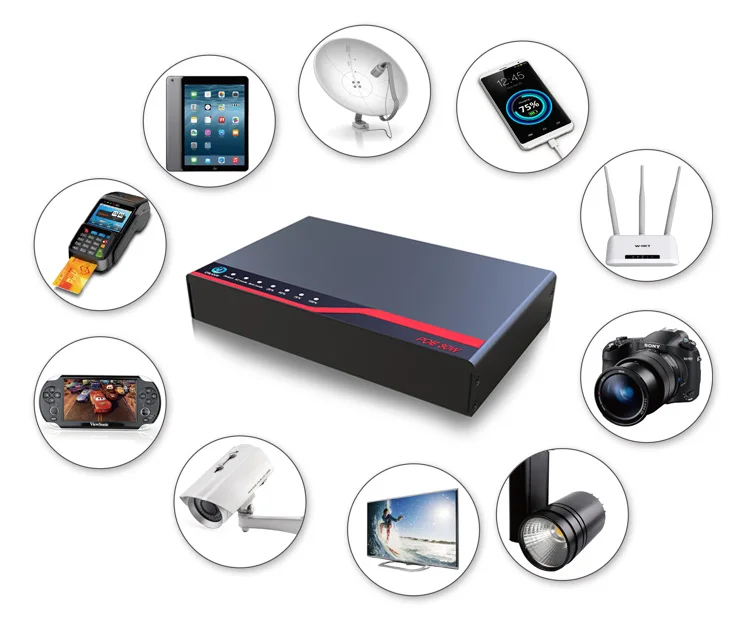

•Small DC communication equipment, network peripherals such as: Modem, routers ,IP camera etc.
•Constant DC output, long backup time, smart chip control, zero transition.
Model | POE30W | |||
Input voltage | 100~240Vac/50-60Hz | |||
Output power(Max) | 30W | |||

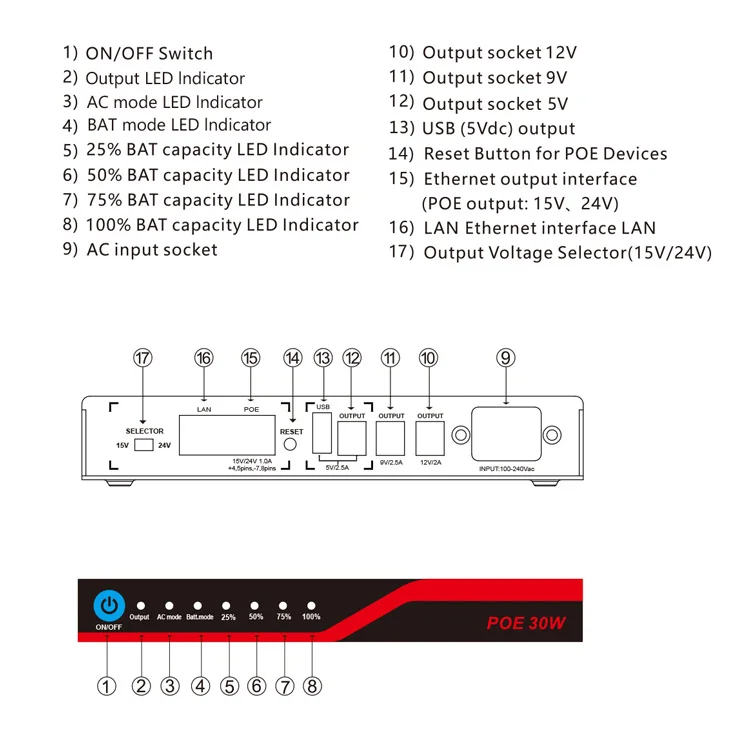

Output | USB/DC1 | DC2 | DC3 | POE interface |
Output voltage(Selectable) | 5V DC | 9V DC | 12V DC | 15V DC/24VDC |
Output polarity | +4,5pins -7,8pins | |||
Output power & current (in common) | 5V 2.5A | 9V 2.5A | 12V 2A | 15V 1.5A /24V 1A |
QTY.&capacity of battery | 2200mAhx4 | |||

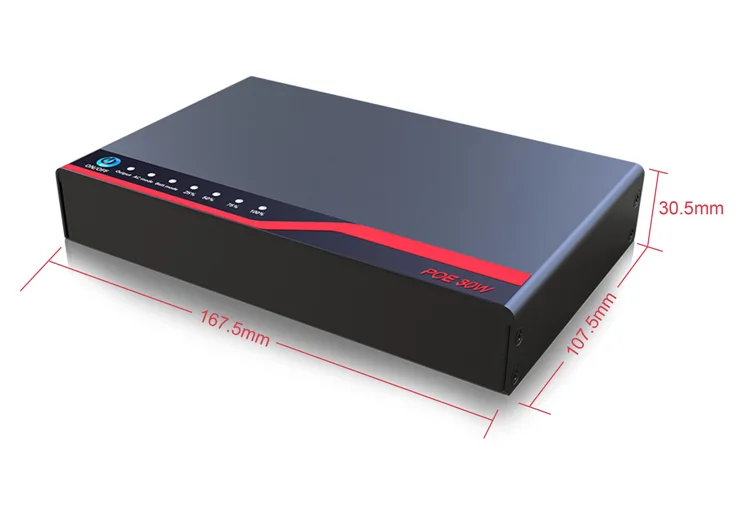

Unit dimension(mm) | 106.5x167.5x30.5mm | |||
Net weight(kg) | 0.6kg |
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
