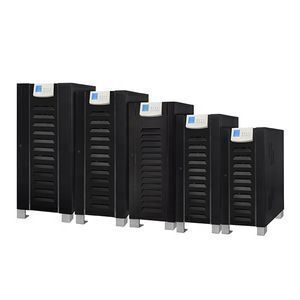

Three-phase UPS For Elevators UPS 20kva 40kva 200kva 100kw 200kw Price

Supplier: Shenzhen Smartkey Power Co., Ltd.
Region: Guangdong, China
Contact: Ms Maggie Gao
Price: $5050.00 /set
Min. Order: 1 set

Click here to contact

Product details

waveform:	pure sine wave;	Product name:	Online UPS;
Supply Ability:	1000 Set/Sets per Month;	Weight:	573kg;
Packaging Detail:	3-Phase Industrial uninterruptible power supply Online UPS 100KVA;	Type:	On-line;
Place of Origin:	Guangdong China;	Storing temperature:	-15°C - 45°C;
Phase:	Three Phase;	Nominal Voltage:	3 x 380VAC/400VAC (3Ph + N);
Brand Name:	SKE;	Output Voltage:	380V;
Protection:	Lightning;	Payment Terms:	L/C,T/T,Western Union;
Model Number:	GL33 100kva;	Efficiency:	91%;
Application:	Computer;	Charging Method:	CC/CV;
Port:	shenzhen;	Transfer Time:	Zero;
Battery voltage:	384VDC;	Rated voltage & Range:	380V±25%;
warrenty:	12 months;

Three-phase UPS For Elevators UPS 20kva 40kva 200kva 100kw 200kw Price

Product Description

1. Online double-conversion
2. DSP technology guarantees high reliability
3. True galvanic isolation transformer design
4. Control designed to withstand all kinds of loads
5. Intelligent battery management to prolong battery lifecycle
6. Redundant fan design and independent ventilation enhance durable operation under harsh environment
7. Adjustable battery numbers
8. Accept dual-mains input
9. Parallel operation with up to 4 units (option)
10. Variety of communication options available
11. Optional 7" touch LCD

Model		GL33 10K	GL33 15K	GL33 20K	GL33 30K	GL33 40K	GL33 60K	GL33 80K	GL33 100K	GL33 120K
CAPACITY		8 KW	12 KW	16 KW	24 KW	32 KW	48 KW	64 KW	80 KW	96 KW
INPUT
Nominal Voltage		3 x 380VAC/ 400VAC (3Ph + N)
Acceptable Voltage Range		305VAC ~ 460VAC
Frequency		50/60 Hz ± 10 %
INVERTER
Nominal Voltage		3 x 380VAC/ 400VAC (3Ph + N)
Precision		Stationary: ±1% ; Transitory: ±5% (load variations 100-0-100%)
Frequency		50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz
Max. Synchronisation Speed		±1 Hz/s
Waveform		Pure Sinewave
Total Harmonic Distortion (THDv)		< 2% (Linear Load) ; < 5% (Non-linear Load)
Phase Displacement		120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load)
Dynamic Recovery Time		3 cycles at 98 % of the static value
Admissible Overload		110% for 10min; 150% for 60sec ; >160% for 200ms
Admissible Crest Factor		3:1
Admissible Power Factor		0.6~1 (inductive or capacitive)
Imbalance Output Voltage @ 100% Unbalanced Load		<1%
Current Limit		High overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit
STATIC BYPASS
Type		Solid state
Voltage		3 x 380VAC/ 400VAC (3Ph + N)
Frequency		50/60 Hz
Activation Criterion		Microprocessor control
Transfer Time		Zero
Admissible Overload		150% for 1 hour; 180% for 30sec; >200% for 200ms
Transfer to Bypass		Immediate, for overloads above 160%
Retransfer		Automatic after alarm clear
MAINTENANCE BYPASS
Type		Without interruption
Voltage		3 x 400V (3Ph + N)
Frequency		50/60 Hz
Overall Efficiency (Line mode)	Line Mode	90%		91%		92%		93%
	Battery Mode	90%		91%		93%		93%
BATTERY & CHARGER
Battery Type and Numbers		12VDC x 32 pcs (29~32 pcs adjustable)
Nominal Battery Voltage		384 VDC (Based on 32pcs batteries)
Charging Method		CC/CV
Charging Current		Default 10A, Max. = Capacity / Battery Voltage			Default: 10A. Max. 40A
Charging Voltage		432 VDC (Based on 32pcs batteries)
PHYSICAL
Dimension D x W x H (mm)		656 x 405 x 817		656 x 405 x 941	821 x 432 x 1159		975 x 554 x 1286			975 x 635 x1326
Net Weight (kgs)		118	120	179	241	278	400	471	573	650

Click for More Information!!!

Factory & Company

3-PHASE INDUSTRIAL UNINTERRUPTIBLE POWER SUPPLY ONLINE UPS 100KVA

Exhibitions

Trade Shows

Our Services

1. OEM&ODM services acceptable.

2. 1% pcb board provided .

3. Lots of cooperated agent for shipping by sea or by air.

4. 1year warrenty , if it is quality problem , we will provide the parts for free .

Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.

FAQ

Q1: Why you should choose us?

---16 years UPS experiences

---Professional team for both oversea and domestic market

--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project

---Qualified product plus competitable prices

---Delivery in time

---Sincerely services

Q2: How is your after-sale service?

---We provide 12-24 months warranty since the delivery date and free maintenance /

replacement during warranty period.

Q3: What kind of certification you have?
