engineering veneer fabric leather pur laminate machine line copper melamine foil pur hotmelt glue laminate machine

Supplier: Foshan Leader Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Means Luo
Price: $58500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	none;	Warranty:	1 Year;
After-sales Service Provided:	Field installation, commissioning and training;	Warranty of core components:	1 Year;
Key Selling Points:	High-accuracy;	Supply Ability:	800 Set/Sets per Year;
Applicable Industries:	Manufacturing Plant;	Weight:	15000kg;
Machinery Test Report:	Not Available;	Local Service Location:	none;
Brand Name:	CAMBERY;	Payment Terms:	T/T;
Certification:	ISO9001;	Video outgoing-inspection:	Not Available;
Marketing Type:	New Product 2020;	Condition:	New;
Core Components:	Motor;	Packaging Detail:	Standard Wrapping;
Voltage:	380V 50Hz or Customized;	Dimension(LWH):	1650022002000mm;
Power:	65kW;	After Warranty Service:	Online support;
Port:	Shenzhen, Guangzhou, Foshan;	Place of Origin:	Guangdong China;

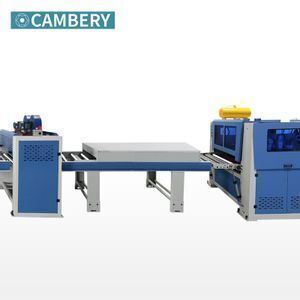

hot glue wooden sandwich board veneer wrapping machine big wooden board side sealing PUR wood panel wrapping machine

PRODUCT INFORMATION

TECHNICAL CHARACTERISTICS
Overall size	Approx. 1650022002000mm
Weight	Approx. 15000kg
Power Supply	380V 50Hz or customized
Total Power	65kw
Pneumatic Load	6 bar
Working Speed	Up to 18 m/min
Control System	Schneider^® PLC with 10in. full color touch screen.
Foil Application Spec.	Core Dia.: 3in. Foil O.D.: Up to 400mm Foil Width: Up to 1300mm
Glue Melter (200-Liter Drum Melters)	Barrel Type Pail: 200 liter or 55 gallon Pail Diameter: 571 or 567mm Melt Capacity: 240kg/hr Num. of Hoses: Dual Temp. Control Sensor: PT100 Glue Type: PUR, EVA, Polyolefine etc.
Electronic Components	Schneider^® or equivalent
Pneumatic Components	AirTac^® or equivalent

MATERIAL CHARACTERISTICS
Max. Panel Width	Up to 1300 mm
Max. Panel Thick	Up to 50 mm
Min Panel Length	600 mm
Film Roll Maximum Diameter	400 mm

PRODUCT INFORMATION

DETAILS DISPLAY

APPLICATION

Ideal system with ease and precision for wrapping of profiled wood, extruded plastics and metal substrates with various papers, foil, PVC or veneer in roll.

If you want to know more, Please click

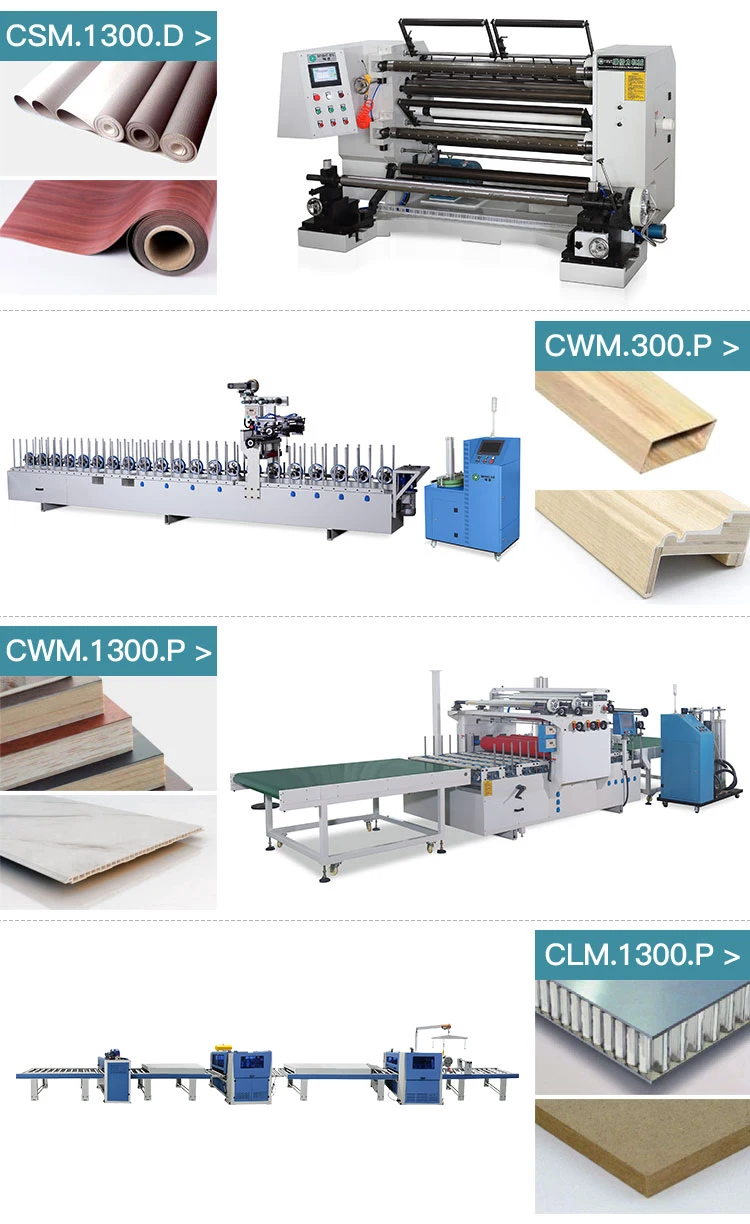

HOT SALE

COMPANY OVERVIEW

FOSHAN CAMBERY MACHINERY CO., LTD.

Cambery Machinery was founded in 2009 and is specialized in the industrial surface finishing systems, including laminating and profile wrapping.

We are not only a machine provider, but also the end user for every machine we made; we built the training center for the machines operation to offer the courses for more than 1,000 persons from our clients and employees. With one decade of striving for easy wrapping for customers, now we are offering the turn-key solutions for uninterrupted gluing system, quick-switch for various profiles, and the automatic loading and unloading platform. etc.

It is time to say goodbye to the nightmares caused by high turnover of technicians; our machines are accessible even to green hands who are new to the business thanks to our perfect aftersales service and fit-for-purpose training centre.
