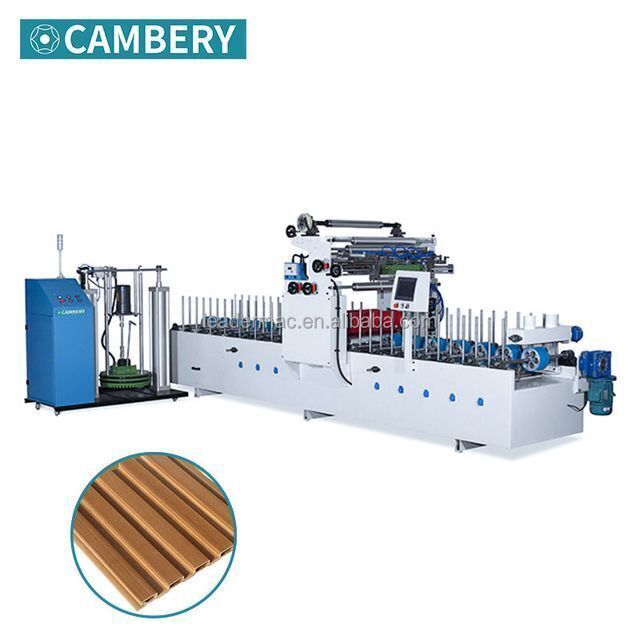

Woodworking PVC PUR hotmelt profile wrapping machine PUR hot melt glue wood veneer profile wrapping machine

Supplier: Foshan Leader Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Means Luo
Price: $28000.00 / 1 - 4 sets
$27750.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Film Roll Internal Diameter:	76.2mm;
Brand Name:	CAMBERY;	Packaging Detail:	Standard Wrapping;
Dimension(LWH):	500012001800mm;	After-sales Service Provided:	Online support;
Covered Material:	Paper, PVC, CPL, Veneer;	Power:	25kW;
Panel Thickness:	3-90mm;	Applicable Industries:	Building Material Shops,Manufacturing Plant,wood working;
Glue Type:	PUR Hot Melt Glue;	Machinery Test Report:	Provided;
Local Service Location:	None;	Key Selling Points:	Easy to Operate;
Optional Working Width:	600/800/1200mm;	Supply Ability:	800 Set/Sets per Year;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Film Roll Maxmun Diameter:	400mm;
Port:	Shenzhen, Guangzhou, Foshan;	Min Profile Length:	600mm;
Application:	Wrap Wooden Veneer;	Voltage:	380V 50Hz or Customized;
Video outgoing-inspection:	Provided;	Showroom Location:	None;
Marketing Type:	New Product 2021;	Warranty of core components:	1 Year;
Place of Origin:	Guangdong China;	Max. Film Witdth:	15-650mm;
Weight (KG):	4300;	Warranty:	1 Year;
Certification:	ISO9001;	Payment Terms:	T/T;
Max Panel Width:	15-620mm;	Condition:	New;

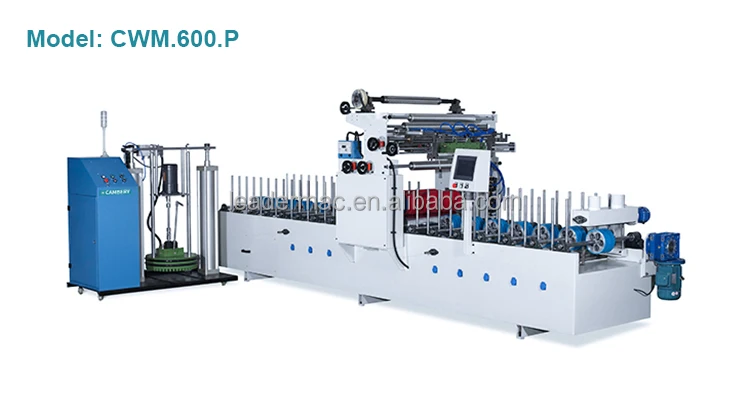

PRODUCT INFORMATION

TECHNICAL CHARACTERISTICS

Overall Size	Approx. 500012001800 mm
Weight	Approx. 4300 kg
Power Supply	380V 50Hz or customized
Total Power	25kW
Pneumatic Load	6 bar
Working Speed	Up to 35 m/min
Profile Application Spec.	Width Range: 15-600mm Height Range: Up to 90mm Length: Min. 600mm
Foil Application Spec.	Core Dia.: 3in. Foil O.D.: Up to 400mm Foil Width: Up to 600mm
Control System	Schneider® PLC with 10in. full color touch screen.
Glue Melter (200-Liter Drum Melters)	Barrel Type Pail: 200 liter or 55 gallon Pail Diameter: 571 or 567mm Melt Capacity: 240kg/hr Num. of Hoses: 2 Temp. Control Sensor: PT100 Glue Type: PUR, EVA, Polyolefine etc.
Electronic Components	Schneider^® or equivalent
Pneumatic Components	AirTac^® or equivalent

DETAILS DISPLAY

STEADY FOUNDATION

● Stable bedframe which is manufactured by a rigid foundation, with superior welding, CNC machining, tempering and painting process.

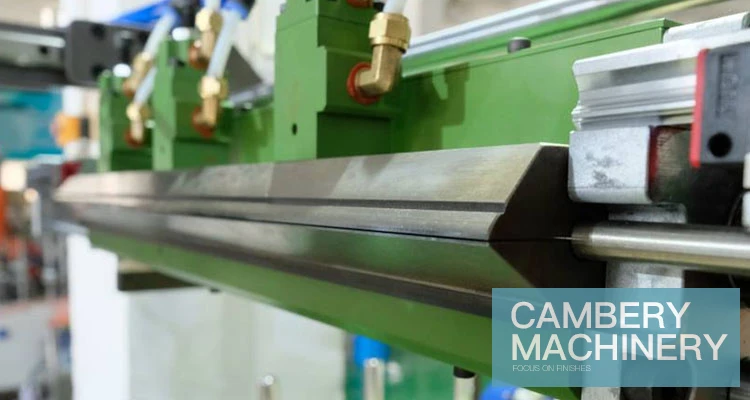

ENCLOSED SLOT NOZZLE

● Japanese SLD steel made.
● Non-stick surface coating.
● Adjustable opening and multi-valve glue applicator.
● Metal mesh glue filter.

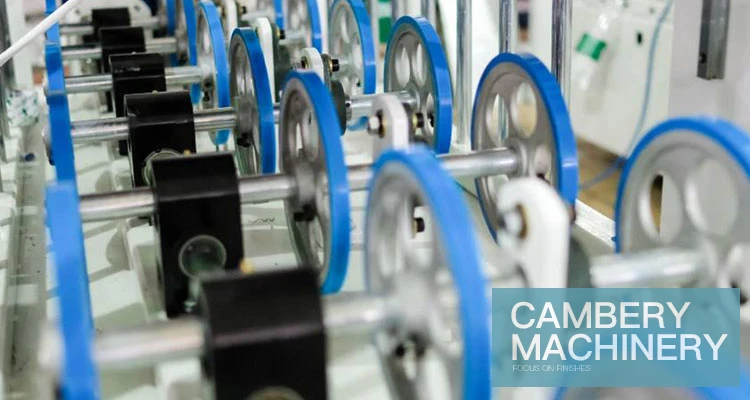

TRANSPORT WHEELS

● VFD motor for transportation driving.
● Installed with robust aluminum alloy wheels and high-quality metal bearings.
● Fast and flexible design for various intended uses.

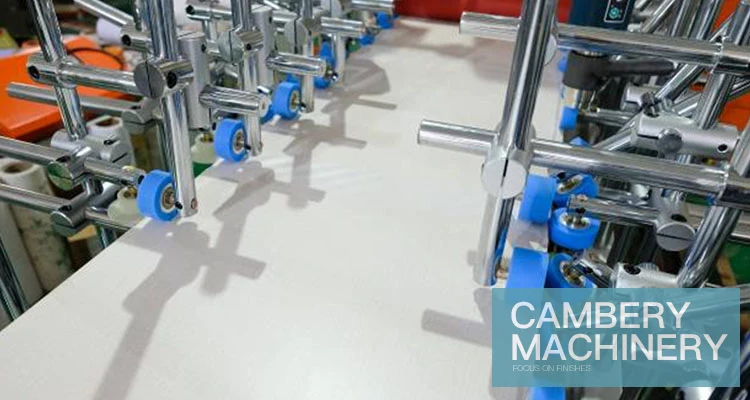

UNIVERSAL WRAPPING KITS

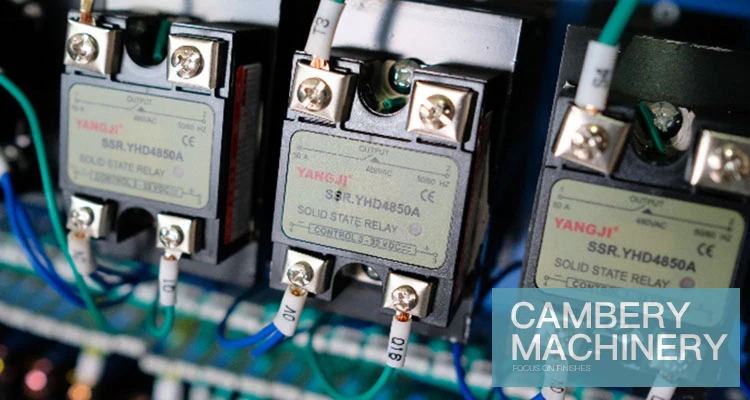

HIGH QUALITY ELECTRICAL PARTS

● Equips Schneider or CE standard components
● 10 Inches full color touch screen
● Well-organized wiring

200 LITERS DRUM MELTER

● 55-Gal volume with double feeding tube.
● Hot melting applicator with precise dosage system, easy to reload the glue barrel by the controller.
● Non-stick Teflon surface treatment and quick opening design, which allows the fast and easy operation of the cleaning in less than 10 minutes.
● Fully monitoring and Error indication system to ensure the safety and smoothness of the production.

APPLICATION

Ideal system with ease and precision for wrapping of wood, extruded plastics and metal substrates with various papers, foil, PVC or veneer in roll.

HOT SALE

COMPANY OVERVIEW

WELCOME TO VISIT US
Cooperation with up to 50 countries around the world.

OUR CERTIFICATION

FAQ

Q1. Warranty
A1. 12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.

Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.

Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.

Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.

Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
