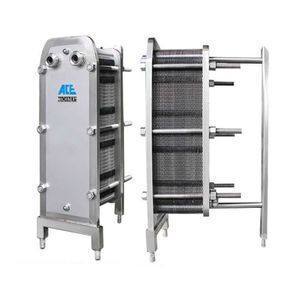

Ace Factory Price High Quality Sanitary Stainless Steel Plate Heat Exchanger With Heat Exchanger Plate

Product details
Liquid Flow Rate:2000L/H;Selling Units:Single item;
Feature:Heating And Cooling;Showroom Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan;
Machinery Test Report:Provided;Type:Plate Heat Exchanger;
Material:SS304,SS316;Sealing:EPDM,PTFE;
Local Service Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria;Product Name:Plate Heat Exchanger;
Warranty:1 Year;Single package size:60X60X60 cm;
After Warranty Service:Online support;Connection size:DN25-DN350;
Brand Name:ACE;Video outgoing-inspection:Provided;
After-sales Service Provided:Video technical support;Weight:7-105kgs;
Key Selling Points:High Productivity;Warranty of core components:1 Year;
Dimension(L*W*H):4000*4000*200mm (MAX);Working Temperature Range:-10℃-150℃;
Plate thickness:0.4mm, 0.5mm;Single gross weight:60.0 KG;
Voltage:220V/50Hz;Package Preview:;
Maximum Working Pressure:3.0MPa;Heat exchanger type:plate heater exchanger;
Place of Origin:Zhejiang China;Packaging Detail:Strict packing process to ensure the safety and completeness of the goods;
Marketing Type:New Product 2020;Condition:New;
Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Food Shop;Structure:Plate Heat Exchanger;
Core Components:Gearbox;Connection type:Weld, Tri-Clamp, Union;
Certification:ce;Application:Food, industry, medicine;

Ace Factory Price  High Quality Sanitary Stainless Steel Plate Heat Exchanger With Heat Exchanger Plate

Product Description



Application

Pasteurization

Normal cooling and heating in dairy, brewage, beverage, food industries, etc

Heating and cooling in pharmaceutical industry



Standard design

Frame

The plates and compression plates are suspended from the upper load bar and are positioned by means of the lower guide rods which are fixed through the struts and ard fitted with washers on the tensioning bolts for disassembly of the equipment, frames and columns with adjustable supports.

A device may include many heat exchangers, which are separated by connection boards with interchangeable connectors.



Front plate

The front plate is used for meeting higher requirements in food processing. The combination of the high pressure depth, plate type and relatively few contacts make the running time longer and there will have no interruption. The diversing type can ensure that the liquid flows the whole plate. The end diameter enables it to carry out CIP cleaning with the same fluid it uses during the use.



Sealing gasket

The heat exchanging plate is provided with the sealing gasket that is not bonded by glue. Users can carry out easy replacement operatio of the sealing gasket even when the plate suspends inside the frame.



Working principle

Pasteurization

Normal cooling and heating in dairy, brewage, beverage, food industries, etc

Heating and cooling in pharmaceutical industry



The plate heat exchanger is composed of group of corrugated metal plates. The holes on it form channel for liquids to flow, and the heat will be transferred between two kinds of liquids.



The plates are assembled between a fixed frame board and a moveable clamping board and are tightened by the tightening bolts.



These plates are installed with sealing gasekts. The sealing gaskets play the sealing function on the channels between plates and make the liquids flow into adjacent channels. The quantity of plates are determined by flow, physical properties and temperture of liquids. The joints can be located on the frame board and claming board.



Standard materials

The frame and clamping board can be subjected to painting on the surface or coated by stainless steel. The movable nut on the fastening bolt is made of carbon steel and stainless steel.

Plate type

BR-0.06, 0.13, 0.22, 0.3, 0.5, 0.65 Plate: Stainless steel SS304, 316, 316L

Sealing gasket type

NBR or EPDM, Silicone Q

Technicals

Mechancial designed pressure/temperature

Designed pressure 1.0Mpa

Woring pressure 0.6Mpa

Working temperature -10 degree to 150 degree

Joint type

DIN, SMS, ISO, males thread or customized



Product Name:
Plate Heat Exchanger
Plate Material:
304 or 316L
Body Material:
304
Gasket Material:
NBR, EPDM, etc
Max Working Pressure:
3Mpa
Working temperature:
-10℃ - +150℃
Cooling:
Single stage or two stages
Size:
1m², 3m², 5m², 7m², 10m²
Packing Details:
Usually Plywood case for each plate heat exchanger for directly shipping. Extra
wooden case is availabe when necessary





+
Gasket Material Charactristics
Material
Working Temperature
Working Enviroment
NBR
-25~120℃
Alkane, olefin and other non-polar media, all kinds of mineral oil, animal and vegetable oil, hot water, salt water, etc.
EPDM
-50~170℃
Superheated water, steam, atmospheric ozone, non petroleum based lubricating oil, weak acid, weak base, ketone alcohol, etc
HNBR
-25~150℃
Crude oil, sulfur-containing oil and organic sulfur compounds, some heat transfer oil, new refrigerant 134a, etc
Viton
-25~150℃
Nonpolar mineral oil, high temperature water vapor, sulfuric acid, chlorine water, phosphate with concentration above 98%
