Factory Price Stainless Steel 304 316l 100l - 20000l Milk Chiller Machine Dairy Cooler Tank Milk Cooling Tank Storage Tank

Supplier: Wenzhou Ace Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Polly Liao
Price: $2450.00 / 1 - 1 sets
$2400.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	Customized;	Warranty of core components:	1 Year;
Surface finish:	Matt polish or Mirror polish;	Marketing Type:	New Product 2020;
Port:	Ningbo/ Shanghai;	Weight:	50 KG;
Voltage:	380V/3PH/50Hz;	Warranty:	2 years;
Unit power:	2P-15P;	Machinery Test Report:	Provided;
Tank type:	Cooling with agitate tank;	Speed:	36r/min;
Function:	Refrigeration System;	Motor:	ABB/SEW/Domestic;
Product name:	Milk Cooling Storage Tank;	Condition:	New;
Supply Ability:	100 Sets per Month;	Material:	SUS304/ SUS316L;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia;	Packaging Detail:	We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.;
Payment Terms:	L/C,D/P,D/A,T/T,MoneyGram;	Place of Origin:	Zhejiang, China;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump,Compressor;	Applicable Industries:	Hotels,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Food Shop,Food & Beverage Shops;
Application:	chemical,milk,beverage and liquid;	Brand Name:	ACE;
Key Selling Points:	Automatic;	Power:	1.5kw-22kw;
Video outgoing-inspection:	Provided;	Package Preview:	;
Agitator type:	Top entry or bottom or side entry;

Factory Price Stainless Steel 304 316l 100l - 30,000l Milk Chiller Machine Dairy Cooler Tank Milk Cooling Tank Storage Tank

Custom Made 100L- 30,000L Cooling tanks, 20 Years Of Experience。 Reasonable Price And Best Service, CE Certificated Products。Sold to Over 180 Countries。Advanced Technology。Contact us for the offer。

Video

Products Description

Description

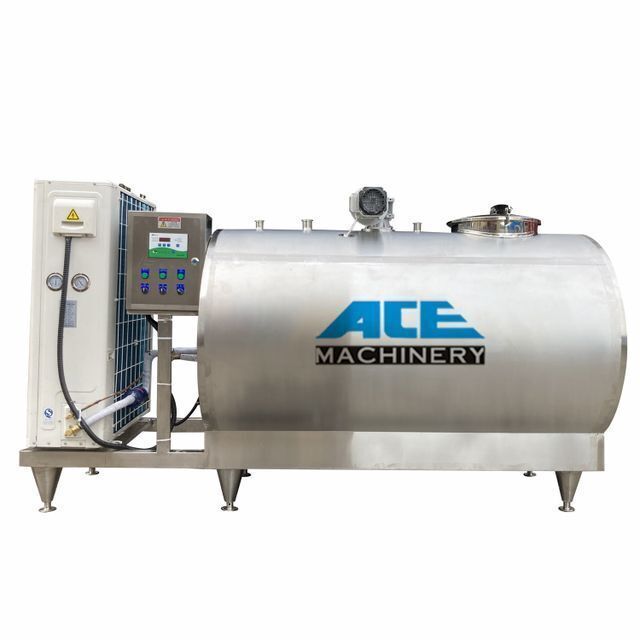

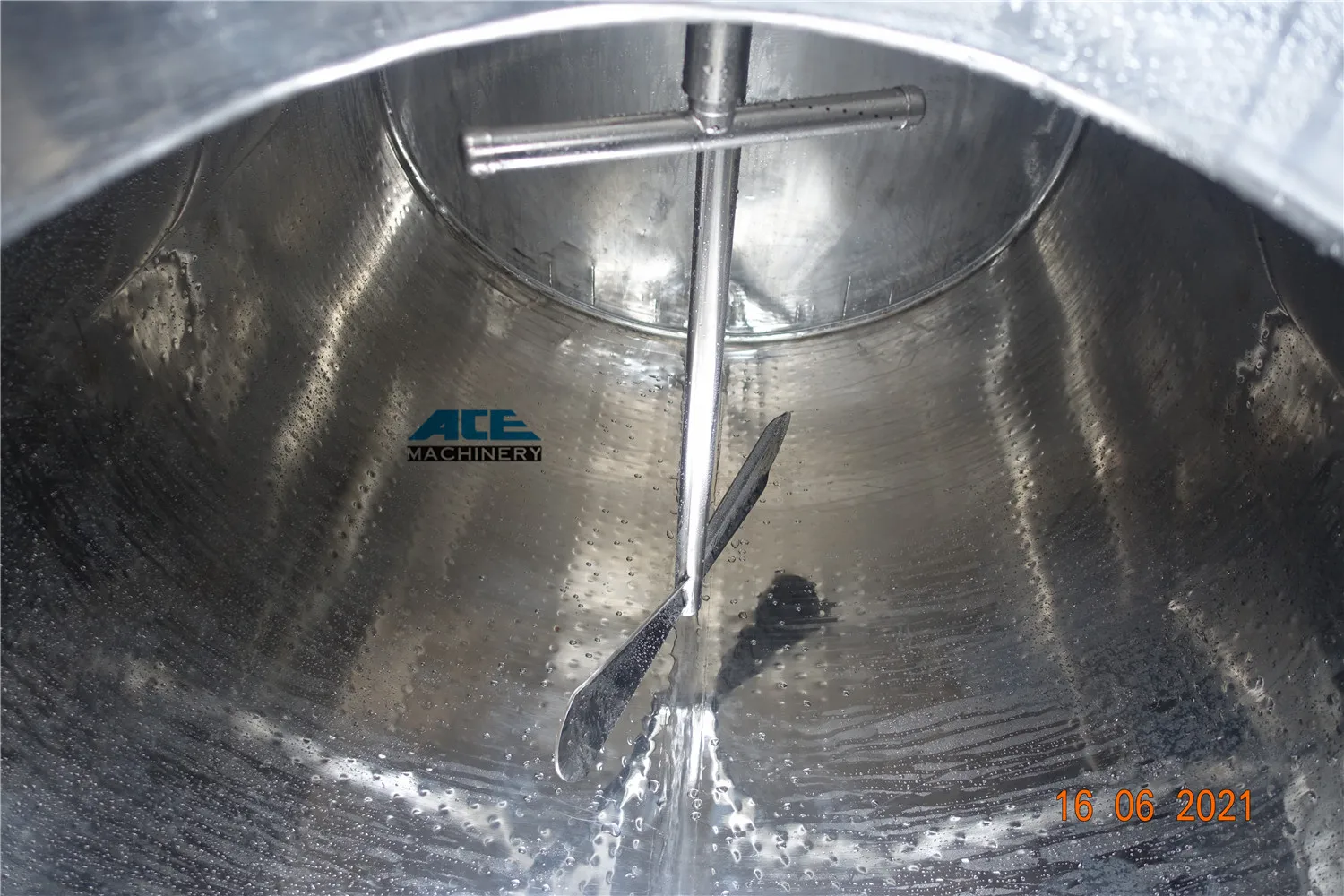

The refrigerated mixing and storage tank is made up tank body, agitator, refrigerating unit and control box. The tank body is made of stainless steel 304, and be minutely polished. Insulation is filled by polyurethane foam, light weight, good insulation properties.

1. Material: Stainless steel 304 316L

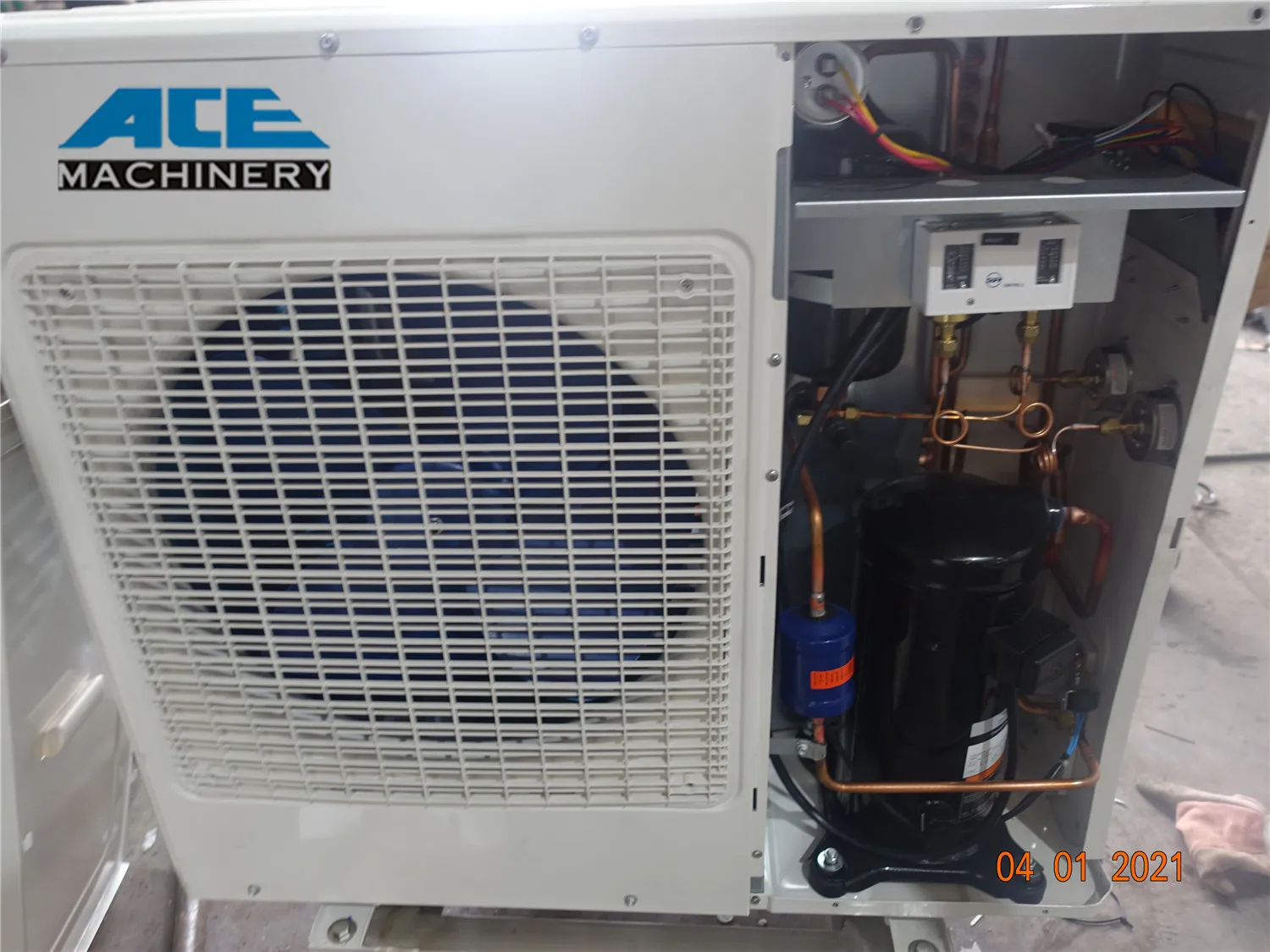

2. Equipped with refrigeration system
3. Cooling jacket, PU insulated (50-80mm)
4. Capacity: 100L-30,000L

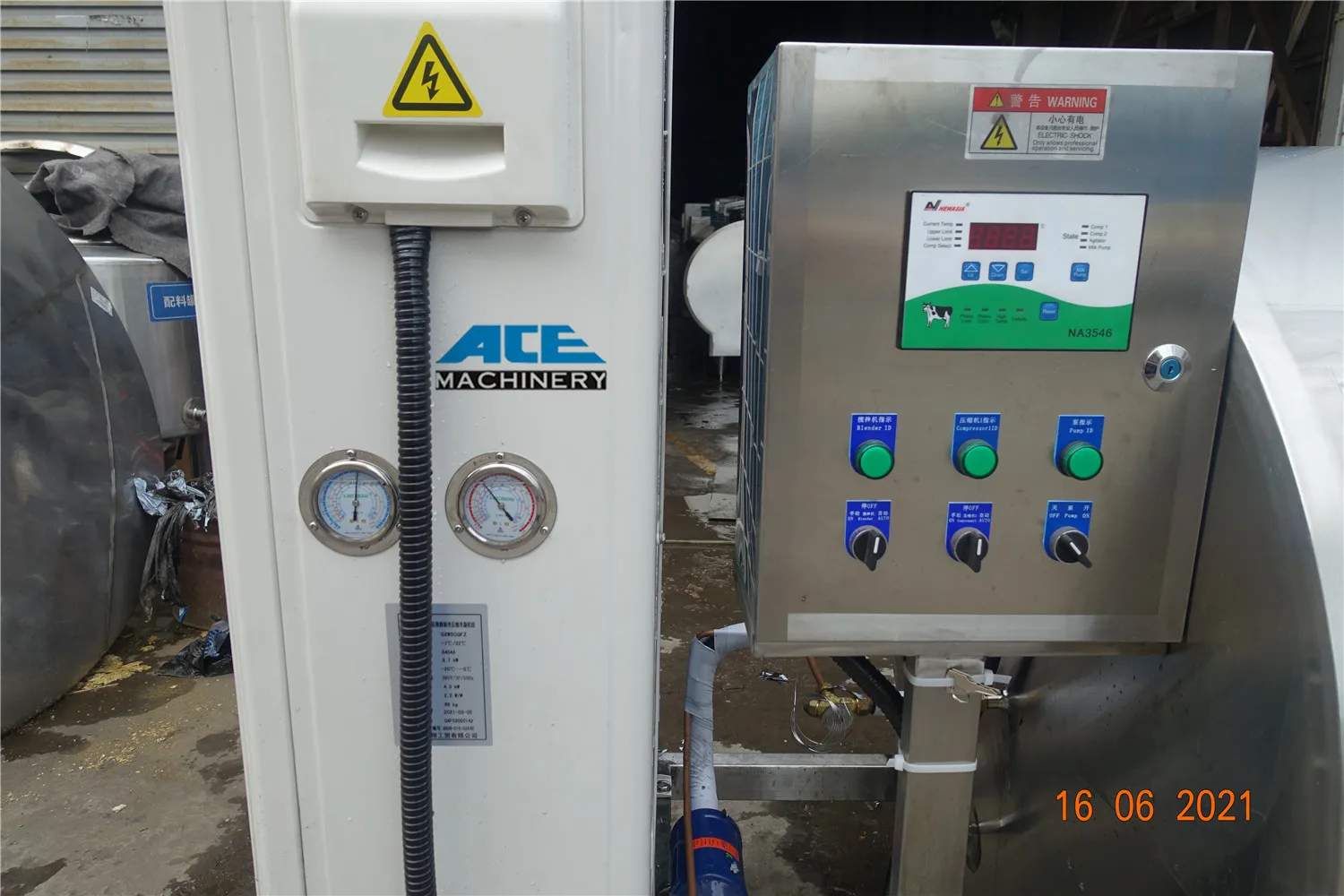

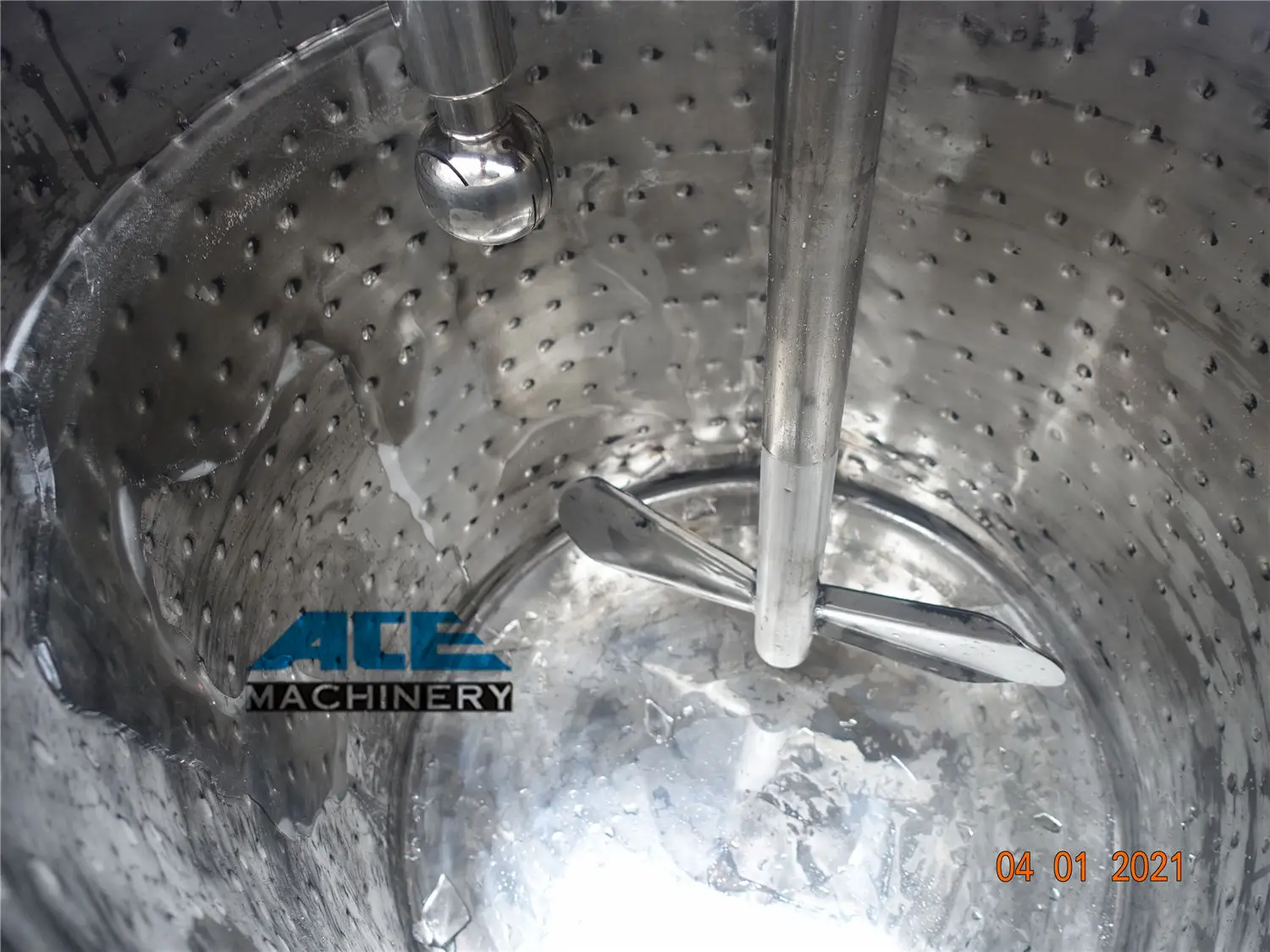

5. Consist of control box, refrigeration group, inlet, CIP cleaning Head,

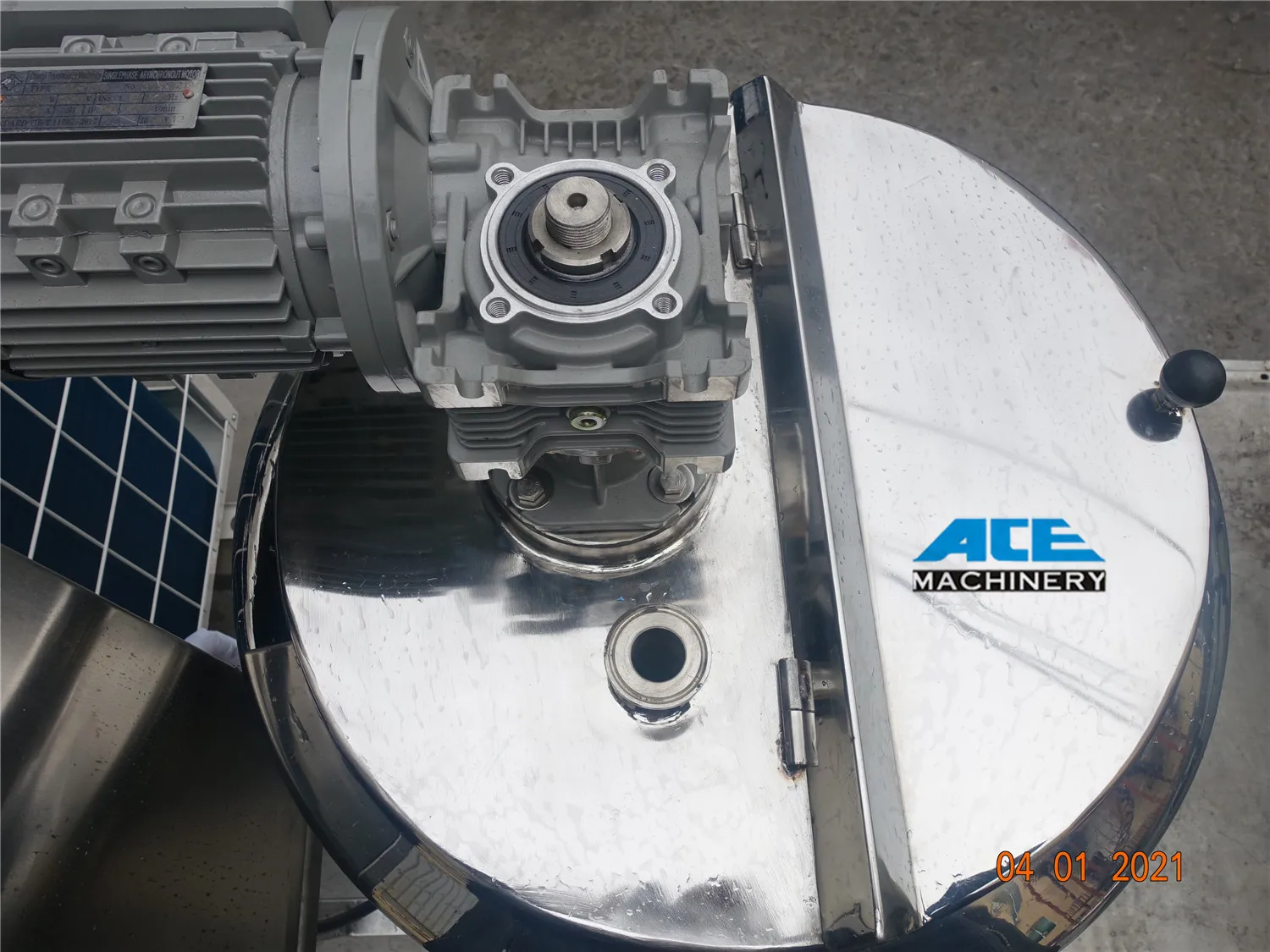

Agitation motor, manhole, temperature meter, tank body, outlet.
6. Working temperature: 35-4 Cels
7. Refrigerant: R404A(recommended)or R22
8. Custom made available

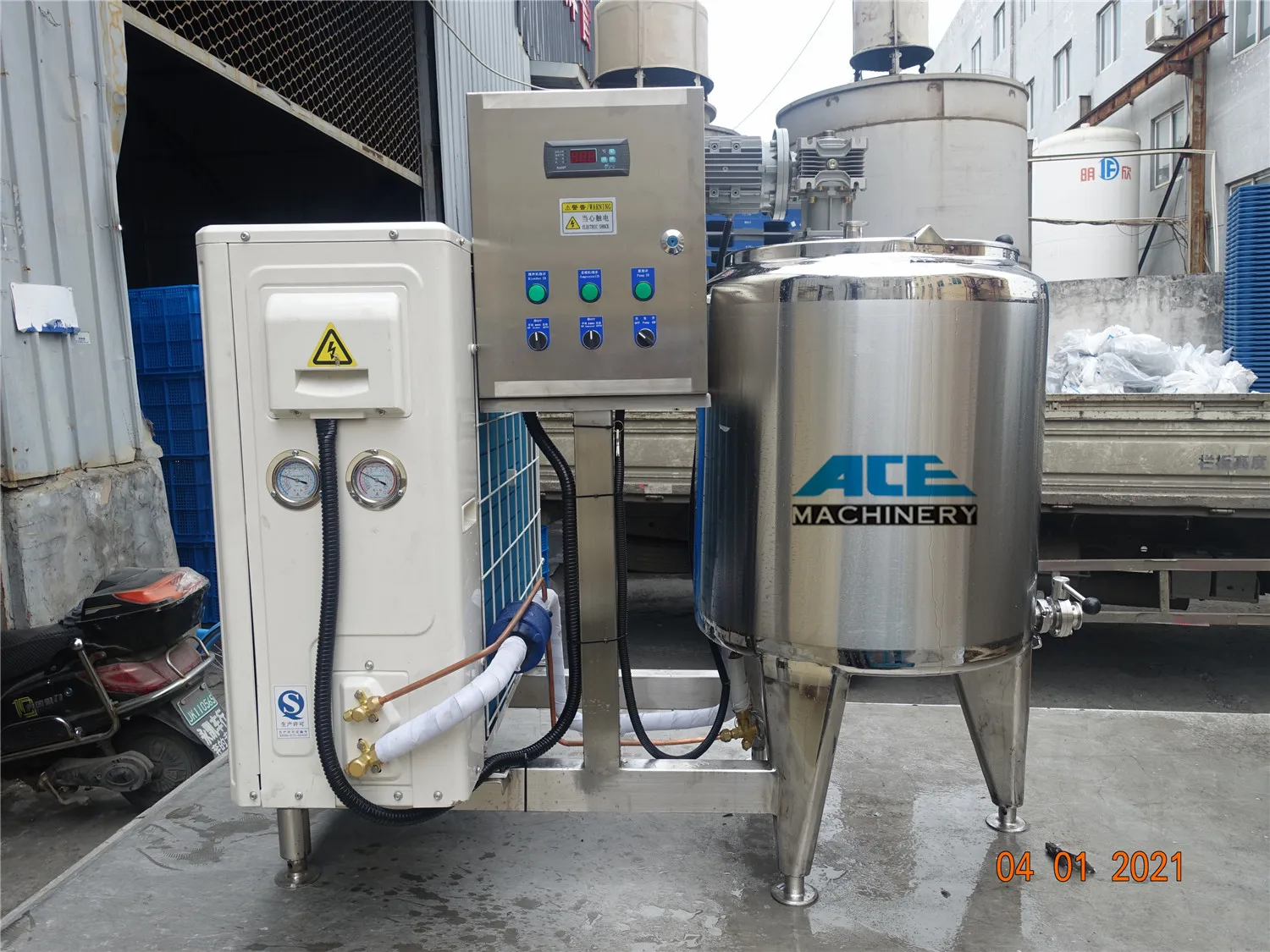

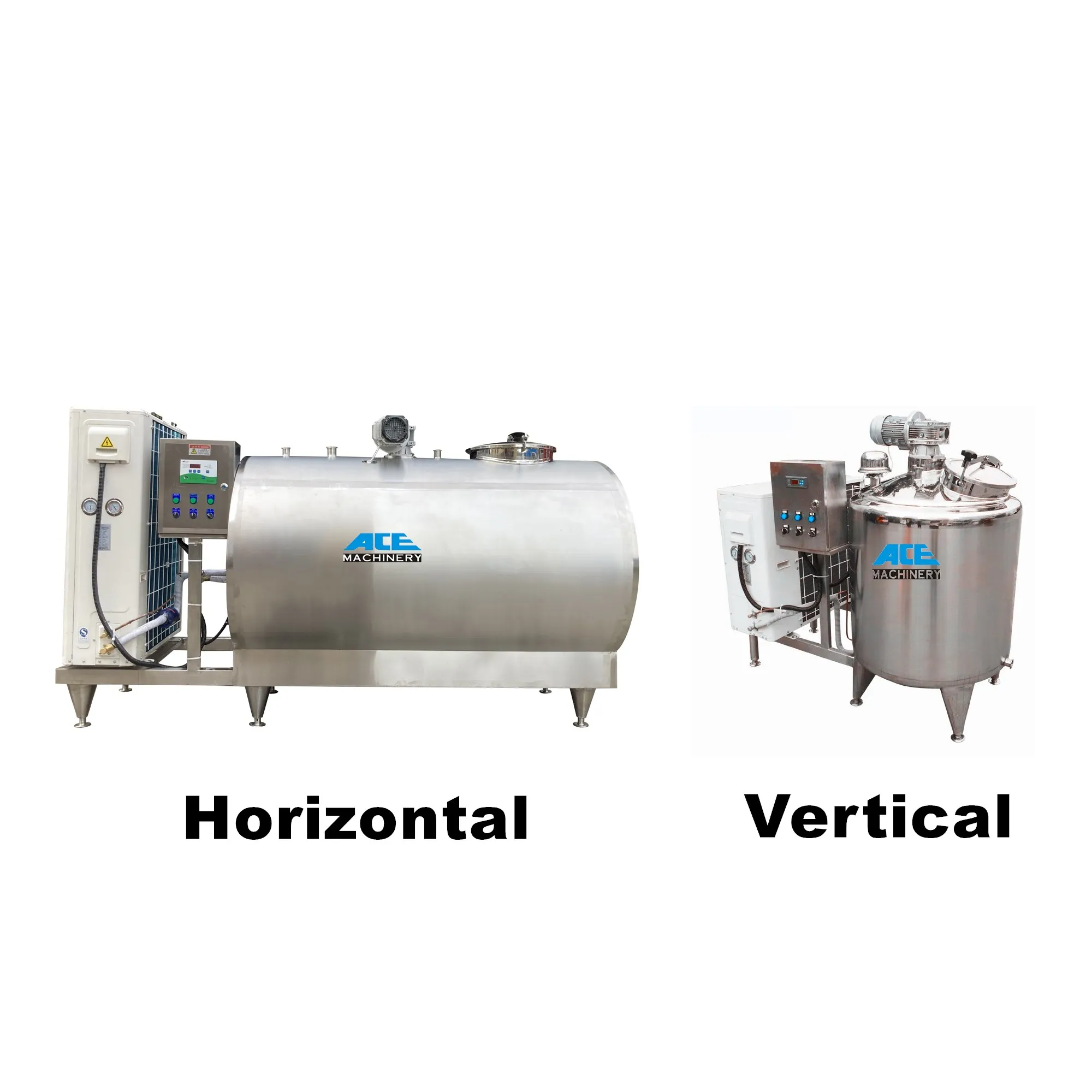

9. Vertical and horizonal two options

Model	Volume(L)	Compressor Powr(KW)	*Dimension of tank(DL(mm)**	Agitator power(kw)	Agitator speed(r/min)
ACE-500	500	4.5	Φ800x900	0.55	36RPM
ACE-800	800	8	Φ1000x900	0.75
ACE-1000	1000	12	Φ1200x1000	0.75
ACE-2000	2000	15	Φ1200x1000	1.5
ACE-3000	3000	15	Φ1400x2000	2.2
ACE-6000	6000	30	Φ1600x3000	3.0
ACE-8000	8000	30	Φ1800x3000	3.0
ACE-10000	10000	44	Φ2000x3500	3.0
We can customize the cooler tank according to customer requirements.

Principle and structure of direct cooling milk tank: Milk refrigeration tank is mainly composed of tank body, mixer, scrubber, refrigeration unit and electrical control box. The milk cooling tank is a horizontal elliptical body. Polyurethane rigid foam board is adopted between the inner and outer tanks. The material has the thermal insulation layer with low thermal conductivity, light weight, high strength and low water absorption, and has good heat preservation performance. The product has advanced design and manufacturing technology, reliable performance, cooling, thermal insulation performance and health standards are in line with the advanced level.

Features of direct cooling milk tank: 1. The tank wall adopts advanced plate evaporator to directly exchange heat and refrigeration with milk. 2. The refrigeration compressor is imported from France. It is equipped with reliable neutral point protector, which will not burn out the motor due to overload or system failure. 3. All tanks are made of SUS304 or 316 stainless steel with automatic pressure cleaning and manual and automatic mixing devices, 4. The new technology of polyurethane foam is used in the insulation layer, which has good thermal insulation performance.

Details Images

Packaging & Shipping

We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free. * Sufficient inner protection with different materials, including bubble bag, foam board and others. * Qualified wooden package or carton for different products or as customer require * Strict packing process to ensure the safety and completeness of the goods

Certifications

FAQ

Q1. What is your terms of packing? A: Generally, we pack our goods in plywood case or carton package for small parts. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Q2. What is your terms of payment? A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. What is your terms of delivery? A: EXW, FOB, CIF, DDU. Q4. How about your delivery time? A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. Q6.Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
