Factory Price High Pressure Homogenizer Cream Fresh Milk Yogurt Homogenizer Machine Industrial Honey Juice Homogenizing

Product Description

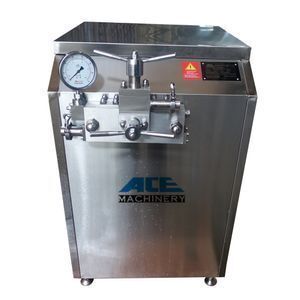

High pressure milk homogenizer is a special equipment of the liquid material thinning and high pressure transportation. It is composed of frame, wheel box, pump body, pressure meter, homogenizer and so on.High Pressure Fresh Milk Homogenizer is used for homogenizing liquid material(liquid or semi-liquid with viscosity less than 0.2Pa.s and less temperature 80°C).
The working principle of high pressure milk homogenizer is mainly through the reciprocating motion of three plunger, the raw material will enter homogenizing valve in a high pressure way. After homogenizing, the fineness of raw material can reach less than 1um. It is widely Applied in food, health care products, cosmetics and other fields.





Features
Stable operation, low noise, convenient cleaning, flexible maneuverability, continuous use, superfine dispersion and emulsification of materials. It can be widely used in the emulsification, homogenization and dispersion of industrial production.
The material can be refined and mixed under the triple action of extrusion, strong impact and loss of pressure expansion. This equipment is an important equipment for food, dairy, beverage and other industries.

Homogenizing all kinds of dairy beverages such as milk, soymilk, etc. under high pressure can significantly refine the fat globules in the milk liquid, making the products easy to digest and absorb after eating, and improve the value of use.

Used in the production of ice cream and other products, itcan improve the fineness and porosity of the material liquid, and its internal texture is obviously improved.

Used in the production of emulsions, glues, fruit juices, slurries, etc., it can prevent or reduce the layering of the material and liquid,and improve the appearance of the material and liquid, making it more bright in color, stronger in fragrance, and more mellow intaste.



Parameters:

Model	Flow L/H	Maximum pressure(MPa)	Rated pressure(MPa)	Moror power(KW)	Machine size(mm)
ACE-0.3/25	300	25	20	3	960*540*980
ACE-0.5/25	500	25	20	4	1030*650*975
ACE-0.8/25	800	25	20	5.5	1020*676*1065
ACE-1/25	1000	25	20	7.5	1100*676*1065
ACE-1.5/25	1500	25	20	11	1100*770*1100
ACE-2/25	2000	25	20	15	1410*850*1190
ACE-2.5/25	2500	25	20	18.5	1410*850*1190
ACE-3/25	3000	25	20	22	1410*960*1280



Technological superiority
1. The whole machine is covered with a stainless steel shell, and the appearance is smooth and exquisite, safe and hygienic.
2. Adopt helical gear low-speed transmission, low noise, stable operation and reliable performance.
3. The transmission part adopts splash type and unique oil delivery method to ensure the lubrication needs of each part.
4. The double-sided design of the valve seat can double the service life.
5. Homogenizing valve, one-way valve and plunger are made of alloy steel, which has the characteristics of wear resistance, impact resistance and long service life.
6. The processed product is fine and uniform, generally below 1 ~ 2um.
7. The processed product has good stability and long shelf life.
8. The processed food and medicine can increase the absorption. The finer the food size, the easier it is absorbed by the human body. When the particle size reaches 0.1um, it can be directly absorbed by intravenous injection without gastrointestinal tract.
9. The processed materials can increase the viscosity and concentration. (For example, if the concentration of soy milk is increased, the volume of ice cream will be expanded after treatment, and the viscosity will be increased. This will not only save materials, but also increase the production volume of the product)





Packaging & Shipping





We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
