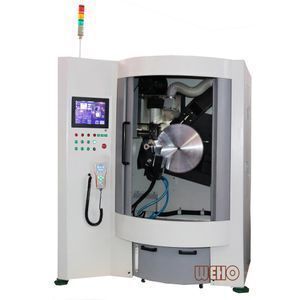

Saw Blade Sharpening Machine for circular saw blades

Supplier: Foshan City WEHO Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Liu Sherry
Price: $14000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Package Type:	wooden case;	Weight:	1100;
Warranty of spindle:	2 years;	Selling Units:	Single item;
CNC or Not:	CNC;	Processing Types:	computer program;
Max. Grinding Length:	800;	Advantage:	automatic adjust grinding wheels;
Single package size:	180X120X190 cm;	Warranty:	2 Years;
Place of Origin:	Guangdong China (Mainland);	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Delivery Detail:	0 days after payment;	Brand Name:	WEHO;
Application:	Carbide Saw blade Tips;	Machine Type:	cnc control;
Single gross weight:	1,000 KG;	Certification:	CE;
Name:	Saw Blade Sharpening Machine;	Voltage:	220v/380v;
Usage:	circular saw blade;	Max. Grinding Diameter:	800;
Type:	Cylindrical Grinding Machine;	Power(W):	2000;
Function:	resharpening or grinding;	Condition:	New;
Package Preview:	https://sc01.alicdn.com/kf/HTB1HtAVaXzsK1Rjy1Xbq6xOaFXa0.jpg_640x640.jpg;	Precision:	0.03mm;
Grinding wheel:	125mm;	Dimension(LWH):	165012001800;

Product Description

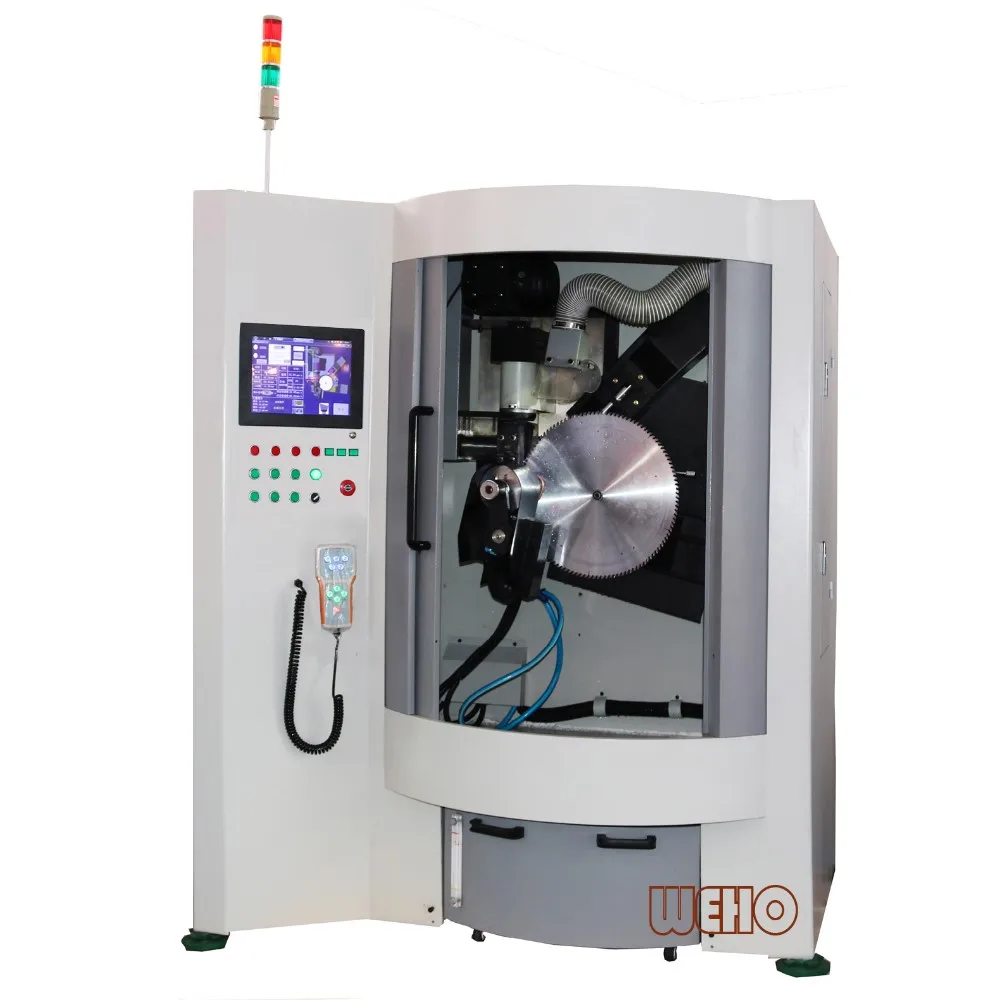

Saw blade sharpening machine is CNC machine for circular carbide saw blades grinding.

Complicated shapes of rake angle and clearance angle of all sorts of carbide saw blade tips.

Automatic adjustment system, start automatic adjust, the grinding wheels adjust position automatically.

It is user-friendly machine with transparent operation panel.
All moving parts controlled by motor, has not pneumatic or hydraulic system, ensure high precision.

Saw blade feeding in or feeding out control by servo motor.
The machine has automatic compensation program to compensate.
It can adjust grinding speed and it has automatic lubrication system.

Name Automatic tct carbide tooth Circular saw blade grinding machine
Carbide Saw Outside Diameter 120~810mm
Saw Bore Diameter 10~220mm
Max Blade Thickness 10mm
Tooth Pitch 25-100mm
Clearance Angel 6~ 45°
Bevel Grinding top angle 0° ~45°
Bevel Grinding face angle -3°~ +20°
Grinding Path 20mm
Grinding Speed 0.56mm/s
Working Speed 5~20teeth/min
Grinding Wheel 125mm
Peripheral Speed 26m/s
Cooling Water Capacity 60KG
Main Motor Power 2.2KW
Machinery Weight 1100KG
Machinery Size (L×W×H) 1280mm×1680mm×2200mm

Saw blade sharpening machine .

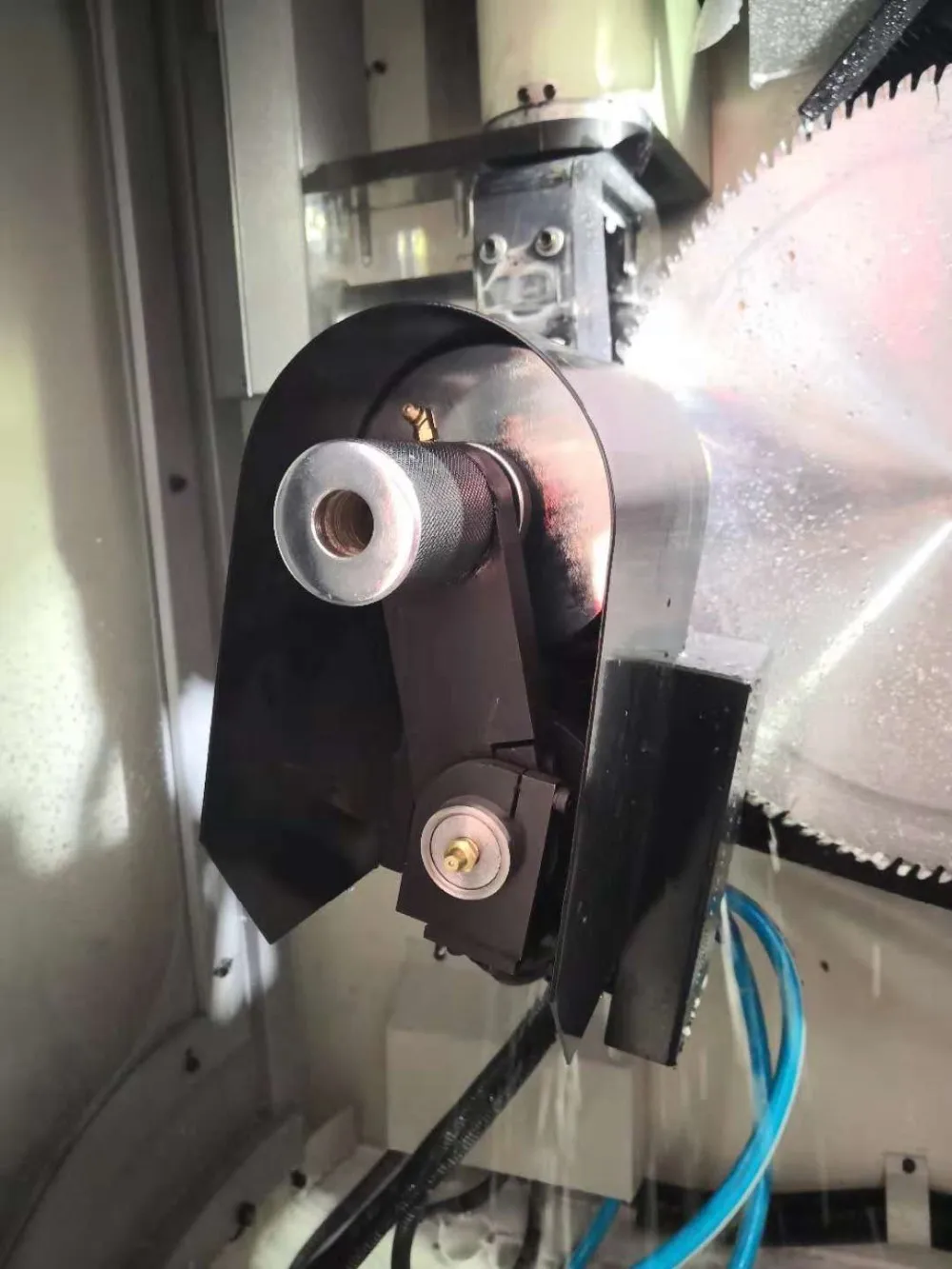

Grinding wheels main spindle

Saw blade sharpening machine .

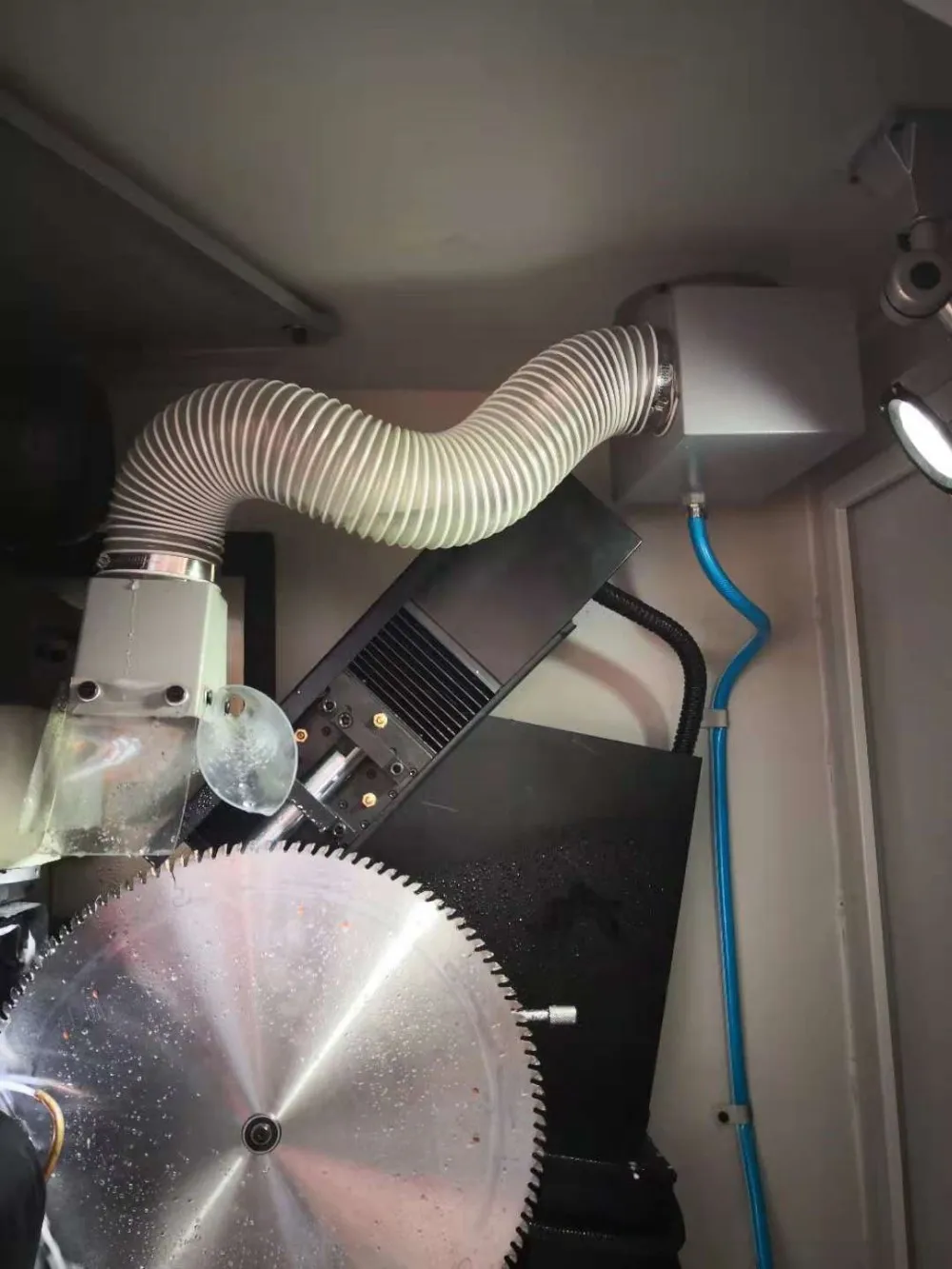

Automatic suction system for clean water

Saw blade sharpening machine

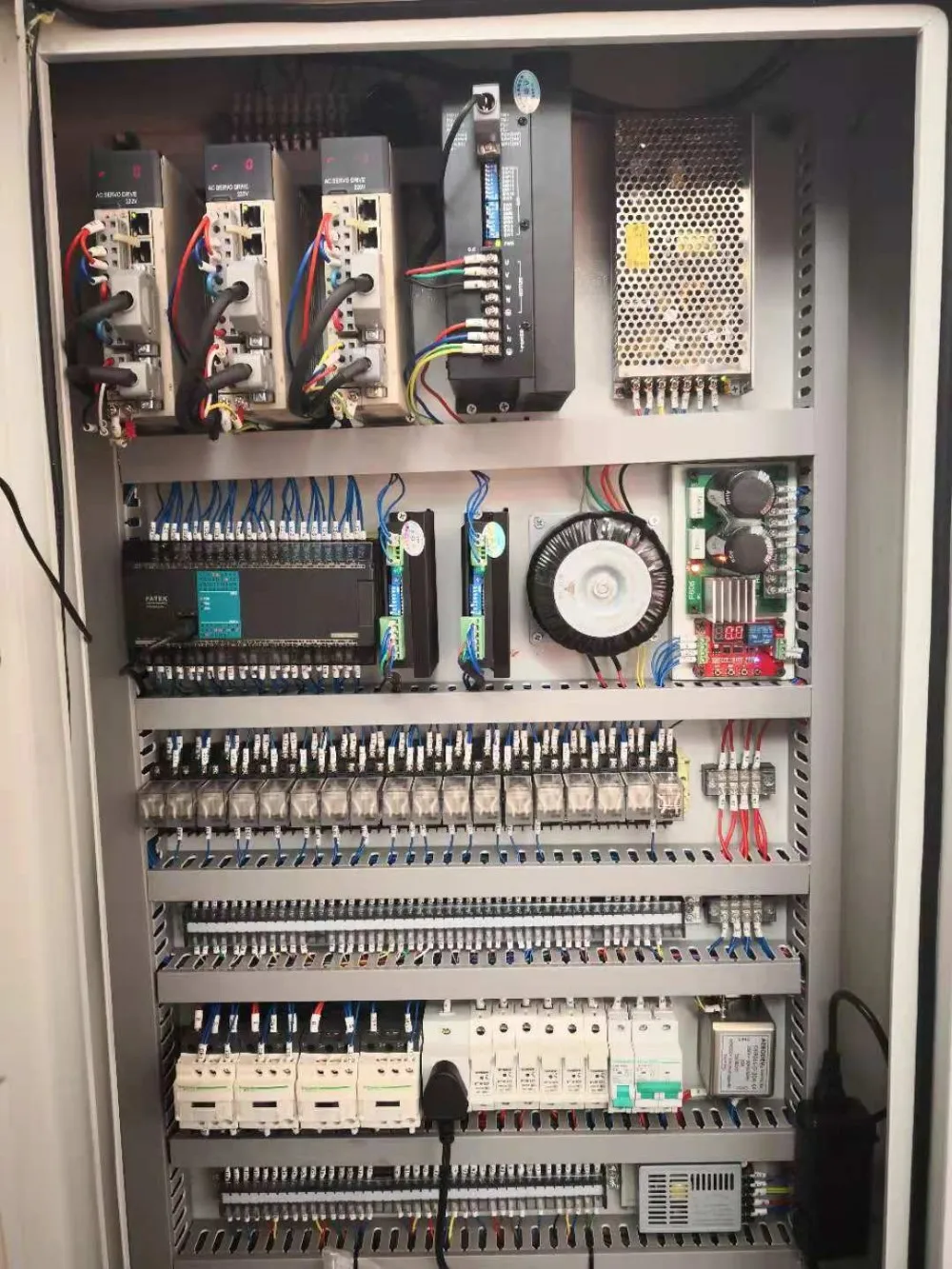

3 axis control in computer, far away control is available
220V standard voltage

Saw blade sharpening machine

220V single phase power is standard.

Saw blade sharpening machine

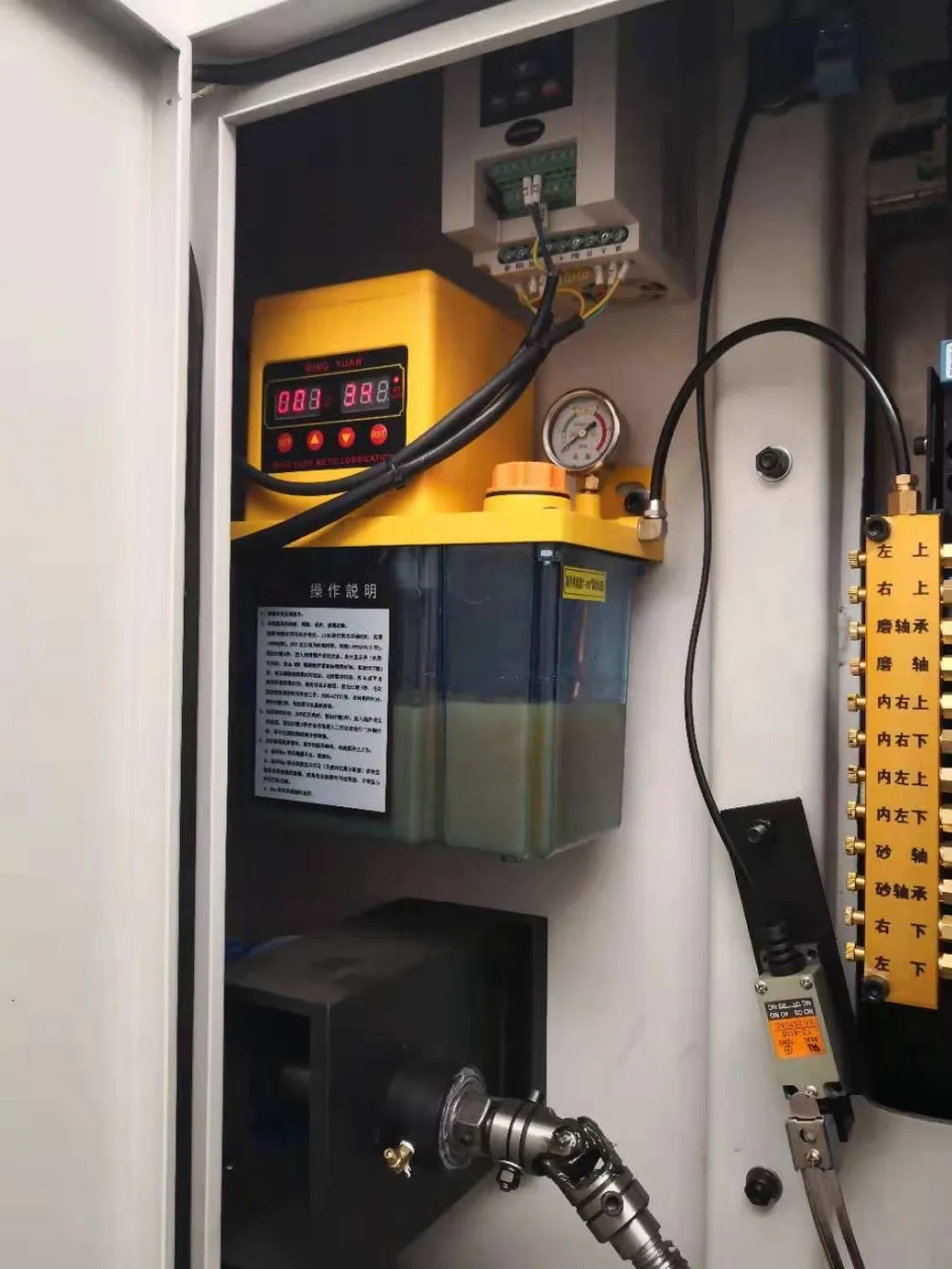

Automatic lubricating sytem

Saw blade sharpening machine.

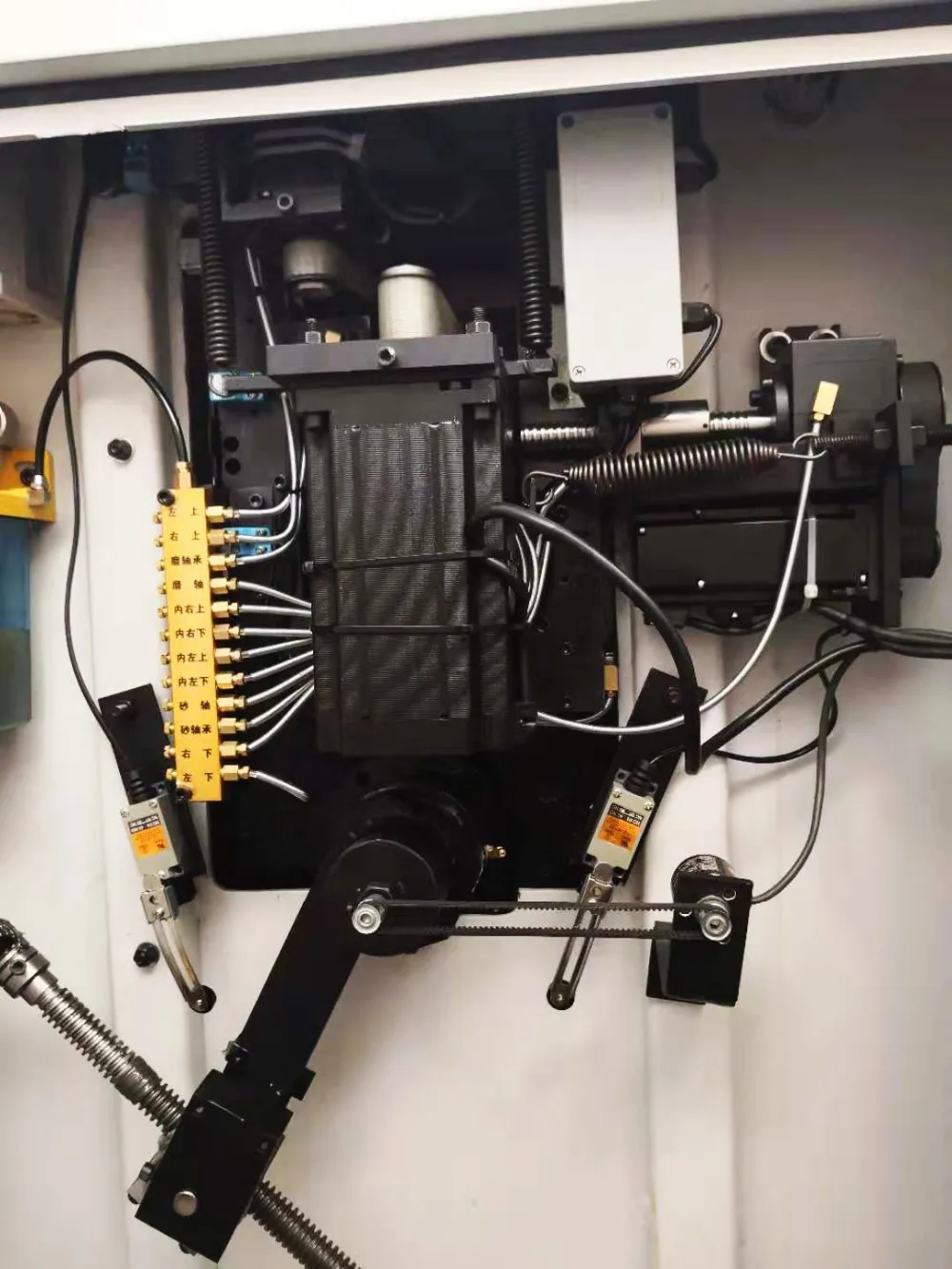

Saw blade clamp by motor.

Saw blade sharpening machine.

Servo motor sytem.

Main Features

1) Automatic tct carbide tooth Circular saw blade grinding machine.s a user-friendly machine with transparent operation panel.
2)The PLC is numerical control, it stores up several kinds of sawtooth geometries for grinding various sawblades.
3)The machine has automatic compensation program to compensate.

4) It can adjust grinding speed and it has automatic lubrication system.

Packing & Delivery

Packaging
Size	1600(L) * 1120 (W) * 2100 (D)
Weight	800kg
Packaging Details	The optional package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
