MachineryOffers

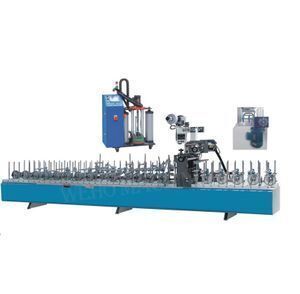

Aluminum and door frame profile wrapping machine

Product details
Condition:New;Max.diameter of roll cover material:400mm;
After-sales Service Provided:Online support;Feeding motor power:1.5kw;
Heating power:12.5kw;Production time:15 days;
Application:Aluminum and door frame wrapping;Applicable Industries:Building Material Shops,Manufacturing Plant,factory;
Weight:2500kg;Selling Units:Single item;
Custom-made Max width of cover film:600/900/1200mm;Weight:2500kg;
Certification:CE;Power(W):14kw;
Package Preview:https://sc01.alicdn.com/kf/Hba3f0aab39494667a1ddca46e194e24bo.jpg_640x640.jpg;Single gross weight:2,500 KG;
Single package size:590X800X180 cm;Package Type:Flim or wooden case 6000*600*1800mm;
Max.process thickness:90mm;Place of Origin:China;
Dimension(L*W*H):6000X600X1800mm;Brand Name:WEHO;
Warranty:1 year;Max.film wrapping width:300mm;
Min.process length:600mm;Voltage:380V;
Product Description

Aluminum and door frame profile wrapping machine

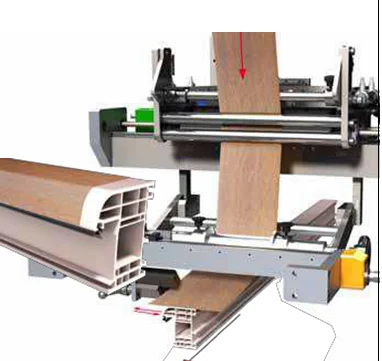

Pur profile wrapping machine for WPC wall-board, aluminum, Window wraps plastic or metal profiles,with reel-mounted materials. Available in three versions with maximum working widths 310 mm, 400 mm and 550 mm or special size is customized. Proprietary engineering and vast wrapping experience have resulted in a great cost-to-value ratio.



Profile wrapping machine features and uses

Specially used for decorative lines and aluminum, plastic materials,

Surface is covered with PVC film and milamine paper.

Using high standard glue, it can cover all angles, arcs, bumps, grooves, curls, etc.

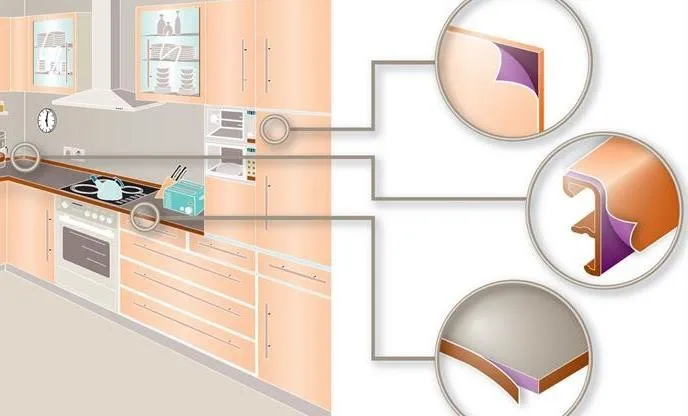

Suitable for building materials, furniture, table tops, doors and windows, decorative strips or related professional manufacturers.

It can perfect the surface of complex shape products.









Frequency-controlled drives with this Door Frame Wrapping Line

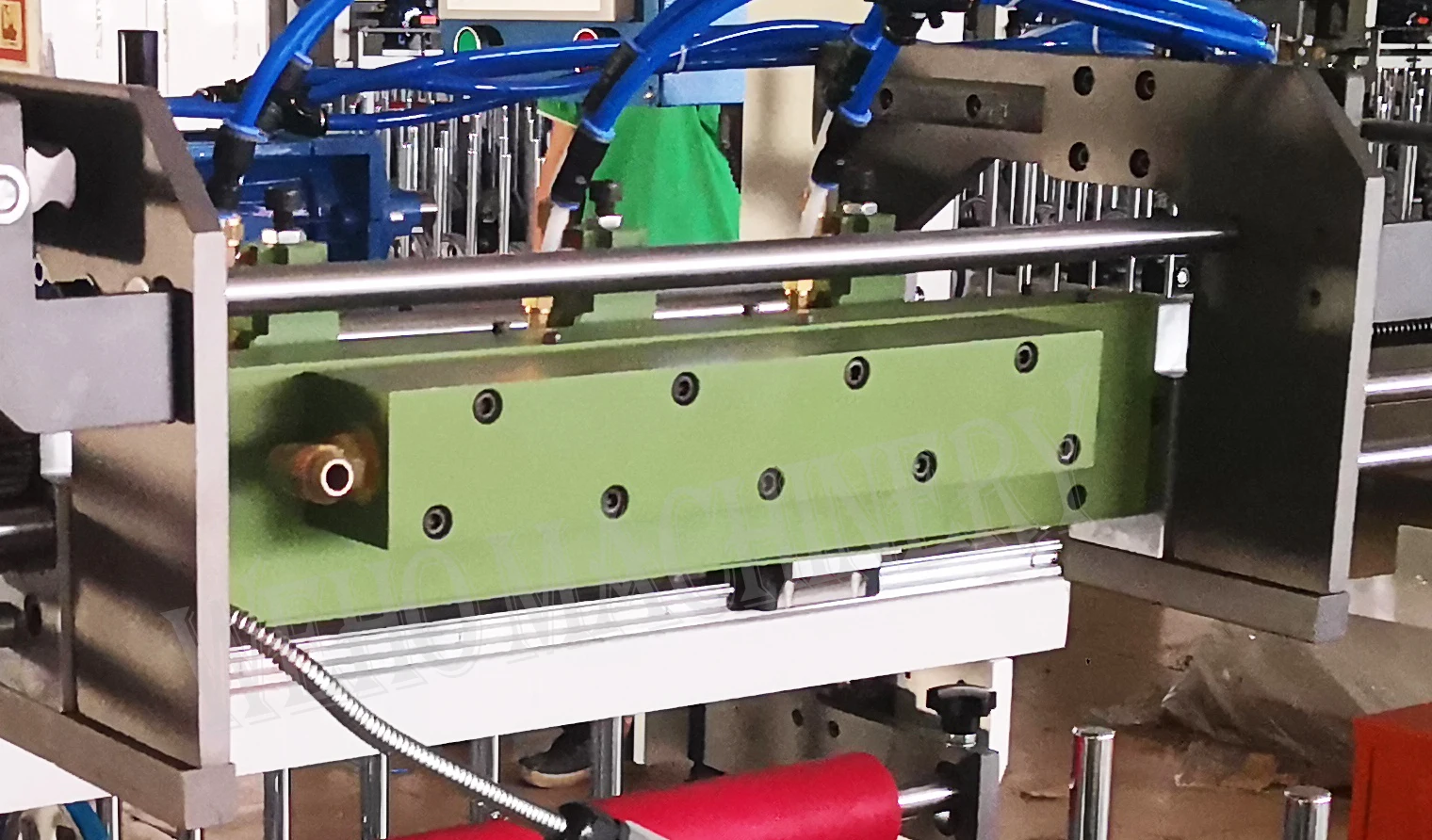

All-In-One Adhesive Application Unit includes; melter, application pump and slot-coater.

Quick set-up with adjustment optimization system for transport wheels.

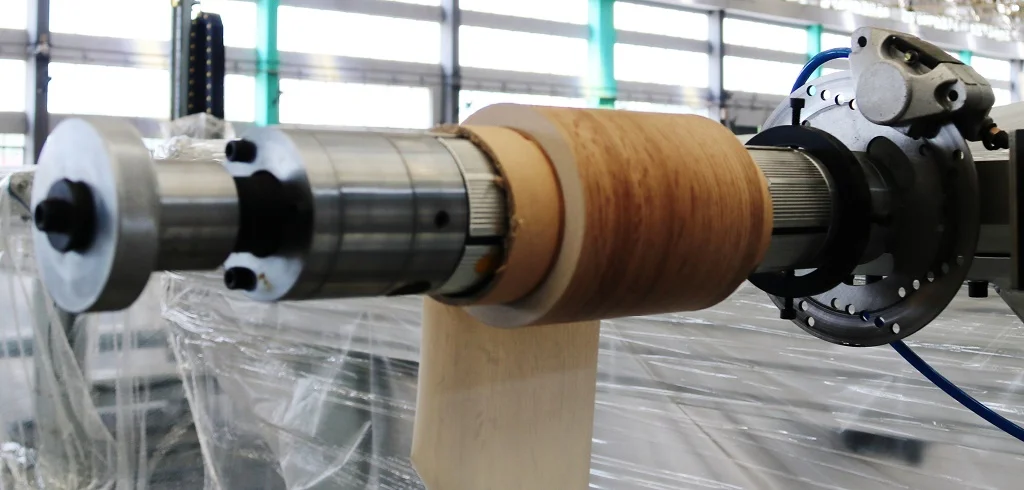

Telescopic switch cabinet. Un-winder for reel mounted materials.

Wrapping zone equipped with easy to use quick change systems.

Central width adjustment for the wrapping zone.

Silicone rubber rollers.



Model

PUR-300

Max.film wrapping width

         300mm

Max.process thickness

           90mm

Min.process length

         600mm

                 Feeding speed

                1-60m/min

        Feeding motor power

                  1.5kw

Heating power

      12.5kw

Overall dimensions

               6000x600X1800mm

Weight

                 2500kg

Max.diameter of roll cover material

    400mm

Custom-made Max width of cover film

  600/900/1200mm





About Us



 WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.

Our goal is to exceed customer expectations. We’re machine factory, but service is our business.


How to buy

1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally,  producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.

How to do if I can not operate

When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.

How to get spare part after warranty

After many years using, service will be important.  We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
