Finger joint shaper machine MX3510B

Supplier: Foshan City WEHO Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Liu Sherry
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Name:	Finger joint shaper machine;	Condition:	New;
Application:	furniture, windows, etc.;	Power(W):	10.45 kw;
Shaper blade diameter:	160 mm;	Warranty:	1 YEAR;
Voltage:	380V 50Hz 3ph;	Spindle speed:	5500rpm;
Max. working width:	330 mm;	After-sales Service Provided:	Online support,Engineers available to service machinery overseas;
Applicable Industries:	Manufacturing Plant;	Payment Terms:	L/C,T/T,Western Union;
Port:	foshan;	Max. working thickness:	100 mm;
Certification:	ISO9000;	Spindle motor:	7.5 kw;
Dimension(LWH):	2000 * 1500 * 1200 mm;	Supply Ability:	20 Unit/Units per Month;
Packaging Detail:	waterproof film;	Weight:	650 kg;
Shaper spindle diameter:	35 mm;	Air Pressure:	0.8Mpa;
Brand Name:	WEHO;	Working table size:	640 * 500 mm;
Place of Origin:	China;

Product Description

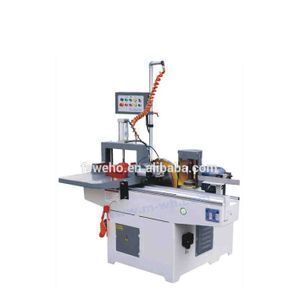

Finger joint shaper machine

Finger joint shaper is mainly used for making finger shape of wood, smear the glue on the tenon,and then put into the finger jointingt machine,then the cutting saw to cut the wanted length.

It's nessacery equipment to make small solid wood assemble to board or other shape.

This finger jointer assemble machine is easy to handle.

Product Name	Finger joint shaper
Model	MX3510B
Max. Processing width	350mm
Max. processing height	100mm
Working table size	650 * 500mm
Shaper spindle diameter	35mm
Shaper blade diameter	160mm
Cut off saw size	3003 25.4mm
Shaper spindle speed	5500r/min
Cut off saw speed	2840r/min
Shaper spindle power	7.5kw
Cut off saw power	2.2kw
Working pressure	0.8Mpa
Overall size	2000 * 1500 * 1200 mm
N/W	650kg
