alu/pvc blister packing machine DPT-80

Supplier: Minhua Pharmaceutical Machinery Co., Limited
Region: Shanghai, China
Contact: Mr Jack Meng
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	;	Marketing Type:	Hot Product 2019;
Warranty:	1 year;	Certification:	ISO;
Automatic Grade:	Fully Automatic;	Packing Material:	PVC1300.25mm/PTP1300.02mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Usage:	Capsule;
Brand Name:	MINHUA;	Key Selling Points:	Easy to Operate;
Voltage:	220;	Product name:	blister packing machine;
Packaging Detail:	Veneer export case;	Payment Terms:	T/T,Western Union,MoneyGram;
Dimension(LWH):	980x480x980;	Weight:	230;
Applicable Industries:	Food & Beverage Factory,Home Use,Food & Beverage Shops,pharmaceutical machinery;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Local Service Location:	None;	Port:	SHANGHAI;
Showroom Location:	None;	Condition:	New;
Machinery Test Report:	Provided;	Power:	5000;
Warranty of core components:	1 Year;	Core Components:	Bearing,Gearbox,Gear;
Video outgoing-inspection:	Provided;	Supply Ability:	30 Set/Sets per Month;
Place of Origin:	Shanghai China;

Functions

Product Description

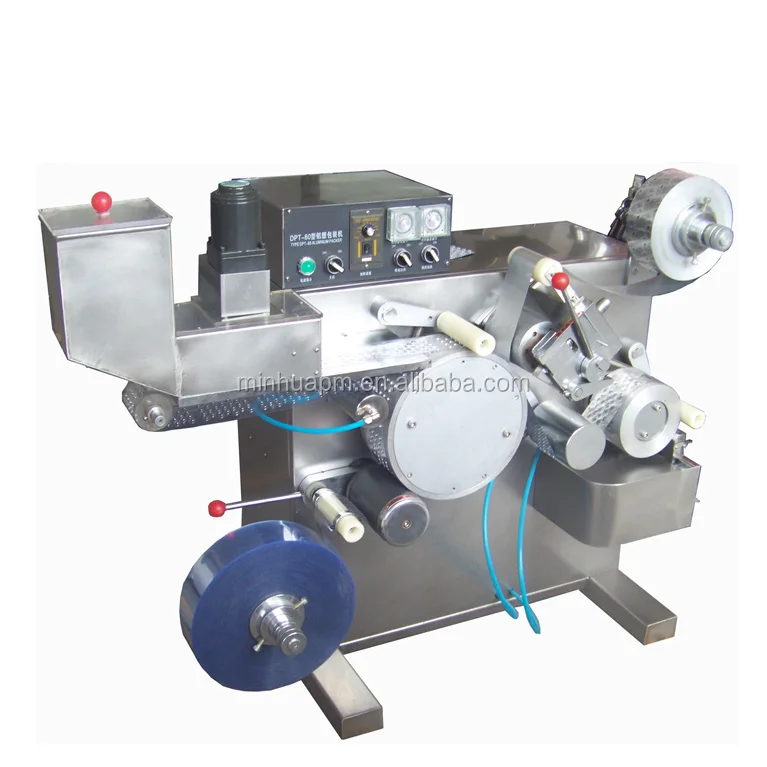

Blister packing machine

Use&Features

Designed by our company earliest and produced at largest batch process,DPT-80 mini-type bubble-cap packing machine is the smallest ,lightest cheapest and energy consumption lowest packing equipment among the similar mode both in domestic and abroad .This machine is widely suitable for new product preparation room of pharmaceutical section of people’s hospital ,small pharmaceutical factory ,drug rest .It’s also suitable for aluminum sculpture packing of capsule ,sugarcoating pill and plain pill medicine or improvement packing of special specification.
The machine can continually and automatically complete the packing proceedings ,is blister cap form-taking .medicine-feeding ,hot-sealing ,printing lot no ,and cutting into format .It has advantages as compact structure ,full function ,gear wheel working ,accurate aynchr-onization ,stable cooperation ,easy to replace the mould ,low cost and needn’t to equip auxiliary unit .Turn on power and connect it with cooling water ,you can produce in a large scale.

Item \ Model	DPT-80
Capacity	20,000-50,000grain/hour
Punching frequency	30times/min/plate each punching
Plate size	90×80mm(Designed according user’s requirement)
Packing material	PVC hard piece:width65-90mm,thickness0.25-0 .30mm,bore diameter of rolling shaft60-70mm
Packing material	PTP Aluminum foil: width65-70mm,thickness0.02-0.025mm,bore diameter of rolling shaft60-70mm
Power consumption	5kw,220v50-60hz,1-pole 5-line
Overall size L×W×H(mm)	980×480×980mm
Net Weight	230kg

Remark: Machine will be designed according to customer's detail requirements. Please contact with us for choose

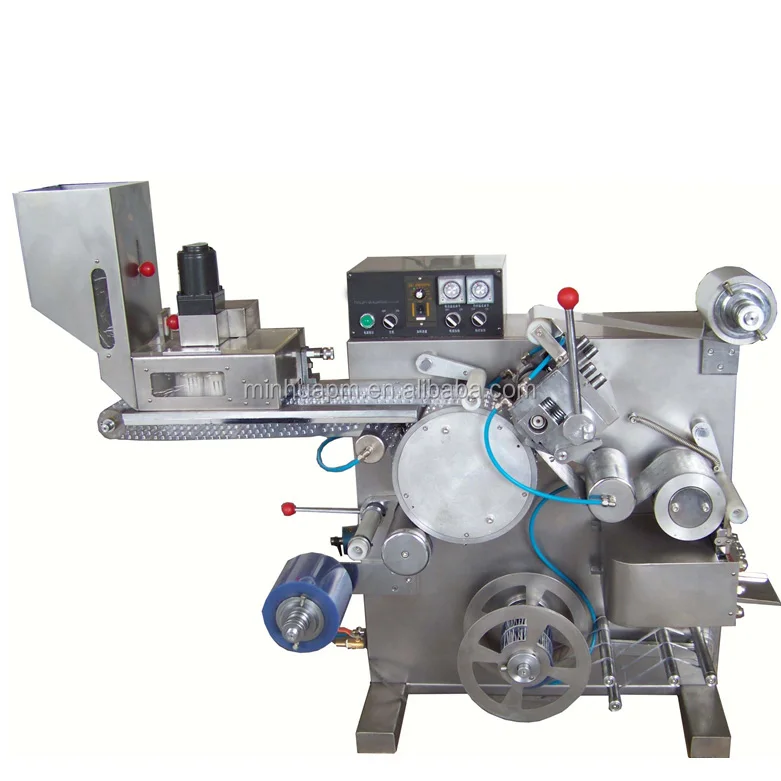

Product Pictures

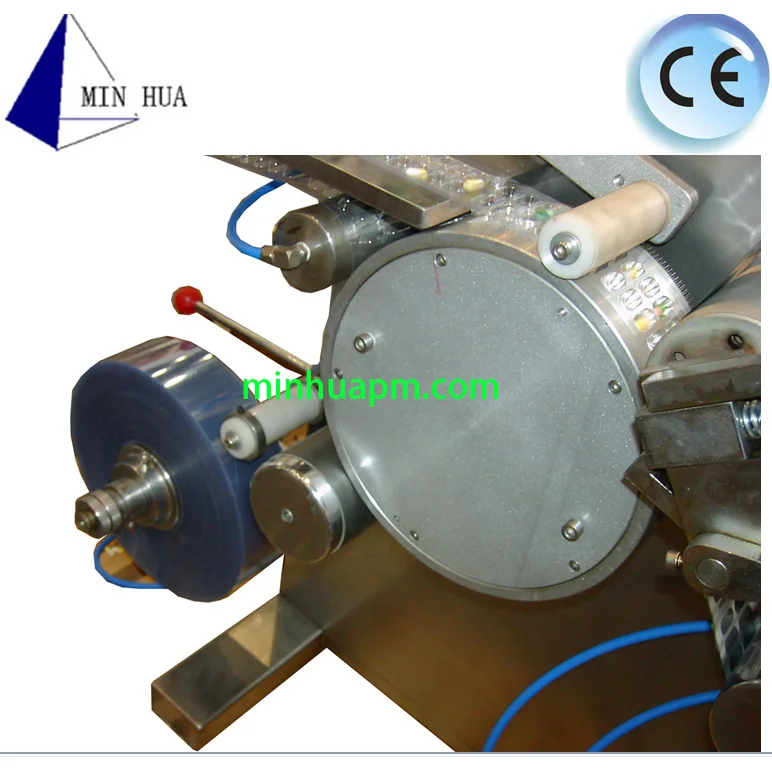

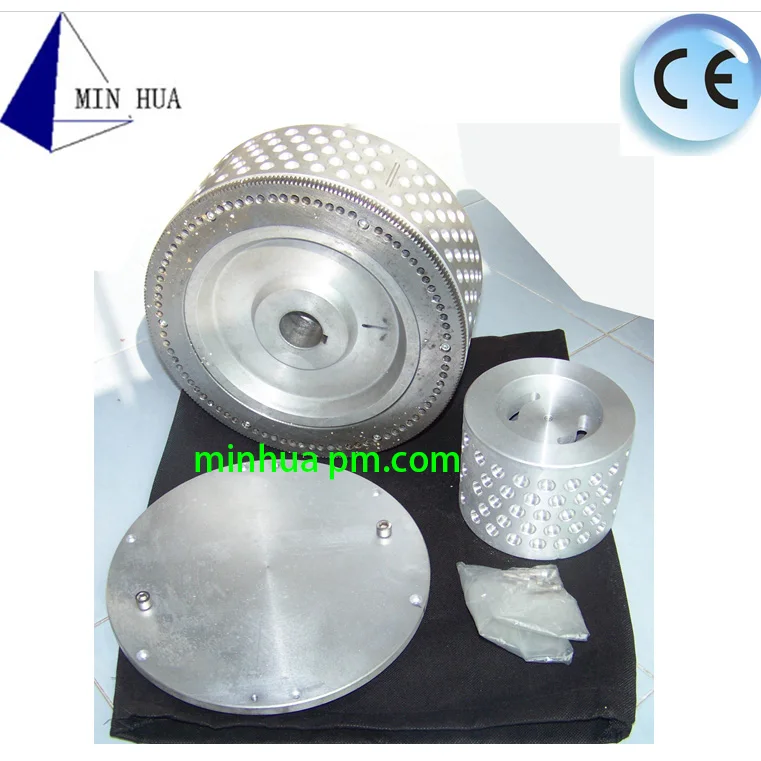

Details

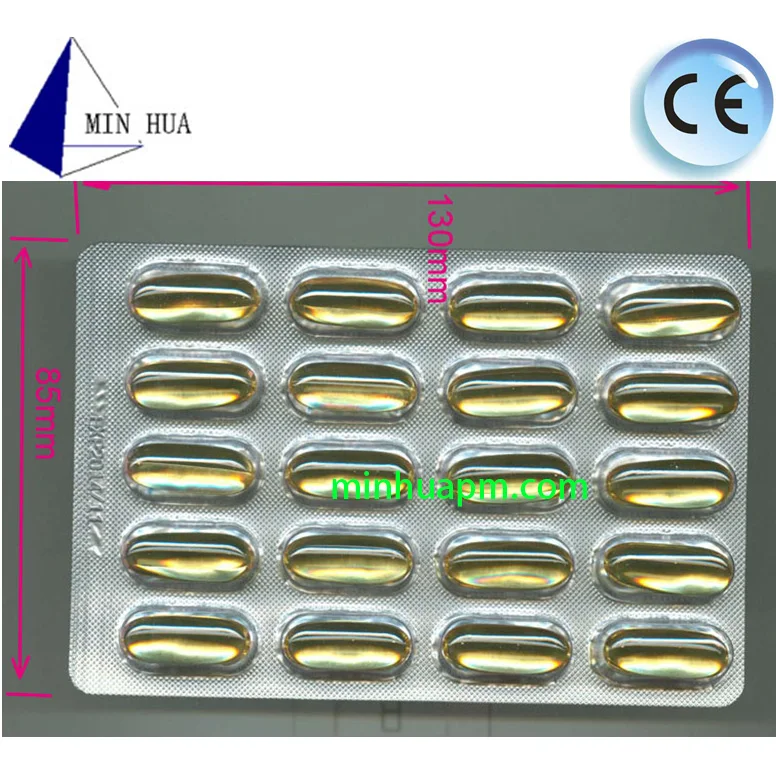

Product Samples

Packaging & Shipping

Our Company:

Shanghai Zixiong Pharmaceutical Machinery Co., ltd is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We are located in Shanghai.

We have a disciplined factory and fairly professional technical engineers. We will provide personalized customized service for you. We have designed and developed many types of machinery and equipments, including tablet press, soft and hard blister packing machine, capsule filling machine,

clean-room project, soft-gel production line, glass-lined reactor, centrifuge, granulator, mixer, dryers, pulverizer, cartoner and rollers, etc.
Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, , India, Indonesia, Pakistan, Thailand, Vietnam,Japan, Denmark, Romania, Bulgaria, South Africa, Nigeria, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In ZIXIONG you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

Our Services

Pre-sales service:

1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.

2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.

3.We will recommend and offer machine according to customer’s use and purchase budget.

In-sale service:

1.We will supply each manufacturing step photo for customer checking on time.

2.We will prepare packing and shipment according to customer’s needing in advance.

3.Testing the machine and making video for customer’s checking.

After-sale service:

1.We will guarantee the machine quality for 1 year.

2.We provide free training and answer customer's question on technology in time.

Our Customer

Welcome to Shanghai. Welcome to visit our company.

Certificate

FAQ

1. What about your baling machine quality?

Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.

2. What about your baling machine price?

Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!

3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for baling machine?

1>Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.

2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.

3>It is free to train your worker in our factory or in your side or by video.
