Brand Name: | DIXIN; | Material Coil width: | according to customer's request; |
Name: | Track Roll Forming Machine; | Lanugage system: | English; |
Production: | Channel Roll Forming Machine; | Production Capacity: | 8-10m/min; |
Power: | 3 -4KW; | Material: | PPGI GI; |
Voltage: | 380V/50HZ 3Phase(as Customer's Request); | Supply Ability: | 20 Set/Sets per Year; |
Applicable Industries: | Building Material Shops,Construction works ; | Condition: | New; |
Warranty: | 2 years; | Work Pressure: | 16Mpa; |
Thickness: | 0.5-1.0mm; | Packaging Detail: | plastic film protection, loaded in container independently; |
Type: | Steel Frame & Purlin Machine; | Port: | Xingang Tianjin; |
Place of Origin: | China; | After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
Shaft material: | 45# High Grade Steel; | Key Selling Points: | Long Service Life; |
Weight: | 2.5T; | Cutting type: | Moulding Cut; |
Certification: | CE BV; | Cutting blade material: | Cr12 Mov; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Dimension(L*W*H): | 3000*800*1400mm; |
Control system: | PLC(imported Brand); |

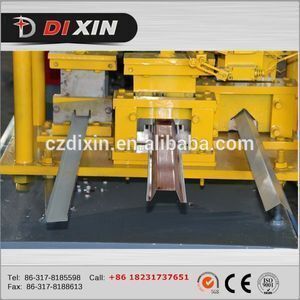

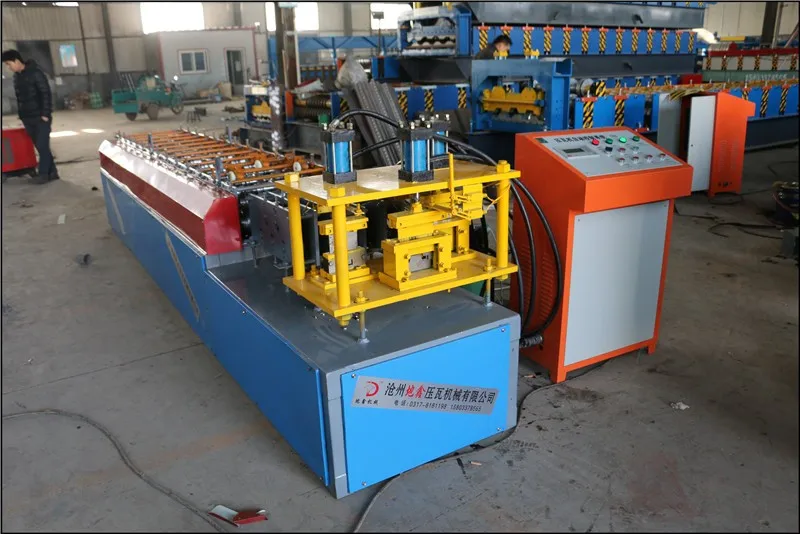

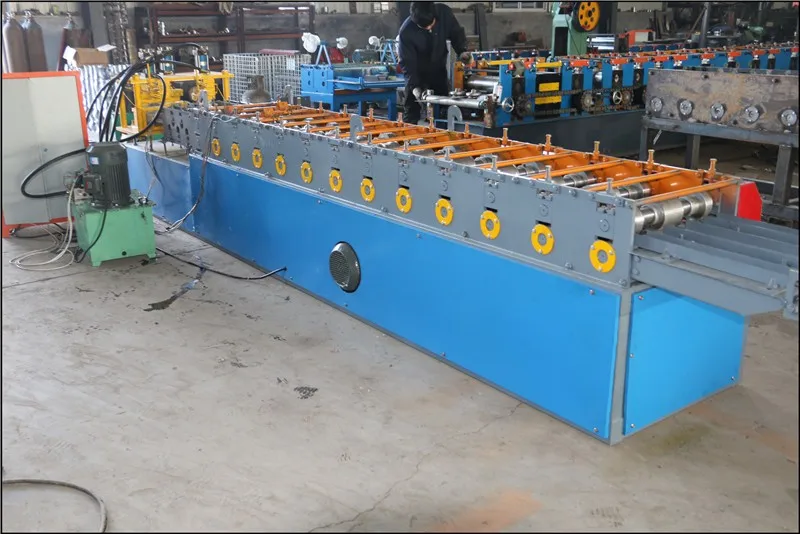

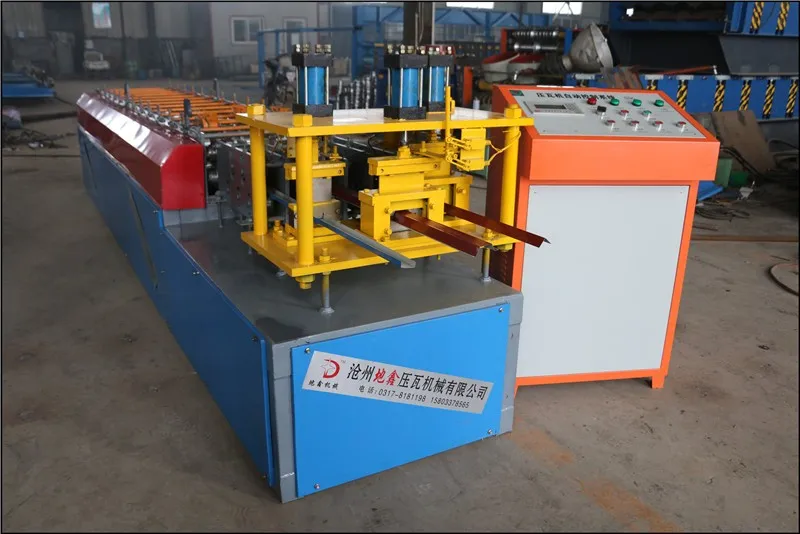

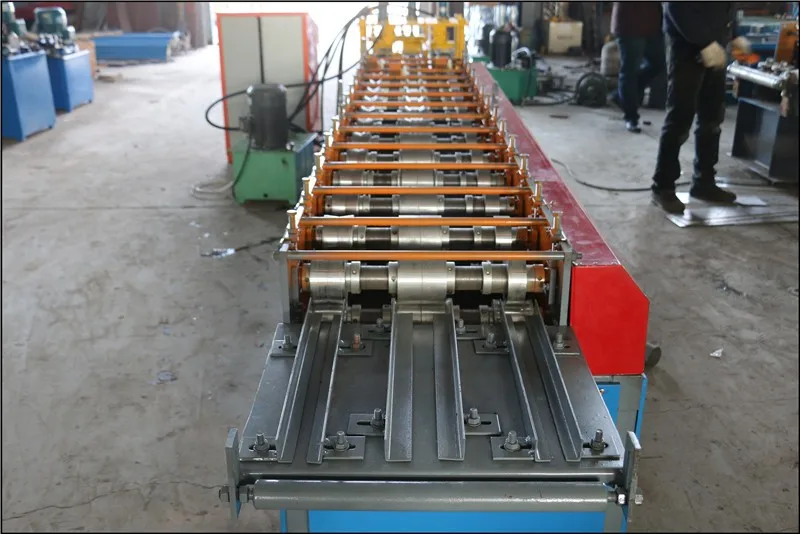

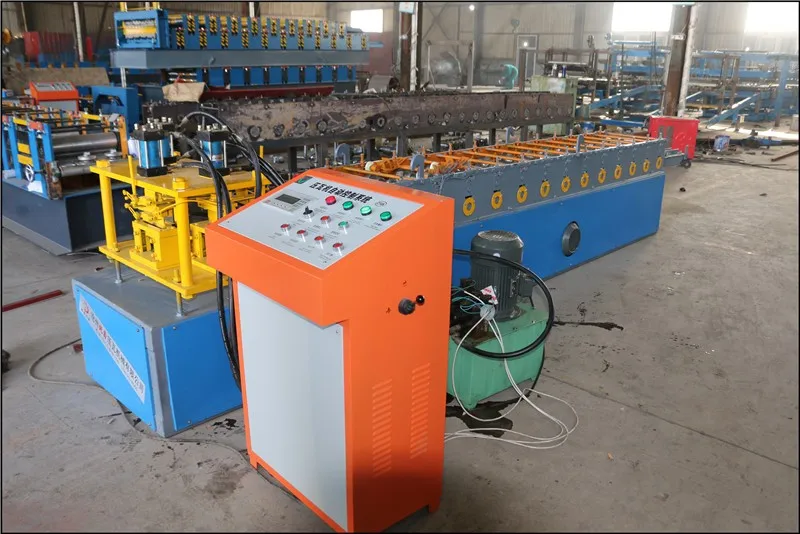

dixin omega channel/furring channel roll forming machine
Technical parameters: | |||||||
1 | Name of commodity & specification | XN-c truss forming machine | |||||
2 | Main motor power | 3kw, 3 phase | |||||
3 | Hydraulic motor power | 3kw | |||||
4 | Hydraulic Pressure | 10-12MPa | |||||
5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | |||||
6 | Control System | PLC Delta Inverter | |||||
7 | Main Frame | 300mm H-Beam | |||||
8 | Backboard Thickness | 14mm | |||||
9 | Chain Size | 20mm | |||||
10 | Feeding Material | color steel coils | |||||
11 | Feeding Thickness | 0.3-1.2mm | |||||
14 | Productivity | 12-14m/min | |||||
15 | Roll Station | 11 | |||||
16 | Roller Diameter | 70mm | |||||
17 | Roller material | 45# steel | |||||
18 | Cutter material | Cr12 , quenched | |||||
19 | Cr-Plating Size | 0.05mm | |||||
20 | Overall Size | 2500×900×1000mm | |||||
21 | Total Weight | 2T | |||||
22 | Components | Manual Uncoiler-------------------1 set | |||||
Guiding Platform------------------1 set | |||||||
Coil Strip Leveler------------------1 set | |||||||
Main Machine of Roll Forming------1 set | |||||||
Electric-Motor---------------------1 set | |||||||

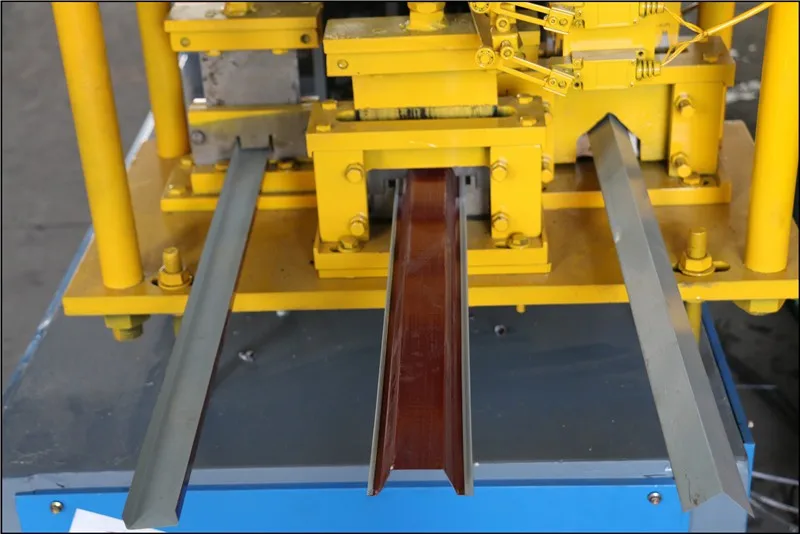

Cutting Device--------------------1 set | |||||||
Hydraulic Station------------------1 set | |||||||
PLC Control-----------------------1 set | |||||||
Supporter Table-------------------1 set | |||||||
23 | Workflow | Manual decoiling----feeding and guiding----roll forming----cut to length----run out table | |||||
24 | Package | nude in the container | |||||
25 | Minimum order quantity | 1 set | |||||
26 | Payment terms | T/T(30% T/T pay in advance, the remaining 70% pay before ship) | |||||
27 | Delivery time | 30 working days later after receiving the deposit |
