BY Series Tablet Peanut Almond Sugar Coating Pan Machine

Supplier: Shanghai Pharmaceutical Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Ted Bian
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Food And Medical;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Coating Temperature (℃):	30 - 50 ℃;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Marketing Type:	Hot Product 2019;	Warranty of core components:	1 Year;
Warranty:	1 Year;	Type:	Coating machine;
Payment Terms:	L/C,T/T,USD, EUR;	Machinery Test Report:	Provided;
Power (kW):	3;	Max. Load Capacity (kg):	1000;
Coating Drum Diameter (mm):	12;	Core Components:	Engine;
Packaging Detail:	Export standard packaging;	Showroom Location:	None;
Video outgoing-inspection:	Provided;	Port:	Shanghai;
Voltage:	110 V/220 V/380;	Supply Ability:	1 Set/Sets per Month;
Place of Origin:	Shanghai China;	Brand Name:	SPM;
Certification:	ISO;	Usage:	Pharmaceutical;
Condition:	New;	Weight (KG):	200-800;
Dimension(LWH):	Depend on capacity;	Coating Type:	Heating & Coating;
Local Service Location:	None;	Key Selling Points:	High Productivity;

Product Overviews

Product Description

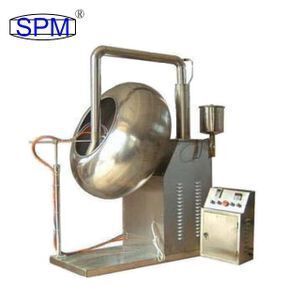

BY Series Tablet Peanut Almond Sugar Coating Pan Machine:

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with a elevation 30° to the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.

Type	Capacity (Kg)	Angle of inclination	Motor power (Kw)	Fan power (Kw)	Overall dimension (mm)	Heating power (Kw)	Weight (Kg)	Rotary speed (rad/min)
BY300	1-3	30°	0.37	40	800×800×1200	1KW	200KG	0-46
BY400	2-5	30°	0.55	40	800×800×1200	1KW	200KG	0-46
BY800	30-50	30°	1.1	200	1000×1000×1550	3KW	400KG	0-32
BY1000	50-70	30°	1.5	200	1200×1200×1600	4KW	450KG	0-32
BY1250	80-150	30°	2.2	370	1350×1350×1600	6KW	800KG	0-28
