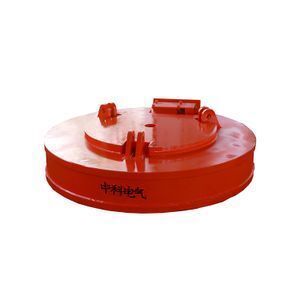

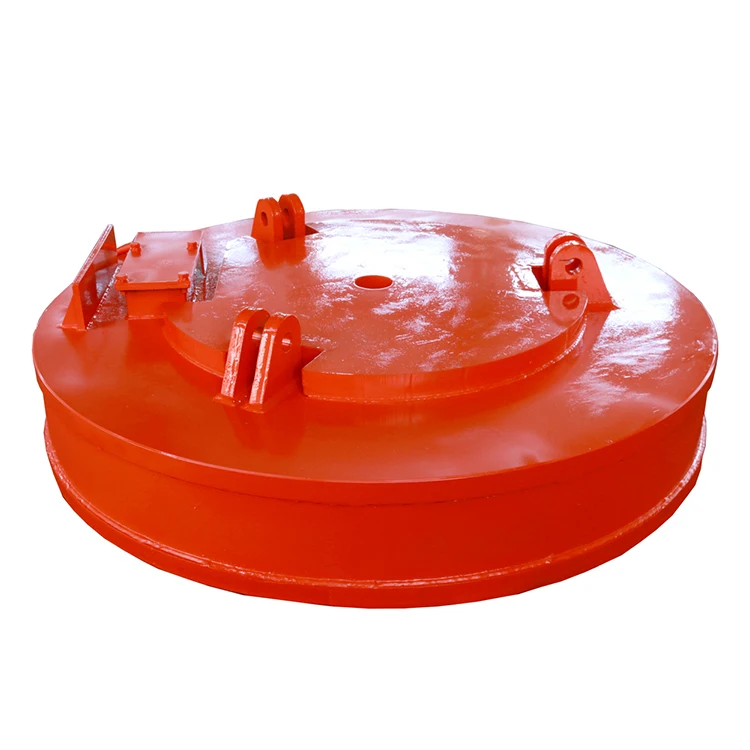

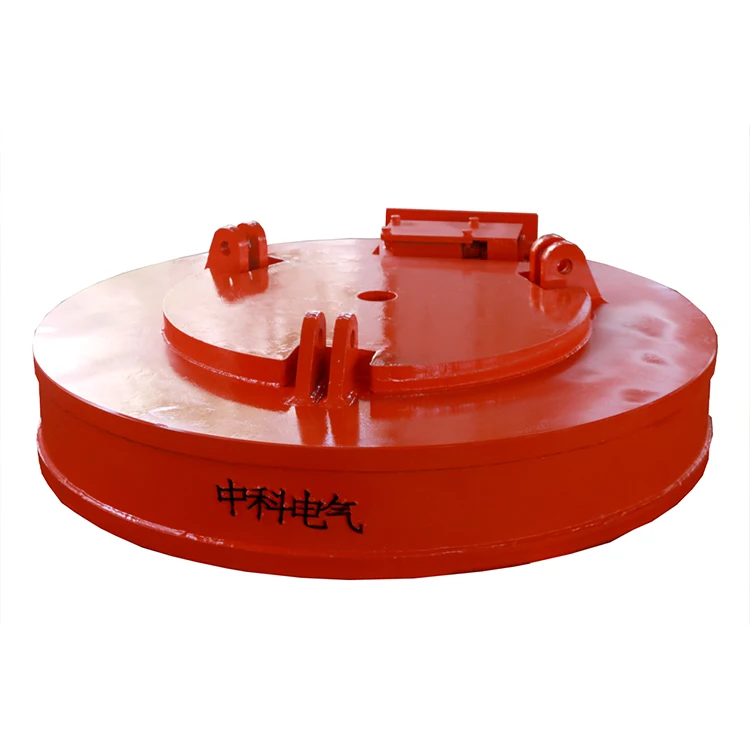

For sale Metal steel scrap MW5 series lifting electromagnet large magnets

Product details
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Port:Yueyang/shanghai;
Local Service Location:None;Warranty:1.5 years;
Application:Industrial Magnet for scrap;Package Preview:;
Brand Name:CSECO/Zhongke Electric;Payment Terms:L/C,T/T,MoneyGram;
Machinery Test Report:Provided;Warranty of core components:1 Year;
Feature:electromagnet with deep magnetic permeability;Place of Origin:Hunan China;
Core Components:Coil;Video outgoing-inspection:Provided;
Condition:New;Packaging Detail:Standard export package;
Marketing Type:Ordinary Product;Product Name:MW5 Lifting electromagnet;
Showroom Location:None;Supply Ability:100 Piece/Pieces per Month;
related products

For sale Metal steel scrap MW5 series lifting electromagnet  large magnets a b c d e f g h i a b c d e f

Model
Size(mm)
Current(A)
Voltage(V)
MW5-130L/1
φ1300
58
220
MW5-130L/1-75
φ1300
51
220
MW5-150L/1
φ1500
76
220
MW5-150L/1-75
φ1500
67
220
MW5-165L/1
φ1650
90
220
MW5-165L/1-75
φ1650
78
220
MW5-180L/1
φ1800
105
220
MW5-180L/1-75
φ1800
89
220
MW5-210L/1
φ2100
136
220
MW5-210L/1-75
φ2100
123
220
MW5-240L/1
φ2400
166
220
MW5-240L/1-75
φ2400
142
220
MW5-260L/1
φ2600
189
220
MW5-260L/1-75
φ2600
164
220
MW5-280L/1
φ2800
202
220
MW5-280L/1-75
φ2800
175
220
MW5-300L/1
φ3000
226
220
MW5-300L/1-75
φ3000
206
220

For more details, please feel free to contact us.



It is widely used for handling cast iron ingots, steel balls, iron filings, and steel scrap.
The structure is simple, and it's convenient to install.
Modes: Constant voltage (DC 220V); strong excitation method (DC 290V/200V),; overexcitation method (DC 350V/290V/200V), which can accelerate the excitation speed and increase the lifting capacity by approximately10 %.
