Industrial Electro Magnetic Lifter material handling MW12 series Lifting electromagnet

Supplier: Hunan Zhongke Electric Co., Ltd.
Region: Hunan, China
Price: $1500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Marketing Type:	Ordinary Product;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Place of Origin:	Hunan China;	Supply Ability:	100 Piece/Pieces per Month;
Condition:	New;	Product Name:	MW12 lifting magnet;
Port:	Yueyang/shanghai;	Packaging Detail:	Standard export package;
Lifting MagnetS:	bundled rebar and rods;	Video outgoing-inspection:	Provided;
Showroom Location:	None;	Feature:	electromagnet with deep magnetic permeability;
Brand Name:	CSECO/Zhongke Electric;	Machinery Test Report:	Provided;
Application:	Electro magnet for bundled rebar and rods;	Core Components:	Coil;
Warranty:	1.5 years;	Package Preview:	;
Payment Terms:	L/C,T/T,MoneyGram;	Warranty of core components:	1 Year;
Local Service Location:	None;

Industrial Electro Magnetic Lifter material handling MW12 series Lifting electromagnet

Model	Size(mm)	Current(A)	Voltage(V)
MW12-12090L/1	1200*900	40	220
MW12-12090L/2	1200*900	37	220
MW12-13090L/1	1300*900	43	220
MW12-13090L/2	1300*900	40	220
MW12-14090L/1	1400*900	45	220
MW12-14090L/2	1400*900	42	220
MW12-15090L/1	1500*900	47	220
MW12-15090L/2	1500*900	44	220
MW12-16090L/1	1600*900	49	220
MW12-16090L/2	1600*900	45	220
MW12-17090L/1	1700*900	53	220
MW12-17090L/2	1700*900	49	220
For more details, please feel free to contact us.

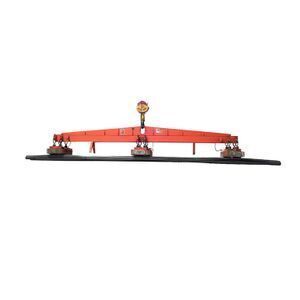

MW12 series of lifting electromagnets are widely applied for handling bundled rebar and rod.

The series MW12 lifting magnets are featured with special designed double magnetic poles, which enables the magnetic circuit penetrate the multilayer steel, and ensures safety and high efficiency of the lifted materials.
With these features, the products can be applied to handle bundled HRB and round steel. As it's unnecessary to manually use steel wire rope or hanging chain to hook and unhook, the operation is safe and convenient.
