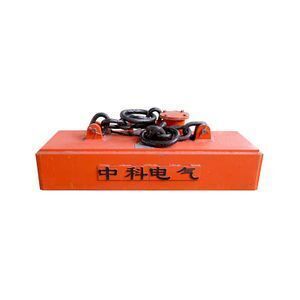

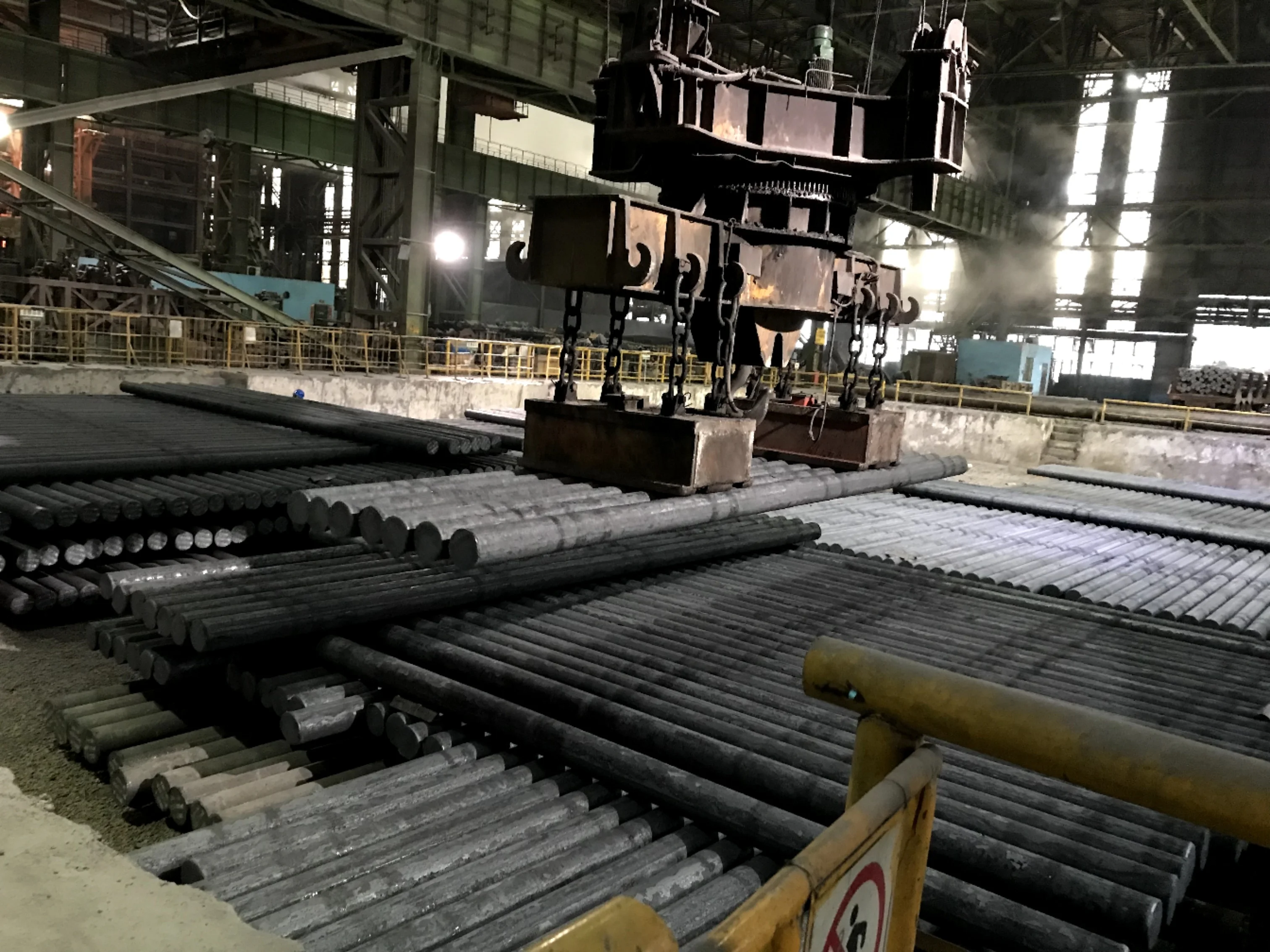

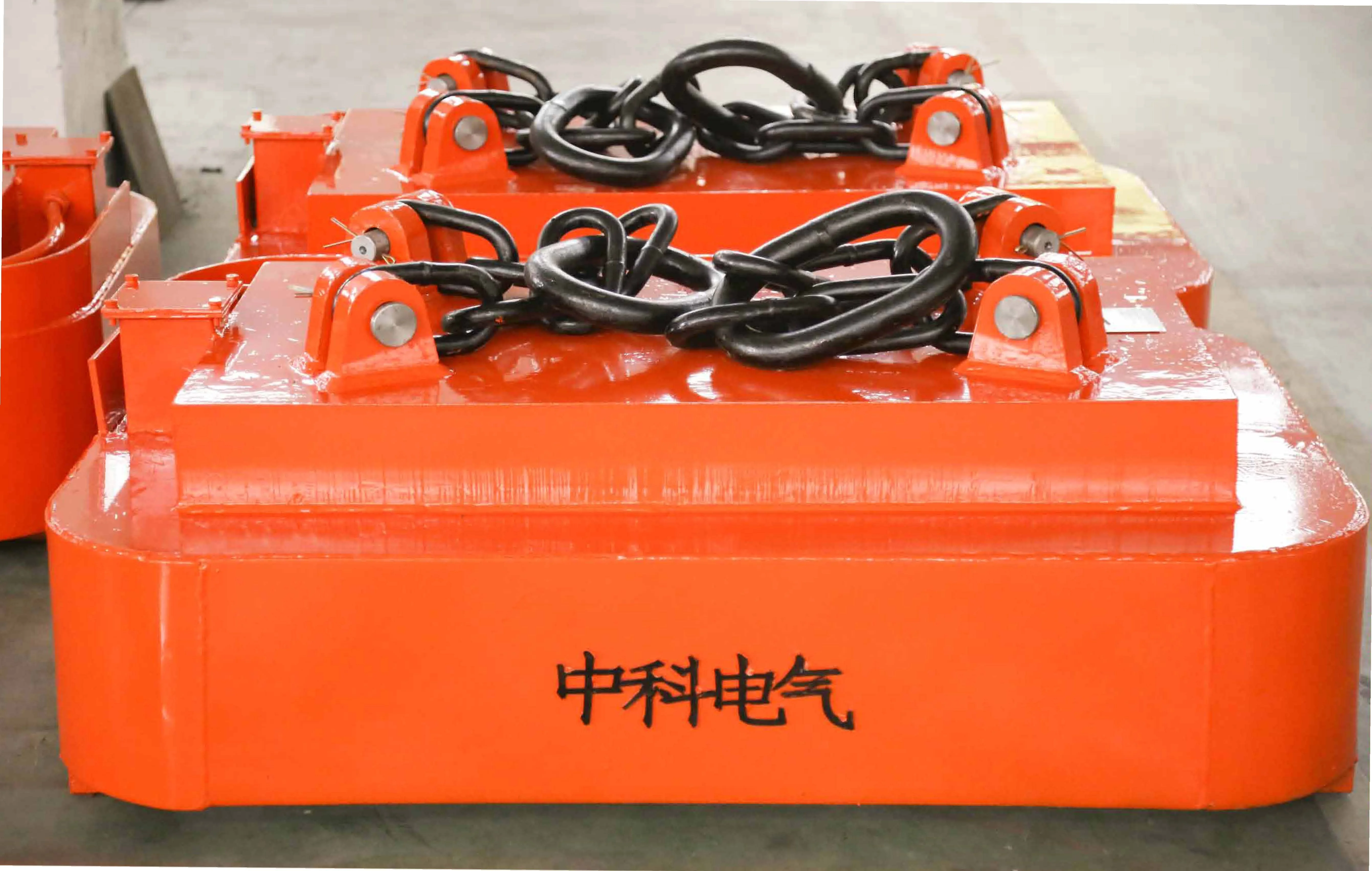

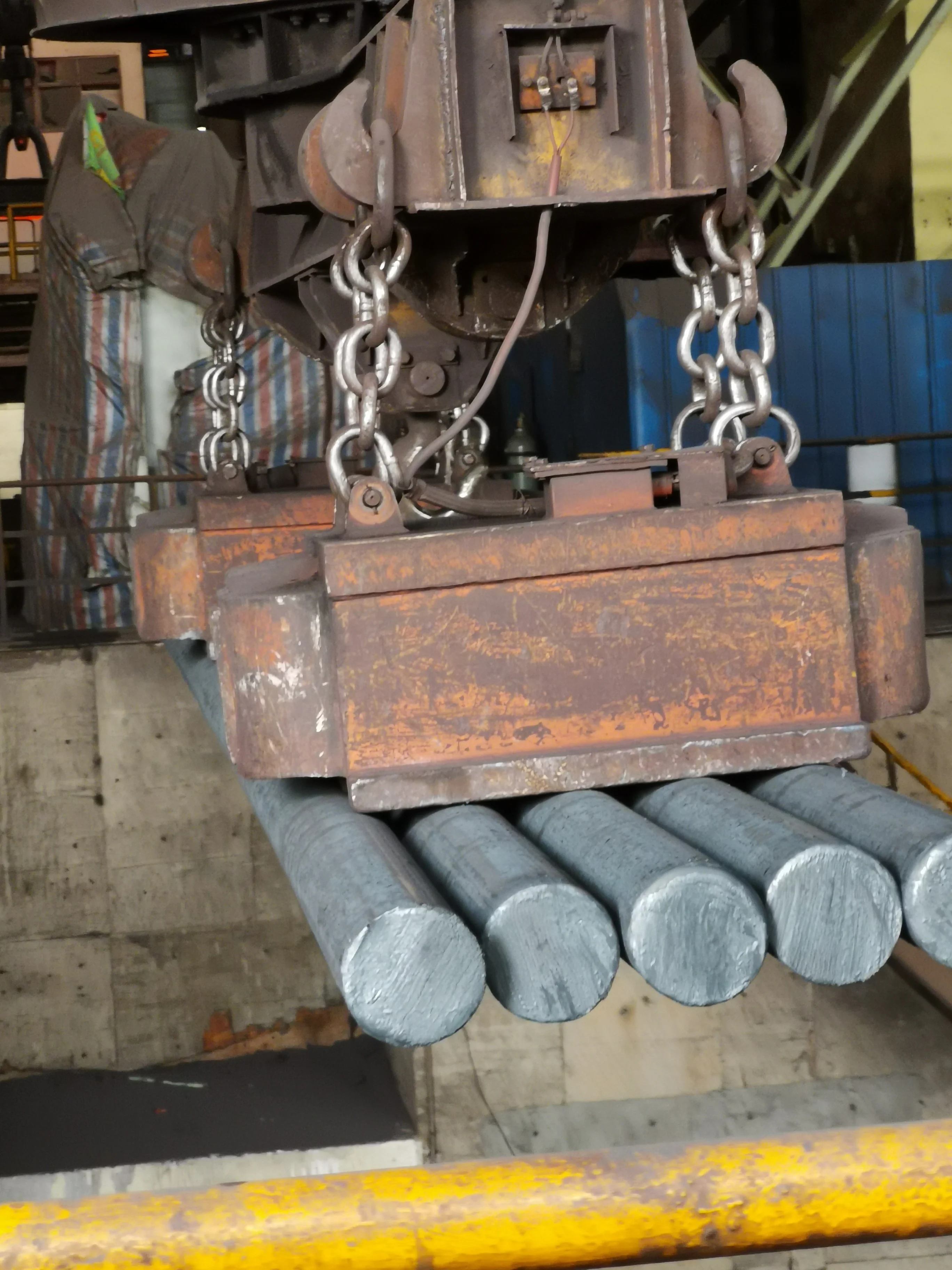

MW22 New Lifting Electromagnet , handing Blooms, Beam Billets and Round Billets

Supplier: Hunan Zhongke Electric Co., Ltd.
Region: Hunan, China
Price: $1500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	MW22 lifting magnet;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Application:	Electro magnet for billet, bloom and large ingot;	Machinery Test Report:	Provided;
Port:	Yueyang/shanghai;	Showroom Location:	None;
Local Service Location:	None;	Brand Name:	CSECO/Zhongke Electric;
Packaging Detail:	Standard export package;	Video outgoing-inspection:	Provided;
Feature:	electromagnet with deep magnetic permeability;	Lifting MagnetS:	billet, bloom and large ingot;
Condition:	New;	Warranty of core components:	1 Year;
Supply Ability:	100 Piece/Pieces per Month;	Package Preview:	;
Core Components:	Coil;	Payment Terms:	L/C,T/T,MoneyGram;
Place of Origin:	Hunan China;	Warranty:	1.5 years;
Marketing Type:	Ordinary Product;

MW22 New Lifting Electromagnet , handing Blooms, Beam Billets and Round Billets

Model	Size(mm)	Current(A)	Voltage(V)
MW22-12085L/2	1250*800	28	220
MW22-14090L/2	1400*900	34	220
MW22-17065L/2	1700*650	33	220
MW22-12595L/2	1250*950	37	220
MW22-15095L/2	1500*950	45	220
MW22-15090L/2-75	1500*900	35	220
For more details, please feel free to contact us.

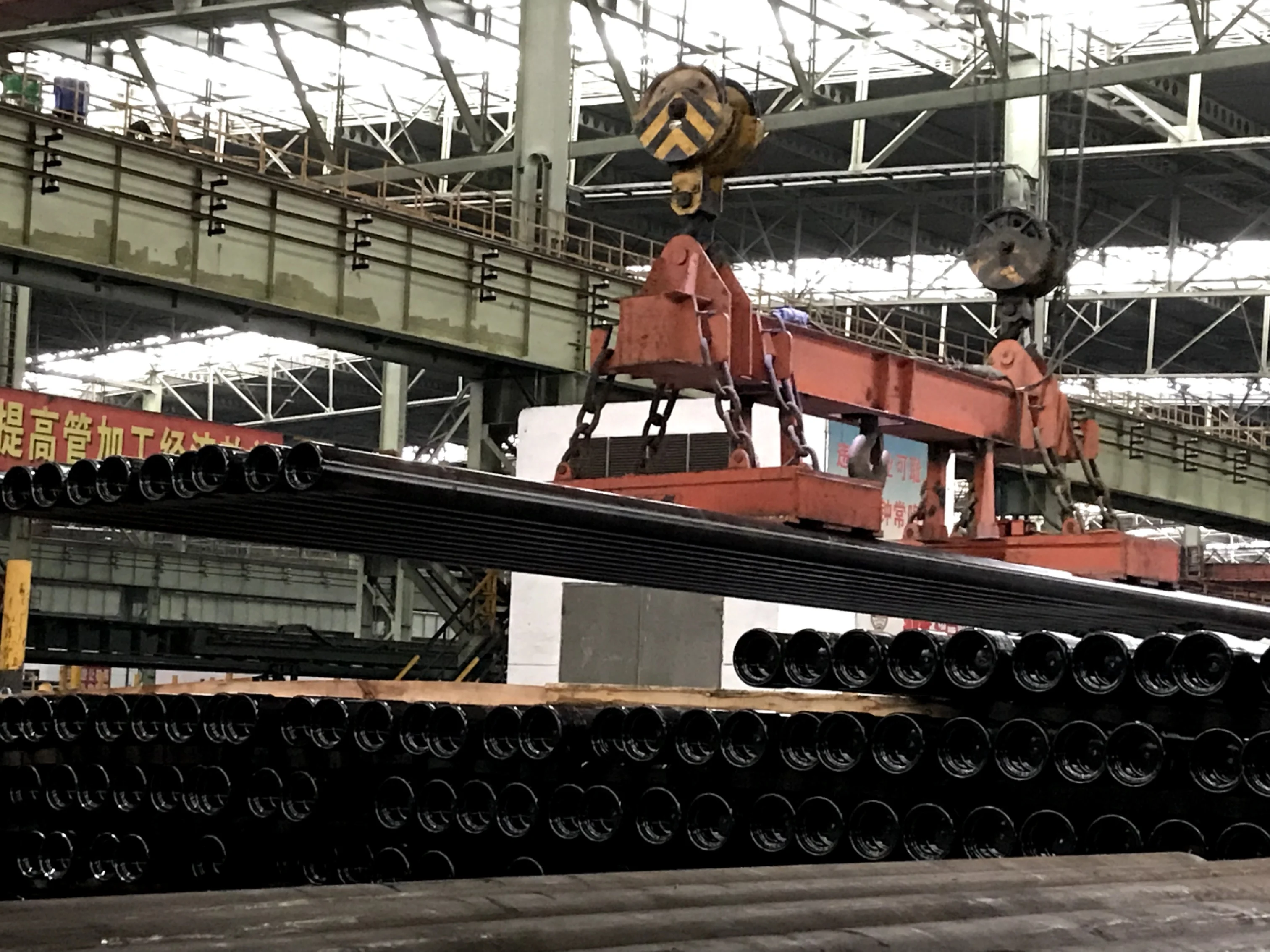

MW12 series of lifting electromagnets are widely applied for handling bundled rebar and rod.

The series MW12 lifting magnets are featured with special designed double magnetic poles, which enables the magnetic circuit penetrate the multilayer steel, and ensures safety and high efficiency of the lifted materials.
With these features, the products can be applied to handle bundled HRB and round steel. As it's unnecessary to manually use steel wire rope or hanging chain to hook and unhook, the operation is safe and convenient.
