Mechanical test report: | if | Packaging Details: | Standard export packaging |
Supply capacity: | 100 pieces per month | Health status: | new |
product name: | MW61 lifting electromagnet | brand: | CSECO/Zhongke Electric |
Warranty: | 1.5 years | feature: | Electromagnet with deep permeability |
place of origin; place of origin: | Hunan, China | Marketing Type: | normal product |
Core Components Warranty: | 1 year | payment terms: | Letter of Credit, Telegraphic Transfer, MoneyGram |
Packaging Preview: | application: | Industrial Magnets for Scrap | |
Video external inspection: | if | port: | Yueyang/Shanghai |
Local service location: | not any | Core components: | coil |
Showroom location: | not any | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |

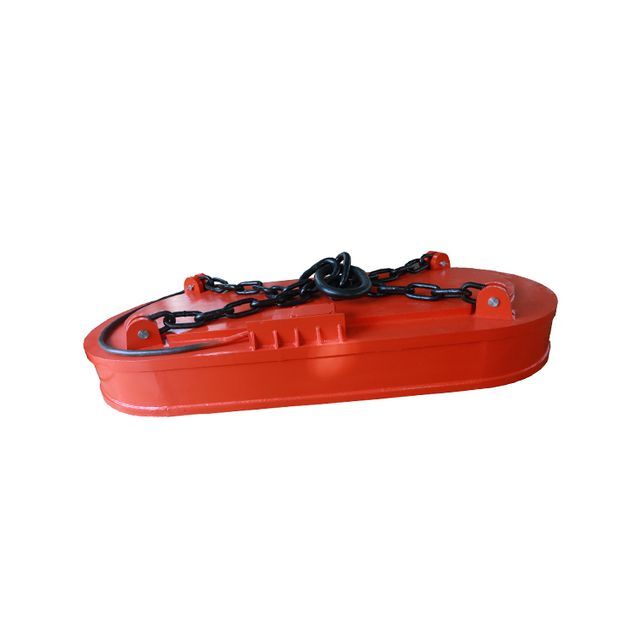

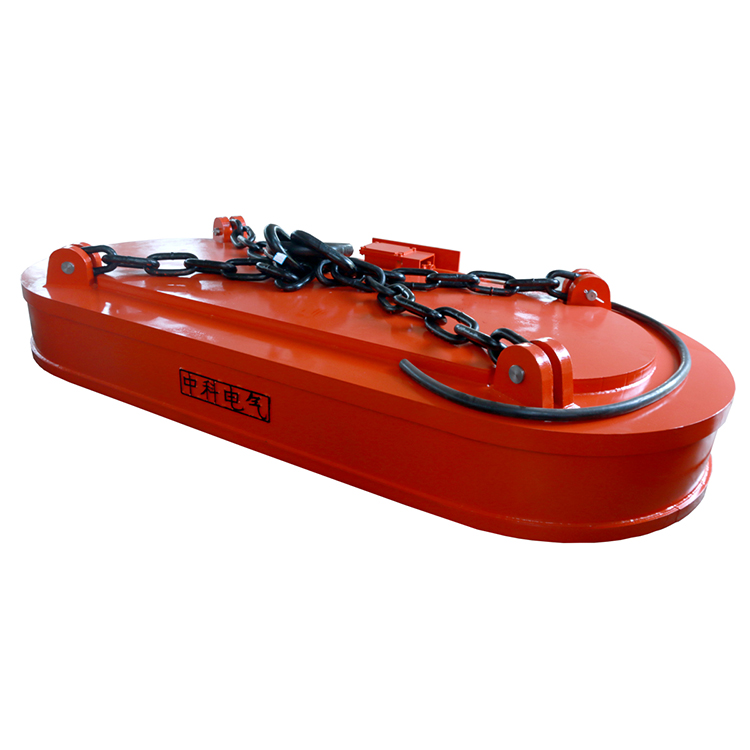

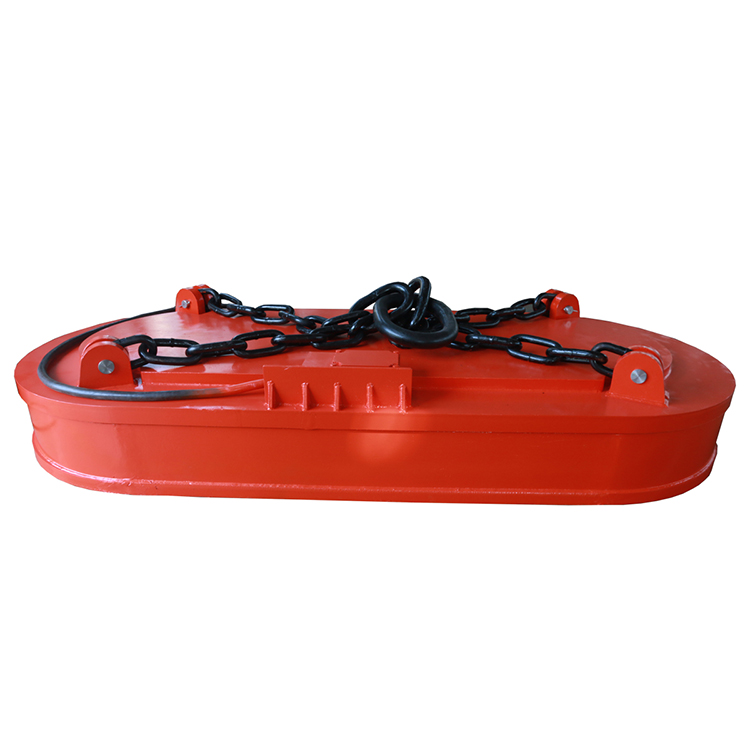

High quality strong magnetic attraction MW61 series electromagnet lift magnet
Model
|
Dimensions (mm)
|
Current (A)
|
Voltage (V)
|
MW61-300210L/1-75
|
3000*2100
|
148
|
220
|
MW61-400210L-G-75
|
4000*2100
|
168
|
220
|
MW61-250200L-1
|
2500*2000
|
129
|
220
|
MW61-11060L-1
|
1120*620
|
27
|
220
|
MW61-380180L/1
|
3800*1800
|
230
|
220
|
MW61-310210L
|
3100*2100
|
148
|
220
|
MW61-400160L/1-75
|
4000*1600
|
185
|
220
|
MW61-400160L/1
|
4000*1600
|
195
|
220
|
MW61-180130L/2/75
|
1800*1300
|
93
|
220
|
MW61-350180L/2
|
3500*1800
|
162
|
220
|
MW61-240180L/2
|
2420*1820
|
123
|
220
|
MW61-500180L/2-75
|
5000*1800
|
228
|
220
|
MW61-400160L-1-QC
|
400*1600
|
226
|
220
|
MW61-350170L/1-75
|
3500*1700
|
214
|
220
|
MW61-380170L/1-75
|
3800*1700
|
230
|
220
|
MW61-350180T/2-75
|
3500*1800
|
157
|
220
|
MW61-280170L-1-75
|
2800*1750
|
119
|
220
|
MW61-380165L/1-75J
|
3800*1650
|
200
|
220
|
MW61-300210L/1-75
|
3000*2100
|
136
|
220
|
MW61-500180L/1-75QC
|
5000*1800
|
209
|
220
|
MW61-250120L/1-75
|
2500*1200
|
109
|
220
|
MW61-250150L/1-75
|
2500*1500
|
118
|
220
|
MW61-360180L-1-QC-75
|
3600*1800
|
194
|
220
|
MW61-400200L/1
|
4000*2000
|
213
|
220
|
MW61-380200L/1-75
|
3800*2000
|
199
|
220
|
MW61-380150L/1-75
|
3800*1500
|
199
|
220
|
MW61-320175L/2-75
|
3200*1750
|
140
|
220
|
MW61-330168L/1-75
|
3300*1680
|
164
|
220
|
MW61-250200L/1-75
|
2500*2000
|
139
|
220
|
MW61-330165L/1-75
|
3300*1650
|
166
|
220
|
MW61-200130L/2-75
|
2000*1300
|
77
|
220
|
MW61-300150L/1
|
3000*1500
|
156
|
220
|
MW61-400220L/1-75QC
|
4000*2200
|
214
|
220
|
MW61-400220L/1-75
|
4000*2200
|
195
|
220
|
For more details, please feel free to contact us.
|
Widely used for processing cast iron ingots, steel balls, iron filings and scrap steel.
Simple structure and convenient installation.
Mode: constant voltage (DC 220V); strong excitation mode (DC 290V/200V); overexcitation mode (DC 350V/290V/200V), which can speed up the excitation speed and increase the lifting weight by about 10%.
