Latest factory sale 1.9 cu ft vacuum oven with pump

Supplier: Labfirst Scientific Instruments (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Huang
Price: $875.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Digital display:	Yes;	Packaging Detail:	Cardboard;
Interior volume:	1.9 cu ft(53L) vacuum oven;	Single package size:	73X56X56 cm;
Future:	laboratory vacuum oven;	Inner dimension:	30x30x27.5cm;
Gross weight:	80kg;	Selling Units:	Single item;
Model:	vacuum oven with pump;	Place of Origin:	Shanghai China;
Model Number:	VO-02;	Classification:	Lab Drying Equipment;
Brand Name:	Lab1st;	Single gross weight:	80.0 KG;
Temperature range:	+5℃ to 250℃;	End volume:	29.9inhg/0.7mbar;
Vacuum take-off port:	3/8'' hose barb;	Qty. of aluminum plates:	std2, max5;

Product Description

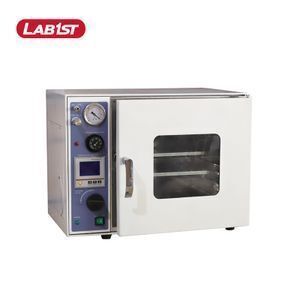

Latest factory sale 1.9 cu ft vacuum oven with pump

The VO-series vacuum ovens from LAB1ST are economical alternatives to those expensive vacuum drying ovens made in EU or US. We offers all digital forced air and vacuum drying oven, built with polished stainless steel interior, removable racks, overheat protection, inert gas inlet, temp calibration, timing and password functions. All ovens are CE compliant. We offer OEM and customization service.

Technical Futures

1.New secondary over-temp protection with visual alarm
2.Fine tuning SS304 needle valve with graduation for accurate and repeatable inert gas/air backfill or chamber pressure control.
3.The standard oven can hold up to 4 plates. Contact us if you need more.
4.Easy-to-clean and corrosion resistant SS304 mirror surface internal vacuum chamber.
5.Intelligent temperature controller with advanced PID algorithm maintains high accuracy (+/- 1°F or 0.5°C) in a wide dynamic range of 480°F (250°C).
6.Temperature display can be switched between Celsius and Fahrenheit.
7.Electro-plated cast aluminum handle which is almost unbreakable.
8.Mechanical vacuum gauge with stainless steel 304 Bourdon tube provides more accurate reading, longer gauge life and minimizes shipping damage.
9.Double scale vacuum reading in bar and inHg.vacuum oven with pump
10.We use aluminum plates, which has 12x better thermal conductivity than stainless steel.
11.Dual layer observation window with adaptive 1/2" tempered safety glass, as well as force-adjustable door handle, to maintain constant vacuum level even for long-term operation.drying machine 7.5 cu ft vacuum oven
12.A thick layer of thermal insulation outside vacuum chamber for low energy consumption.
13.Electrical components are isolated from the inner chamber for the protection of user.
14.Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system.
15.Modular design for easy and cost-effective maintenance and future upgrades.Built-in timer of 9999 minutes/hours.
16.All ovens come with one year warranty and lifetime components and service support.
17.Free phone and email customer support/consultation from our application engineers.

Technical datas

Model NO.	VO-02
Temperature Range	+9℉ to 482℉/+5 ℃ to 250℃
Temperature Fluctuation	better than +/-0.9℉ （0.5℃）
Time Range	1-9999 minutes
End Vacuum	better than 29.9inHg/500mTorr/0.7mbar
Vacuum take-off port	3/8'' hose barb
Door Gasket Material	silicone
Exterior Dimension(WXDXH)	29x22x22inch/73x56x56cm
Interior Dimension(WXDXH)	16x15x14inch/42x37x35cm
Interior Volume	1.9cu ft (53L)
Interior Chamber Material	Stainless Steel 304
Quantity of Aluminum Plates (Stand/Max)	2/5
Gross Weight	80kg
Normal power	1.5kw
Normal Voltage	115v+/-10%, 50-60HZ, 1-Phase (optional 230v)
Certifications	CE

Vacuum Pump

Vacuum Pump-2XZ series

Light weight, compact design, low noise
Gas ballast design, for better compatibility with moisture and solvent vapor
Check valve to prevent pump oil backflow
Different options for gas-taking speed (1L/s, 2L/s & 4L/s)
Different options for vacuum connectors (KF25, hose barb, etc)
Available in both 220V and 110V version
Available models
