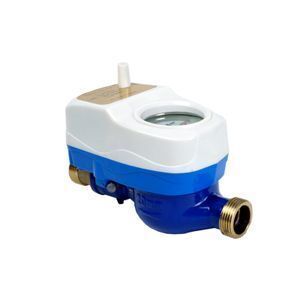

RS485 GPRS GSM LORA ELECTRIC SMART REMOTE WATER METER

Supplier: KAIFENG SHENGDA WATER METER CO., LTD
Region: Henan, China
Contact: Ms Miranda Tian
Price: $12.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	RS485 GPRS GSM LORA ELECTRIC SMART REMOTE WATER METER is packed by carton box;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;
Name:	RS485 GPRS GSM LORA ELECTRIC SMART REMOTE WATER METER;	Supply Ability:	10000 Piece/Pieces per Month RS485 GPRS GSM LORA ELECTRIC SMART REMOTE WATER METER;
Brand Name:	Shengda;	Type:	Multi-jet meters;
Quiescent current:	≤1.3μA;	Warranty:	1 year;
TransmissionDistance:	1200M;	Operating temperature:	0~60c, ≤95%RH;
WIRES:	WITHOUT WIRES;	Model Number:	LXSY-15-25E;
Operating voltage:	DC3.6V;	Operating current:	≤20μA;
Certification:	CE, ISO, MID, etc.;	communication:	DL/T645, CJ/T188 MODBUS;
Customized support:	OEM;	Size:	DN15-25;
Port:	QingDao, Shenzhen, China;	Place of Origin:	Henan China;
Battery life:	3-6 years;	Package Preview:	;

RS485 GPRS GSM LORA ELECTRIC SMART REMOTE WATER METER

Product Description

RS485 GPRS GSM LORA ELECTRIC SMART REMOTE WATER METER

Wireless remote meter is based on the wired remote meter, added the wireless module, the water meter has a routing function, construction and installation is simple, convenient, the network process automatically completed, solved the complex wiring construction problems. Wireless valve remote control water meter is based on the wireless remote meter, added the valve control function, solved the problems that user maliciously arrears of water charges, charges difficult, achieved a remote real-time monitoring and remote switching valves and prepaid functions. RS485 GPRS GSM LORA ELECTRIC SMART REMOTE WATER METER

Wireless remote reading lora water meter features:
Wireless lora water meter:
1. Fully self-organizing network, automatic optimization of routing, automatic discovery and removal of nodes;
2. Mesh MESH structure, stable performance, high reliability;
3.8 grade routing, the maximum support up to 1024 nodes;
4. Node module using the United States SETMECH low power consumption launch chip;
5. Encoding using efficient cyclic interleaving error correction coding;
6. Strong penetrating ability, far distance;
7. Use a unified 4-byte ID to support various protocols.

Working conditions:

Flow range	Q1~Q3 (Q4 short time work not change error)
Ambient temperature	5℃~55℃
Ambient moisture	(0~93)%RH
Water temperature	cold water meter 1℃~40℃, hot watr meter 0.1℃~90℃
Water pressure	0.03MPa~1MPa (short time work 1.6MPa not leak, no damage)
Pressure loss	≤0.063MPa
Straight pipe length	fore water meter is 10 times of DN, behind water meter is 5 times of DN
Flow direction	should be the same as the arrow on the body directs

Work power supply:
The operating voltage of alternating current or direct current shall be in the range of -15% to 10% of the standard voltage and the frequency of AC frequency should be ± 2% of the standard frequency.

Main technical parameters:

Model-DN	Flow range		Q3	Q4	Q2	Q1	Min. reading	Max. reading
Model-DN	Q3/Q1	Q2/Q1	m3/h				m3
LXSY-15	80	1.6	2.5	3.125	0.05	0.03125	0.0001	999999
LXSY-20	80	1.6	4.0	5.0	0.08	0.05	0.0001	999999
LXSY-25	80	1.6	6.3	7.875	0.126	0.07875	0.0001	999999
