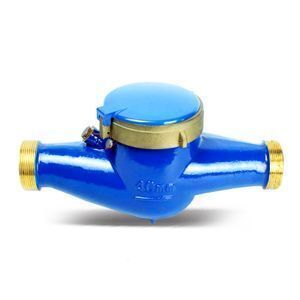

2inch multi jet dry dial rotary cold hot 50mm water meter

Product details
color:blue, red or customized;Brand Name:Shengda;
Place of Origin:Henan China;Material:Cast Iron, brass, nylon for option;
size:15~50mm;Type:Multi-jet meters;
Keyword:2inch water meter;water tempreature:T30/ T90;
Feature:Resistance to exterior magnet interference;Standard:ISO 4064 ClassB;
Warranty:1 year;type:dry dial;
product name:2inch multi jet dry dial rotary cold hot 50mm water meter;Certification:CE, ISO, MID, etc.;
Model Number:LXSG-50E;Package Preview:;
Supply Ability:10000 Piece/Pieces per Month 2inch multi jet dry dial rotary cold hot 50mm water meter;structure:rotary vane wheel drive;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal, wechat, cash, etc.;Port:Qingdao, shanghai, shenzhen, etc.;
Packaging Detail:2inch multi jet dry dial rotary cold hot 50mm water meter is packed by carton box;Customized support:OEM;

2inch multi jet dry dial rotary cold hot 50mm water meter

Product Description

2inch multi jet dry dial rotary cold hot 50mm water meter

Parameters:

DN Flow range Q4 Q3 Q2 Q1 Starting flow Min reading Max reading
mm Q3/Q1 m3/h m3/h l/h l/h l/h m3 m3
LXS-15E 80/160 3.125 2.5 50/25 31.25/15.625 6/5 0.00005 99999
LXS-20E 80/160 5 4 80/40 50/25 10/6 0.00005 99999
LXS-25E 80/160 7.875 6.3 126/63 78.75/39.375 12/8 0.00005 99999
LXS-32E 80/160 12.5 10 200/100 125/62.5 14/10 0.00005 99999
LXS-40E 80/160 20 16 320/160 200/100 40/35 0.00005 99999



Dimension and weight:

DN Length Width Height Connecting thread Weight
mm mm mm mm D kg
15 165 98 104 G3/4B 1.5
20 195 98 106 G1B 1.7
25 225 104 120 G1-3/4B 2.6
32 230 104 120 G1-3/2B 2.8
40 245 125 155 G2B 5.4



Quality:

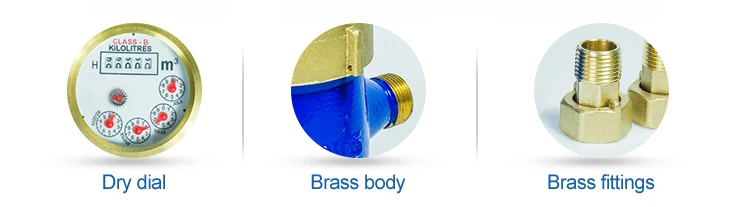

•Dry type, magnet drive, clean dial to guarantee it legible reading, resistance to magnetic interference.
•Available with non-return valve, inlet strainer and pulse output on request.
•Technical data conform to International Standard ISO4064 Class B.



Working condition:
Temperature:0.1~30℃ (cold water);

                     0.1~90℃ (hot water)
Pressure: ≤1Mpa



Maximum Permissible Error:
Qmin→Qt (ex Qt)=±5%;
Qt→Qs (both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.



Specifications:

1. Simple structure.

2. Convinient manufacture and maintenance, low cost.

3. Durable and low requirements to water quality.

4. Error is easy to adjust.

5. Flow rate is relatively large.

6. Sensitivity is good.

7. Straight pipeline requirement is low.



Difference between dry dial water meter and wet dial water meter

The biggest difference between dry water meter and wet water meter is the measurement mechanism. The impeller is separated from the central gear, and the upper end of the impeller is composed of magnetic elements "magnetic ring or columnar steel" and the magnetic components at the lower end of the sun gear. When the impeller is rotated, the magnetic element at the upper end of the impeller is sucked or repelled by the magnetic element at the lower end of the sun gear, and the central gear is driven to rotate synchronously, and the water flow through the water meter is recorded by the center drive counter. As mentioned above, the measuring mechanism of the dry water meter is different from that of the wet water meter.



Packaging & Shipping

 2inch multi jet dry dial rotary cold hot 50mm water meter

Company Information

 2inch multi jet dry dial rotary cold hot 50mm water meter

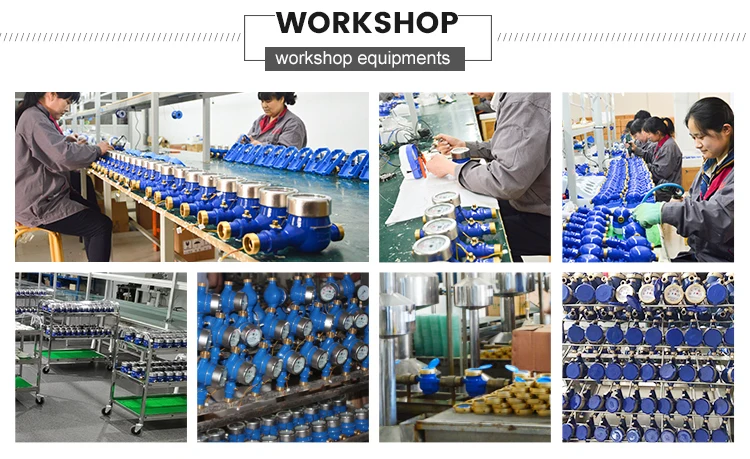

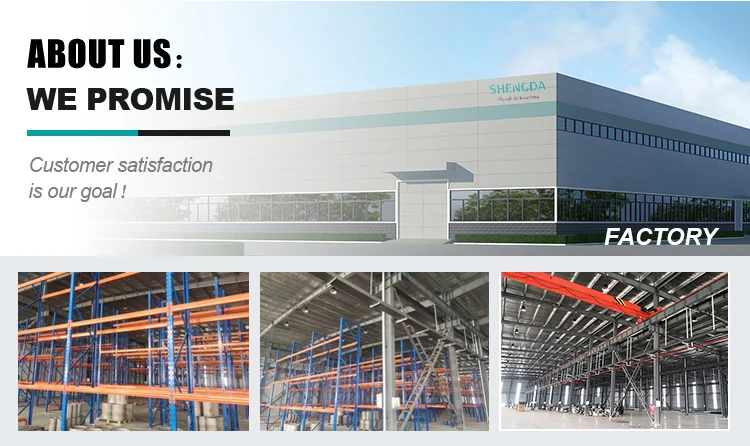

    Shengda Water Meter Co., Ltd. was founded in 1995 year, has a modern production plant, advanced production equipment, process equipment, testing equipment and modern production workshop and office space area. Our company has achieved IS09001:2000 quality management system certification, product manufacturing license, a provincial health department issued a health permit, qualified to confirm the measurement, etc. Our goal is to develop first-class products, create first-class enterprises, providing first-class service.
    So far, our company's customers have spread all over the country and all over the world, and we have exclusive agents in some countries and regions. Our company warmly welcome friends from all over the world to visit our company!

FAQ

 2inch multi jet dry dial rotary cold hot 50mm water meter

1.Are you a trade company or a manufacturer?

Kaifeng Shengda Meter Co., Ltd has been a professional manufacturer for over 20 years to undertake design and processing of all types of flow meter to provide production service and technical support for customers.



2.What to do if I have any other specifications for the current?

If you have any different requirements,just contact us and we will meet you.



3.If I need a sample for pretest, do you sale sample for this inquiry?

Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.



4.Can you produce the products according to my own drawings?

Yes, we can do OEM according to your requirement.
