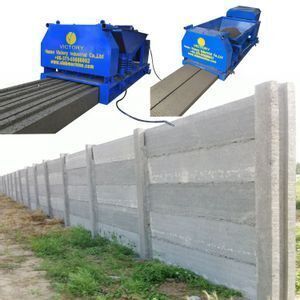

Concrete machine for precast concrete farm fencing wall h column pole making

Supplier: Henan Victory Industrial Co., Ltd.
Region: Henan, China
Contact: Mr Hank Nian
Price: $4999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao;	Packaging Detail:	iron stand package for Concrete elements extrusion fence walls machine;
Hole number:	12;	Local Service Location:	None;
After-sales Service Provided:	Engineers available to service machinery overseas;	Application:	COLUMN MAKING MACHINE;
spare part:	screw blade;	Voltage:	220/230;
Supply Ability:	100 Set/Sets per Month;	Marketing Type:	Ordinary Product;
Warranty:	365 days;	Width of wall panel:	60cm;
Core Components:	Gearbox,Motor;	Video outgoing-inspection:	Provided;
Features:	easy to operate;	Warranty of core components:	1 Year;
Weight:	1000kg;	Brand Name:	Victory;
Certification:	ce;	name:	machine for precast concrete farm fencing wall h column pole;
Vibrator motor:	0.8kw;	Key Selling Points:	Easy to Operate;
Condition:	New;	Main motor:	4kw;
Hole diameter:	32mm;	Machinery Test Report:	Provided;
Automatic Grade:	Semi-automatic;	Power:	4+0.8kw;
Showroom Location:	None;	Thickness of wall panel:	6cm;
Payment Terms:	T/T,Western Union;	Place of Origin:	Henan China;
Production Capacity:	1.5m/min;	Dimension(LWH):	23601030724mm;
After Warranty Service:	Video technical support,No service,Online support,Spare parts,Field maintenance and repair service;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;

Concrete machine for precast concrete farm fencing wall h column pole making

Product Description

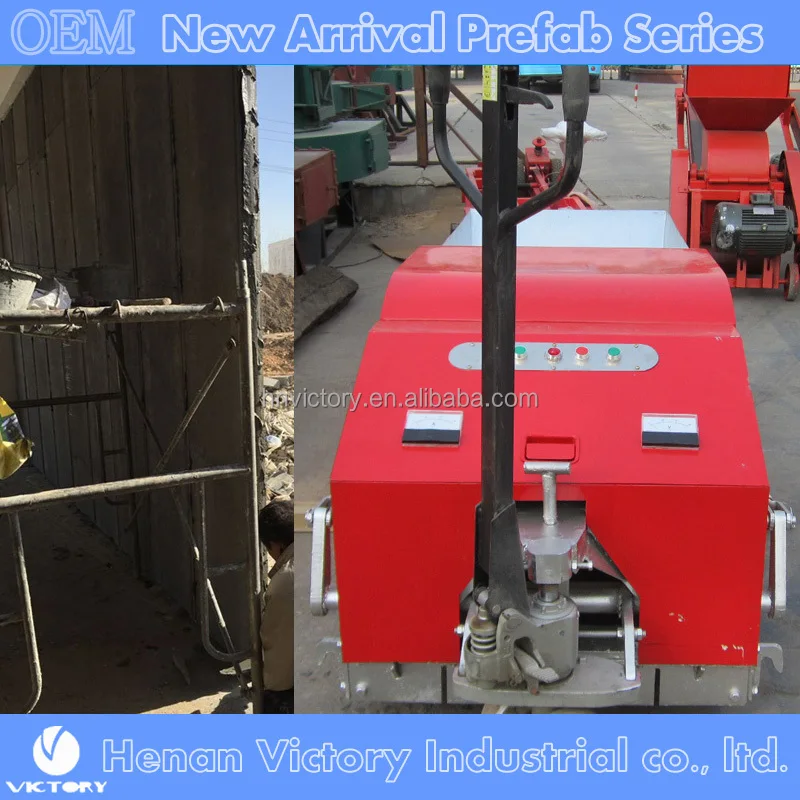

What 's Concrete machine for precast concrete farm fencing wall h column pole making

JQT Series Concrete elements extrusion fence walls machine especially make wall panel for building,instead the traditional built by laber.Now is widely used in world.

What kind of raw materials may be used?

1. Industrial ash,slag,fly ash,coal gangue,pumice,shale,haydite etc..

2. Cement,expande perlite

3. low carbon steel wire(dia.1.6-4mm ) for strengthening.

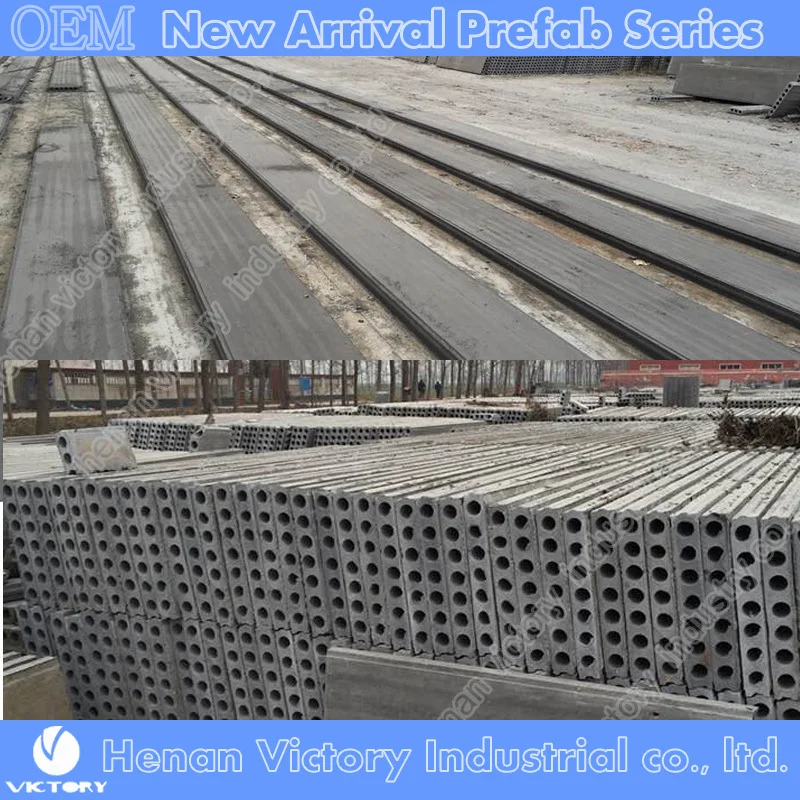

What kind of products can we get?

Width:normally 600mm

Thickness :from 60mm-180mm for option

Users can choose the most common model in their local,

Also we can make according to requirements.

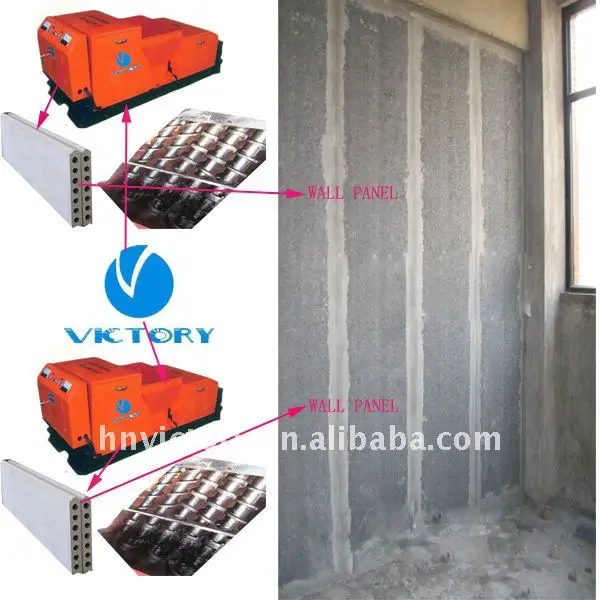

What Advantage And Usage of lightweight concrete wall panels :

Lightest: 90kg/m²50% weight of Brick Wall Trandational = 180-200Ton load Lighter Every 1000 m²(Known As "Free wall materials of green environmental protection")

Easy installation for Water, Electricity box: Longitudinal slot without direct perforation, reduce labor intensity and avoid hidden cracks. Cutting transversely crossed by Standard Method.

Qualitative light, random intervals: Need not to beam bearing, households can be arbitrary interval according to request

Waterproof: Well-Overall-performance and High Density It is a kind of ideal waterproof impermeability materials Used in kitchen and toilet

Sound-proof: 90mm thick wall can reach 45~50 db, In accordance with Chinese national standards for acoustic testing GBJ121-88 (Due to the high density wall panel, easy to reflection). This is better than35~37dB Old buildings.

Can Nail Drill, Saw, can Plastering etc.

What Basic parameter of Concrete machine for precast concrete farm fencing wall h column pole making:

Type	JQT7.5*60	JQT9*60	JQT10*60	JQT12*60	JQT18*60
Width(mm)	595+-2	595+-2	595+-2	595+-2	595+-2
Thickness(mm)	75+-1	90+-1	100+-1	120+-1	180+-1
No. of hole and hole diameter(mm)	7*58	7*58	6*58	5*58	3*132
Panel making speed(m/min)	1.1—1.7	1.1—1.7	1.1—1.7	1.1—1.7	1.1—1.7
Main motor(kw)	4	4	4	4	4
Vibrator(kw)	0.8	0.8	0.8	0.8	1.1
Overraw dimension(mm)	2560950980	2560950980	2560950980	2560950980	2560950980
GW(kg)	1000	1100	1200	1300	1800

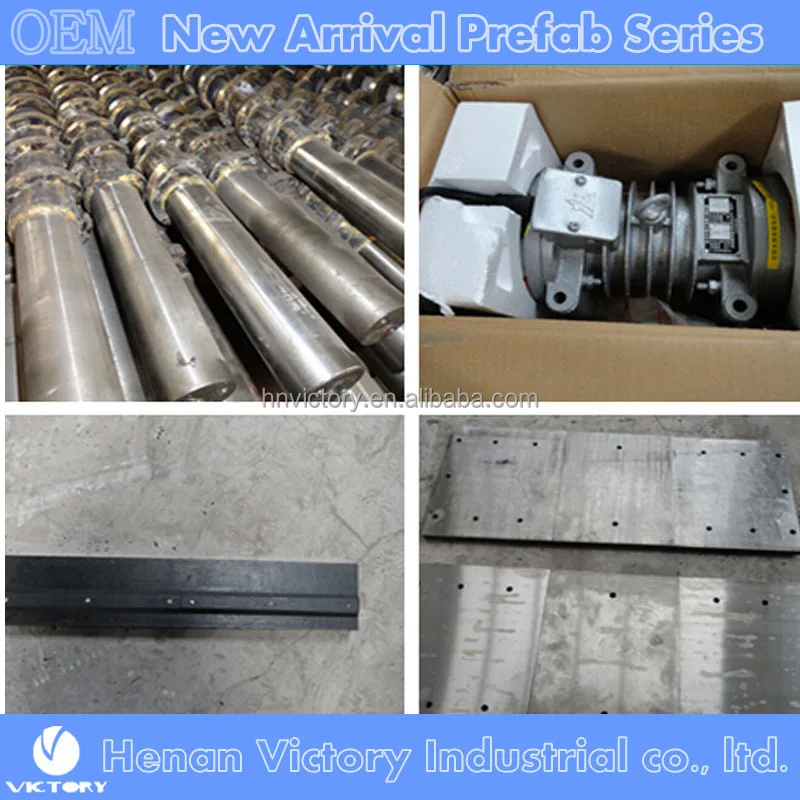

How about Spare parts

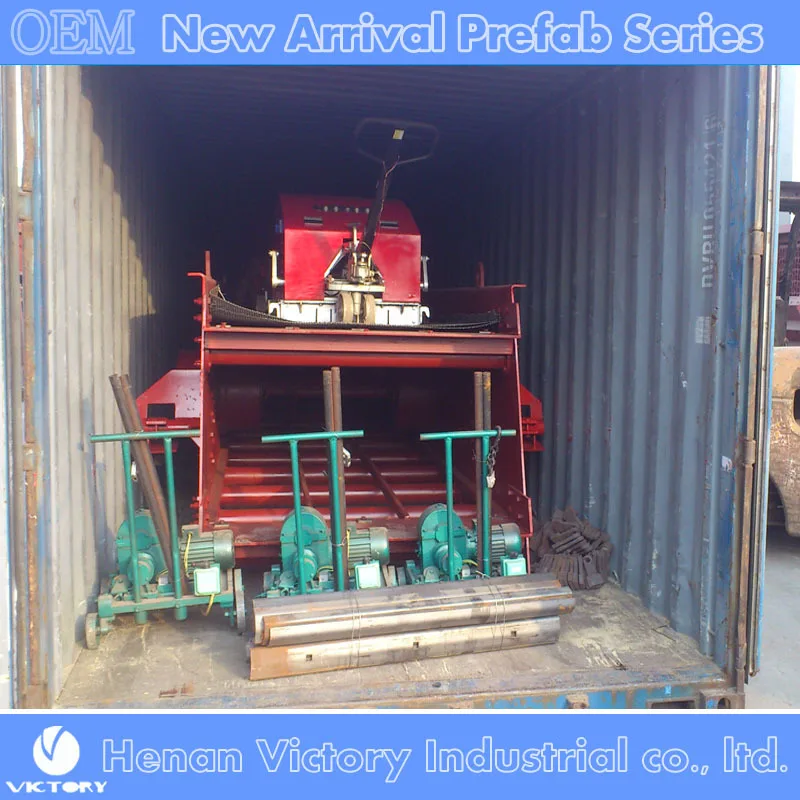

Packaging & Shipping

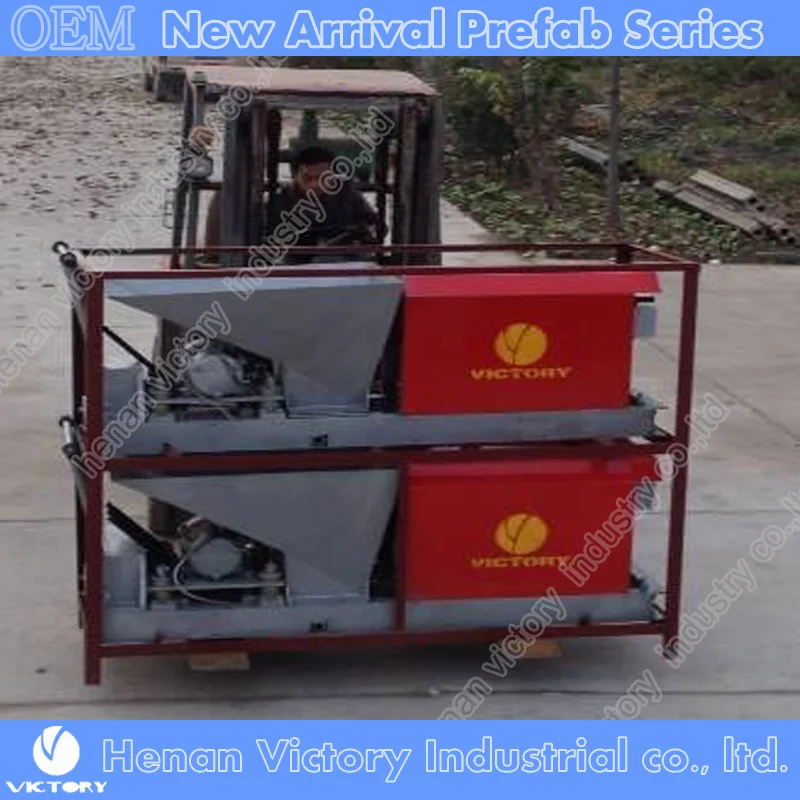

How to pack and ship Concrete machine for precast concrete farm fencing wall h column pole making

iron stand package or bare

Our Services

How about the after service of Concrete machine for precast concrete farm fencing wall h column pole making

100% brand new when leaving the factory. The sellers guarantee quality of the machines for a period of one year from the date of trial run finish. If any parts (excluding wearing parts) are found defective (exclude that caused by person’s wrong usage) in quality in the first year, the seller should replace free-of-cost. After one year, parts can be replaced on favorable payment basis.

Certifications

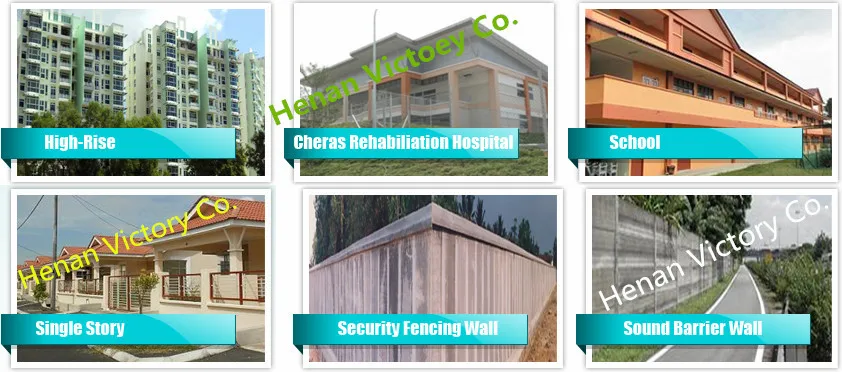

Project reference
