API 7-1 Drilling String Stabilizer with HF4000 Hardfacing

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $4800.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	for oil well drilling;	Dimension(LWH):	1200300300mm;
Length:	1200mm;	Video outgoing-inspection:	Provided;
Showroom Location:	None;	Warranty of core components:	1 Year;
Selling Units:	Single item;	After-sales Service Provided:	Online support,Video technical support;
Applicable Industries:	Energy & Mining;	MOQ:	1ea;
Key words:	stabilizer;	Process:	forged;
Material:	4145H;	Hardfacing:	HF4000;
Product name:	API 7-1 Drilling String Stabilizer with HF4000 Hardfacing;	Brand Name:	LK;
Voltage:	/;	Local Service Location:	None;
Packaging Detail:	standard export packaging for API 7-1 Drilling String Stabilizer with HF4000 Hardfacing;	Model Number:	API 7-1 String Stabilizer with HF4000 Hardfacing;
Machinery Test Report:	Provided;	Marketing Type:	Ordinary Product;
Features:	good quality;	Core Components:	drilling string stabilizer;
Certification:	/;	Place of Origin:	Shandong China;
Single package size:	120X30X30 cm;	Package Preview:	;
Weight:	813Kg;	Type:	Drilling Stabilizer;
Condition:	New;	standard:	API 7-1;
Color:	Blue, green or as request;	Warranty:	1 Year;
Single gross weight:	813.0 KG;

API 7-1 Drilling String Stabilizer with HF4000 Hardfacing

Product Description

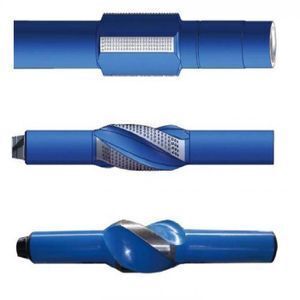

Integral straight blade stabilizer: Integral 3-straight rib stabilizer,integral 4-straight rib stabilizer, and Integral multi-straight rib stabilizer, which working surface are provided with carbide insert compound and overlay, etc. The body is made from high strength alloy steel of heat treated.

Technical Parameters

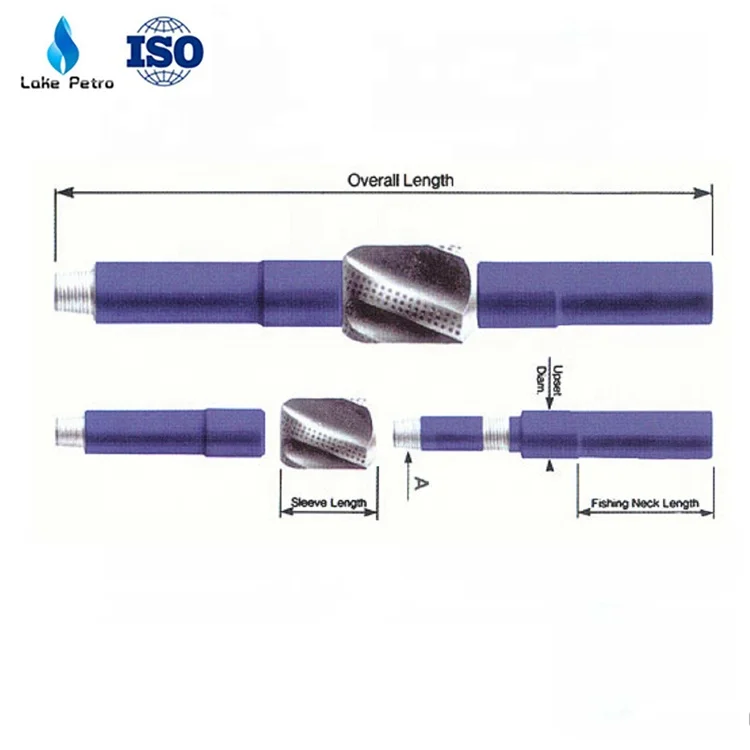

Working OD. inch(mm)	Tools OD. inch(mm)	up thread API	Down thread API	Water hole inch(mm)	Fishing neck length inch(mm)	Belt length inch(mm)	Belt width inch(mm)	Total length inch(mm)
5-3/4″ (146.1)	4-3/4″ (120.7)	NC38		2-1/4″ (57.2)	20″ (508)	12″ (304.8)	2″ (50.8)	55″ (1397)
7-3/4″ (196.9)	6-1/2″ (165.1)	NC50		2-13/16″ (71.4)	20″ (508)	16″ (406)	2-1/2″ (63.5)	60″ (1524)
8″ (203.2)	6-1/2″ (165.1)	NC50		2-13/16″ (71.4)	20″ (508)	16″ (406)	2-1/2″ (63.5)	60″ (1524)
11-3/4″ (298.5)	8″ (203.2)	6-5/8″REG		2-13/16″ (71.4)	20″ (508)	16″ (406)	3-1/2″ (89)	63″ (1600)
12″ (304.8)	8″ (203.2)	6-5/8″REG		2-13/16″ (71.4)	20″ (508)	16″ (406)	3-1/2″ (89)	63″ (1600)
12-1/4″ (311.1)	8″ (203.2)	6-5/8″REG		2-13/16″ (71.4)	20″ (508)	16″ (406)	3-1/2″ (89)	63″ (1600)
17-1/2″ (444.5)	9″ (228.6)	7-5/8″REG		3″ (76.2)	20″ (508)	18″ (457)	4-3/4″ (120)	72-1/2″ (1840)
26″ (660.4)	9-1/2″ (241.3)	7-5/8″REG		3″ (76.2)	30″ (762)	20″ (508)	4-3/4″ (120)	93″ (2362)

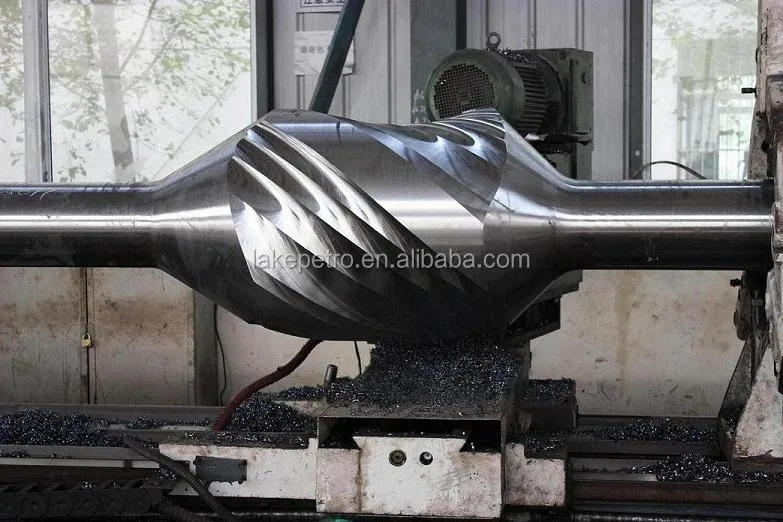

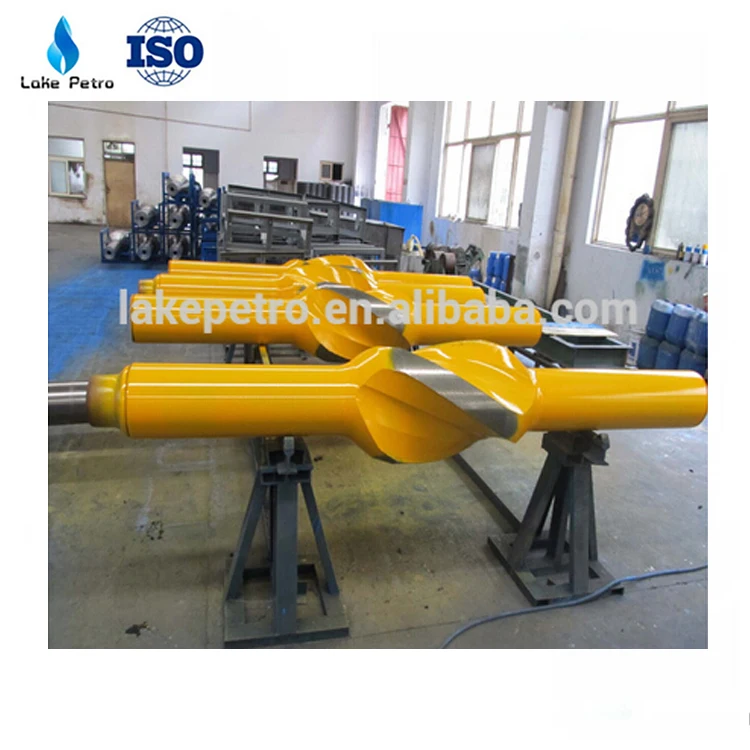

Photo View

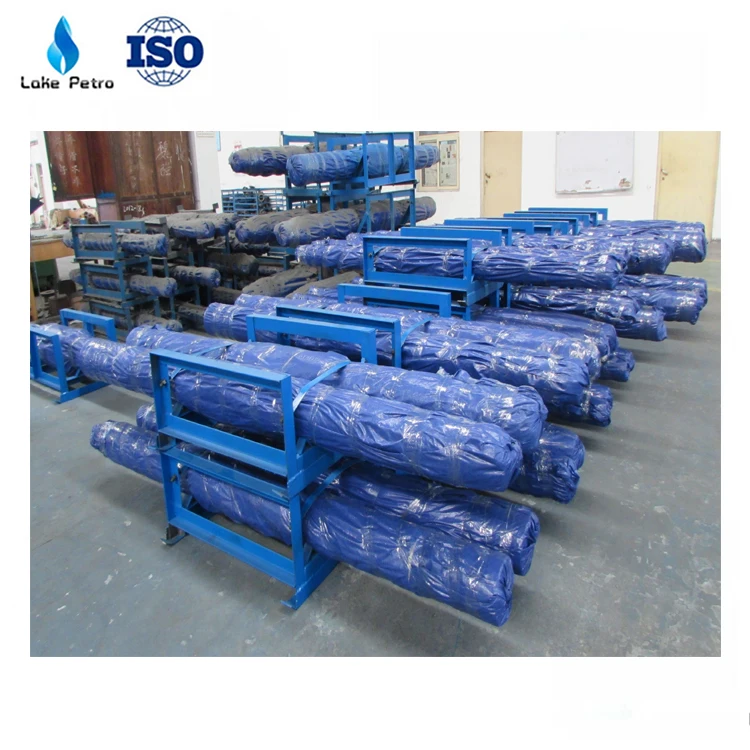

Packaging & Shipping

Standard export packing or according to client's requirements.

Shipping according to client's requirements.

Our Services

With years experience serving clients from more than twenty countries, to provide you best service and competitive price.

Quality Control

Company Information

Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. Following the principle of "quality first, science and technology innovated, people oriented", every Lake Petro person is sparing no effort to provide the customers with best products and services. Through efforts of Lake Petro staff, our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). With super quality, reasonable price and professional service, Lake Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.

FAQ

How to order?

Please send us your inquiry with detail item description or with Model number.

If there is no packing demand we take it as our regular exported standard packing.

We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.

You send us your detail requirement, we provide quotation to you.

Can I expect a quality products?

All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.

The information you may like to know before Payment:

1. Methods of Payment:

T/T (Telegraphic Transfer) or L/C at sight

2. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

3. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.
