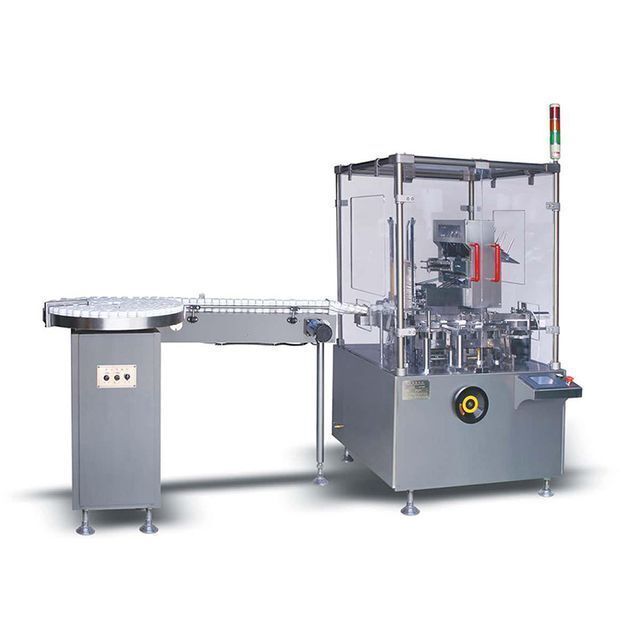

Wholesale China Factory Supply Automatic Vertical Cartoning Machine

Supplier: Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd.
Region: Liaoning, China
Contact: Mr David H
Price: $31380.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Certification:	ISO CE;
Core Components:	Motor;	Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Printing Shops,Food & Beverage Shops;
Weight:	1200;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Driven Type:	Electric;	Packaging Detail:	Inner Packing: Strech Film Outer Packing: Standard Export Wooden Case.;
Showroom Location:	Pakistan,Mexico;	Warranty of core components:	2 years;
Port:	Shanghai Seaport;	Supply Ability:	20 Set/Sets per Month;
Local Service Location:	Pakistan,Mexico;	power consumption:	120-160L/min;
Machinery Test Report:	Provided;	Brand Name:	SINOPED;
Type:	Packaging Line;	Key Selling Points:	Competitive Price;
Video outgoing-inspection:	Provided;	Packaging Type:	Cartons;
Warranty:	1 Year;	Packing speed:	30-120(boxes/min);
Place of Origin:	China;	Packaging Material:	Plastic,Paper,carton;
Application:	Food,Beverage,Commodity,MEDICAL,Chemical,Machinery & Hardware;	Condition:	New;
Dimension(LWH):	2700 x1140 x 1800mm;	Automatic Grade:	Automatic;
Voltage:	220V, 50Hz;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Marketing Type:	Ordinary Product;	work stress:	0.6Mpa;

Product Description

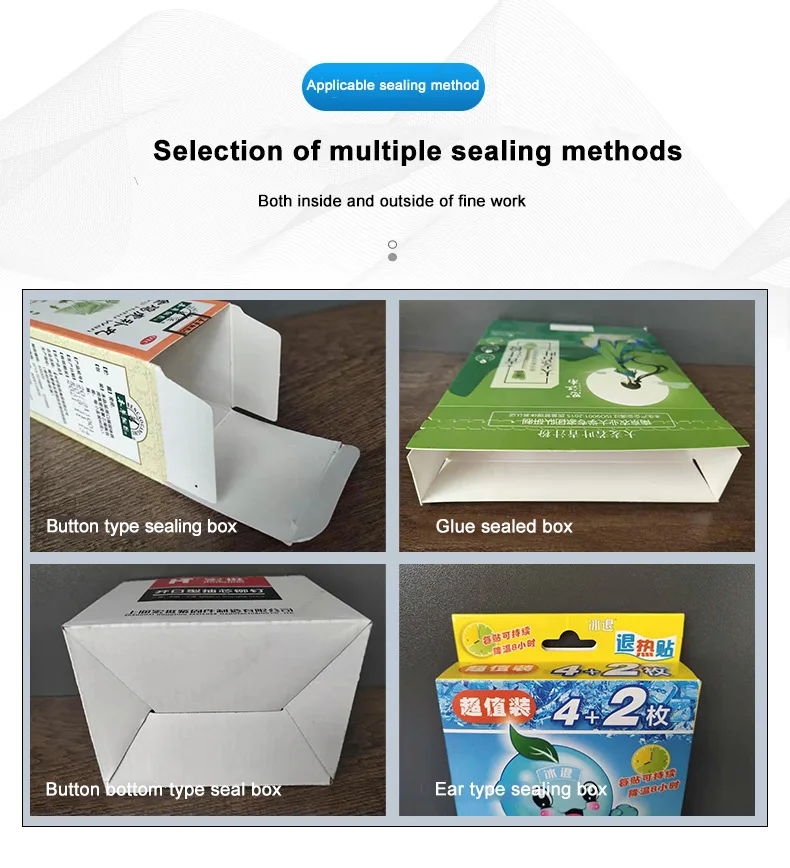

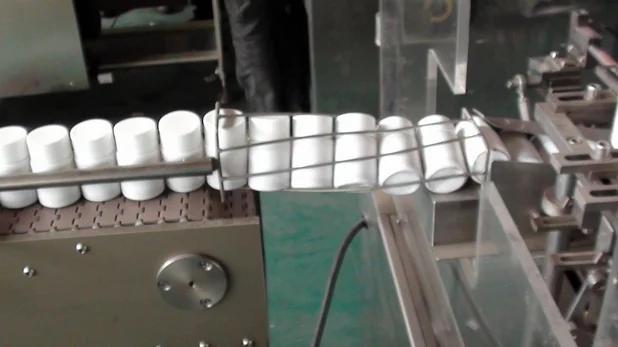

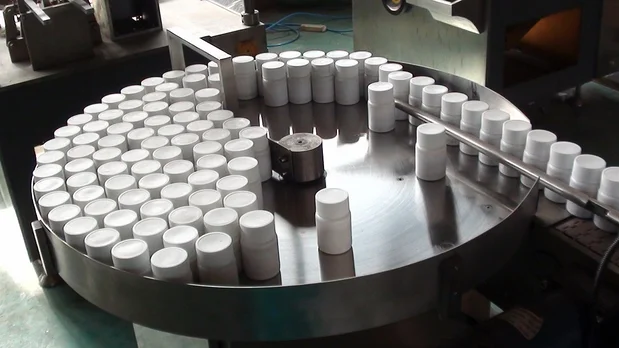

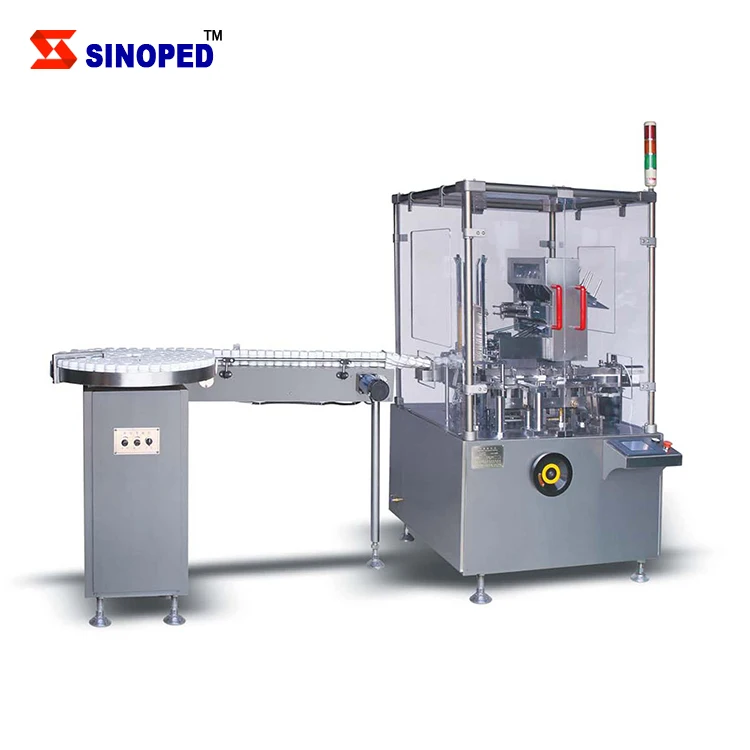

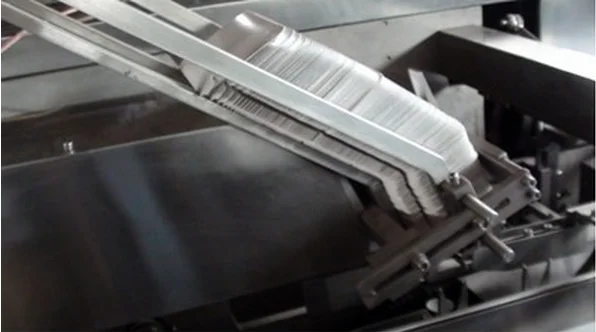

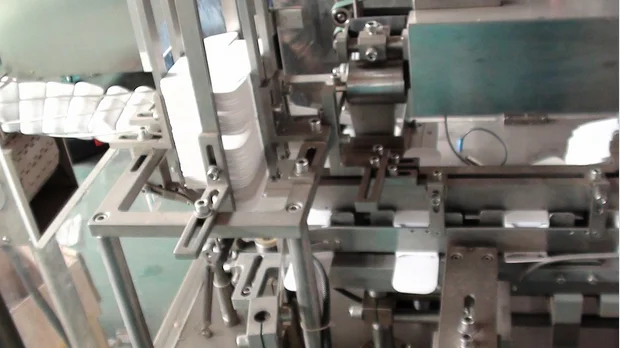

SINO-120 Cartoning Machine is a new type of machine developed by our company in combination with advanced technology at home and abroad.Thus, the performance and working efficiency of the equipment have been greatly improved, and the requirements of fast packing have been realized. Moreover, the equipment still maintains a stable and reliable state during fast operation. This machine is suitable for automatic feeding and packing of bottle-shaped articles.The whole process of online automatic bottle sorting and conveying, manual folding (1-4 times folding) and conveying, manual detection, carton drawing and forming and conveying, material entering the carton, stamping batch number, paper tongue packaging at both ends of the carton (also applicable to hot melt adhesive), missing material elimination and finished product output are all completed automatically.

Features：

a.Electric appliances, including the PLC, the touch screen and the frequency convertors are from well-known international brands. b.There is the HMI. c.Errors, working speed and the final-product counting can be automatically displayed. d.When the box’s feeding position is not correct, or there is no box, or there is no leaflet’s feeding, the machine will be stopped automatically. e.When there is no content, there is no leaflet’s taking. When there is no leaflet feeding, there will be no cartonning. f.There is the protecting if it’s overloaded. g.Stable properties & convenient operation.

model				SINO-120( vertical)
Packing speed				30-120box/min
Box	Quality		250-350g/m2 (It’s decided by the box size.)
		Size, L×W×H		(65-125) × (30-85) × (12-50), mm
Leaflet	Quality		60-70g/m2
		Size when it’s unfolded, L×W		(80-250) × (90-170), mm
		Folding		1-4folds
Compressed air	Working pressure		Not less than 0.6Mpa
		Consumption		About 120 ~ 160L/min
Power supply				220V, 50Hz
Main power				0.75Kw
Overall dimension, L×W×H				2700 × 1140 × 1800, mm
Net weight				About 1200Kg

The specific price is subject to sample negotiation

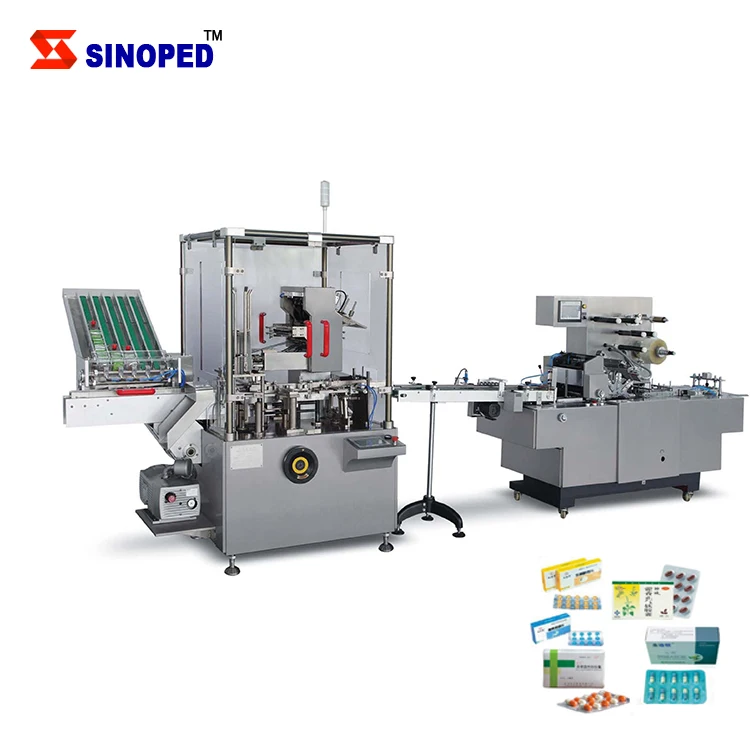

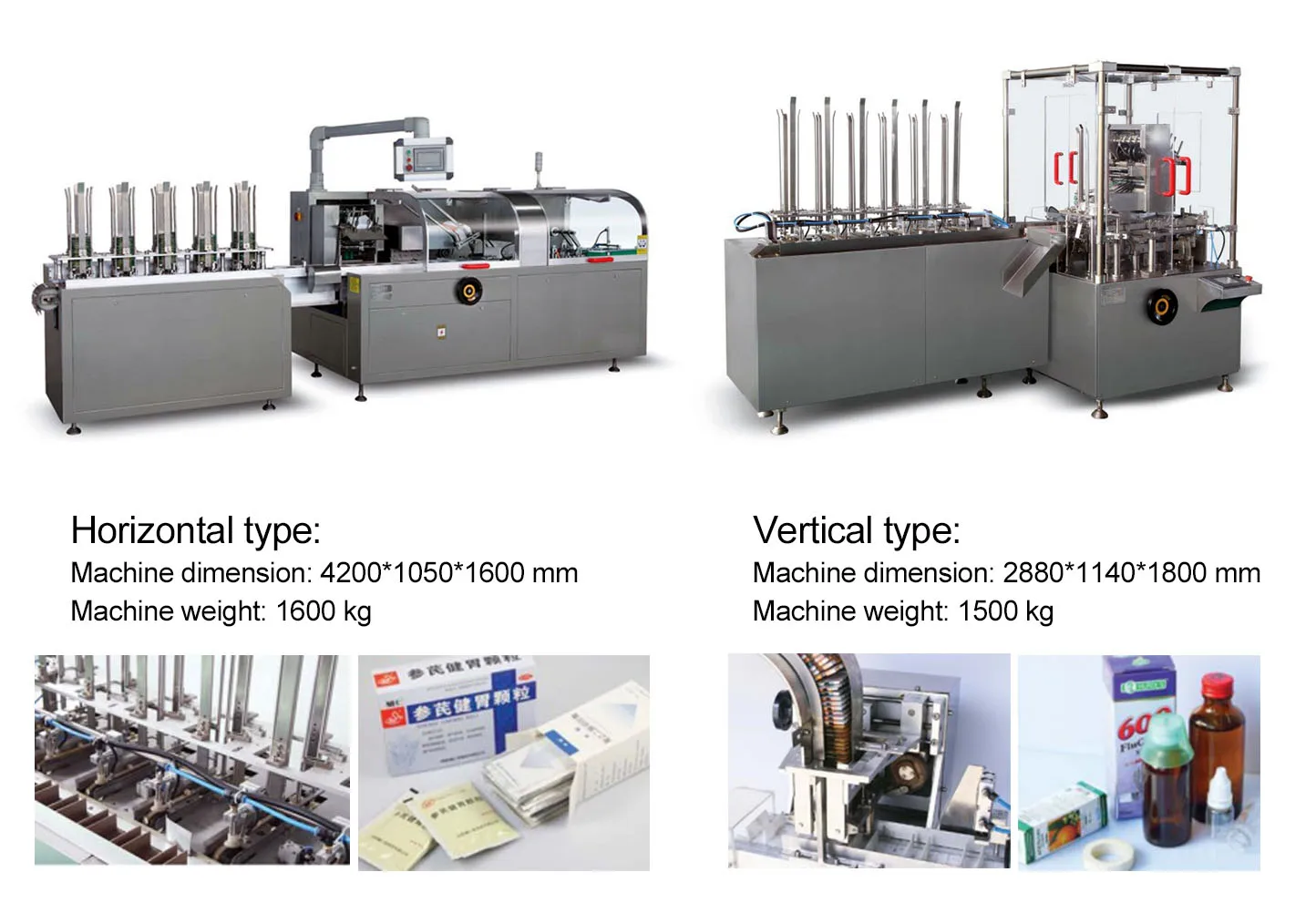

Detailed Images

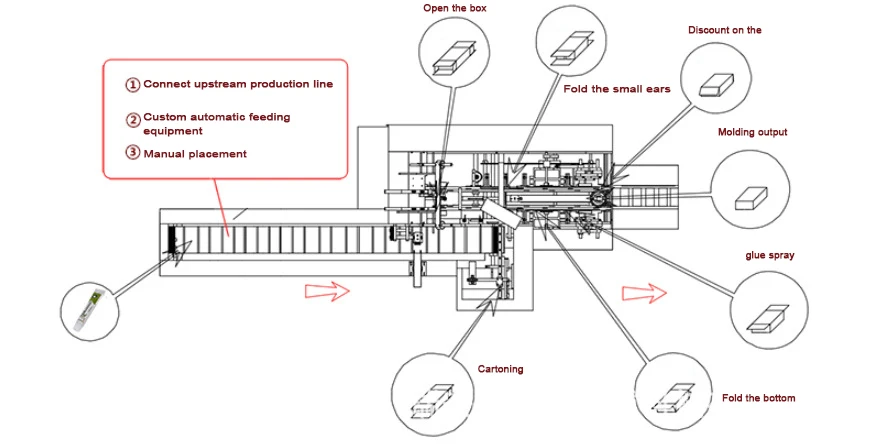

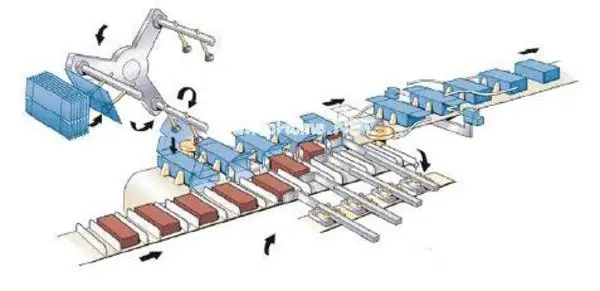

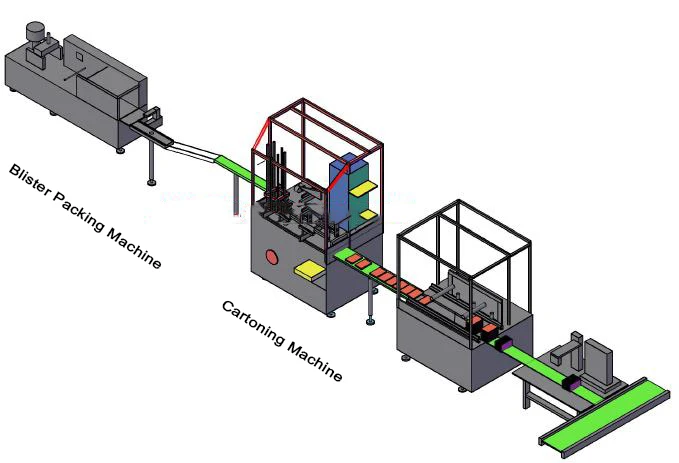

Working principle:

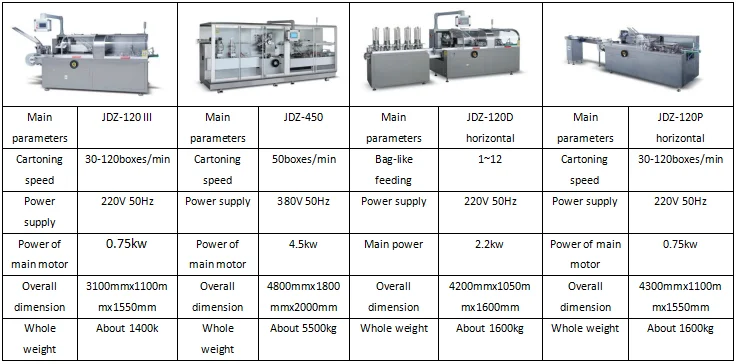

Related Products

Our Company

Sino Pharmaceutical Equipment Development (Group) Limited (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China.

We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, spray dryer, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.

In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.

Packaging & Shipping

FAQ

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians. 1. Can your machine meet our need well? We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well. 2. Are you a factory or a trading company? We are the manufacturer, and have been in industry for more than ten years. 3. What's your payment way? T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash. 4. How can you ensure the machine’s quality after we put the order? Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side. 5. We are afraid you won't deliver us the machine after we pay you the money. Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC. 6. Why choose your company? We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
