Cutting mode: | Plasma Cutting; | Name: | Air Plasma Cutter; |
Model Number: | CUT-45; | Air Flow Ratio: | 6.7CFM; |
Single gross weight: | 16.0 KG; | Place of Origin: | Zhejiang China; |
Single package size: | 54X30X45 cm; | ARC start: | Pilot/ Low Frequency; |
Phase: | Single Phase; | Cutting thickness: | Max. 16mm; |
Dimension (L x W x H): | 54*28*37; | Air Flow Pressure: | 2.5Bar / 35psi; |
Selling Units: | Single item; | Cutting material: | Metal Stainless Steel Carbon Steel; |
Application: | Workshop, Steel construction, Car repairing; | Weight: | 12Kg; |
Rated Output Current: | 40A; | Brand Name: | FENGBAO; |
Packaging Detail: | - Brown Carton - Color Box - Honeycomb Box - OEM; |
Product Model: | CUT-45 MONSTER | ||||||
Product Description: | IGBT INVERTER PILOT AIR PLASMA CUTTING MACHINE | ||||||
Rated Input Voltage: | 1phase, 230V +/- 15% | 1phase, 120V/230V +/- 15% | |||||
Rated Input Power: | 5.5Kw | ||||||
Frequency: | 50/60Hz | ||||||
Output Current: | 10-40A | 10-30A | |||||
Rated Duty Cycle: | 40% | ||||||
Plasma ARC Start: | PILOT - LF | ||||||
Air Flow Pressure: | 2.5 Bar (35psi) | ||||||
Air Flow Rate: | 6.7 CFM | ||||||
Cutting Thickness: | Max. 16mm | ||||||
Class of Insulation: | F | ||||||
Protection Level: | IP21 | ||||||
Power Plug: | 20A | ||||||
Size & Weight: | Product Dimension | 570x280x450mm | |||||
Poduct Weight | 14Kg | ||||||
Package Dimension | 620x320x480mm | ||||||
Package Weight | 18Kg | ||||||

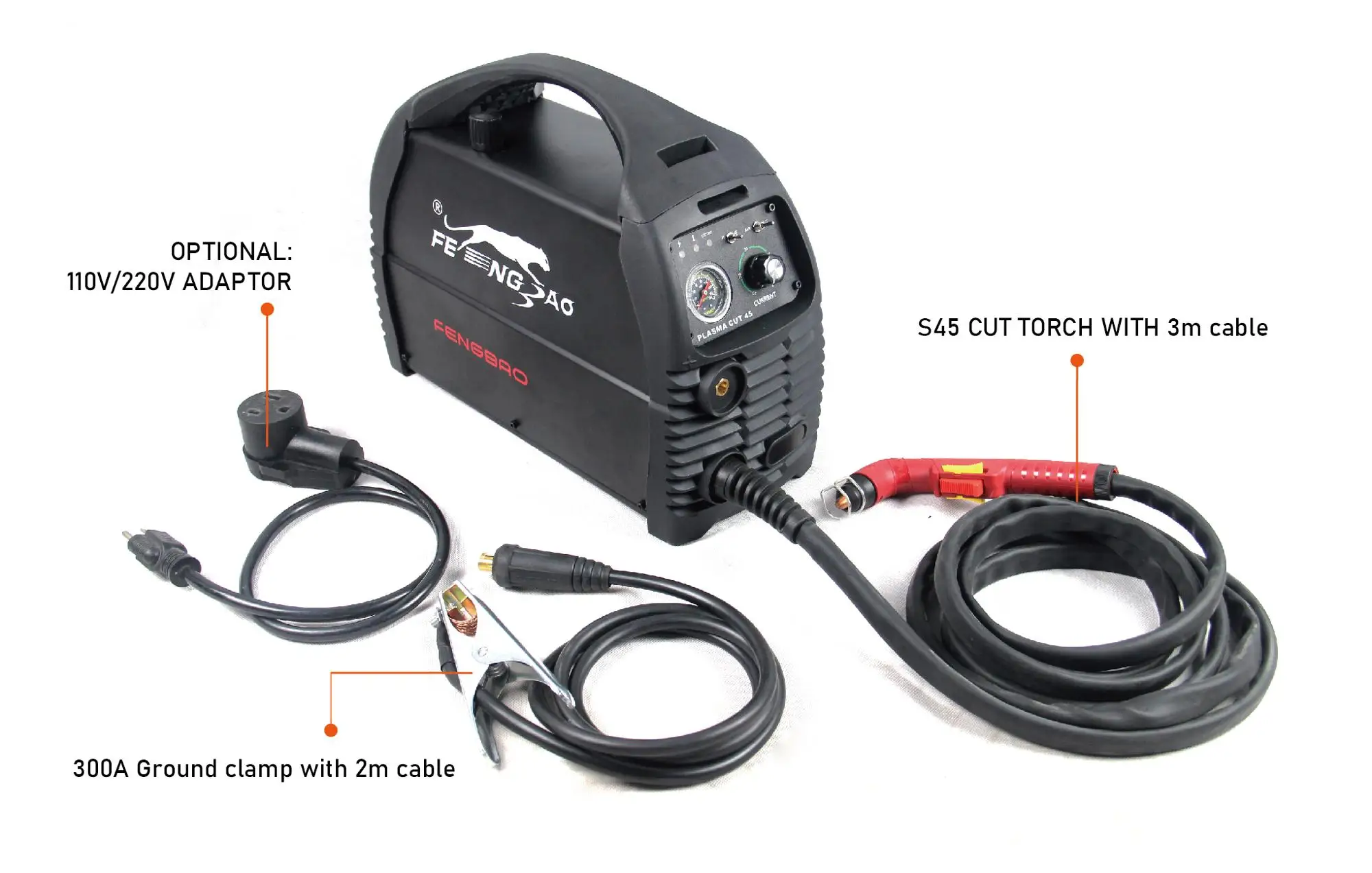

Accessories: | 1x S45 CUT TORCH with 3m cable | ||||||
1x 300A Ground Clamp with 2m cable | |||||||
1x CUT Torch kit | |||||||
1x Manual Book | |||||||
