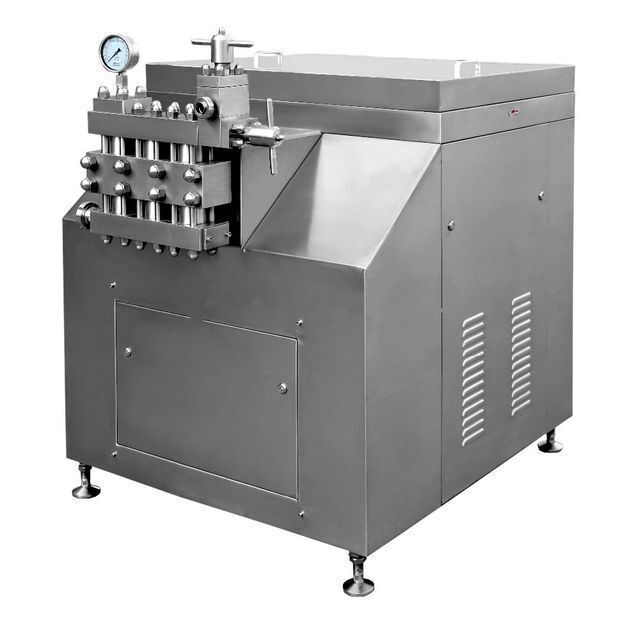

KQ-2000L 25MPA milk high pressure homogenizer

Supplier: Shanghai Kaiquan Machine Valve Co., Ltd.
Region: Shanghai, China
Contact: Ms Crystal Cui
Price: $6900.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Application:	Beverage,milk;	Processing:	Homogenizer;
Motor power:	15KW;	Weight:	350KG;
Voltage:	380V;	Warranty:	1 years;
Packaging Detail:	Wooden boxes for KQ-2000L 25MPA milk high pressure homogenizer;	Certificate:	CE;
Power:	7.5KW;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms;
Brand Name:	Kaiquan;	Dimension(LWH):	1.51.21.5M;
After-sales Service Provided:	Online support,Engineers available to service machinery overseas;	Name:	KQ-2000L 25MPA milk high pressure homogenizer;
Model Number:	1000L;	Processing Types:	Milk;
Place of Origin:	China;	Effect:	Emulsify;
Payment Terms:	T/T,Western Union;	Condition:	New;
Max pressure:	25MPA;	Material:	SS304;
Certification:	CE;	Package Preview:	;
Supply Ability:	100 Unit/Units per Month;	Spare parts:	supplying;
Port:	Shanghai port and Ningbo port;	Flow ralte:	1000L;

KQ-2000L 25MPA milk high pressure homogenizer

Product Description

HOMOGENIZER

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; make the product much more nice, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc.)
Do not use the product to handling the suspending liquid or the high viscosity liquid.(viscosity less than 0.2 Pa.S)

CE certificate High pressure homogenizer For milk, juice ,beverage

capacity : 300Litres per hour to 20000Litres per hour

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow(Liters/H)	500	1000	1500	2000	2500	3000	5000
Medium temperature(℃)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	380V,50HZ,3PH	380V,50HZ,3PH	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

CE certificated High pressure homogenizer /milk homogenizer

Packaging & Shipping

Our Services

1. Free of making offers, craft and technical guidance. plz feel free to contact us

2. We can provide company’s qualification certification and the drawings.

3. We can also make customized products according to customer’s needs.

1. We provide long-term after-sale service.

2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

we also provide CFR,CIF, CNF price.

3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
