Precast Concrete slab Making Machine Hollow core slab

Product details
Features:Low cost Fast construction;Payment Terms:L/C,T/T,Western Union;
Video outgoing-inspection:Provided;Finished products:Concrete slab;
Raw materials:concrete;Automatic Grade:Semi-automatic;
Voltage:380V 50HZ;After Warranty Service:Video technical support,Online support;
Packaging Detail:STANDARD PACKING;Showroom Location:None;
Color:Yellow;Usage:CONSTRUCTION;
Weight:3000KG;Dimension(L*W*H):8250MMX1350MMX300MM;
Port:QINGDAO PORT;Place of Origin:Henan China;
Brand Name:NO;Supply Ability:30 Set/Sets per Month;
Local Service Location:None;Slab thickness:220MM;
Features of machine:durable;Marketing Type:New Product 2020;
Warranty:1 Year;Production Capacity:1PCE/10MIN;
Product name:CONCRETE SLAB MAKING MACHINE;Application:MAKING CONCRETE SLAB;
Machinery Test Report:Not Available;popular Size:1200*220*7100;
Warranty of core components:Not Available;Advantage:Easy Production;
After-sales Service Provided:Online support,Video technical support;Core Components:Motor;
Power:7.5KW;Usage of board:SLAB FLOOR;
Applicable Industries:Hotels,Building Material Shops,Manufacturing Plant,Farms,Restaurant,Construction works ;Condition:New;
Key Selling Points:Long Service Life;
Products Description

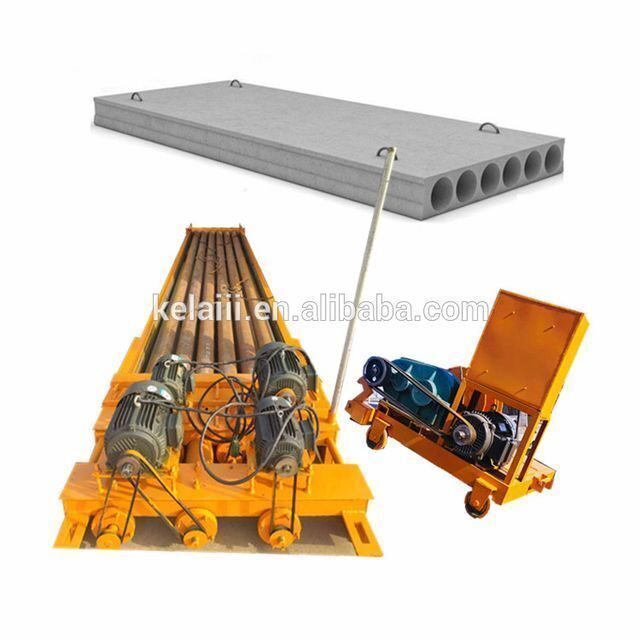

CONCRETE SLAB FLOOR MAKING MACHINE
Standard 18-22 cm high 1.5m,1.2m or 1.0m wide self-propelled internal shock floor machine,6 shock tubes,146mm diameter, popular slab length 6.5 meters 7 meters 7.1 meters 7.5 meters,floor height 22 cm,width 1.2 meters, 6 shock tubes,The shock tube has a diameter of 146mm and a length of 7.5 meters,which can produce hollow floors below 7.5 meters.
The self-induced internal shock hollow floor machine is based on the original manual and ground anchor pull die, after careful improvement and repeated trials. It is to install a hoist on the outer mold frame, using the working principle of the rope pulley group, the positive and negative switch control, so that the inner and outer molds of the drawing die move forward respectively, eliminating the need for ground anchor pulling the drawing die, manual hook removal, and hooking Annoying labor, saving time and effort.
The vibration of the concrete drives the advanced vibration mandrel products to vibrate strongly through the motor. The produced components have a solid structure, no looseness, high strength and large safety factor. Through a simple positioning device, the head of the hollow core plate can be neat, no corners, accurate size, labor and material and time saving. It is an ideal hollow slab forming equipment for prefabricated component factories.
Can be customized according to user requirements.
Details Images
DURABLE MOTOR
ELECTRIC VEHICLE
FINISHED CONCRETE SLAB
Product Paramenters
HOT SIZE
1200*220*7100MM
WIDTH
1200/1000/1500MM
THICKNESS
220MM
LENGTH
6000~7500MM
HOLE NO
5HOLES/6HOLES...
HOLE SIZE
POPULAR SIZE 146MM
