Weight: | 12kg; | Brand Name: | XIECHENG; |
Motor: | carbon brush; | Condition: | New; |
Power(W): | 1000W/1.3Hp; | Lifetime: | more than 5 years; |
Certification: | CE; | Place of Origin: | Guangdong China (Mainland); |
absorb material: | flakiness, granules; | Application: | plastic industry; |
Dimension(L*W*H): | 340*340*590mm; | After-sales Service Provided: | Online support,Video technical support; |
Port: | Jiangmen/Guangzhou/Shenzhen; | Voltage: | 380V/50Hz/3Phase as usual; |
Warranty: | 1 year; | Loading capacity: | 3.5M; |
Usage: | industry plastic; | Conveying capacity: | 300KG/H; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Packaging Detail: | Standard wooden case as usual or customized; |
Controller: | microcomputer; | Security setting: | overload protection; |
Static wind pressure: | 1300mm/H20; | Supply Ability: | 500 Set/Sets per Month; |
guangzhou plastic material vacuum hopper loaders

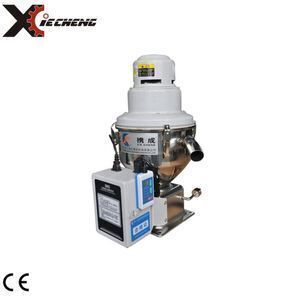

XIECHENG XC-X300G AUTO LOADER for All Kinds of Factories and Plants
1. Stand Alone Type Auto Loaders ,Which hot machine small footprint & light,to be piaced ditectly on other machineor container for auto loading,easy&safe to operate
2.Autoloader is used for loading plastic resin to hopper dryer or plastic injection molding machine automatically.
3. The impeller of the ring blower with a unique design is featuring not only for prevention of noise but also more blowing power taking advantage of higher airflow pressure as well as air volume inflow.
4. Separated design of cyclone can collect dust at first and cartridge filter works for filtering dust again by one after another.
5. Limit switch attached to the damper of the cyclone detects resin-lack and automatically transfer material to the cyclone.
6.Cyclone made with stainless steel is not only good for prevention of rust but also easy cleaning and material change of different color
7.Micomputer controller;
8.High-speed rectiflcative motor of small foot print an strong-suction force for new material
for XC-300G
Model | XC-X300G | |
Motor | Type | Carbon brush |
Specification | 1.1kw/1.3hp 1φ | |
Conveying capacity(kg/hr) | 300 | |
Loading distance(m) | 3.5 | |
Static wind pressure(mm/H2O) | 1300 | |
Reservoir volume(L) | 7.5 | |
Conveying tube inner dim | φ38 | |
Specification of the attached hoses | φ38mm×3.5m 1pc | |
Dimension | 340×340×590mm | |
| Net weight(kg) | 12 |
Product Specification
Model | XC-X300G | XC-X400G | |
Motor | Type | Carbon brush | Induction |
Specification | 1kw/1.3hp 1φ | 0.75kw/1hp 3φ | |
Conveying capacity(kg/hr) | 300 | 330 | |
Loading distance(m) | 3.5 | 4 | |
Static wind pressure(mm/H2O) | 1300 | 1400 | |
Reservoir volume(L) | 7.5 | 7.5 | |
Conveying tube inner dim | φ38 | φ38 | |
Specification of the attached hoses | φ38×3.5 1pcs | φ38×3.5 1pcs | |
Dimensions(mm) | 340×340×590 | 450×370×660 | |
Net weight(kg) | 12 | 27 |
More details, Please visit our website: http://www.jmxiecheng.com/en/introduce.html
