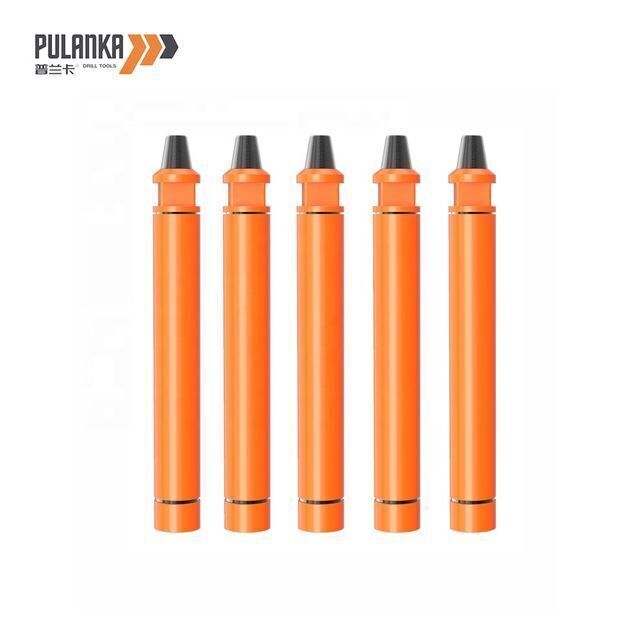

dth drilling hammer tools high air pressure hammer for drilling , water well drilling , drill rig

  • Supplier: Zhejiang Pulanka Rock Tools Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Ms elma liang
  • Price: $13.70 / 30 - 49 kilograms
    $12.00 / 50 - 499 kilograms
    $10.50 / >=500 kilograms
  • Min. Order: 30 kilograms
Click here to contact
Product details
Color:Blue;Core Components:piston;
Video outgoing-inspection:Provided;Series:Misson; DHD; QL;COP;
Warranty of core components:Not Available;Product name:down the hole hammer/ dth hammer/ high air pressure hammer;
Brand Name:PULANKA;Usage:water well; rock,quarry;
Port:ningbo ;shanghai;Payment Terms:L/C,T/T;
Packaging Detail:each product is packed in a wooden case.;After-sales Service Provided:No overseas service provided;
Applicable Industries:Energy & Mining;Advantage:High Working Effiency;
Brand:PULANKA;Showroom Location:None;
Place of Origin:Zhejiang China;Certificate:ISO9001;
Local Service Location:None;size:3" 4" 5" 6" 8" 10";
Keywords:High Efficiency;Marketing Type:New Product 2020;
Package Preview:;Application:Quarry;
Condition:New;Warranty:Unavailable;
Machinery Test Report:Provided;Supply Ability:1000 Box/Boxes per Month;
Product Description


Data
HD35A
HD45A
HD55A
HD65A
HD85A
Connection thread
API 2 3/8" REG
API 2 3/8" REG
API 2 3/8" REG
API 3 1/2" REG
API 4 1/2" REG
Work pressure
1.0-1.7Mpa
1.0-2.2Mpa
1.0-2.5Mpa
1.2-2.5Mpa
1.5-3.3Mpa
Recommended rotation speed
30-50 r/min
30-60 r/min
30-60 r/min
30-60 r/min
30-60 r/min

Air consumption
4m3/min-1.0Mpa
5m3/min-1.0Mpa
7m3/min-1.0Mpa
16m3/min-1.8Mpa
25m3/min-1.8 Mpa
6.5m3/min-1.5Mpa
9m3/min-1.8Mpa
13m3/min-1.5Mpa
23m3/min-2.4Mpa
34m3/min-2.4Mpa

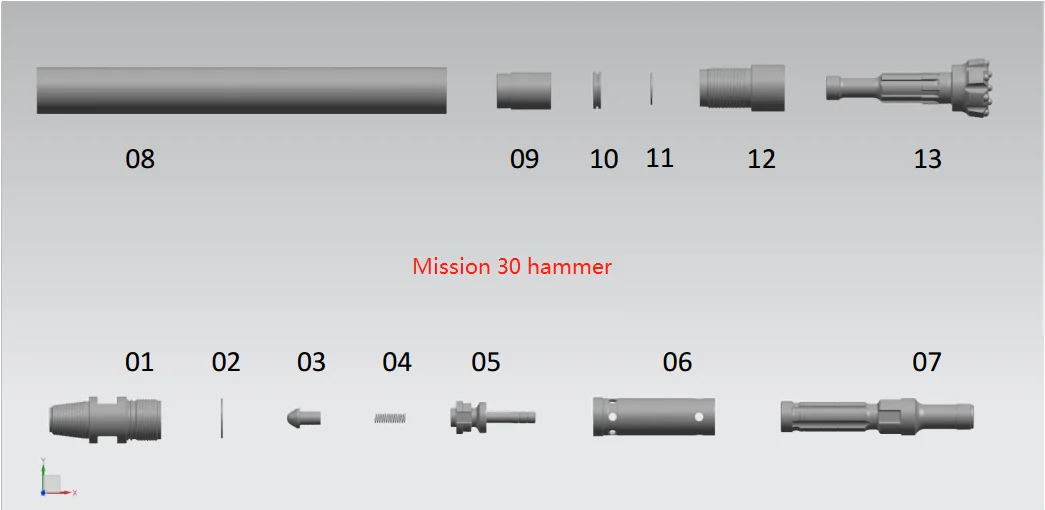

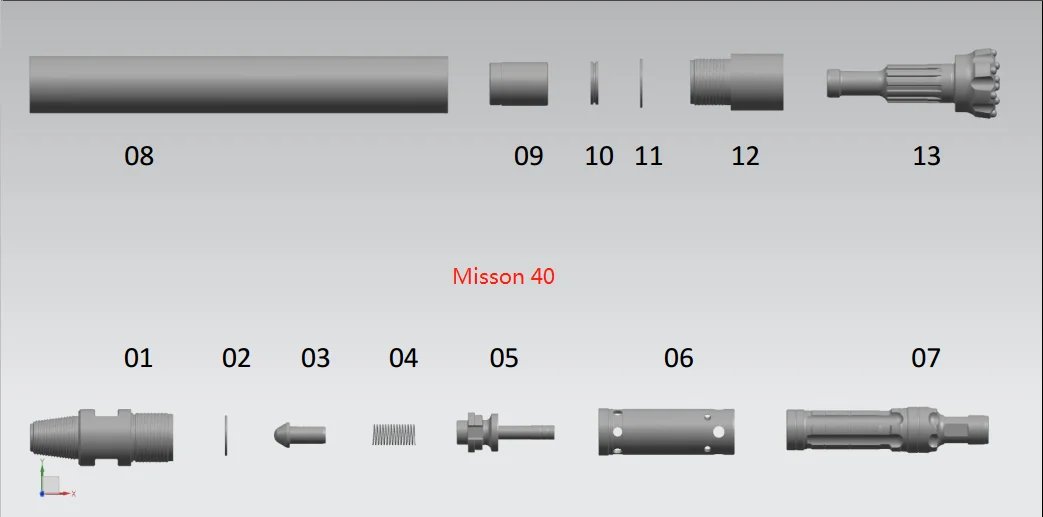

Data
M30
M40
M50
M60
M80
Connection thread
API 2 3/8'' REG
API 2 3/8'' REG
API 2 3/8'' REG
API 3 1/2'' REG
API 4 1/2' REG
Bit Shank
Mission 30
Mission 40
Mission 50
Mission 60
Mission 80
Work pressure
1.0-1.7 Mpa
1.0-2.2Mpa
1.0-2.5Mpa
1.0-2.8Mpa
1.5-3.3Mpa
Recommanded rotation speed
30-50 r/min
30-60 r/min
30-60 r/min
30-60 r/min
30-60 r/min

Air consumption
4m3/min- -1.0Mpa
5m3/min--
-1.0 Mpa
7m3/min--1.0Mpa
8m3/min--1.0Mpa
26m3/min--1.8Mpa
6.5m3/min--1.5Mpa
9m3/min- -1.8Mpa
13m3/min--1.8Mpa
17m3/min--1.8Mpa
35m3/min--2.4Mpa

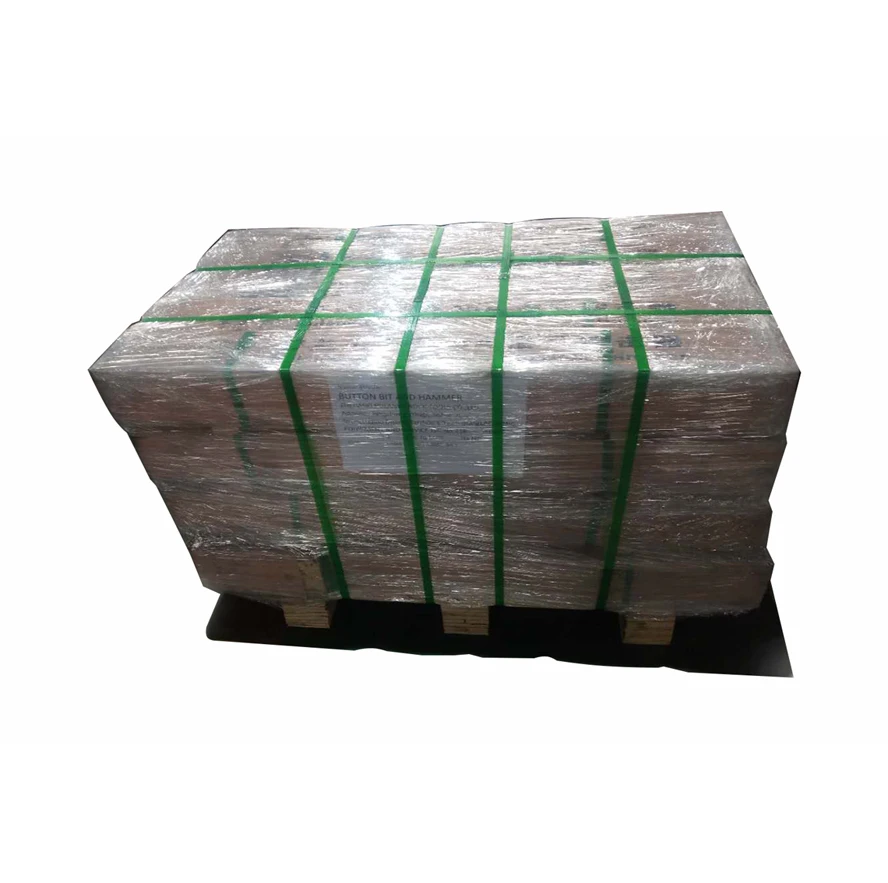

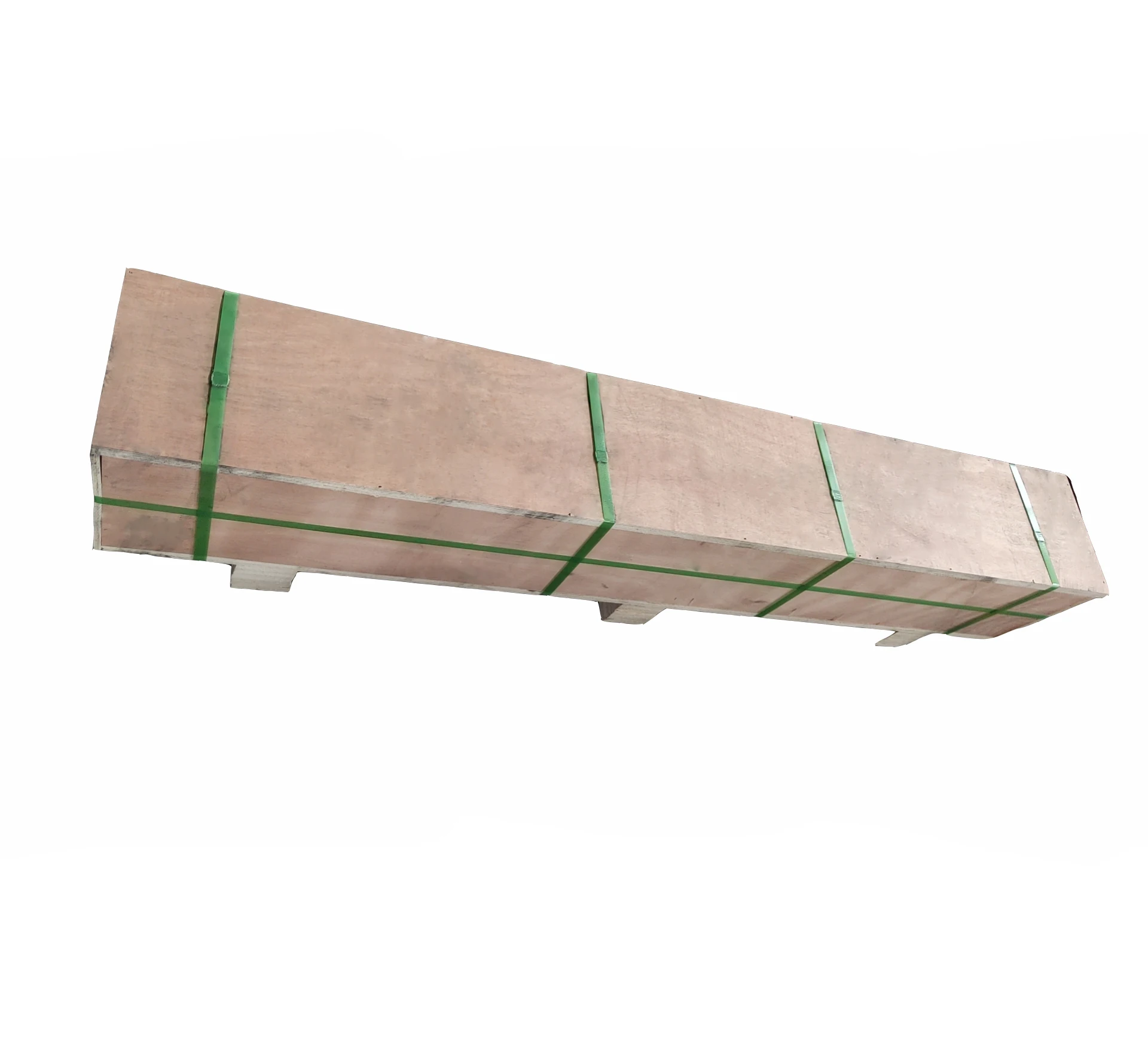

Product packaging
Each box has one hammer.

the box's surface has the bran name and size


we also can provide no brand package.

for more than 20 packages, we can pack them in pallet.

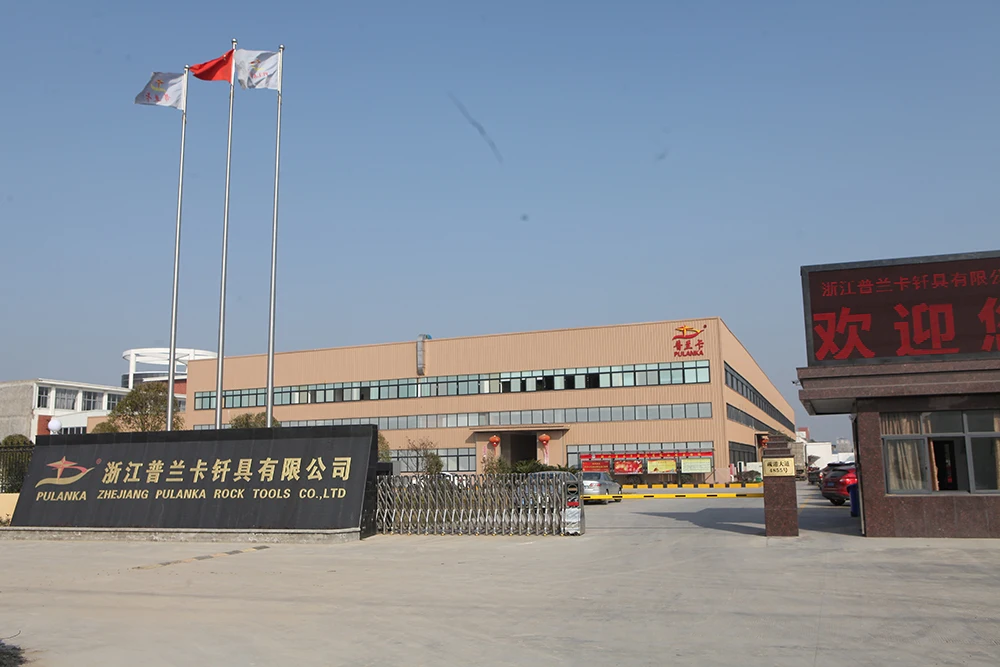

Company Profile
PULANKA NEW IMAGE
Our company has more than 180 employees, covers an area of more than 4 acres and the building area is more than 7,000 square meters. Neatly arranged production lines, well-regulated working order, modern working facilities, diligent and responsible employees, will definitely give you a good first impression and more confidence in our company's products quality. Our company mainly produces DTH hammers, high air pressure DTH bits, low air pressure DTH bits, threaded button bits, cold press tapered button bits, welded tapered button bits, tapered chisel bits and tapered cross bits. In addition, we are also committed to the development and manufacturing of higher-end project and mining tools.
