Cbd Extraction System Centrifugal Distillation Extractor machine

Supplier: Labfirst Scientific Instruments (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Huang
Price: $21900.00 / 1 - 2 pieces
$14900.00 / 3 - 4 pieces
$8900.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	Lab1st;	Weight:	810kg;
Certification:	GMP/CE;	Place of Origin:	China;
Product Type:	Plant;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Electricity:	240V, 3 Phase, 60Hz or Customizable;	Control:	PLC Touch Screen;
Single package size:	175X125X108 cm;	Condition:	New;
Basket Volume (L):	110-530;	Type:	Centrifuge;
Power:	4kw;	Max Speed (rpm):	1250-950;
Showroom Location:	United States;	Warranty:	1 Year;
Single gross weight:	810.000 KG;	Dimension(LWH):	1300x900x1010mm;
Biomass per Batch (lbs):	30-160;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Local Service Location:	United States;	Voltage:	240V, 3 Phase, 60Hz;
Applicable Industries:	Manufacturing Plant,Food & Beverage Shops,Centrifuge;	Selling Units:	Single item;
Liquid Volume (Gal):	45~230;	Temperature Rating (oC):	-60;
Packaging Detail:	IN WOODEN;	Connections:	1.5" Tri-Clamp Ports;
Key Selling Points:	Famous brand PLC;	Basket Diameter (mm):	600-1200;

Lab1st Centrifuge Extractor for Hemp Extraction

Boasting a 97% alcohol removal from biomass, Lab1st LXJ Series system streamline production times and maximize extraction yield, ensuring the delivery of high-purity extractions.

Products Description

Product Paramenters

Model	LXJ-450	LXJ-600	LXJ-800	LXJ-1000	LXJ-1200
Basket Diameter (mm)	450	600	800	1000	1200
Basket Volume (L)	60	110	180	290	530
Biomass per Batch (lbs)	16	30	50	90	150
Liquid Volume (L/Gal)	100/26	170/45	340/90	570/150	870/230
Temperature Rating (oC)	-60
Max Speed (rpm)	1900	1250	1200	1000	950
Motor Power (kW)	2	4	7.5	11	18.5
Weight (kg)	400	810	1700	2500	3300
Centrifuge Dimension (cm)	100x75x80	130x90x101	175x125x108	200x145x114	230x160x147
Control Cabinet Dimension	50x40x120cm
Control	Siemens PLC Touch Screen
Certification	GMP Standard, UL Optional
Electricity	240V, 3 Phase, 60Hz or customizable					220V, 3 Phase, 60Hz; customizable	220V, 3Phase, 60Hz; 480V/460V 3Phase, 60Hz	240V, 3 Phase, 60Hz	240V, 3 Phase, 60Hz

Related Products

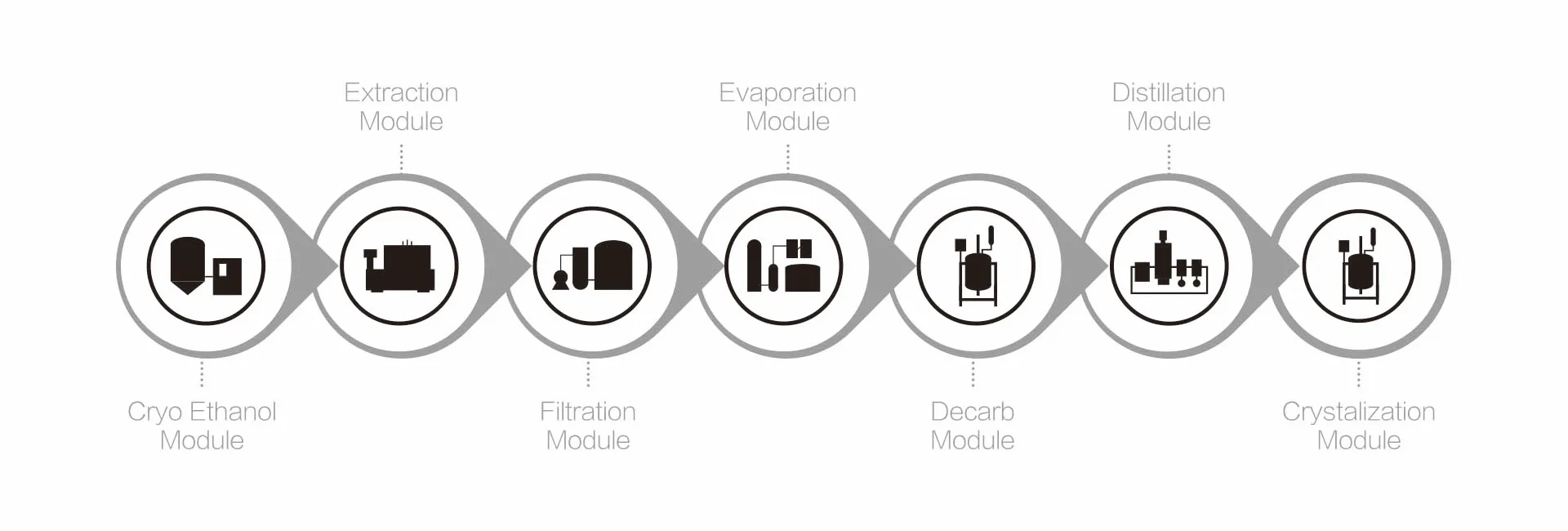

Lab1st provides turnkey solution for low temperature ethanol extraction (CBD extraction)

Kindly contact us for more details about the turnkey CLICK

Bag Filter & Lenticular Filter

Falling Film Evaporator

Hybrid Molecular Distillation

Company Profile

Labfirst (LAB1ST) was founded in Shanghai, specializing in the manufacturing extraction and distillation equipment from lab scale to production scale over 20 years. We supply all products with reasonable price and real time support upon our own production line, professional experience and high quality supply chain. Moreover, our xperienced and well-trained support team is always ready to provide the best support.
