Dimension(L*W*H): | 2100x1260x1250mm; | Cutting cycle per minute: | 20/min; |
Cutting angle: | 1°30'; | Condition: | New; |
Weight: | 1030kg; | Product name: | motor driven shearing machine; |
Model size(LxWxH): | 2100x1260x1250mm; | Mild steel: | 0.5~3mm; |
Brand Name: | ACL; | Rated Power: | 3KW; |
Cutting length: | 1300mm; | Max. Cutting Thickness (mm): | Custom; |
Place of Origin: | Guangdong China (Mainland); | Main motor: | 3KW; |
Max.cutting material Stainless steel: | 0.5~1.5mm; | Payment Terms: | L/C,T/T,Western Union; |
Voltage: | 380; | Port: | huangpu, China; |
Certification: | CE; | Max. Cutting Width (mm): | Custom; |
Weight: | 1030 kg; | Warranty: | 1 years; |
Supply Ability: | 100 Set/Sets per Month 100pcs/month; | After-sales Service Provided: | Field installation, commissioning and training; |
Motor driven shearing machine

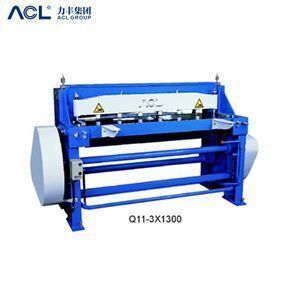

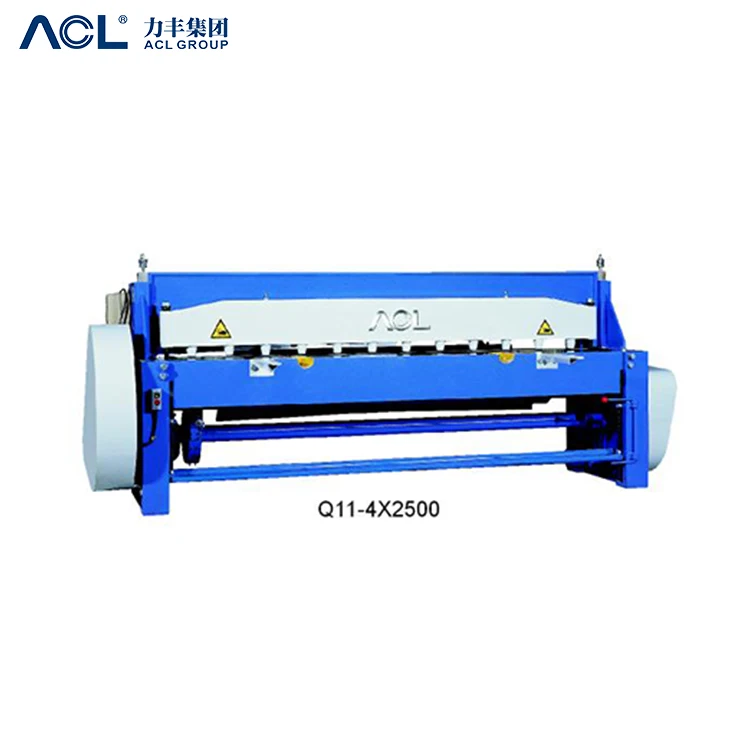

Model | Q11 4x2500 | Q11 2x2000 | Q11 3x1300 | |
Max.cutting material | Mild steel | 0.5~4mm | 0.5~2mm | 0.5~3mm |
Stainless steel | 0.5~2mm | 0.5~1mm | 0.5~1.5mm | |
Cutting length | 2500mm | 2000mm | 1300mm | |
Cutting angle | 1.5° | 1°30' | 1°30' | |
Cutting cycle per minute | 18/min | 18/min | 20/min | |
Model size(LxWxH) | 3500x1800x1400mm | 2800x1260x1300mm | 2100x1260x1250mm | |
Weight | 2660 kg | 1350 kg | 1030 kg | |
Main motor | 5.5KW | 3KW | 3KW |
ACL Machine Co., Ltd.
ACL Machine Co., Ltd. established in 1981, is one of China's larger-scaled manufacturers of heavy forging machinery, heating and ventilating equipment and sheet metal equipment.
ACL specializes in co-operative manufacturing and development of the machinery and equipment in the industries of ferrous metallurgy, petrochemical, nuclear power, ship traffic, spaceflight and aviation, military project, engineering machinery, heating ventilation, container, boiler, bridge, building materials and so on, as well as grafting and localization of the equipments introduced from foreign countries.
ACL now has three manufacturing bases in China
Which are located in Guangdong, Shanghai and Shandong separately. ACL covers an area of more than 700, 000 square meters. There are about 150, 000 square meters of large and heavy industry plant areas, 400 sets of various large and medium-sized production equipments and more than 1,200 stuffs including 100 engineers and more than 100 sales personnel or agents all over china and worldwide. With its strong capability and technology, ACL keeps improvement and innovation over the years and has become a leading manufacturer of sheet metal processing equipment in China.
In the past more than thirty years, ACL’s products have been exported to over 86 countries and regions in the world such as the USA, Japan, Australia, Europe, the Middle East, South East Asia. For a long-term cooperation with well-known corporations in the world, we have adapted to the way of cooperation with European and American corporations.
No matter when and where you are, ACL is always able to provide you with the best products and service, with machines built to your specifications
1.Are you a manufacturer or trading company ?
We are a manufacturer.
2.How about the quality of your machines?
Our company is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
3.What can you provide for after-sales service?
24 hours’ online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.
4.If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
