Rock coal underground coal mine tunnel crawler mining mucking loader

Product details
Port:Tianjin,Qingdao, Shanghai, Dalian Port or as request;keywords:mucking loader;
Delivery Detail:Shipped in 3 days after payment;Place of Origin:Henan China (Mainland);
Application:underground mining equipment;usage:underground mining machine;
Supply Ability:500 Set/Sets per Month Rock coal underground coal mine tunnle crawler mining muck;Rated load:60-80t/h;
Name:Rock coal underground coal mine tunnel crawler mining mucking loader;Traveling speed:4 kw/h;
Packaging Detail:1.container for Machine equipment Rock coal underground coal mine tunnle crawler mining mucking loader 2.nude packing or wooden cases 3.accessories are put in bags;Engine power:15KW;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Rock coal underground coal mine tunnle crawler mining muck;Brand Name:Zhongxiang;
Moving Type:Crawler Loader/Wheel Loader;Color:red,yellow;
After-sales Service Provided:Engineers available to service machinery overseas;Model Number:ZX-ML-09;
Bucket capacity:3 cubic;Condition:New;

Rock coal underground coal mine tunnel crawler mining mucking loader



Product Description

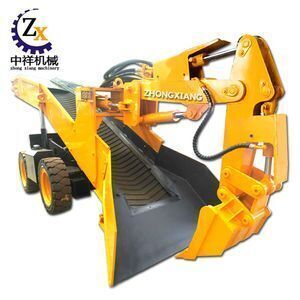

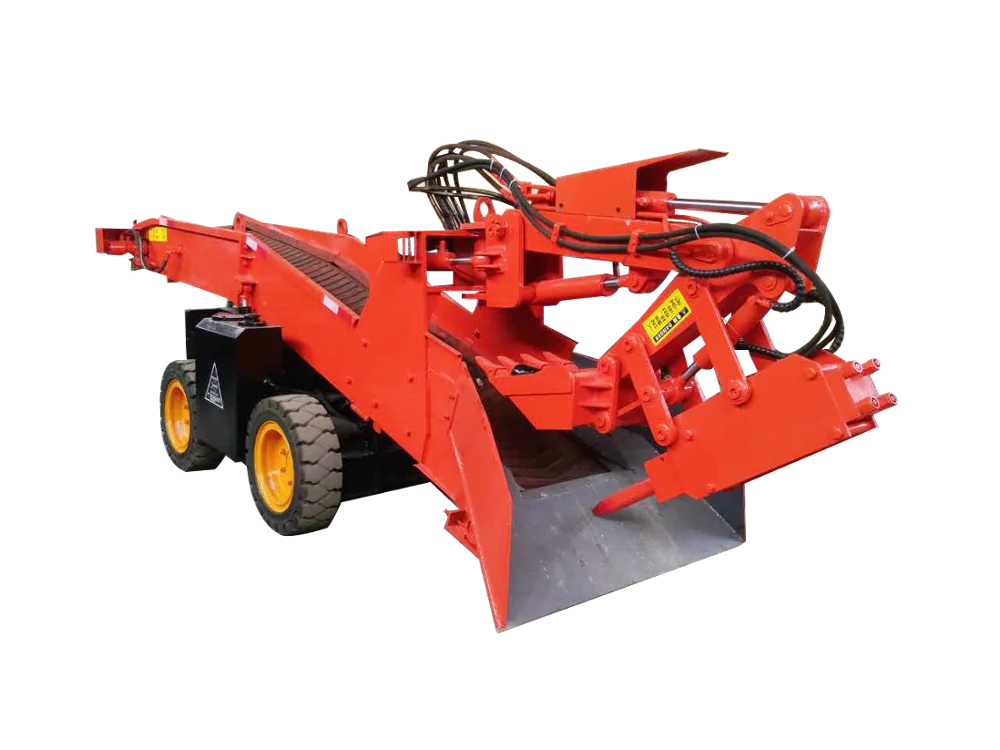

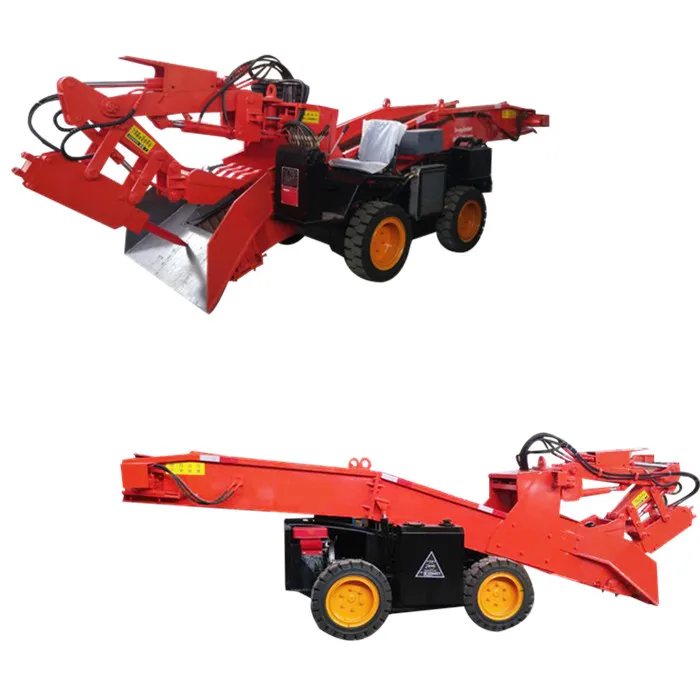

Rock coal underground coal mine tunnel crawler mining mucking loader product show

Rock coal underground coal mine tunnel crawler mining mucking loader Brief introduction

Mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.

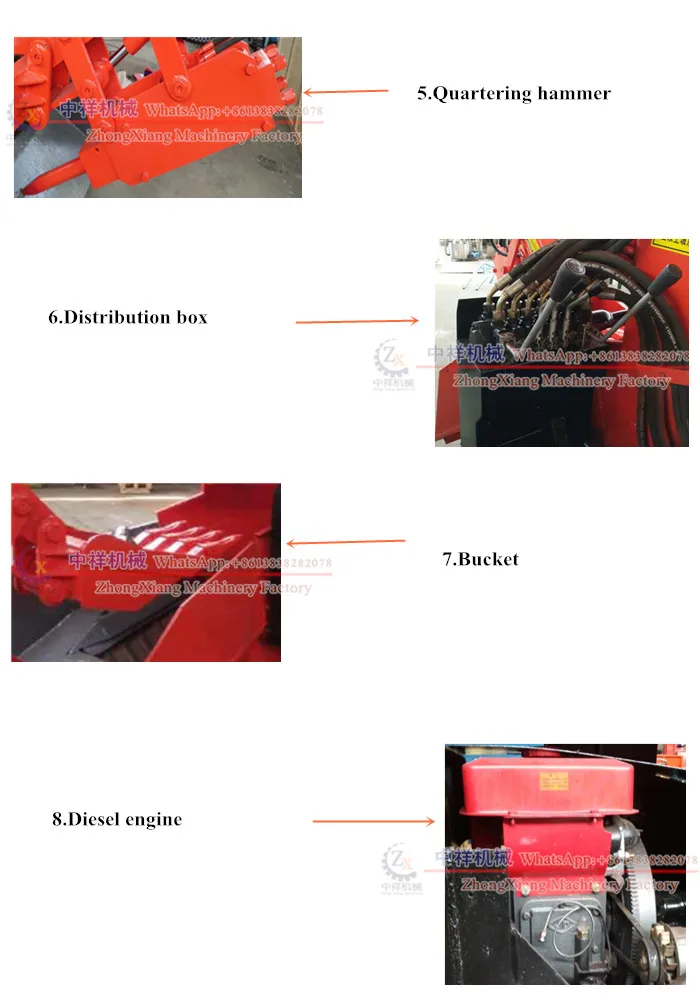

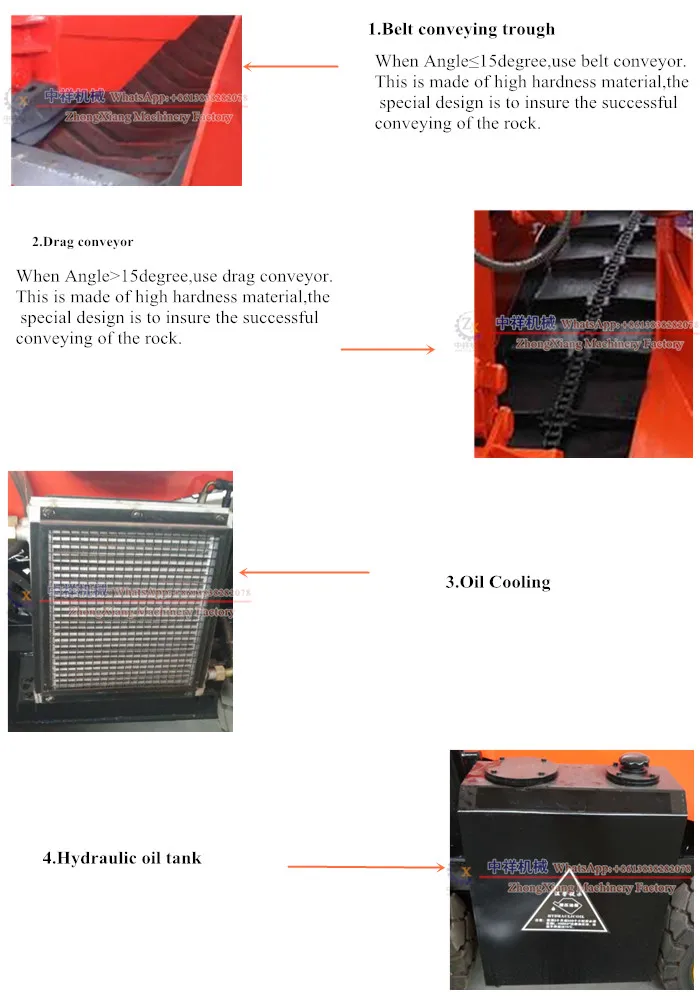

Rock coal underground coal mine tunnel crawler mining mucking loader detail show

Function:

1:Distribution box:easy to manage, when the occurrence of short-circuit fault is conducive to maintenance.

2:Solid tires:Improve tire performance, reduce tire wear, reduce tire blasting

3:Oil cooling:In addition to oil lubrication to the engine but also the role of cooling.



Rock coal underground coal mine tunnel crawler mining mucking loader work site







Rock coal underground coal mine tunnel crawler mining mucking loader main functions



Mucking loader using electric hydraulic control system, contain five functions are hydraulic walking, mining acquisition , transportation, loading and bottom clearing. Our mucking loader has dual drive device , electrical installation and diesel Installation. When it works in the mine , please use electric power,  for the electric power is more environmental and safe. When it works out of the mine, Hydraulic oil tank can storage oil for a long continuous work.

Technical Parameter

Rock coal underground coal mine tunnel crawler mining mucking loader Parameter

Contents
Unit
Parameter
ZWY-50
ZWY-60
ZWY-70
ZWY-80
ZWY-100
External dimension
mm
4300*1500*1500
4300*1500*1500
5600*1700*1700
6000*17001770
6400*1730*1650
wheel base
1300
1500
1500
1700
1700
Wheel tread
1600
1600
1700
1750
1750
Maximum material go through size
600*600
600*600
600*600
800*600
800*600
 minimum distance from the ground
180
180
180
160
190
Total weight
T
4
4
4
5
5
Maximum lifting height
mm
1350
1350
2100
2100
2100
Maximum loading height
1200
1200
1500
1600
1500
Suitable height of charging carriage
1500
1500
1700-2100
1750-2500
1700-2100
Maximum extension of scraper bucket
1440
1440
1300
1800
1740
Maximum lift height
2150
2150
1900
2800
1600
Power
Kw
15
15
15
19
19
Working arm maximum turning angle
(º)
73
73
73
73
73
Traveling speed
Km/h
3/6
3/6
3/6
3/6
2.5/1.4
Maximum digging ability
KN
11.1
11.1
11.1
11.1
11.1
Loading capacity
T/h
60
60
70
80
100
Distance from cockpit to ground
mm
1700
1700
1700
1800
1800
Maximum belt slope
(º)
22
22
24
24
24
Adaptive tunnel dimension
m
1.5*1.8
1.5*1.8
1.8*2.2
2.6*2.6
3*3

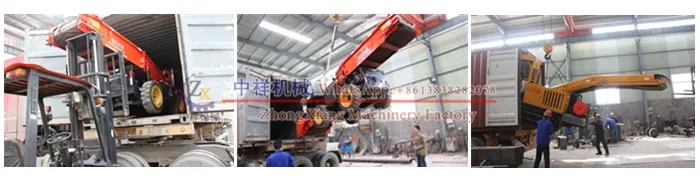

Packaging & Shipping

Related Products

mucking loader

underground mining loader



 metal crusher



glass recycling machine

glass crusher

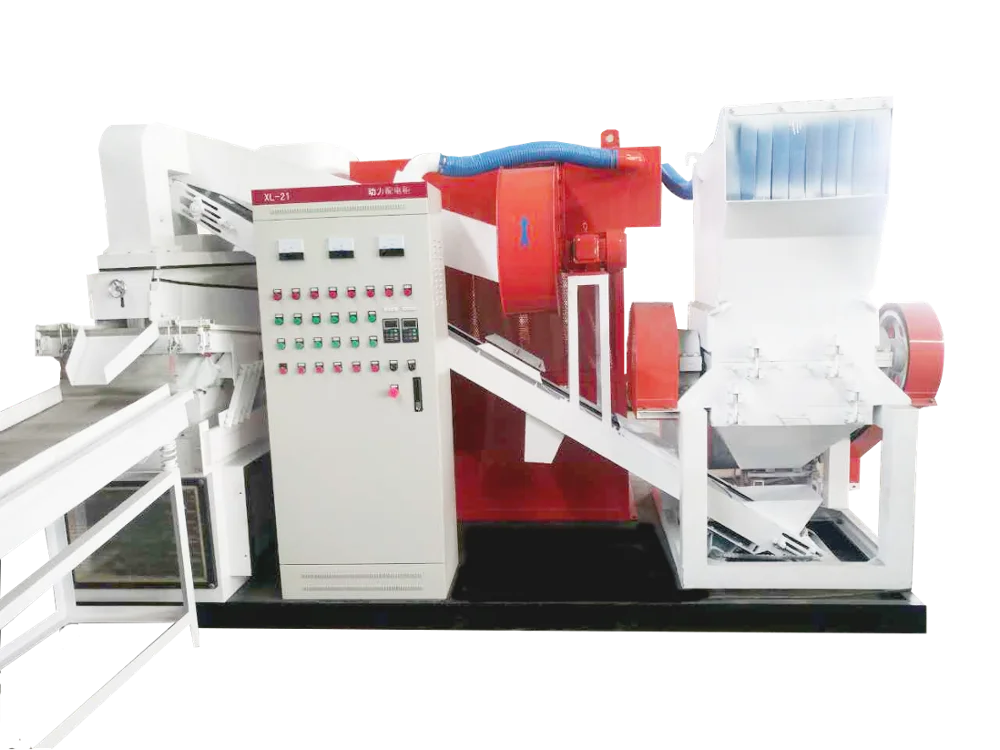

copper wire recycling machine
