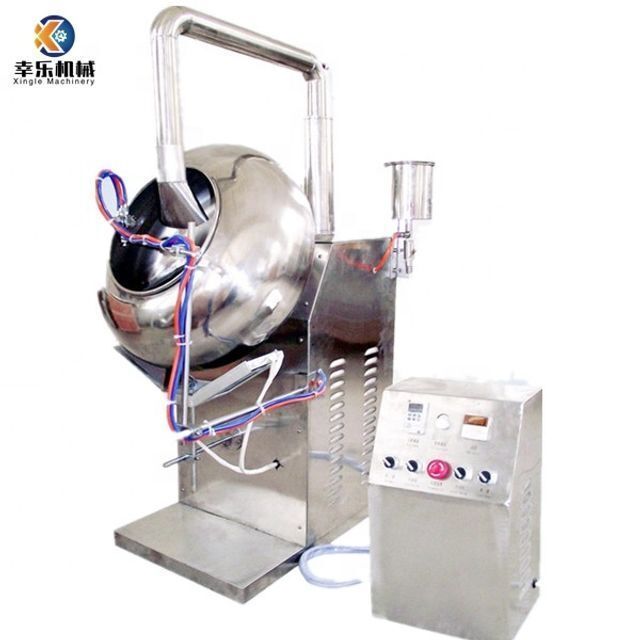

BYC300 Automatic Small Tablet Film Coating Pan Machine with spraying system

Click here to contact
Product details
Package Preview:;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Power (kW):0.37;Model:BYC-300;
Coating Type:Heating & Coating;Motor Power:0.37 kW;
Port:Guangzhou or shanghai;Condition:New;
Coating Drum Diameter (mm):300;Place of Origin:Guangdong China;
Blower Power:60W;Marketing Type:New Product 2020;
Core Components:Motor;Usage:Pharmaceutical;
Rotate speed:0-46 r/min;Supply Ability:50 Set/Sets per Month;
Packaging Detail:exporting wooden package;Key Selling Points:Easy to Operate;
Feature:Easy Operation;Applicable Industries:Pharmaceutical plant;
Showroom Location:None;Net Weight(kg):90;
Warranty of core components:1 Year;Certification:GMP;
Voltage:220V;Product Capacity:1-3kg/time;
Material:Stainless Steel;Function:Pharmaceutical Tablet Pills Film Coating;
Product Name:Automatic Coating Machine;Machinery Test Report:Not Available;
Video outgoing-inspection:Provided;After-sales Service Provided:Video technical support,Online support;
Max. Load Capacity (kg):3;Local Service Location:None;
Weight (KG):90;Warranty:1 Year;
After Warranty Service:Video technical support,Online support;Brand Name:Xingle;
Coating Temperature (℃):1 - 100 ℃;
Products Description
BYC-300, 400, 600, 800, 1000, 1200 Coating Machine for Pharmaceutical plant
Main application:
This is a machine that integrates the features of strong current, weak current, hydraulic and pneumatic. It is used to sugar coat and film the outer surface of Chinese and Western medicine tablets. It is a new type of equipment modified on the basis of the general sugar coating machine. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

Operating principle:
1. It consists of multiple parts: the host sugar coating machine, controlled constant temperature hot air system, automatic liquid and gas supply system and so on.
2. The main motor can be adjusted by frequency conversion. It will automatically control the coating materials to be sprayed onto the surface of the tablets with a high atomization spray gun. Meanwhile, the tablets make continuous and complex trajectories in the coating pot. It makes the coating liquid evenly wrapped on the tablets.
3. There is controlled constant temperature hot air in the pot to dry the tablets. It makes the surface of the tablet quickly form a stable, meticulous, complete and sleek film.

Main Parameter
Model
BYC-300
BYC-400
BYC-600
Production capacity (kg/time)
1-3
2-5
8-15
Pot body angle (o)
42
42
30
Motor power (kW)
0.37
0.37
0.75
Blower motor power (w)
60
60
100
Liquid barrel capacity (L)
1
1
3
Spray gun
RA-C1
RA-C1
RA-C1
Electric power (kW)
1
1
2
Speed(r/min)
0-46
0-46
0-40
Weight (kg):
90
100
150
Model
BYC-800
BYC-1000
BYC-1200
Production capacity (kg/time)
30-50
50-70
80-150
Pot body angle (o)
30
30
30
Motor power (kW)
1.1
1.5
2.2
Blower motor power (w)
200
200
370
Liquid barrel capacity (L)
8
10
12
Spray gun
According to Clients' Need (Customized)
RA-C1
RA-C1
Electric power (kW)
3
4
6
Speed(r/min)
0-32
0-32
0-28
Weight (kg):
280
300
500
Company Profile

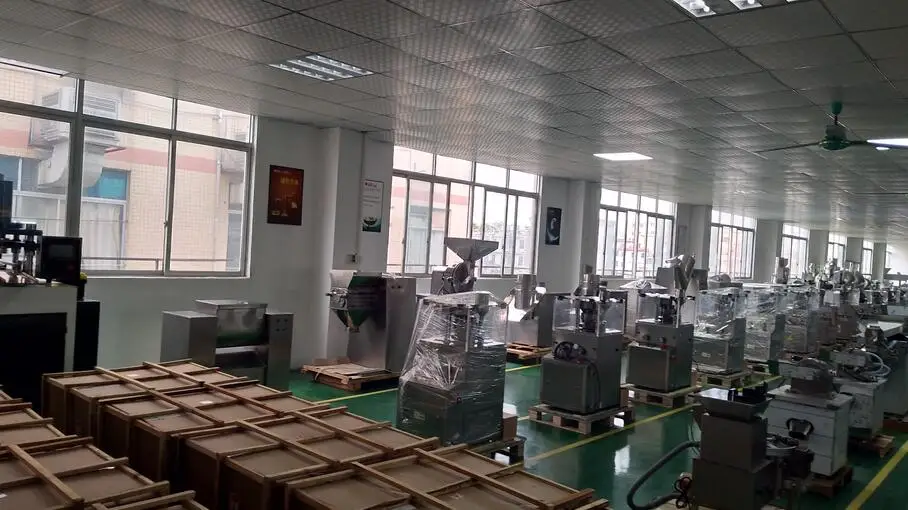

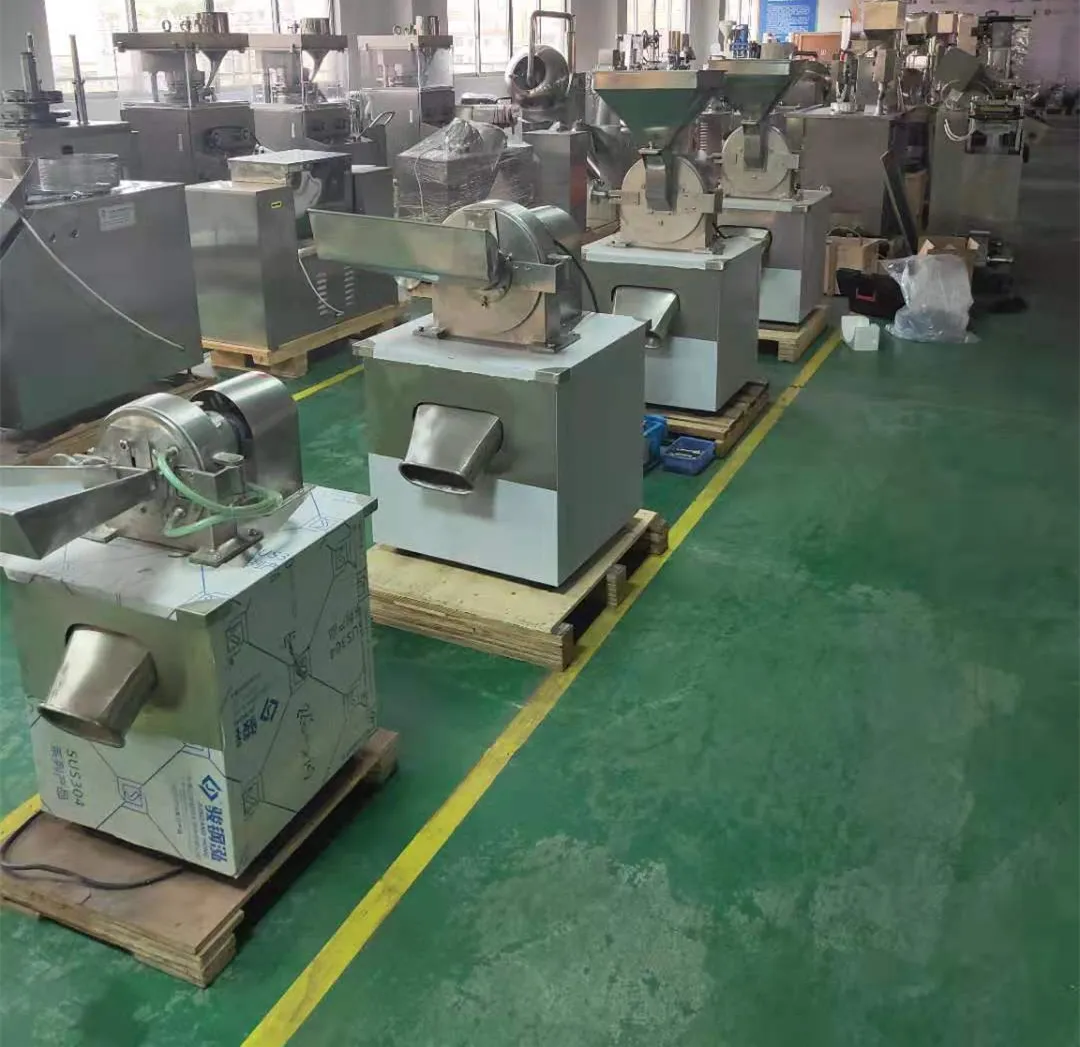

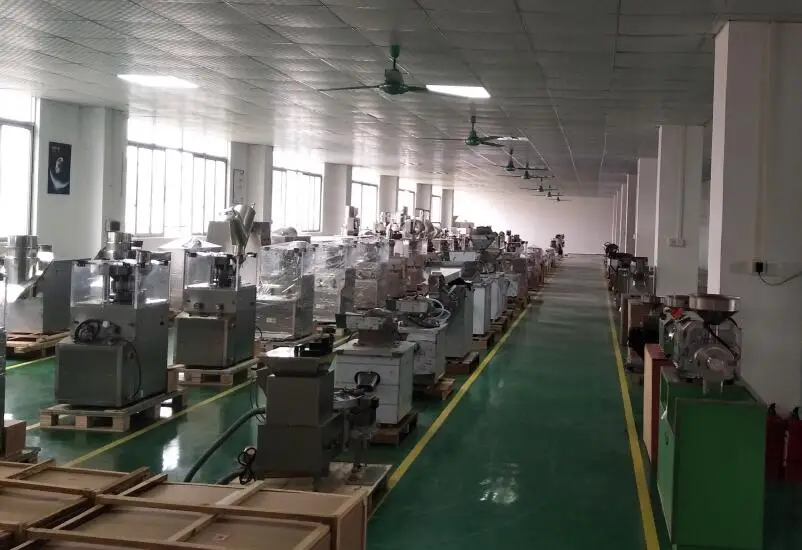

Foshan Xingle Machinery Equipment Co., Ltd. is a professional manufacturer and supplier of pharmaceutical machinery and enjoys a good reputation in local and global markets.We are specialized in pharmaceutical machines including pulverizes, mix, Granulate, tablet press machine, coating machine, counting machine, blister packaging machine, cartoning machine, labeling machine, soft capsule filling machine, hard capsule filling machine, ampoule filling and sealing machine, oral liquid filling production line, ampoule printing machine, suppository machine, we can undertake concept design, process design turnkey project and so on.
Our Advantages
Major Market
Payment Delivery
FAQ
Q:How to choose the suitable one?
A:Please tell us your detailed requirements by mail or online, we will recommend the suitable one
as your request.

Q: How long need to ship the machines after order
A: All machines can be ready and shipped in 15 or 30 days after order!

Q:When I receive it after pay?
A: The normal models can be sent out within 7-10 days, please contact us to check shipping time to your address.

Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.

Q: Why should you choose our tablet press and packing machine?
A: We are professional in tablet press and packing machine. Our machines have been exported to Asia,USA, EU and Middle East.

Q:Is it will be broken during transport?
A: Please don't worry,our goods are with standard export package.

Q: Can you provide after-sale service?
A: Yes, sure. We have engineers available to service overseas.

Q: What is our advantages?
A:
1. Competitive price
2. Excellent technical support
3. Best service.
4. High quality machine
