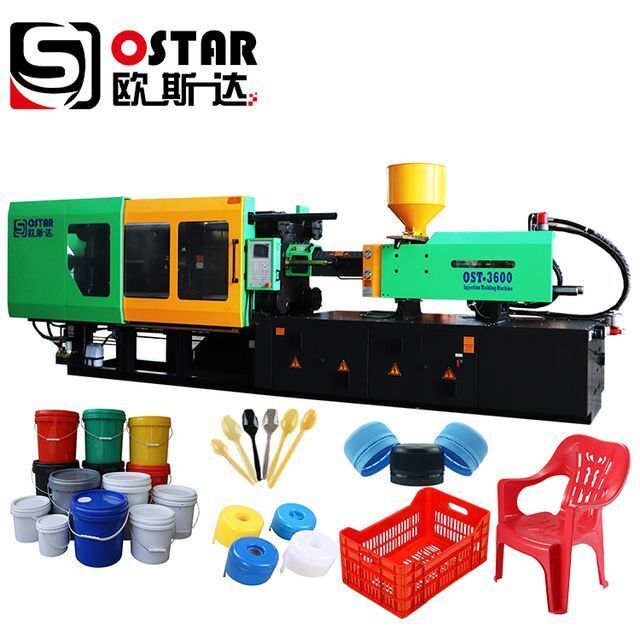

low price cost china plastic spoon bucket chair fruit vegetable crate basket making injection molding moulding machine price

Supplier: Zhangjiagang Ostar Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jimmy Shi
Price: $20000.00 / 1 - 4 sets
$19000.00 / 5 - 9 sets
$16000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	OSTAR;	Video outgoing-inspection:	Provided;
Screw L/D Ratio:	19.4;	Core Components:	Bearing,Motor,Pump,PLC,Screw;
Type:	Preform Injection;	Plastic Processed:	ABS,HDPE,PE/PP,PP,PVC,HDPE/PP,ABS/PP;
Automatic:	Yes;	Marketing Type:	New Product 2020;
Injection Rate (g/s):	142 g/s;	Place of Origin:	Zhejiang, China;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,Video technical support;	Spare Part:	free spare part;
Packaging Detail:	export stand package low price cost china quality plastic spoon bucket chair pet preform bottle cap making injection molding moulding machine price;	Model Number:	OST-1600;
Product name:	injection molding machine;	Plasticizing Capacity(g/s):	21;
Clamping Force (kN):	1600 kN;	Mold Height(mm):	180 - 450 mm;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Screw diameter (mm):	45 mm;
Local Service Location:	Nigeria,Uzbekistan;	Condition:	New;
Application:	plastic products;	Warranty of core components:	1 Year;
Certification:	CE TUV ISO9001;	Key Selling Points:	Competitive Price;
Machine Type:	Hydraulic;	Style:	Horizontal;
Supply Ability:	50 Sets per Month plastic injection molding machine injection moulding machine;	Theoretical Shot Volume(cm³):	333 cm³;
Ejector Force(kN):	45 kN;	Operating Language:	English Arabic French Spanish Portuguese Russian;
Ejector Number:	5;	Product Keywords:	plastic injection molding machine;
Distance between Tie Bars(Height)(mm):	440 mm;	Distance between Tie Bars(Width)(mm):	440 mm;
Machinery Test Report:	Provided;	energy saving:	servo motor;
Screw Speed (rpm):	1 - 120 rpm;	Suitable material:	PP PE PS ABS PVC PPR;
Applicable Industries:	Building Material Shops,Construction works ,Energy & Mining;	Ejector Stroke(mm):	130 mm;
Warranty:	1 Year;	Port:	NINGBO PORT/SHANGHAI PORT;
Power (kW):	15 kW;	Injection Weight (g):	303 g;
Mold Height:	180mm-450mm;	Color:	Customrized;
Weight (KG):	4700;	Open Stroke(mm):	420 mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Showroom Location:	Saudi Arabia,Nigeria;
Package Preview:	;

Production Name: low price cost china quality plastic spoon bucket chair pet preform bottle cap making injection molding moulding machine price

Company Information:

Zhangjiagang Ostar Machinery Co. Ltd, one of the professional manufacturer for plastic injection molding machine in China, focus on machine manufacturing, developing and sales. Company founded in 2000, mainly on plastic injection molding machine, mold and related auxiliary, our main purpose is to offer top quality machine, professional service, growing together with our customers.

Ostar Machinery manufacture machines from 70T to 2000T, injection weight from 50g to 10000g, more than 30 different model machines, over 1500sets machine output ability yearly. Due to continually developing innovation and technological improvement, our machines has exported worldwide, with a good reputation all around world.

Machine Features:

1) Precision hydraulic synchronous template adjusting system

2) Optimal design of high-strength precision clamping structure, Clamping unit rigidity and accuracy

3) Large colorful screen high-precision computer system, precision control, easily operation, multi operation language available. High-precision displacement sensor system, temperature control accuracy, big capacity data storage and date protection ability

4) World famous brand electrical system

5) Balanced type of double injection cylinder, eliminate oblique torque, diminishes deformation of screw and barrel, extend life of screw and barrel, optimizes plasticizing effect. Machine injection under multi-pressure and at various speed, with big capacity hydraulic motor.

6) Large torque oil motor

7) Highly abrasion resistant alloy sliding block

8) The integrate type oil detachable oil tank, magnetic filter and bypass strainer. Reasonable and highly efficient lubrication system. Modularized energy conservation high response oil system

9) Highly precise transducer, multi-stage control of opening stroke, speed and position. Flexible tie bars nut eliminate fatigue fracture, assure tie bars long working life.

10) Security door fitted with hydraulic, mechanical and electrical interlocking triple safety device, fully protect machine operator.

11) Energy saving system, no extra energy consumption due to output volume changes according to load alteration. During stage of holding pressure, servo motor lower down energy consumption, 0 energy consumption during machine cooling stage, save 20%-80% energy consumption compare with standard machine.

Machine Specification:

MACHINE MODEL	UNIT	OST-1600
INJECTION DEVICE
SCREW DIAMETER	MM	41	43	45
SCREW DOAMETER RATIO	L/D	21.3	20.3	19.4
THEORETICAL SHOT VOLUME	CM3	277	304	333
INJECTION WEIGHT ( PS)	G	252	277	303
INJECTION RATE ( PS)	G/S	118	130	142
INJECTION PRESSURE	MPA	182	166	151
PLASTICIZING CAPACITY( PS)	G/S	16	18	21
SCREW SPEED	RPM	230
CLAMPING UNIT
CLAMPING FORCE	KN	1600
TOGGLE STROKE	MM	420
SPACE BETWEEN TIE-BARS	MM	440X440
MIN-MAX MOULD THICKNESS	MM	180-450
EJETION STROKE	MM	130
EJECTING FORCE	KN	45
EJECTOR NUMBER	PC	5
OTHER
MAXIMUM SYSTEM PRESSURE	MPA	16
OIL PUMP MOTOR POWER	KW	15( 17)
HEATER POWER	KW	10.55
OIL TANK CAPACITY	KG	250
OVERALL DIMENSION (ROUGH )	MM	4850X1250X1960
MACHINE WEIGHT ( ROUGH )	TONS	4.7
