Year: | 2021 | application: | bottle |
Type of machine: | Servo motor or fixed pump | Applicable bottle: | 5ml to 800ml |
Showroom location: | France, Germany, Saudi Arabia, Indonesia, Spain | Material: | HDPE Polypropylene PETG |
brand: | Austrian star | Core components: | Water pump, engine, motor, PLC |
Machine-made products: | dropper bottle | port: | Shanghai port or any port in China |
Main selling points: | easy to operate | Plastic processing: | Polypropylene, HDPE, Polyethylene, HDPE/PP |
automation: | automatic | Hollow part volume: | 800ml |

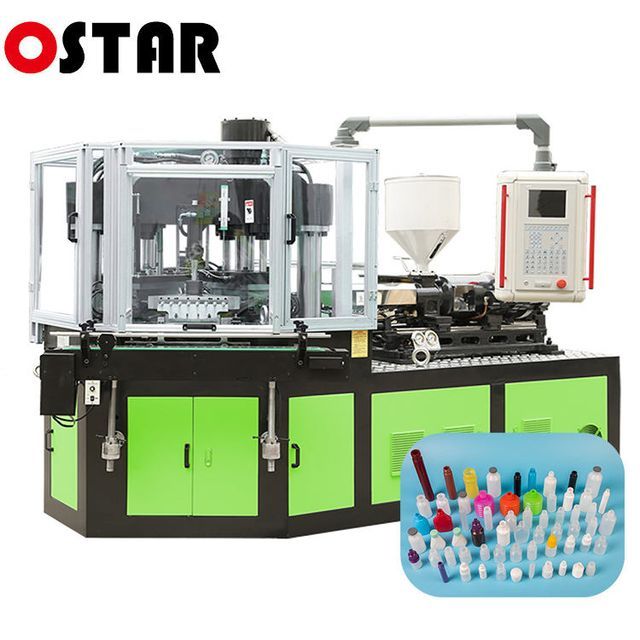

product name: | Injection Blow Molding Machine | Applicable industries: | Building material store, food and beverage factory, food and beverage store, construction project |
Power (kW): | 25 | Warranty: | 1 year |
use: | bottle production | brand: | technology |
Video shipment inspection: | if | Packaging Details: | Wooden pallet cover with waterproof bag and film |
Supply capacity: | 10 sets per month | Core component warranty: | 1 year |
Dimensions (L*W*H): | 3.1*1.2*2.2m | Blow molding type: | injection blow molding |
Weight (kg): | 4000 | Clamping force(kN): | 40 |
Marketing Type: | New Products 2020 | Bottle mold: | usable |
Machine color: | custom made | Origin: | China |
High pressure valve brand: | Festo | Drum brand: | Festo |
Voltage: | 380V 415V 460V | Mold material: | S136 |
Cavity: | custom made | Health status: | new |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Mechanical test report: | if |

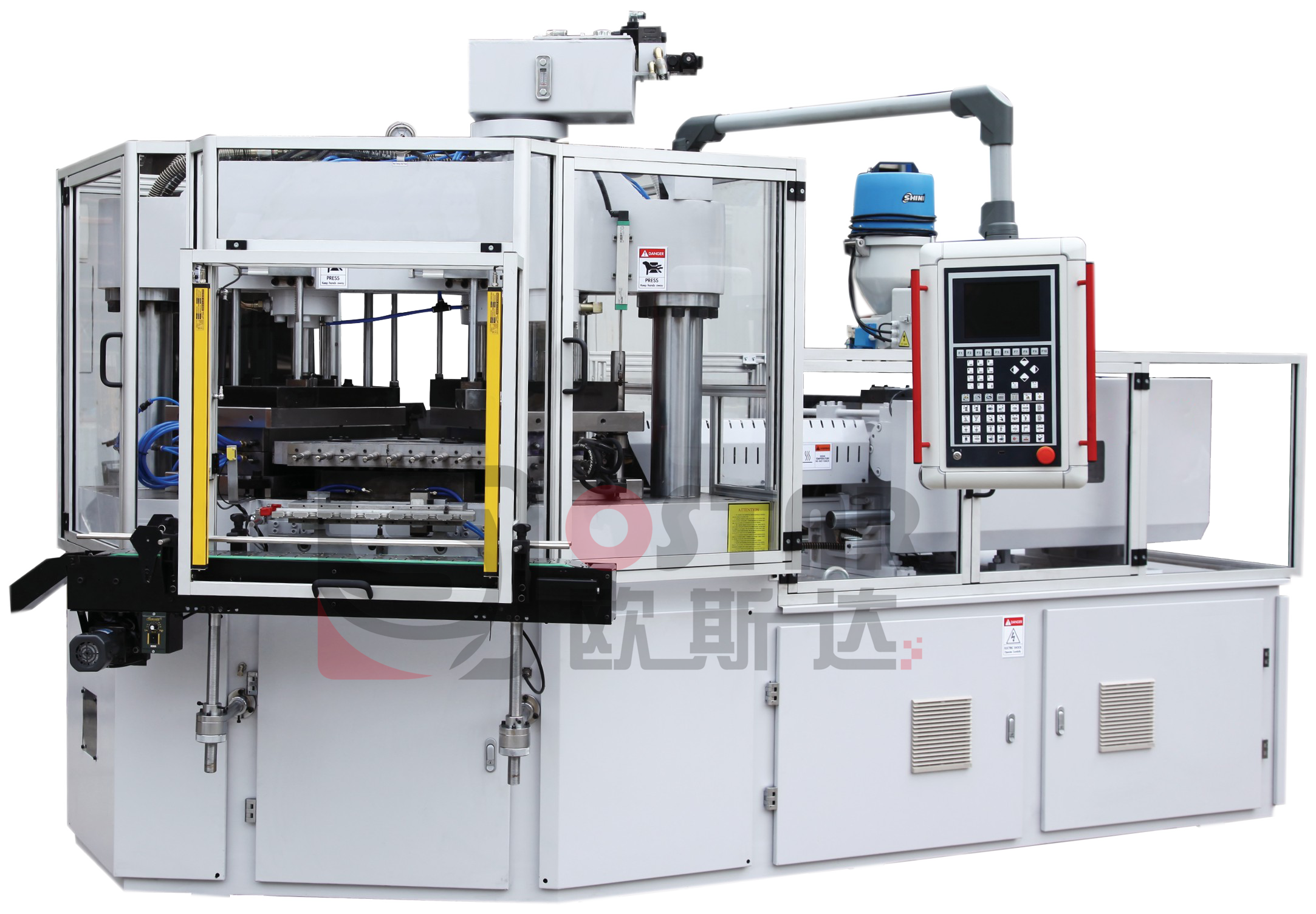

Injection molding machine features:
1) The clamping oil cylinder is placed down to ensure the product is clean. Die clamping force remains balanced and even. 2) Lower the height of the machine table to make the mold loading operation more convenient. 3) The unique hydraulic servo system and reasonable pipeline layout make the machine run with high efficiency and energy saving. 4) The unique pressure clamping structure increases the clamping force and reduces the energy consumption of the system. 5) Servo rotation system or high-precision indexing device greatly improves the rotation accuracy and reduces the empty cycle time. 6) The special double-cylinder horizontal valve plate superposition injection system not only makes injection and storage smoother and faster, but also has a beautiful appearance. Special plastic parts meet the multi-stage injection and pressurization requirements of different products. 7) The optimized internal rack layout makes maintenance more convenient. 8) The ejection process is detected by digital sensors, and the detection function of mandrel rotation is added to achieve the goal of fully automatic operation. 9) Adopt air pressure detection function. When the blowing pressure is lower than the set pressure, the equipment will automatically alarm and stop to reduce the scrap rate in the automatic production process. 10) The conveyor belt can be connected with visual inspection, leak tester and labeling equipment, etc...

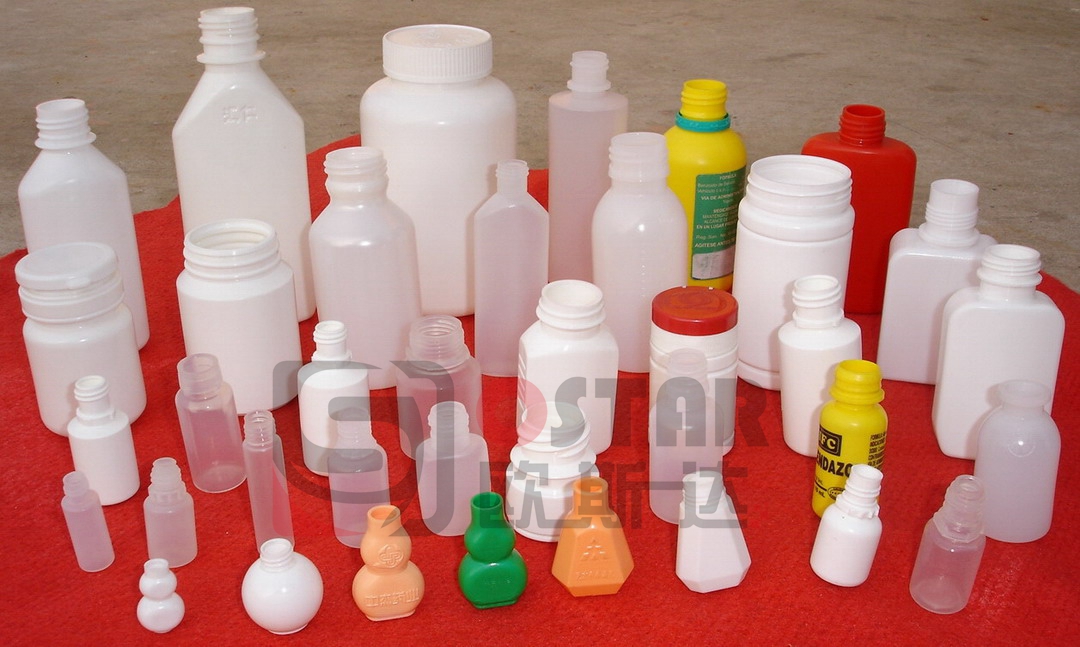

Our machines are widely used to manufacture HDPE/PP/PETG/PVC/PS bottles in sizes from 3ml to 1000ml in the following applications:
1) Dropper bottle
2) Pill bottle
3) Reagent bottle
4) Milk & Yogurt Bottles
5) Cosmetic bottle
6) Food bottle
We also provide bottle cap injection molding machines, bottle cap molds, so our customers can purchase complete bottle and cap production lines. AZ is at your solution service.
Specification | unit | IBM35/350 | IBM45/450 | IBM65/650 | IBM75/750 |
Screw diameter | mm | 40 | 45 | 50 | 50 |
Injection weight | G | 176 | 260 | 314 | 400 |
Heating capacity | kilowatt | 7.2 | 10 | 10 | 12 |
Electric heating control area | quantity | 3 | 3 | 3 | 5 |
Injection clamping force | KN | 350 | 450 | 600 | 750 |
blow clamping force | KN | 40 | 78 | 89 | 150 |
Template opening stroke | mm | 120 | 120 | 140 | 140 |
Injector travel | mm | 220 | 220 | 220 | 220 |
maximum. Die size (L*W) | mm | 420*340 | 580*390 | 740*390 | 840*460 |
minute diameter. Thickness (H) | mm | 180 | 240 | 280 | 280 |
Motor Power | kilowatt | 15 | 18.5 | 30 | 30 |
Mold heating capacity | kilowatt | 2.8 | 4.0 | 5.0 | 6.0 |
hydraulic system pressure | marine protected area | 14 | 14 | 14 | 14 |
minute compressed air pressure | marine protected area | 0.8 | 1.0 | 1.0 | 1.0 |
Compressed air discharge | m3/min | ≥0.7 | ≥0.8 | ≥0.8 | ≥0.8 |
Cooling water consumption | cubic meter/hour | 3 | 3 | 3 | 3 |
Applicable bottle range | ml | 3-600 | 5-600 | 5-800 | 5-1000 |
maximum. bottle height | mm | ≤175 | ≤200 | ≤200 | ≤200 |
maximum. diameter. bottle | mm | ≤75 | ≤80 | ≤80 | ≤100 |
total power | kilowatt | 25 | 35 | 45 | 50 |
Machine size(L*W*H) | rice | 3.1*1.2*2.2 | 3.5*1.4*2.3 | 4.0*1.4*2.4 | 4.0*1.7*2.0 |
machine weight | Ton | 3.6 | 5.5 | 6.5 | 10 |

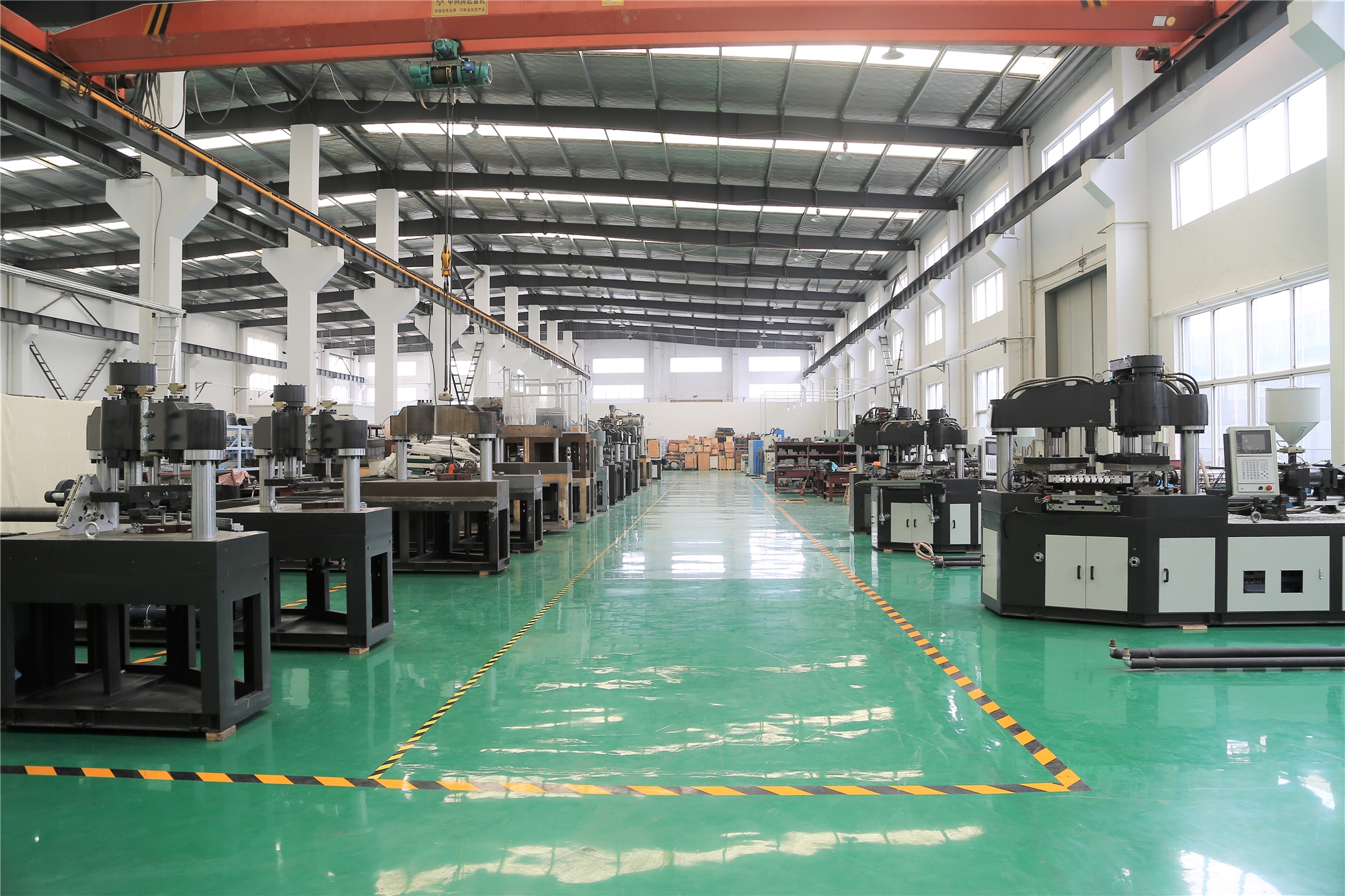

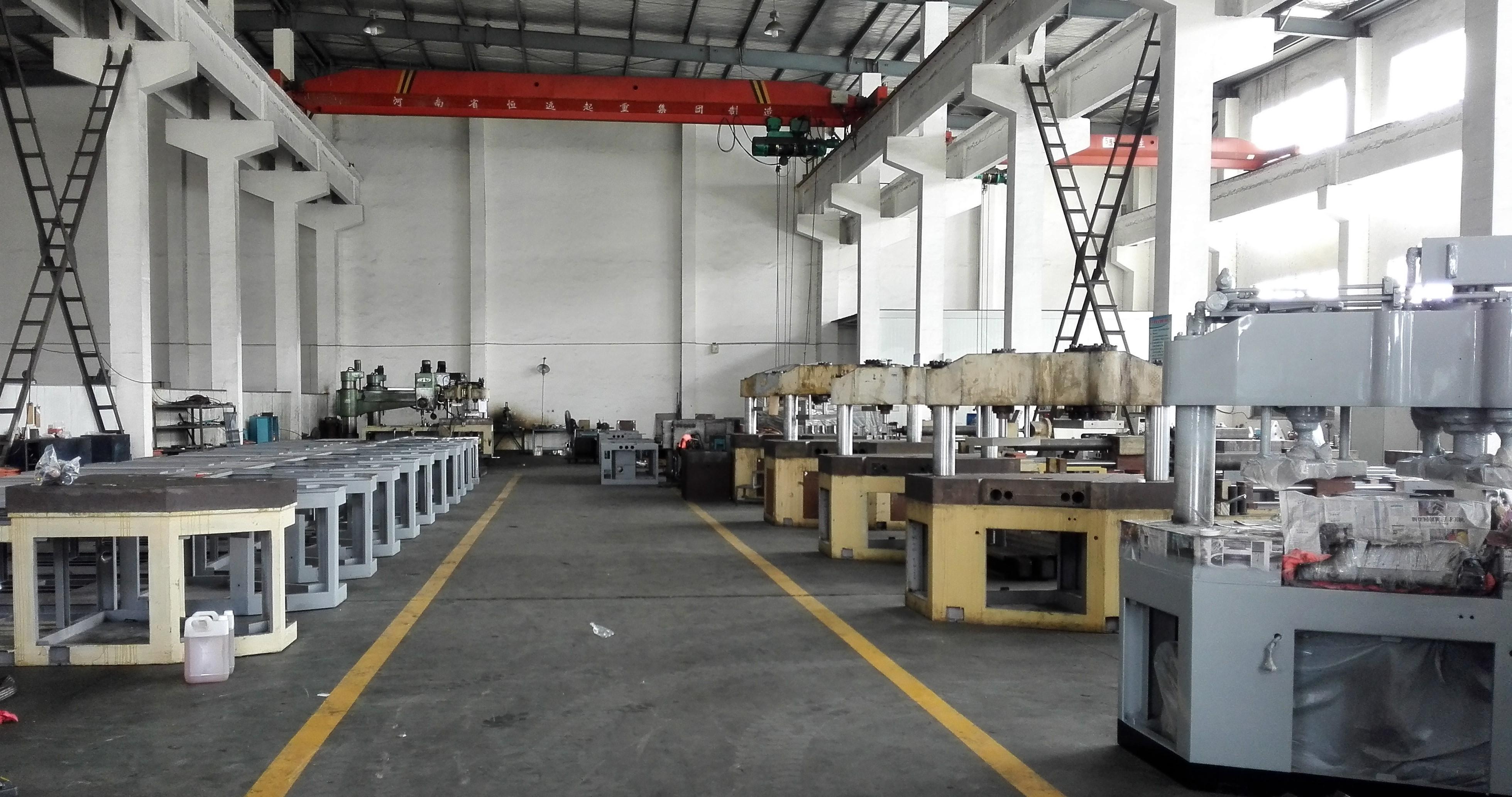

Our machine assembly workshop, 3000 square meters of space of various sizes

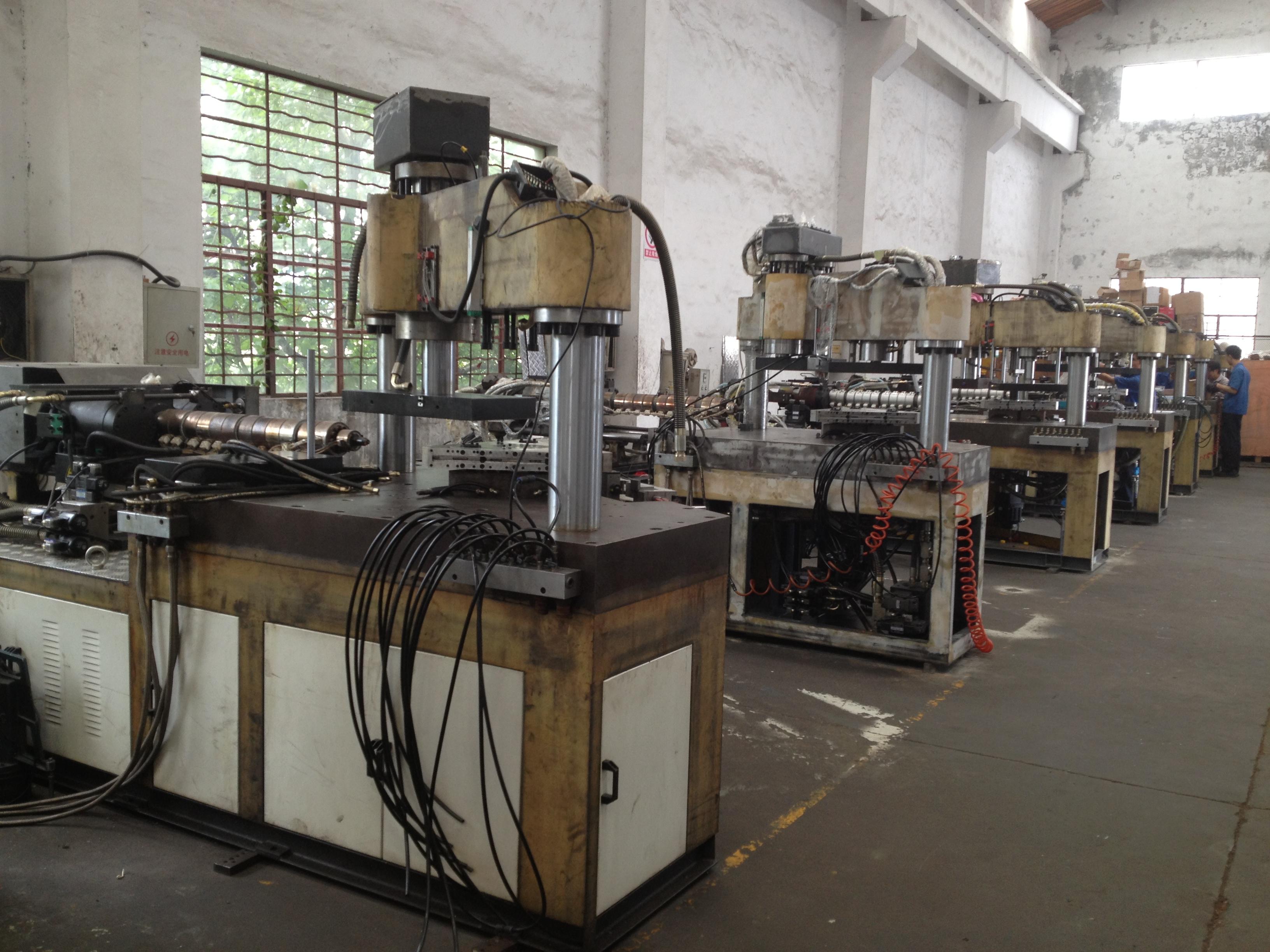

Machine building and testing
We have our own technical department to design and improve our machines, both in machine appearance and performance

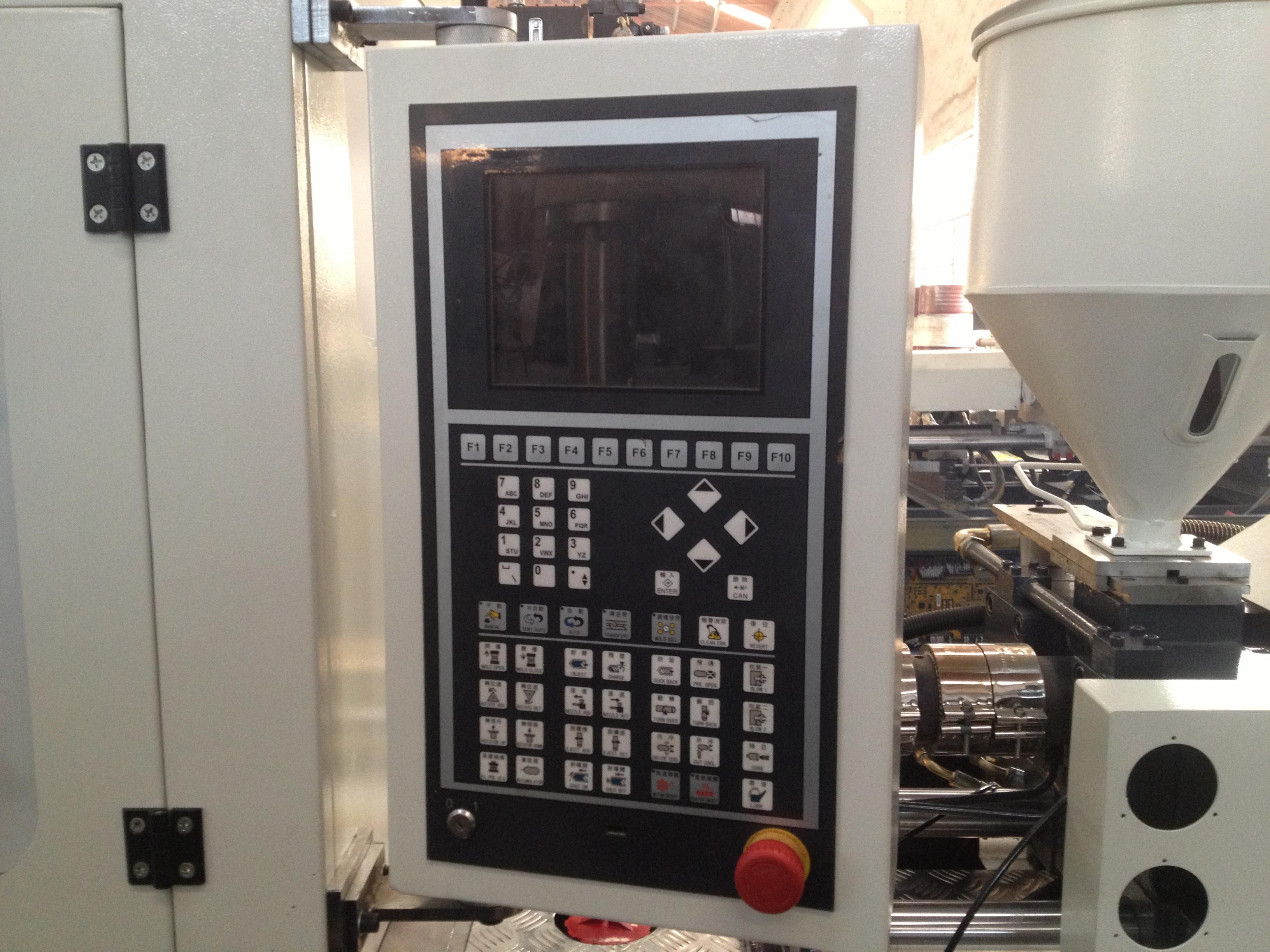

Machine operation panel, from Taiwan
Brand TECHMATION, large color screen.
Display in more than 20 languages, English, Spanish, Portuguese, French, Arabic.
Eeasy operation and maintenance
Mechanical plasticizing unit, using reliable
Plasticized hydraulic motor, durable
Screw barrel, high efficiency heater
Ensure plastic raw materials have good
melt and color
Machine injection blowing station
3 stations run continuously and quickly.
Fast and stable rotation, providing high-yield bottle products, and designing molds with different cavities according to customer bottle samples
The hydraulic system of the whole machine adopts Japanese famous brand
YUKEN valves ensure the high-speed response of the whole machine, precisely control the movement of each machine, work stably, and have a long service life.

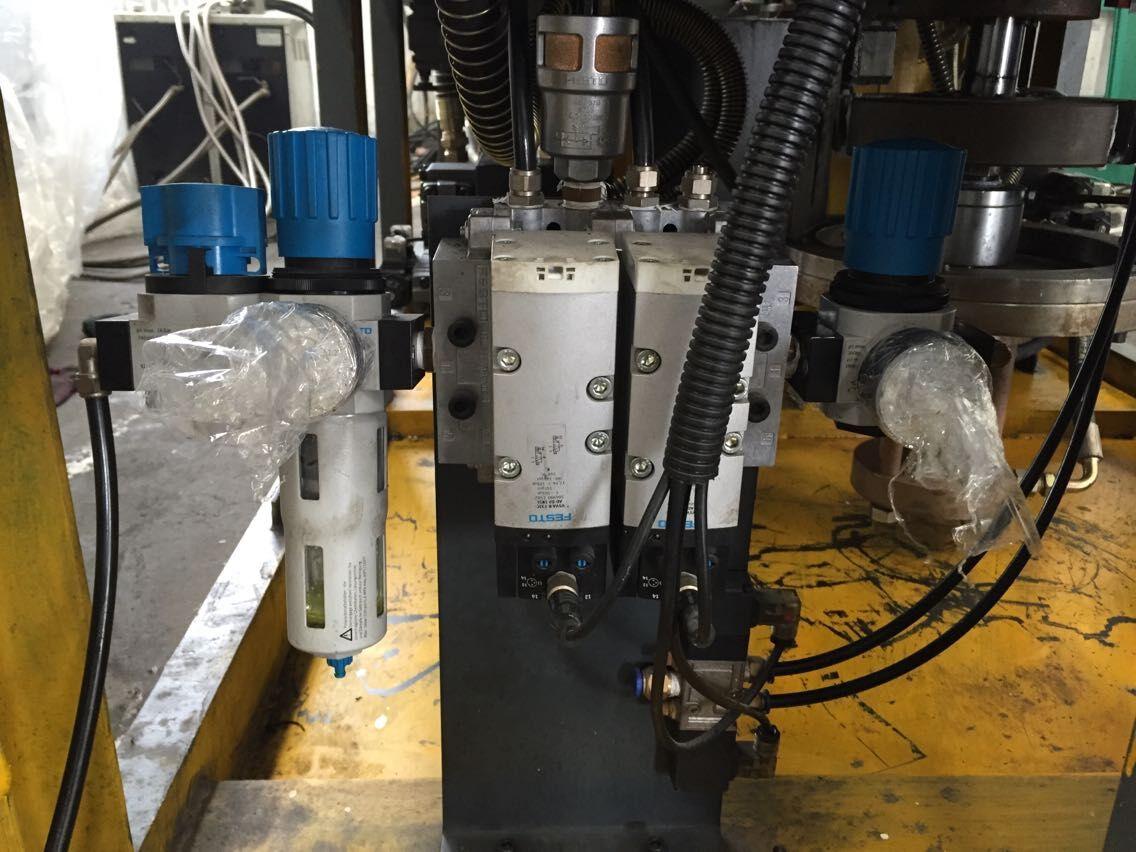

The air system of the machine adopts the high-quality brand FESTO imported from Germany to provide a stable and powerful air source
The blowing unit of the whole machine ensures good blowing quality and fast speed.

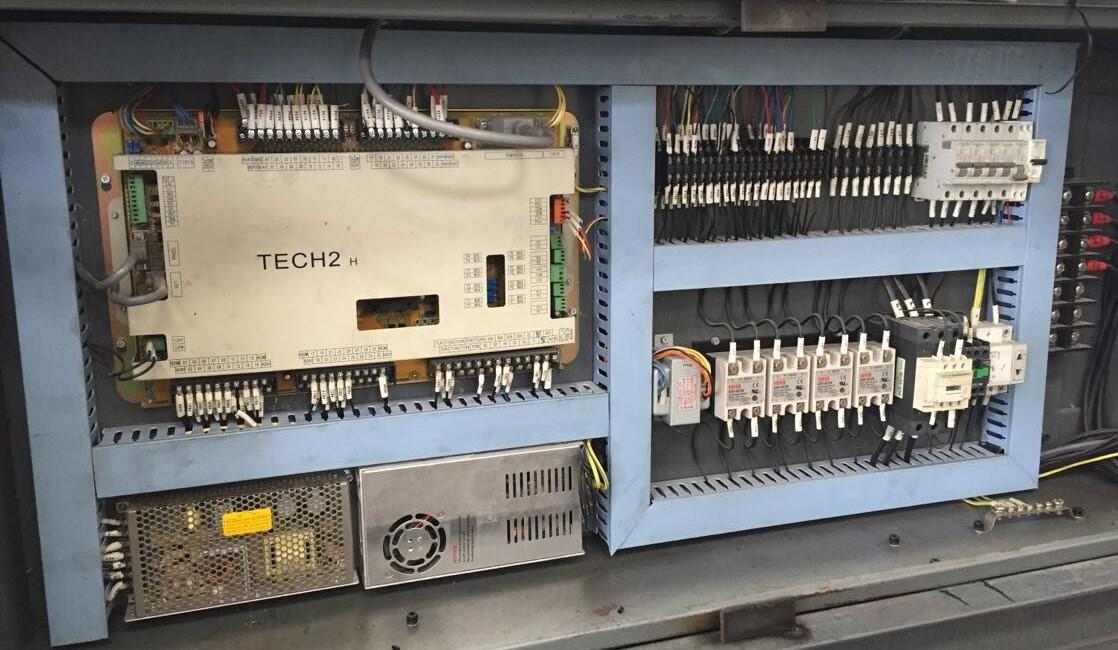

Machine electrical cabinet, the most important part of our machine, Taiwan TECHMATION PLC, France SCHNEIDER air circuit breaker and contactor, Taiwan FOTEK SSR.
All good components make the machine run perfectly.

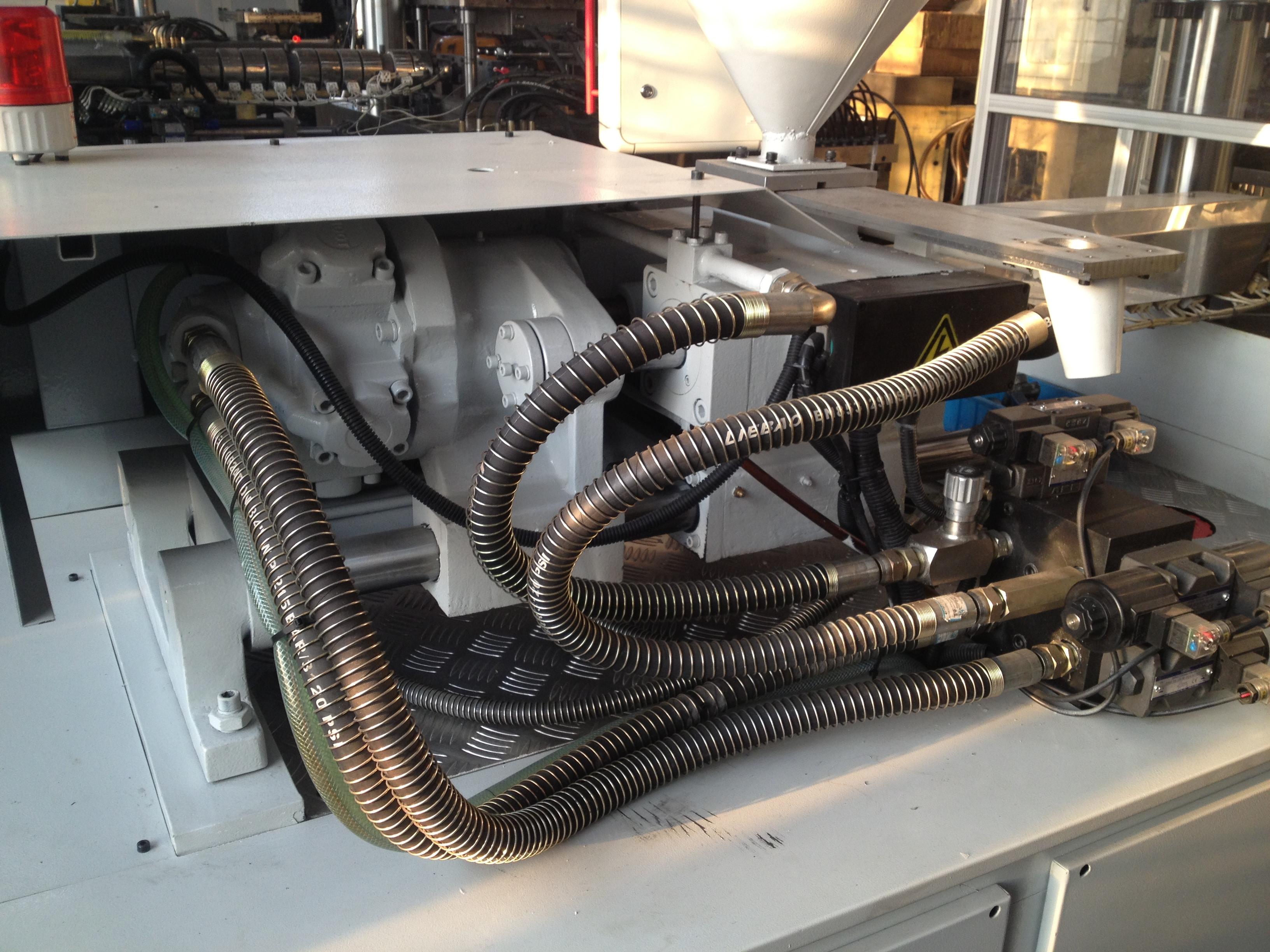

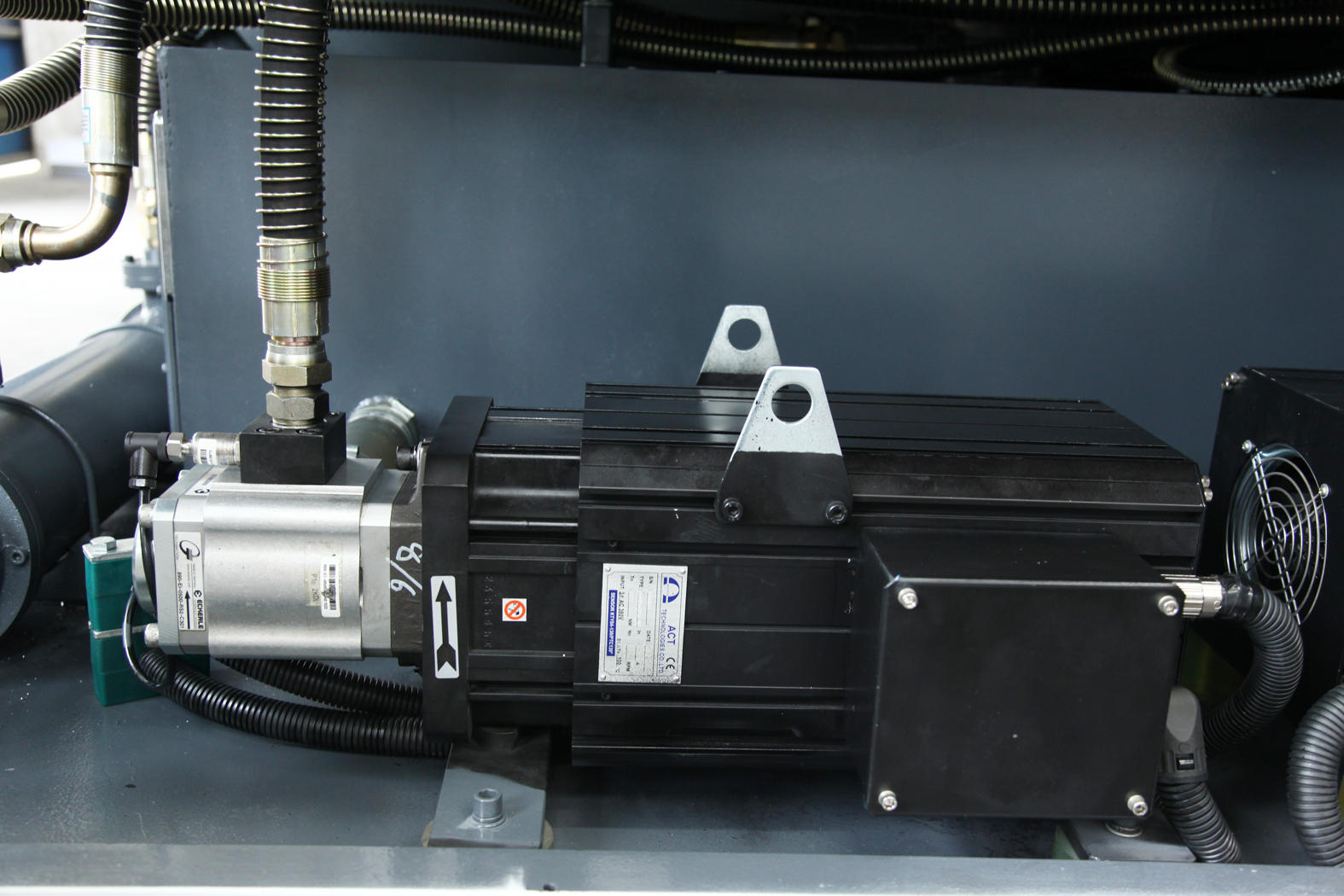

The main motor of the machine adopts German Siemens and Japanese Yuken oil pump, which provides strong power and speed for the machine. We also have servo system for option, saving
Power consumption is 30%-50%, suitable for long-term production.
Machine shop
We have a 2000m3 workshop for all ready machines for final machine inspection and testing. Each machine needs at least 3 inspections and at least 72 hours of dry running to ensure that each machine can work normally without any problems before shipment. Quality is our life, we believe and practice it!

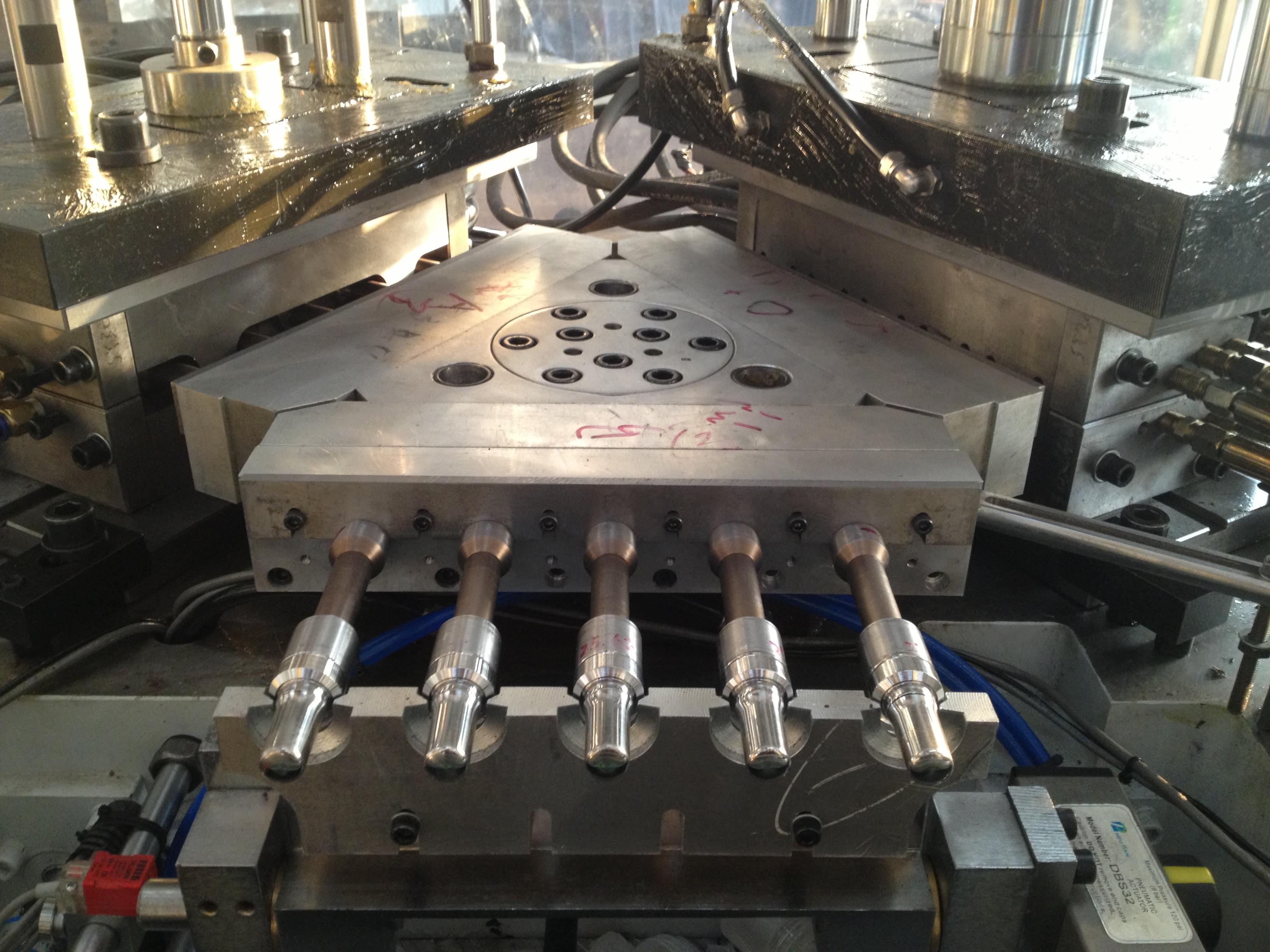

Injection Blow Mold
Mold is very important for bottle production, we have experienced mold team, we do bottle design drawing, mold component manufacturing, mold assembly, mold testing, we provide bottle samples and testing videos for customers.
Mold workshop
We use high quality mold materials such as 2344, S136, 4CR14
Durable and anti-rust, built-in mold, optimized structure and cooling channels, reduce machine cycle time, increase output, help you do things faster than competitors!

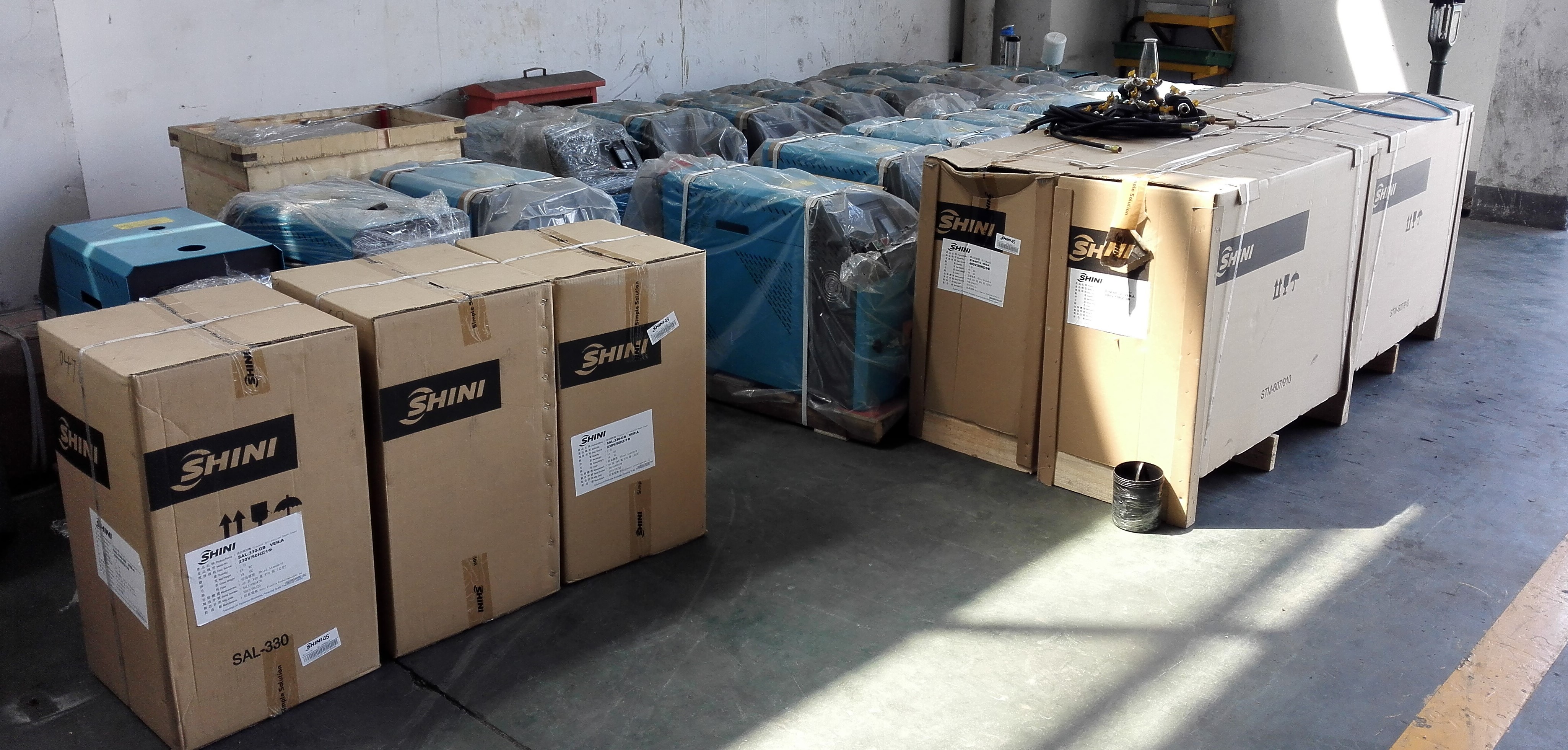

Injection blow molding machine auxiliary equipment

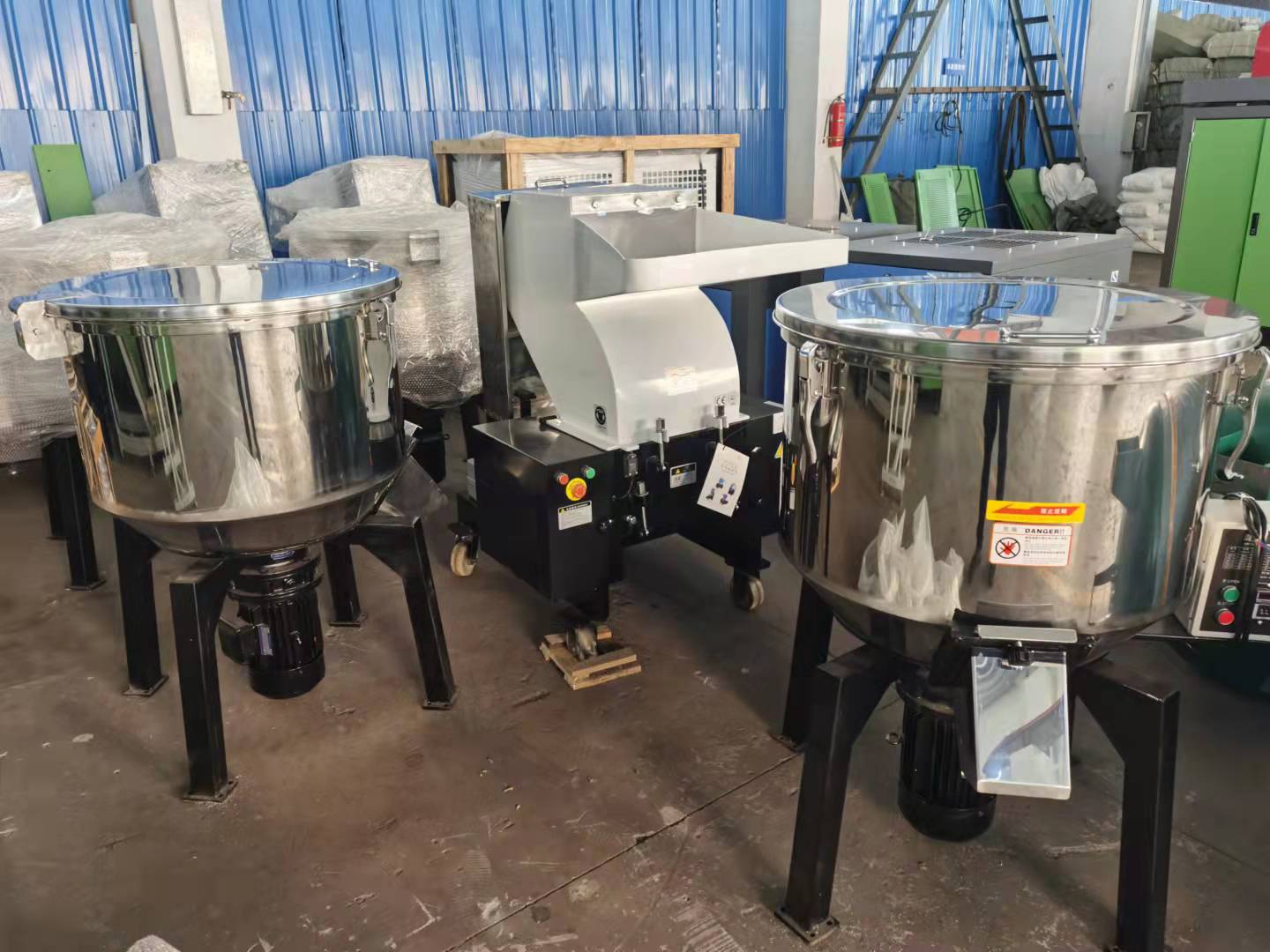

We also provide machine auxiliary, like automatic feeder, hopper dryer, chiller, color mixer, crusher, screw air compressor, mold temperature controller, in a word, we provide you with AZ solutions for our customers A complete production line!

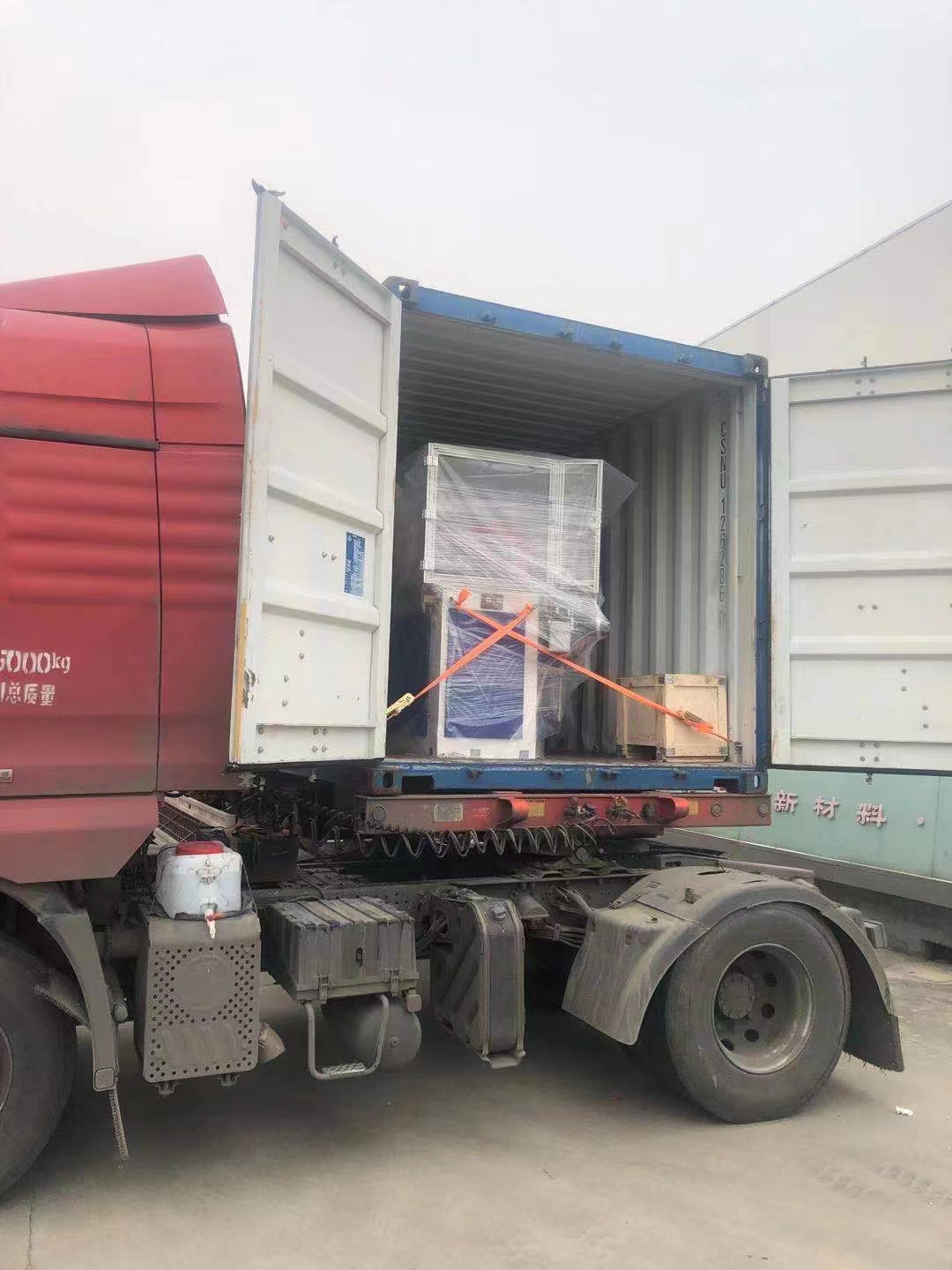

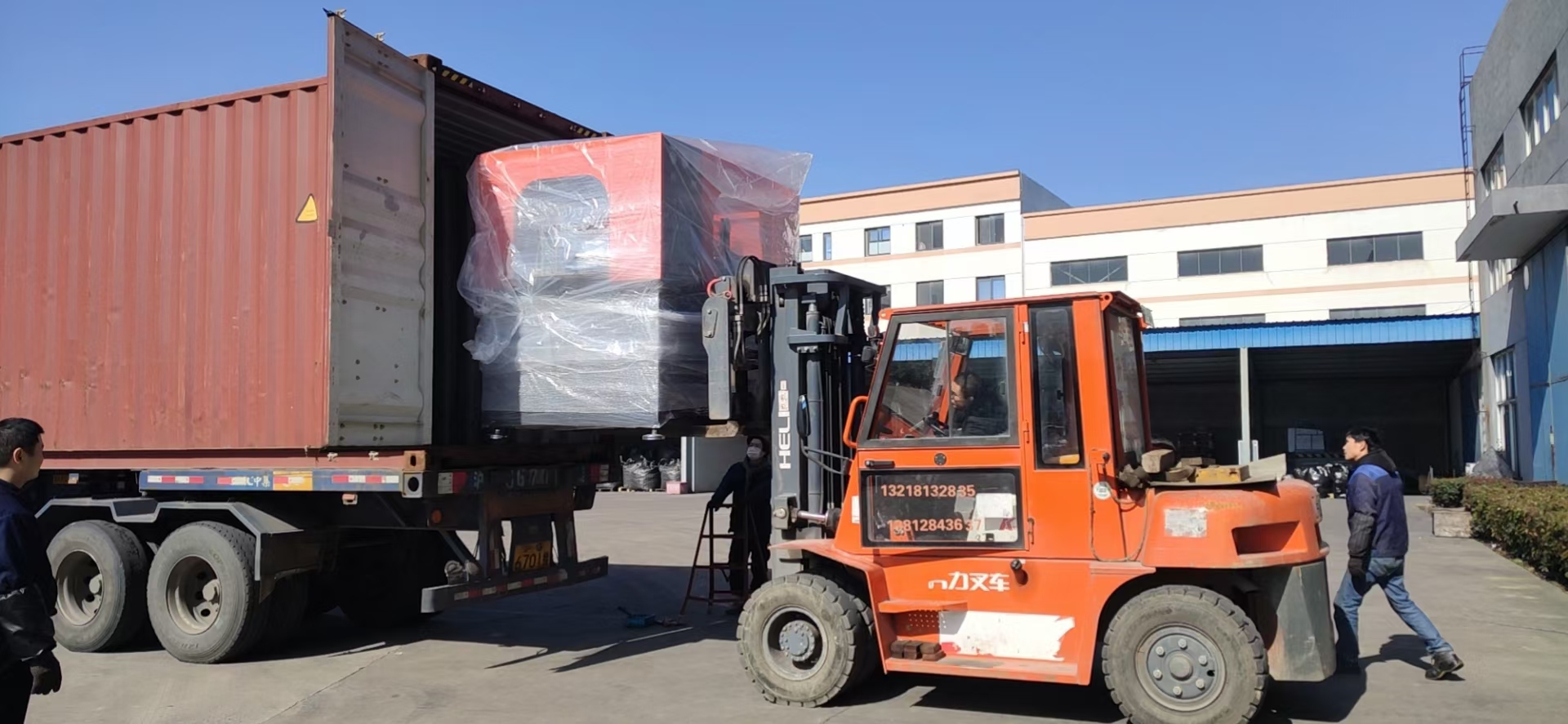

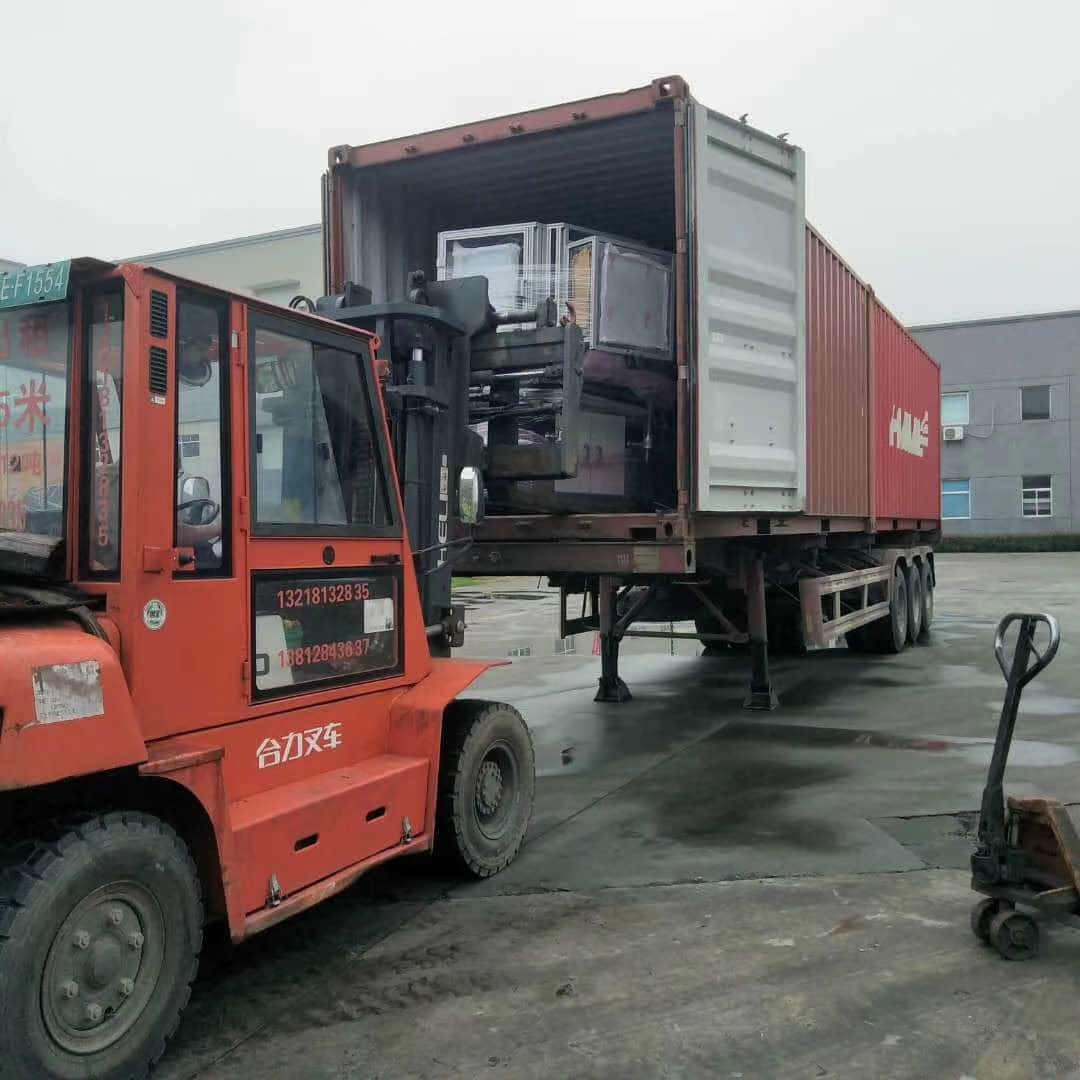

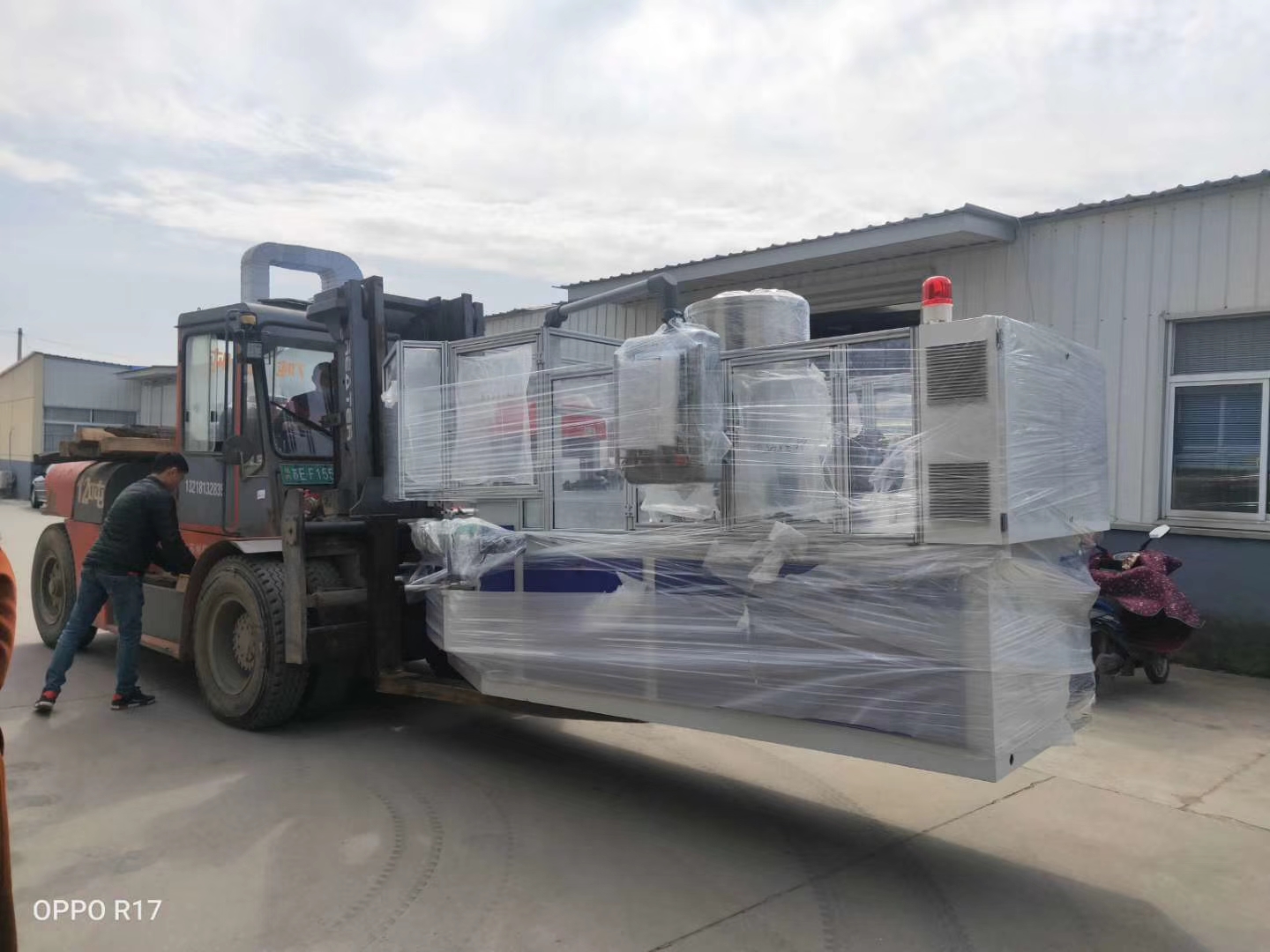

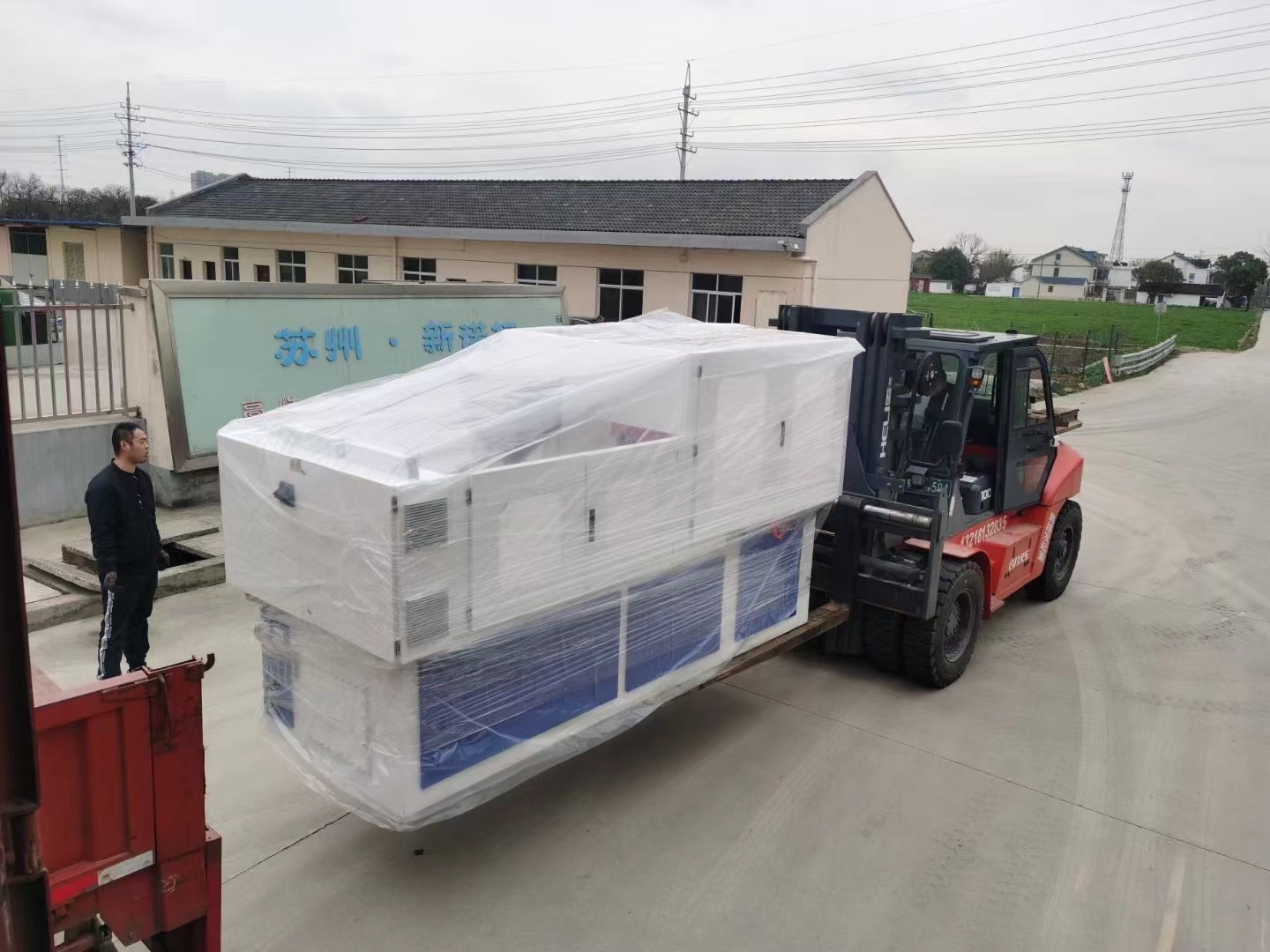

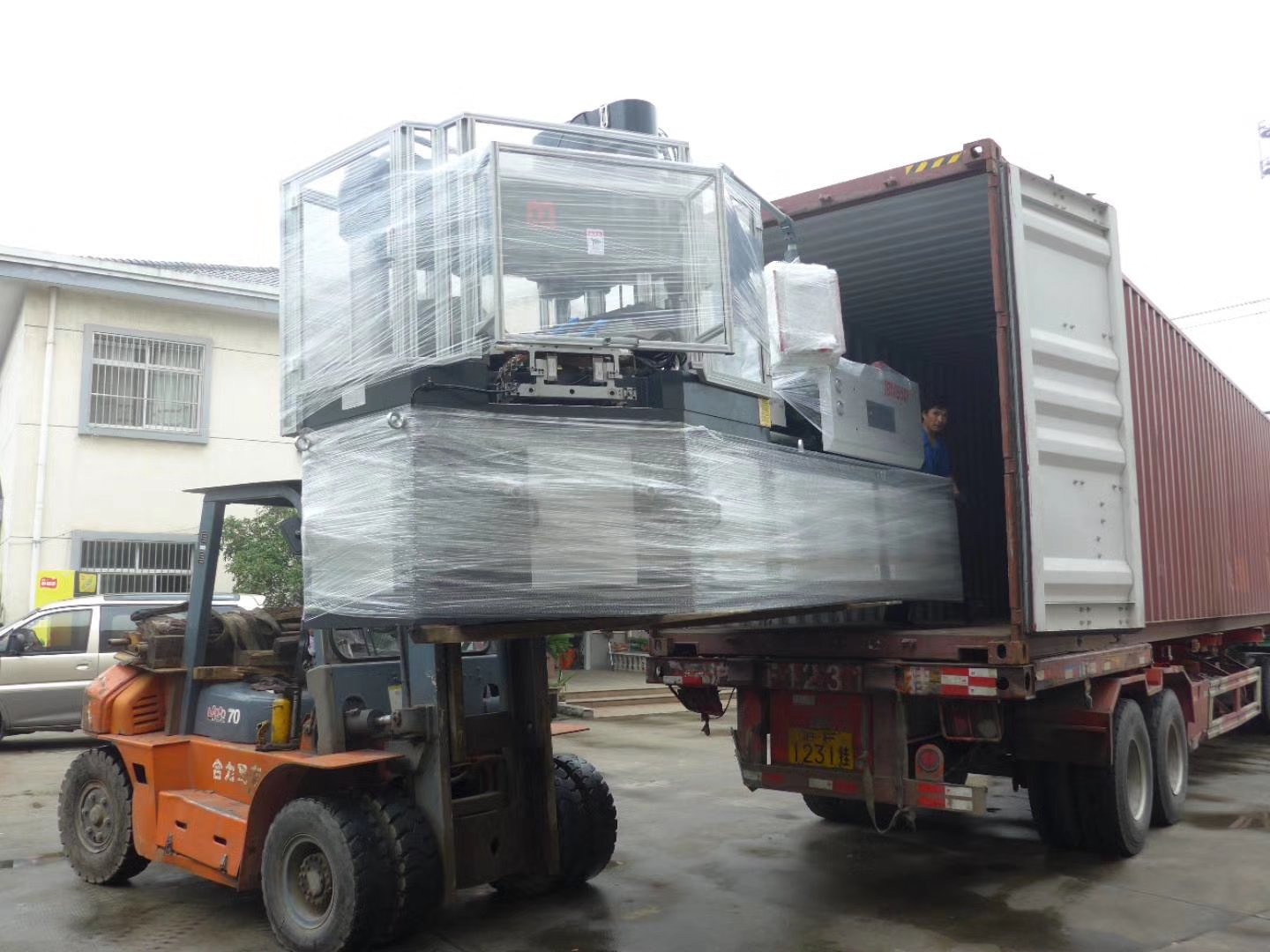

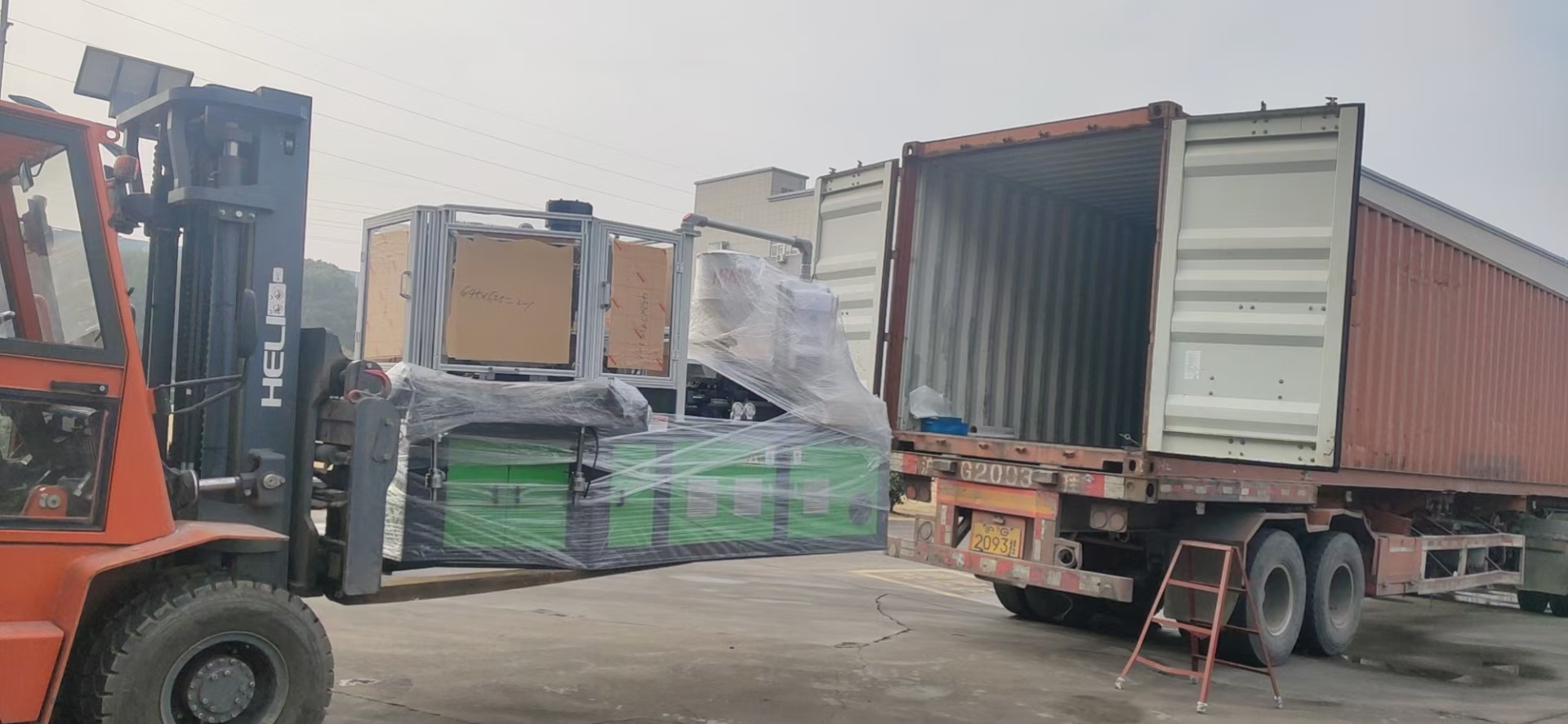

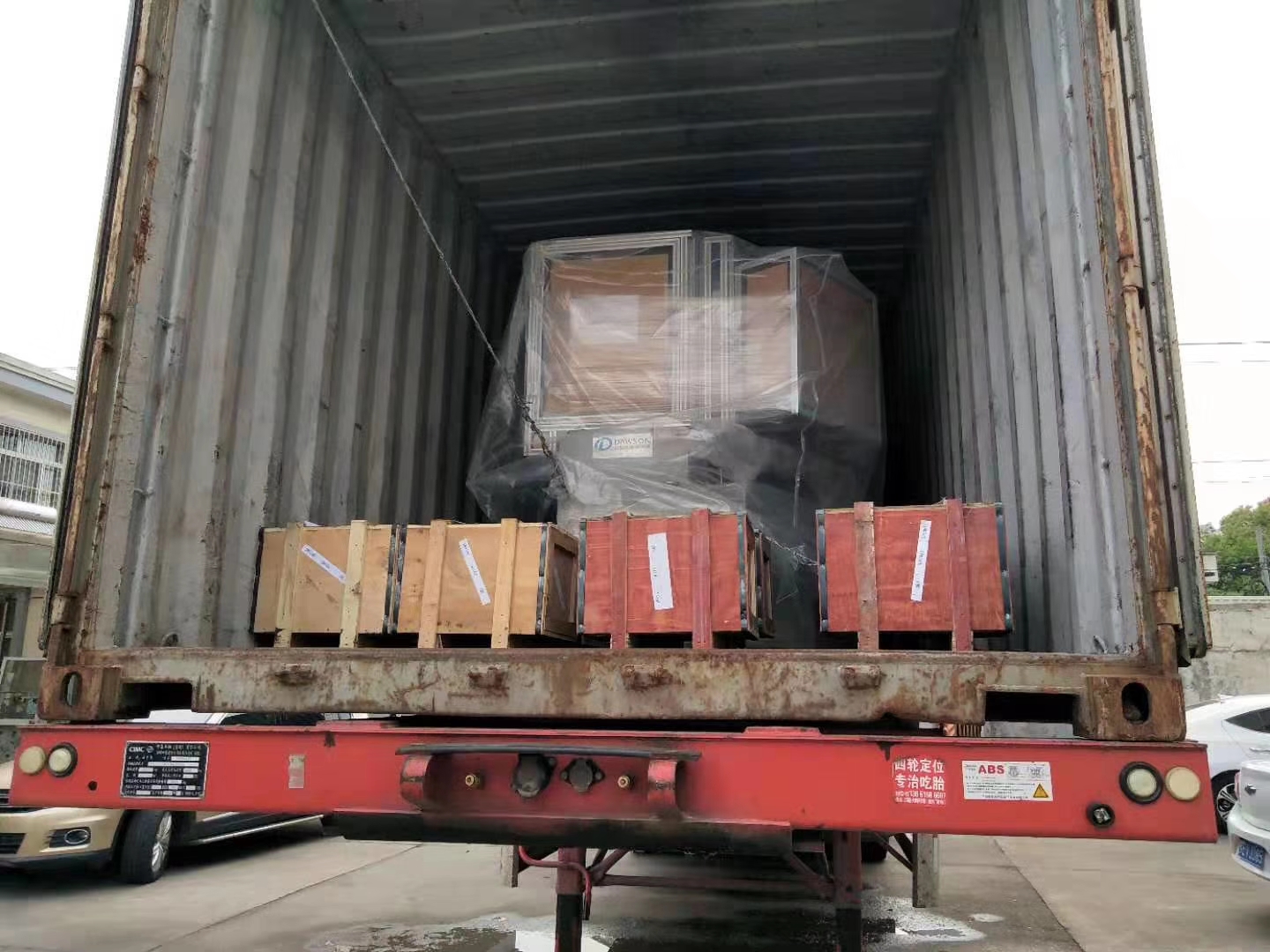

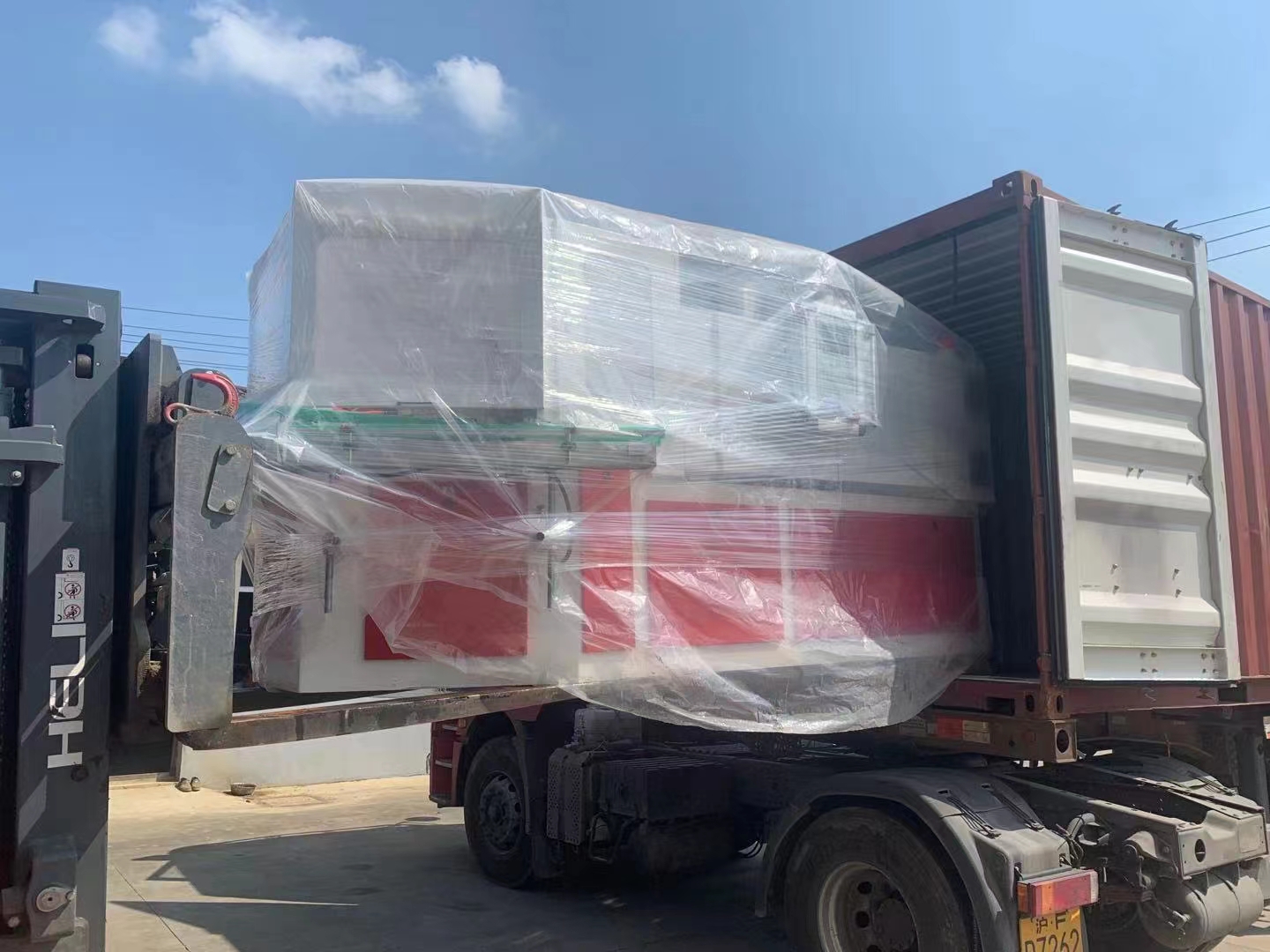

Machine shipment
Our machines are widely exported to more than 50 different countries and regions, Ethiopia, Nigeria, India, Tanzania, South Africa, Bangladesh, Russia, America, Ecuador, Venezuela, Basil, Mexico, IIndonesia, Saudi Arabia, Yemen, Poland,Uzbekistan, Korea, Qatar, UK, Spain, etc..., we hope you will be our next customer and long-term partner to achieve a win-win situation!
We have more machines for you to choose from, injection molding machines for caps and jars, extrusion blow molding machines for larger oil cans and drums, PET blow molding machines for water and beverage bottles. My friend, welcome to contact us for more details, we will offer you the best choice with the lowest price.
