Economical 250ml amber vaccine vial plastic injection blow molding machine price

  • Supplier: Zhangjiagang Dawson Machine Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Dawson Ken
  • Price: $36800.00 / 1 - 2 sets
    $31200.00 / 3 - 4 sets
    $29800.00 / >=5 sets
  • Min. Order: 1 set
Product details
Injection mold stroke:120mmShowroom location:the Philippines
Blow molding type:injection blow moldingpayment terms:L/C, Western Union, T/T
Heating power of charging barrel:10kWMechanical test report:if
Motor Power:18.7/22kWInjection mold clamping force:450 newtons
Place of origin:ChinaWeight (kg):7000
port:ShanghaiWarranty:1 year
Plastic processing:Polypropylene, ABS, high density polyethyleneMain selling points:Easy to operate
Screw diameter:45mmApplicable industries:Hotels, restaurants, building materials stores
Packaging details:The blow molding machine is packaged in plastic film; the auxiliary machinery and spare parts are packaged in wooden boxes. The loading of the container is carried out according to the weight balance, and the position of each package is fixed within the container to avoid movement. Photos of the entire delivery will be sent to our customers for reference.Blow mold stroke:120mm
Blow mold clamping force:78 newtonsPower (kW):10.5
Video outbound inspection:ifCore components:Gearbox, pump, engine, motor, PLC
maximum. Theoretical injection weight:260gCore component warranty:1 year
Package preview:maximum. Mold template size:560*390mm
Health status:newMold heating power:4kW
automation:automatic
Product Description

Dawson Machinery & Mold Group

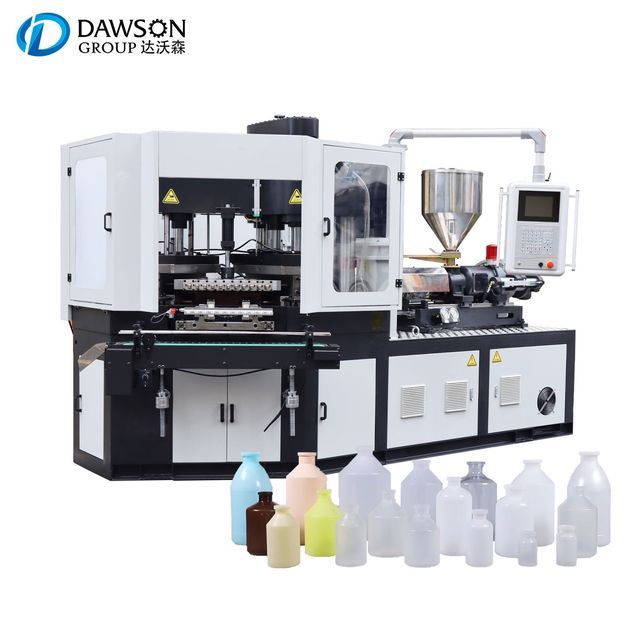

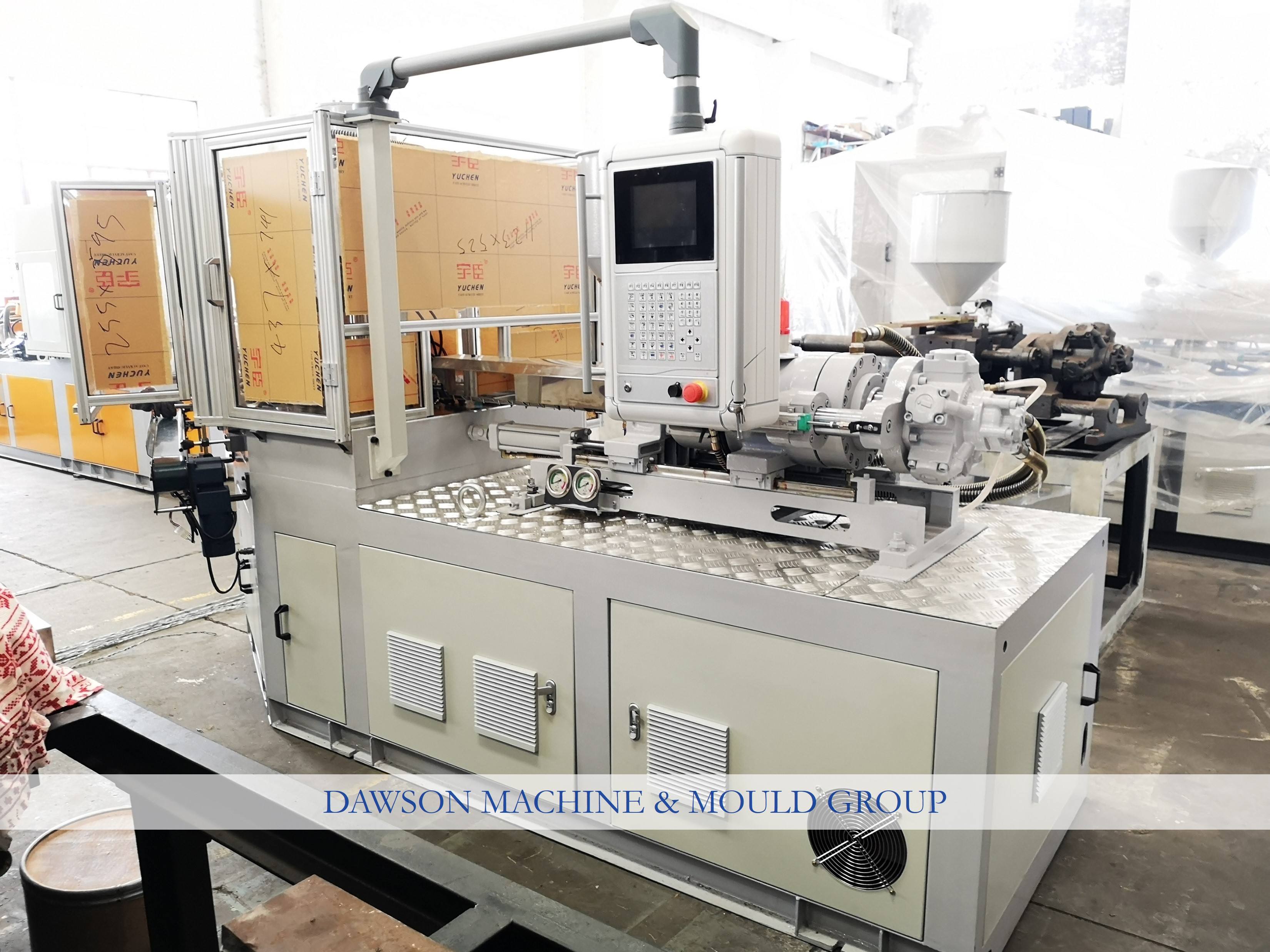

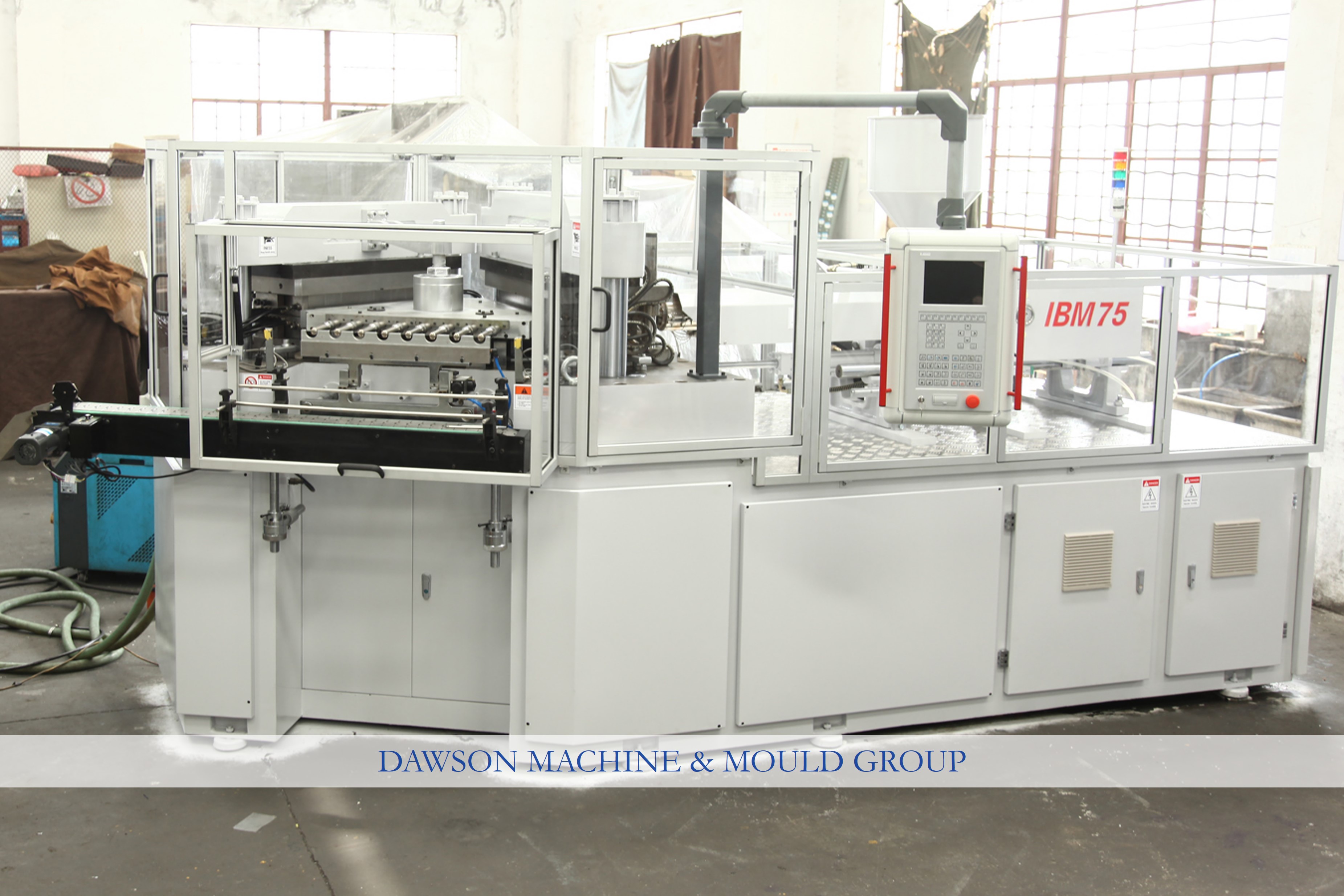

injection blow molding Machine IBM35D

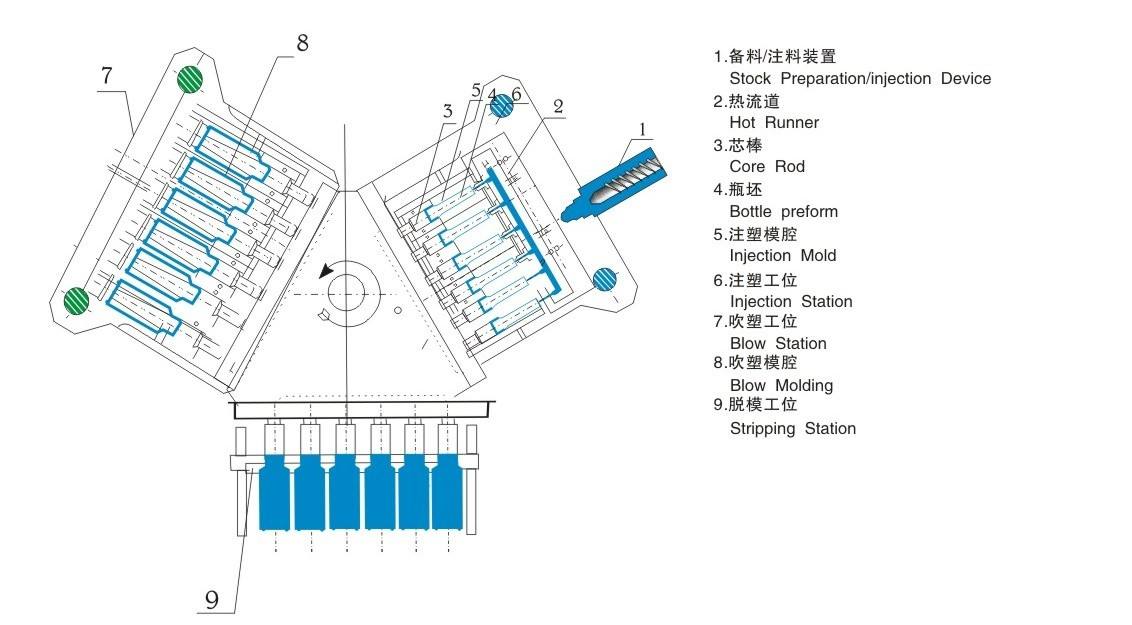

The machine has three stations, preform injection, bottle blowing and product release. The raw materials are injected from the hopper to the injection screw to inject the bottle preform; the plate uses its own heat to rotate the bottle preform to the bottle blowing station, without the need to heat the bottle again, and then the product rotates to the release station and descends, fully automatic cycle rotation working mode,o No preforms are needed, no waste, high degree of automation, and the finished product is smooth and beautiful.

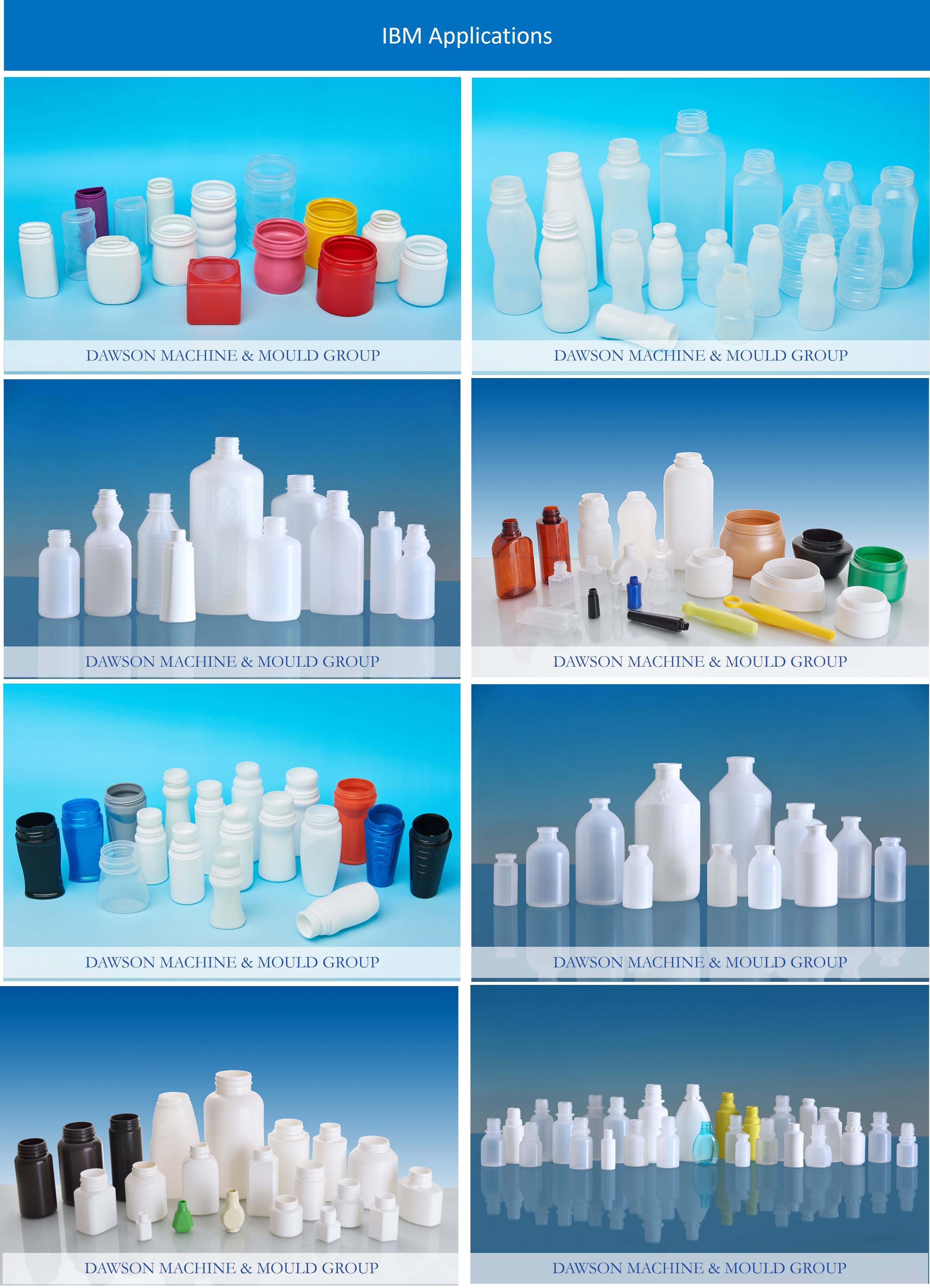

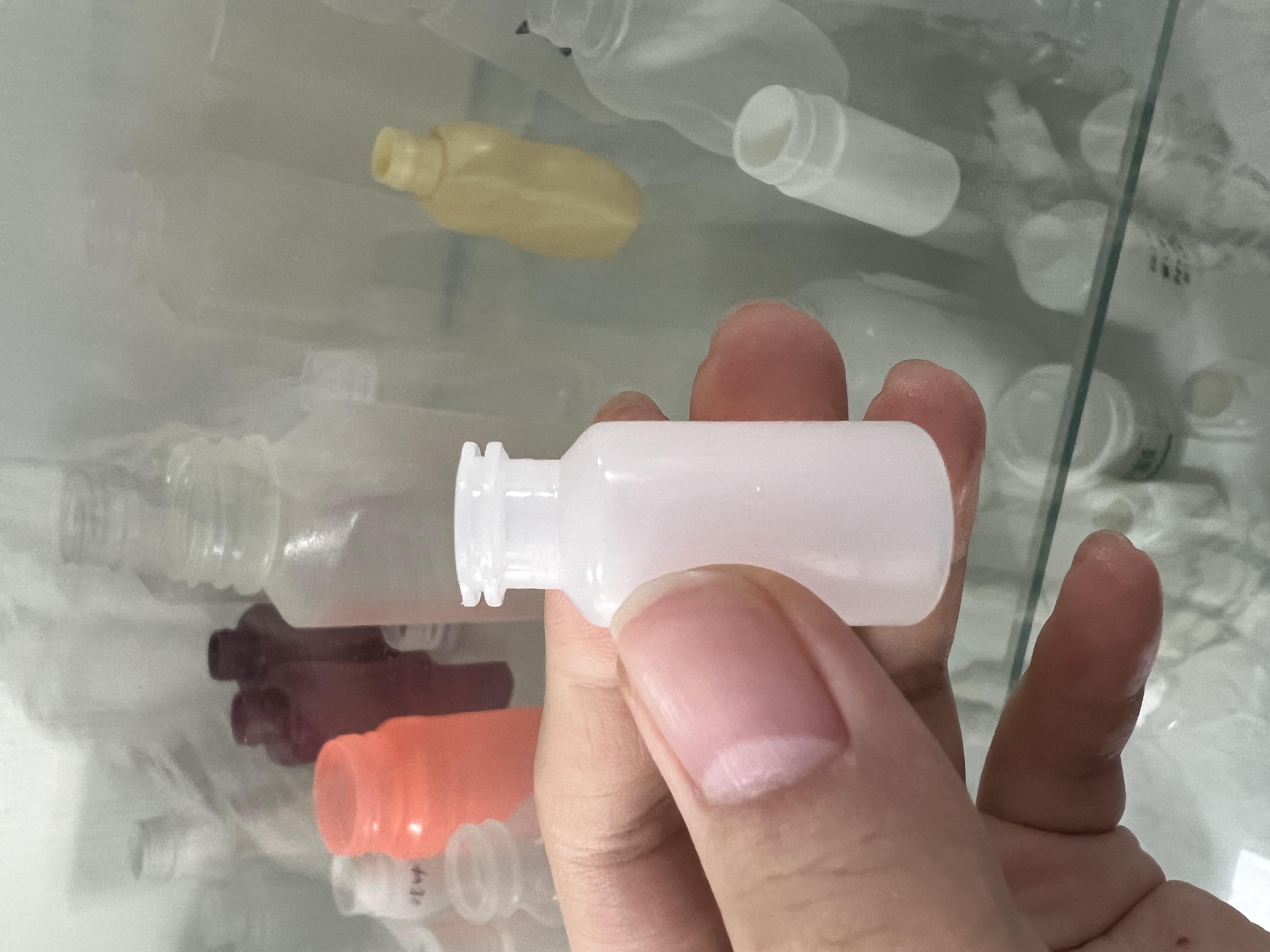

Commonly used in 10-1000ml plastic cosmetic bottles, baby bottles, pharmaceutical packaging, PC bottles, red wine glasses, LED lampshades, etc.

Technical Parameters
Model
IBM35D
IBM45D
IBM65D
thing
unit
date

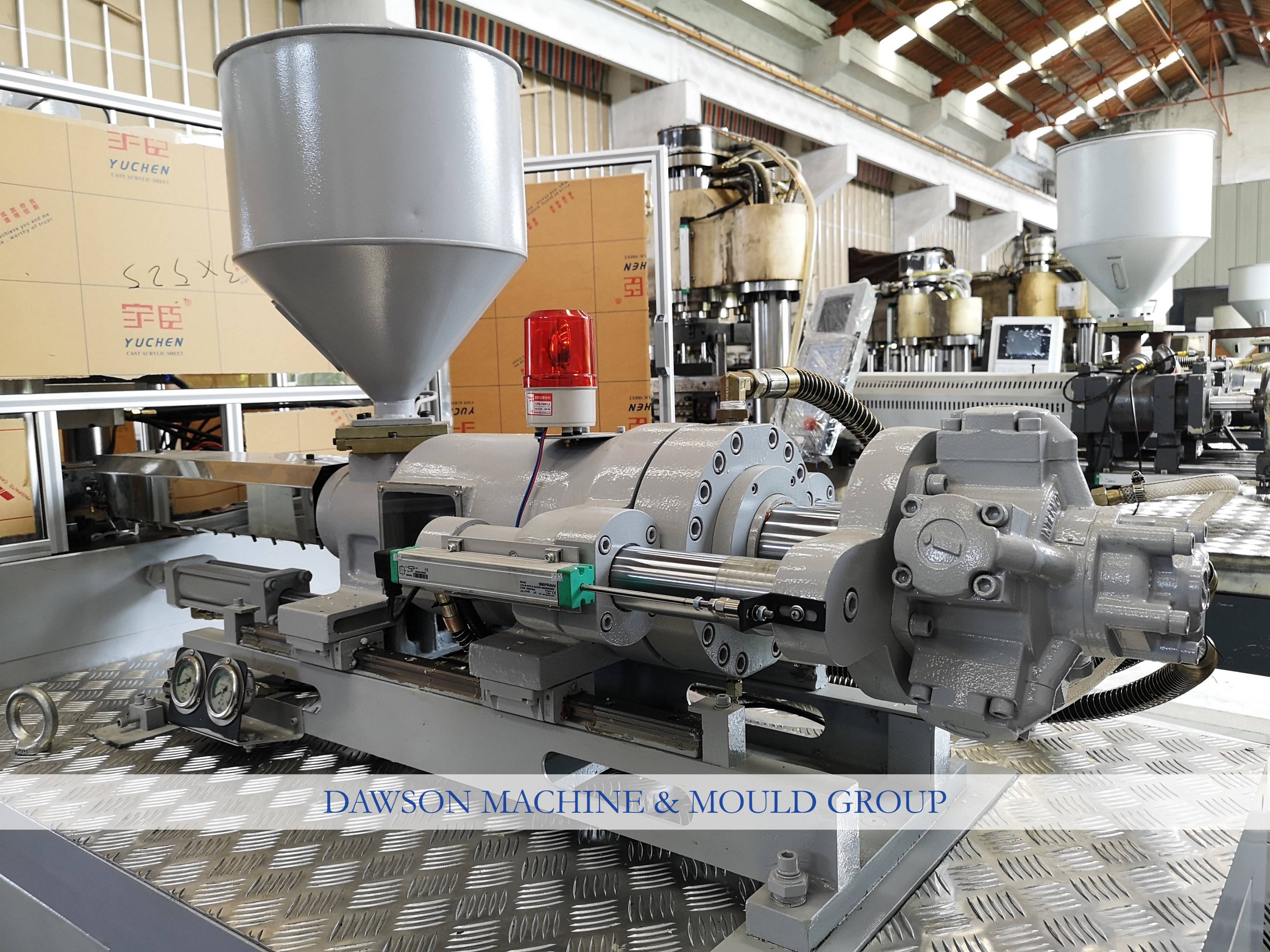

injection system
Screw diameter
mm
40
45
50
maximum. Theoretical injection volume
G
176
260
314
Heating capacity
kilowatt
7.2
10
10
Number of heating areas
quantity
3
3
3
Clamping and blowing system
Injection clamping force
thousand
350
450
650
Blowing clamping force
thousand
40
78
89
Template mold opening stroke
mm
120
120
140
maximum. Press plate size (length × width)
mm
420×340
560×390
740×390
minute. Mold thickness (H)
mm
180
240
280
Mold heating capacity
kilowatt
2.8
4.0
5.0
Product size range
Applicable bottle type range
ml
3-800
3-800
5-800
maximum. bottle height
mm
≤180
≤200
≤200
maximum. diameter. Bottle
mm
≤80
≤80
≤80
dry cycle
s
4
Hydraulic drive system
Motor Power
kilowatt
11/15
18.7/22
number 17
Hydraulic
MPa
14
14
14
Pneumatic system
minute. air pressure
MPa
≥0.8
1.0
1.0
Compressed air discharge
m3/mm
≥0.7
≥0.8
≥0.8
cooling system
water flow
cubic meters/hour
3
3
4
Total rated power of mold heating
kilowatt
21/25
34/38
45
Machine information
aspect
medium size
3.1×1.2×2.2
3.5×1.4×2.3
4×1.28×2.35
Machine weight
Ton
4.0
6.0
7.5
Machine advantages
A bottle is a container that can hold liquid or solid. It can be seen everywhere in our lives, including medicine bottles,
Cosmetic bottles and beverage bottles. Due to the rapid development of the petroleum industry, humans invented polymers, commonly known as plastics. Since then, our bottle materials have changed from a single glass or ceramic to various plastics.

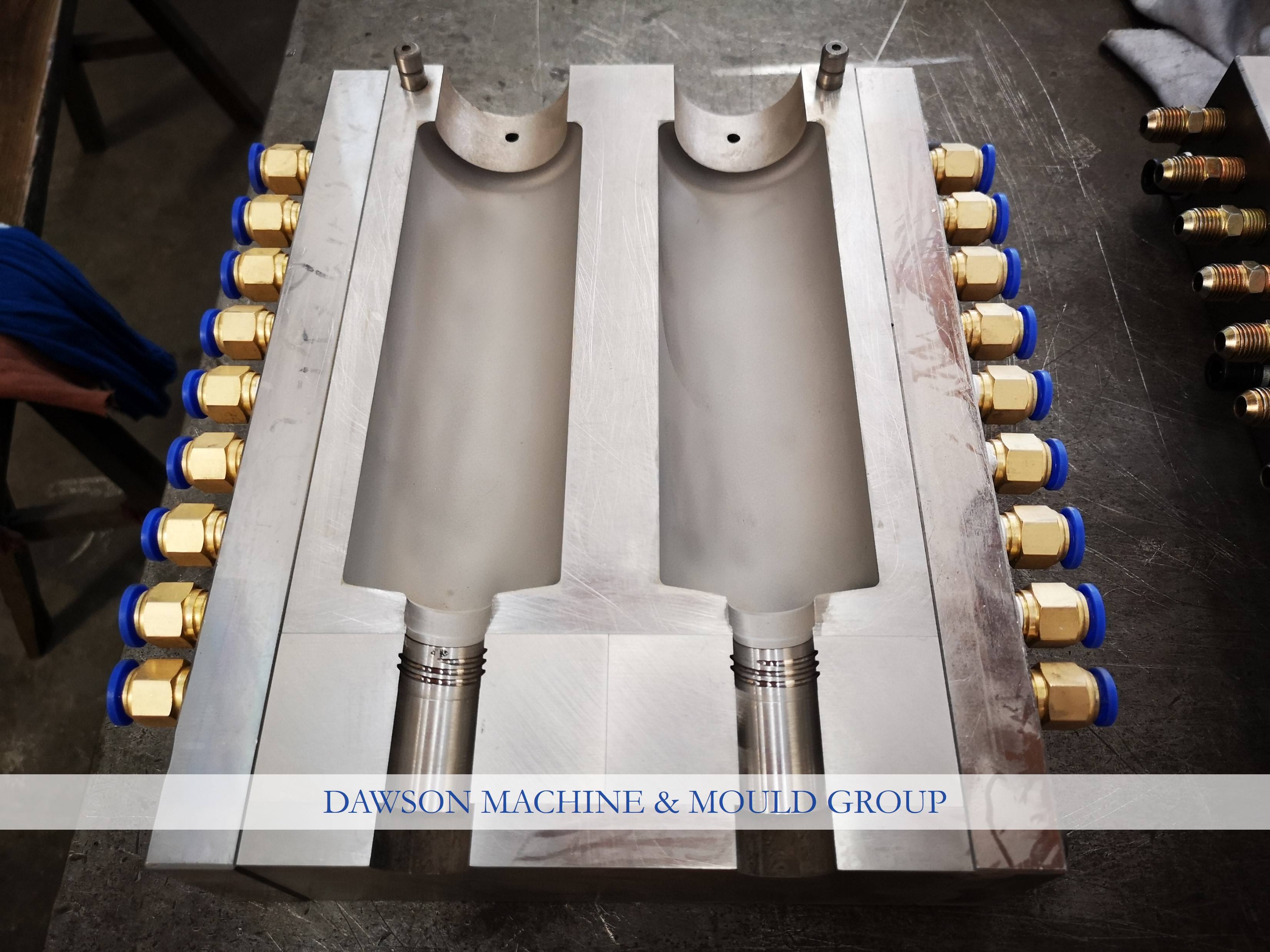

Drawing on the long history of glass container blowing, an extrusion or injection molded plastic mold in a relativistic state is placed in a blow mold, and the mold is inflated with compressed air at a certain pressure so that it clings to the cavity wall. After cooling and shaping, the mold can be removed to obtain a plastic hollow product with the same shape as the cavity. This is the hollow blow molding process we are familiar with.

Common blow molding processes include extrusion blow molding, injection blow molding, and stretch blow molding. In extrusion blow molding, the molten material is extruded through the extrusion device, and the extruded embryo is put into the blow molding mold for blow molding and demoulding. After cooling and shaping, the product is taken out; during injection blow molding, the bottom mold is first injected. Then transfer to the blow mold for blow molding, cooling and shaping, and then demoulding to take out the product; Stretch blow molding uses extrusion or injection to produce the mold base, which is placed in the blow mold and stretched axially with a tie rod, horizontally Blow molding, then cooling and shaping, and finally demoulding to make the product.

In the production of the same product, injection blowing and extrusion blowing have inherent advantages, such as no flash, no waste, accurate dimensions, high three-step production efficiency, three stations working at the same time, and no need to wait for a neutral position; with the help of conveying With the belt, the testing equipment can directly enter the packaging station, with a high degree of automation. Therefore, we can draw a conclusion: In the scope of packaging bottles, the injection blowing process can improve production efficiency and reduce production costs.

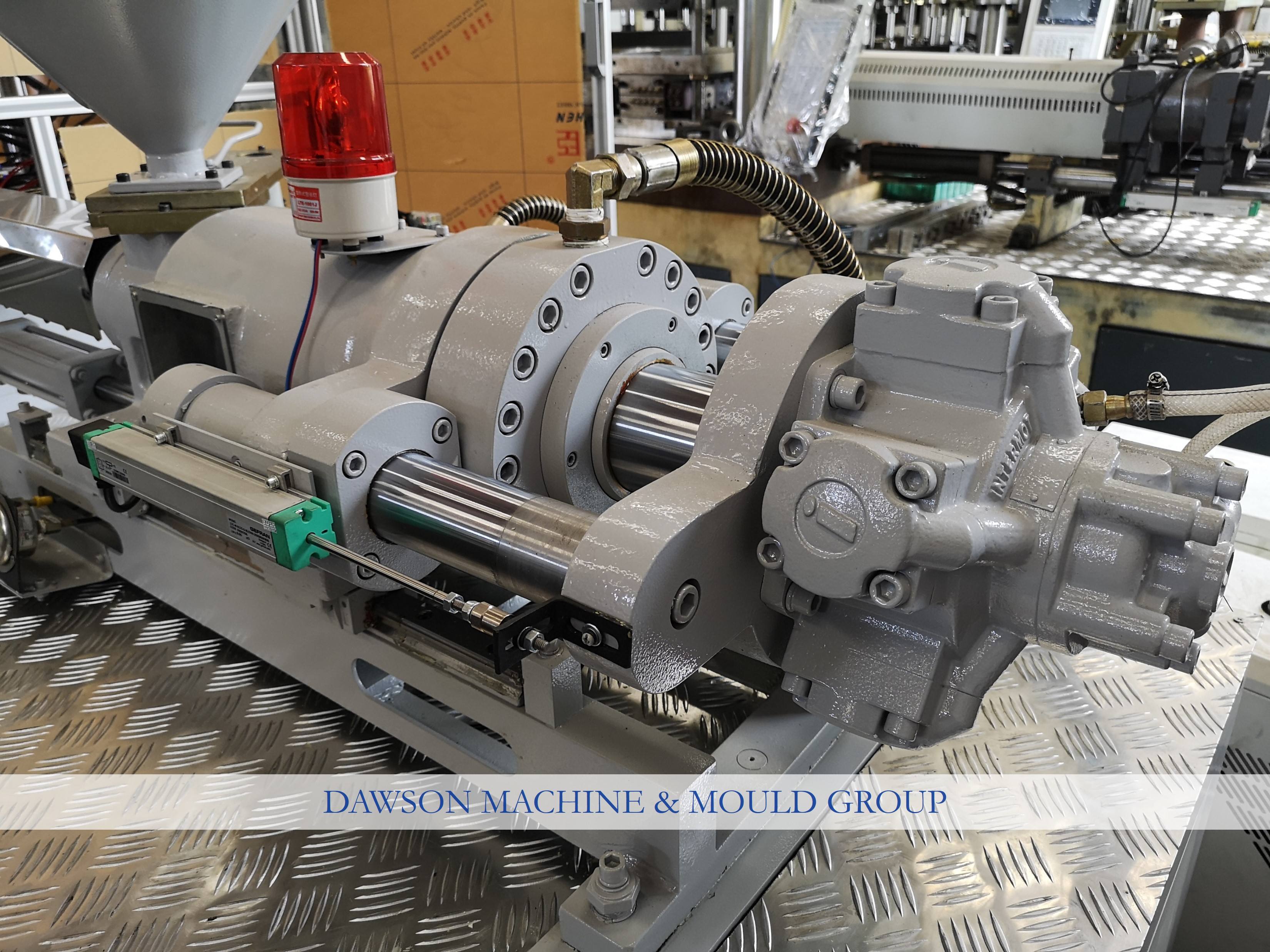

Dawson injection blow molding machines are equipped with professional injection systems and precision control systems, which can meet the requirements of high-speed mold opening and closing, high clamping force, and uniform clamping force distribution in various positions of the mold. The three-station rotary lifting system can rotate 120° to enable the three stations of injection molding, blow molding and demoulding to operate continuously and smoothly. At the same time, due to the use of hydraulic drive linkage mechanism, the machine positioning is more accurate, maintenance costs are lower, and it is faster and more stable. The demoulding station cooperates with the conveyor belt to realize automatic demoulding, automatic counting and automatic packaging. The entire process avoids manual contact, allowing the products produced by the machine to meet the strict requirements in the medical and health fields.
With our own team of engineers, we have more than 18 years of experience in this field.
1. The servo motor of this machine adopts Italian PHASE, which is the best servo motor supplier.

2. The cylinder drive is upgraded to a single cylinder, which is more stable and stronger. Life span is also longer than
others.

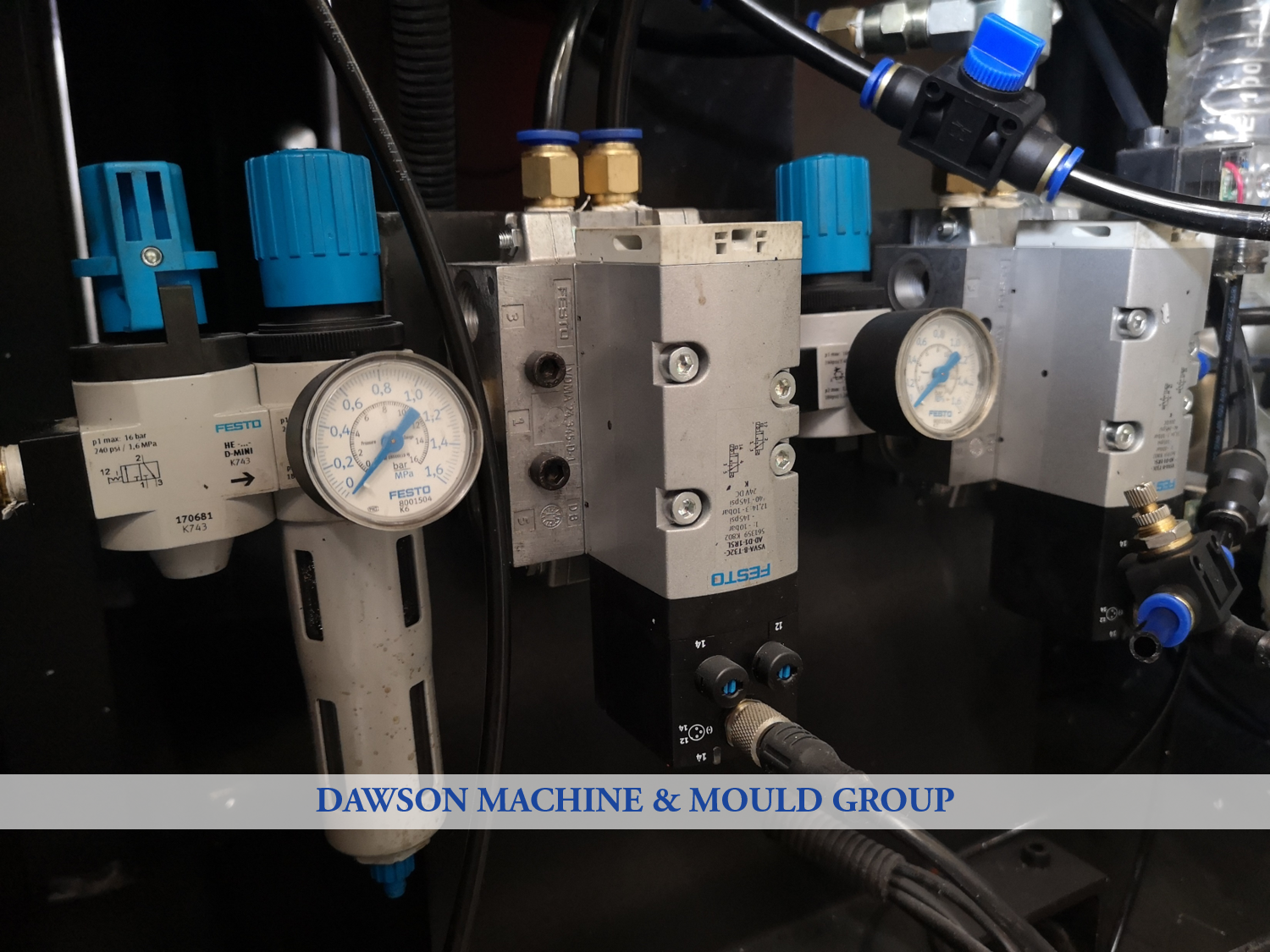

Our pneumatic valves are made from German FESTO, the quality of which is the best in the world. Its procurement cost itself is high, but
The quality is very stable and the service life is very long.
Contact the DAWSON team for more information.

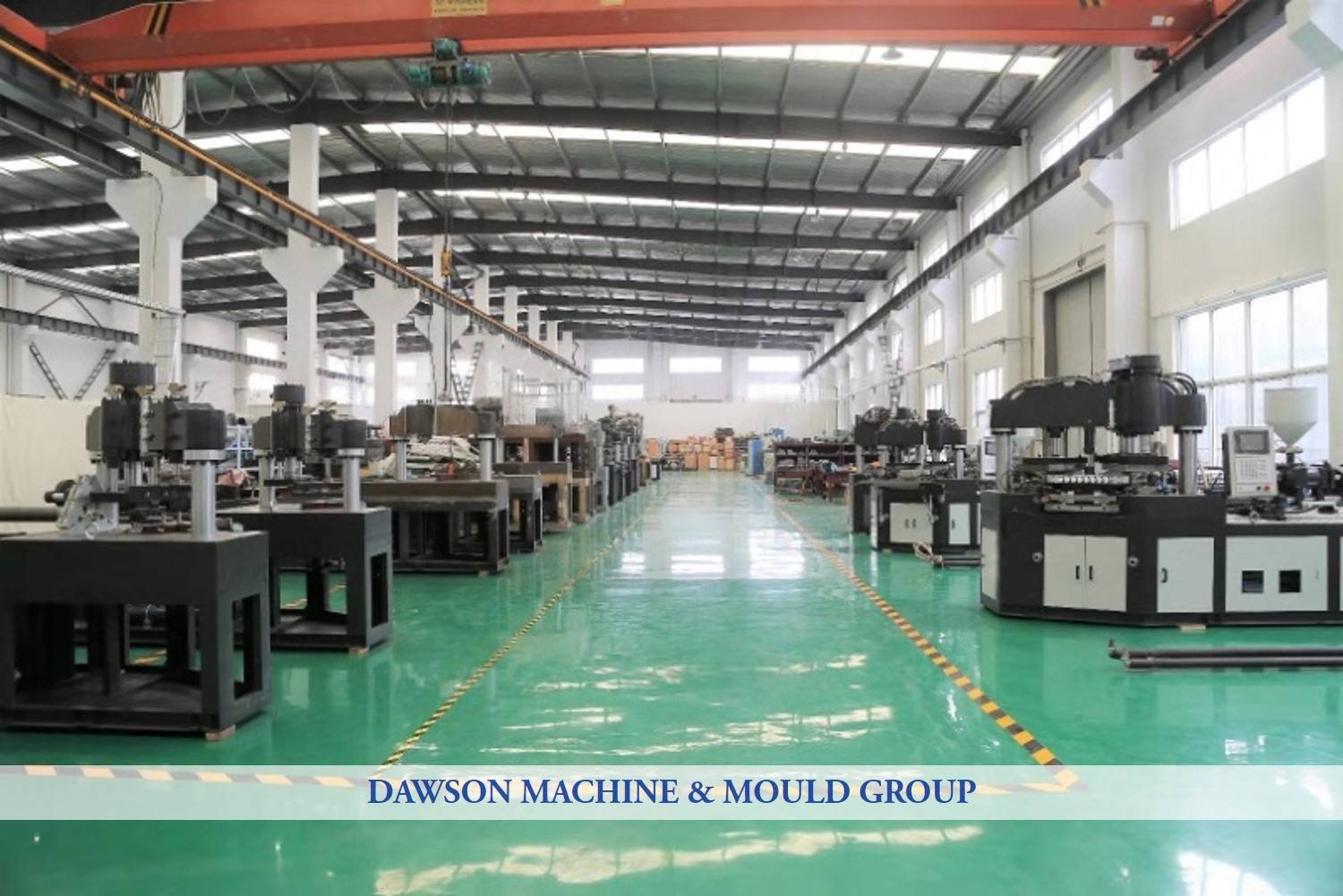

Professional workshop
