port: | Shanghai | Video outbound inspection: | if |
brand: | green ring | weight: | 8.5 tons |
Supply capacity: | 200 sets per year | model: | IBM 75 |
Showroom location: | Turkey, Vietnam, Brazil, Indonesia, India, Thailand, Korea, Colombia, Romania, Bangladesh, South Africa, Malaysia | Core component warranty: | 1 year |
Mechanical test report: | if | Hollow part volume: | 333 cubic centimeters |
High pressure valve brand: | SMC | Package preview: | |
Health status: | new | Weight (kg): | 8500 |
Plastic processing: | PP, PE, PE/PP, ps | Warranty: | 1 year |
Marketing Type: | New Products for 2021 | Blow molding type: | injection blow molding |
Main selling points: | automatic | payment terms: | L/C, D/P, D/A, T/T |
Packaging Details: | Standard packing, PTFE membrane filter bag | Origin: | China |
application: | bottle | Dimensions: | 4000*1450*2350 mm |
Origin: | Jiangsu, China | Applicable industries: | Food and beverage factory, chemical bottle packaging |
Dimensions (L*W*H): | 4000*1450*2350 mm | automation: | automatic |
Cylinder heating power: | 12 kW | Voltage: | 380V or according to customer requirements |
PLC brand: | delta | Power (kW): | 30 |
Year: | 2021 | Rotary cylinder brand: | Festo |
diameter. Number of screws: | 50mm | Type of machine: | injection blow molding |
Power (watts): | 30 kW | Core components: | Gearbox, motor, PLC |
Bottle material: | PE PP PS etc. |

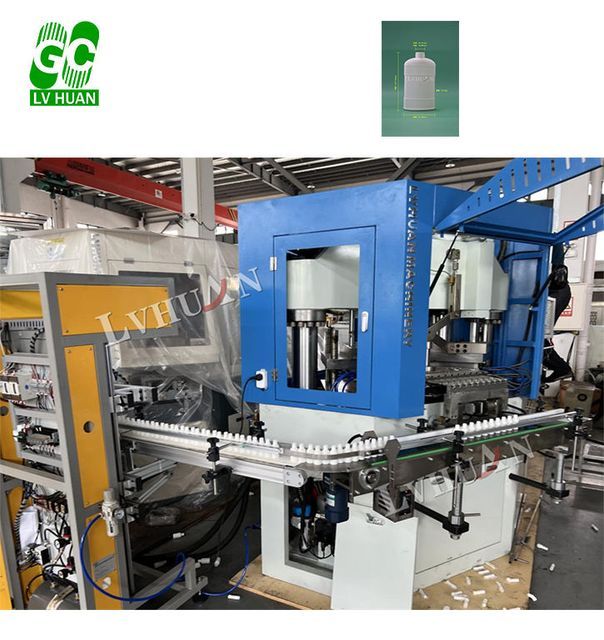

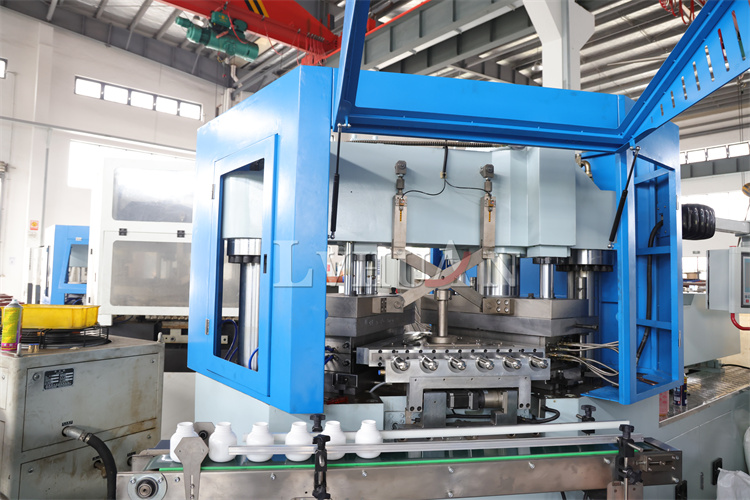

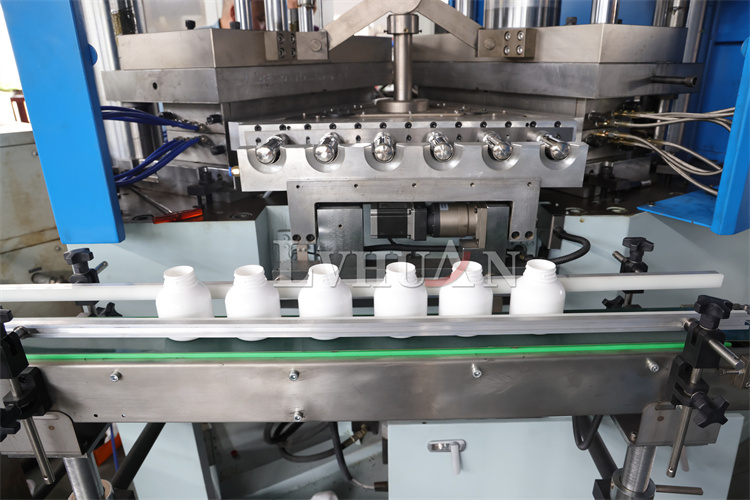

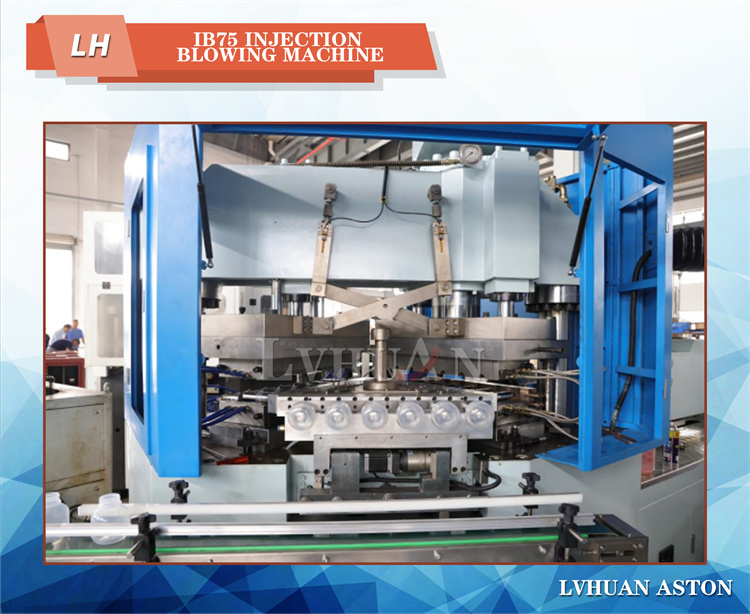

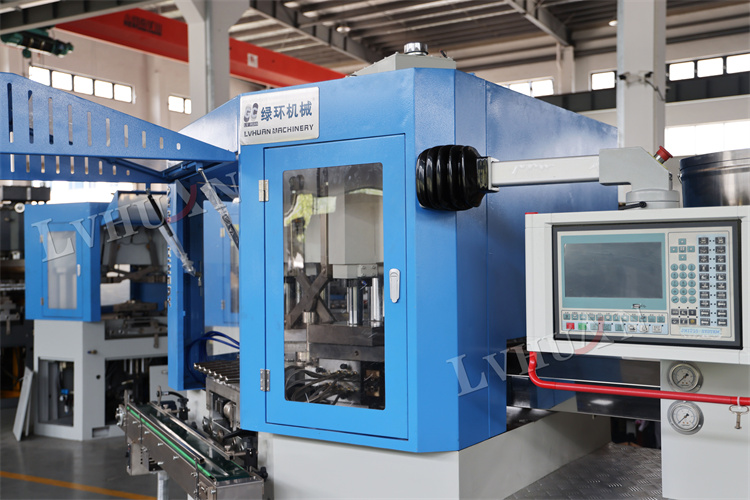

Automatic Bottle Making Machine
The structure of the ALL-SIDE SERVO equipment, the energy-saving design of the servo injection unit; the servo rotation positioning is accurate to avoid oil leakage; the servo demoulding, etc. The injection-blow integrated molding machine we provide always leads the latest injection molding technology. It not only has significant advantages in energy saving and high-speed injection molding, but also has its own characteristics in safety design. The equipment is easy to operate and easy to maintain. More than 20 years of intensive cultivation and continuous innovation have promoted our injection blowing technology to always be in the leading position in the industry.
Features
1). It produces more finished bottles per cycle per hour without deburring and trimming.
2). It is designed to manufacture plastic bottle containers with strict weight, size, volume tolerances and quality.
3). The weight of the product can be preset. Excellent mechanical strength, impact resistance, no cracking.
4). There is no seam at the bottom, and the strength of the bottle is correspondingly improved.
5). The seams of the bottle are smooth.
Product parameters
No. | thing | data | No. | project | data |
1 | diameter. Number of screws | 50 mm | 13 | main motor power | 30 kW |
2 | Screw diameter | twenty two | 14 | hydraulic system pressure | 16.0 MPa |
3 | maximum. theoretical capacity | 333 cm3 | 15 | waste of compressed air | >0.8M3/minute |
4 | Cylinder heating power | 12.0 kW | 16 | work pressure compressed air |
1 MPa |
5 | Clamping force 0f injection mold |
700kn | number 17 | cooling water waste | 5M3/H |
6 | Clamping force 0f strike | 85kn | 18 | Forming range product |
0.005-0.8 liter |
7 | Mold opening stroke | 140mm | 19 | High Formability Products | ≤200mm |
8 | Ejection stroke | 200 mm | 20 | diameter. Formable products | ≤100 mm |
9 | Lifting height of turntable | 70mm | twenty one | free time | 5 seconds |
10 | Maximum mold size L*W | 740x390 | twenty two | Dimensions length * width * height | 4100×1450×2350 |
11 | minute. Mold thickness | 280 mm | twenty three | machine weighing | 8.5 tons |
12 | Mold heating power | 6 kW |
Machine Features:
1). The clamping frame adopts a single beam and double columns, which increases the mold loading space and makes mold loading more convenient.
2). The pull rod protection is used to make the mold opening and closing work while the conveyor table is up and down, and the production efficiency is obviously improved. (optional)
3). The VDP pump further saves system power consumption.
4). Servo motor system further saves power consumption (optional)
5). The injection mold clamping adopts three oil cylinders and a small oil supply tank structure, the mold opening and clamping speed is faster, and the mold is more evenly pressed.
6). Using six-pole motor, lower noise and lower energy consumption
7). The working platform is made of QT material with special thickness, which has excellent mechanical properties and is not easy to deform.
8). Multilingual operating system, intelligent microcomputer control system in English, Spanish, Portuguese, etc., and flexible boom structure to ensure convenient operation of the machine.
9). Larger mold installation size and sufficient clamping force can meet customers' large output requirements, such as 2ml-30ml, 80,000 per day, and the mold length is usually 50mm longer than similar models from other suppliers. Give customers as much discount as possible to meet greater output requirements. The production range is from 2ml-1200ml.
Advantage

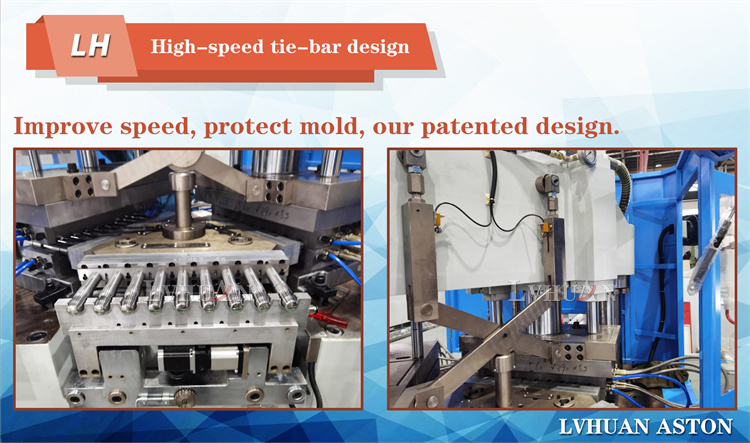

Our injection blow molding machine has a unique high-speed linkage device that can increase machine speed while protecting the mold while improving product quality. Our equipment is currently one of the fastest in Asia. We provide equipment ranging from 30 tons to 120 tons to fully meet your needs for different production speeds.
our company
For 20 years, Green Ring has always been the kingly choice for packaging and bottle making equipment. We have been working hard, from unknown to familiar; From single-product injection blowing equipment to a full range of injection blowing machines, injection stretch blowing machines, extrusion blow molding machines, etc., we are making unremitting efforts for high-quality container packaging. I hope that in the future, you can witness our efforts and walk hand in hand.
