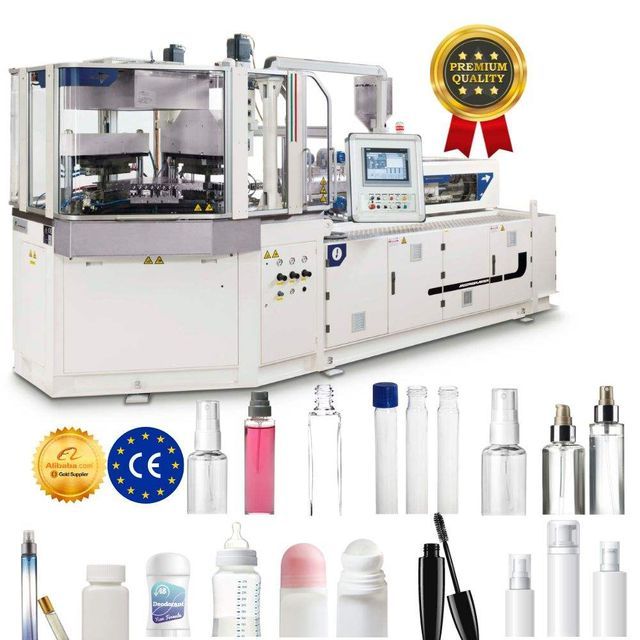

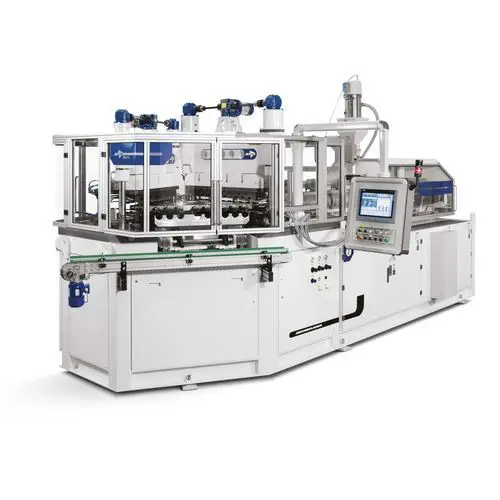

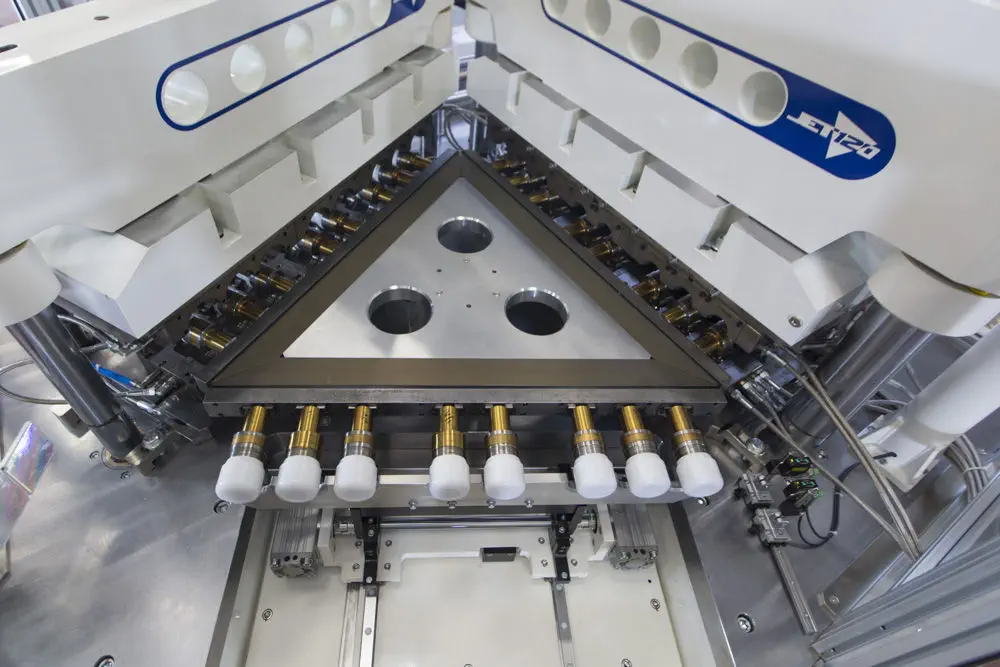

Fully automatic injection blow molding machine PET PP PC cosmetic bottle stretching small led bulb injection blow molding machine

Product details
Supply capacity:300 sets per yearautomation:Fully automatic
Clamping force (kN):78payment terms:Western Union, Letter of Credit, Wire Transfer
Rotary cylinder brand:FestoApplicable industries:Energy and mining, hotels, restaurants, machine repair shops, manufacturing plants, building materials stores, retail, food and beverage plants, food stores, advertising agencies, clothing stores, food and beverage stores, construction projects, farms, print shops
Mechanical test report:not availableport:Ningbo Port
Bottle material:PP PET PC HDPE TritanVoltage:380
Volume of hollow parts:5 ml to 1 literPlastic processing:PP, PC, ABS, HDPE, PVC, PET, PPR, FRPP/PVC, polystyrene, EPS, PE, EVA, wood plastic, PA, HDPE/PP, ABS/PP, PE/PP, polylactic acid
Showroom location:not anybrand:Forbes
Bottle type:Cosmetic plastic PET PP PC bottleadvantage:Competitive service
PLC brand:MitsubishiMain selling points:Fully automatic high-speed competitive service
Type of machine:Fully automatic injection blow molding machineWarranty:1 year
application:bottleCore component warranty:1 year
Package preview:Blow molding type:injection blow molding
Weight (kg):4use:Bottled water PET plastic bottle injection blow molding machine
product name:Fully automatic PET bottle injection blow molding machineDimensions (length*width*height):3.1*1.2*2.2
Core components:Gearboxes, pressure vessels, pumps, gears, bearings, engines, motors, PLCsPackaging details:Export standard seaworthy packaging, using strong film
Video outbound inspection:ifPlace of origin:Zhejiang, China
Key words:LED bulb injection blow molding machineHealth status:pet triangle injection blow molding machine
Power (kW):25Health status:new
Cavity:18 cavities, 36 cavities, 48 ​​cavities, 64 cavitiesYear:2020
High pressure valve brand:SMC



Product Description



feature

  • The human-machine interface touch screen (Fuji, Japan), combined with the PLC system (Omron, Japan), is easy to maintain.
  • The machine provides rapid prototyping performance without creating scrap or connecting lines on the bottom or sides of the bottle.
  • Maximum uniformity of bottle weight, thickness and volume.
  • The extremely smooth and elegant bottle surface is ideal for high-quality and high-priced packaging.
  • This high-throughput machine is capable of producing bottles in multiple cavities simultaneously.
  • Suitable for PE, PP, PS, PC and other materials to produce various types of bottles.
  • Multi-stage injection.





Model unit PFS-30IB PFS-55IB
Injection device
Screw diameter mm ∅32 ∅40
Length/Diameter   22:01 22:01
Screw speed range Rotating speed 0-120 0-120
Screw stroke mm 150 150
maximum. Injection volume G 65 100
Mold clamping device (injection device)
Injection mold opening stroke mm 115 135
Injection mold clamping force Ton 30 55
Trigger lever length mm Chapter 335 Chapter 735
Maximum turning radius mm 410 Chapter 570
Mold clamping device (air blowing device)
Blow mold opening stroke mm 115 135
Blow mold clamping force Ton 5 10
Power Systems
pump motor life value 25 40
pump pressure kg/cm2 130 130
Heating capacity kilowatt 11 14
heating zone View 6 8
Air requirements (approximately) meters/hour 30 30
air pressure bar 10 10
Fuel tank capacity L 350 550
Total power consumption kilowatt 30 44
Machine size medium size 3.2x2.0x2.2 4.7x2.1x2.5
Machine weight Ton 5 10
Package Size medium size 3.5x2.2x2.2 4.9x2.2x2.2
Machine measurement cubic meter 20 34
