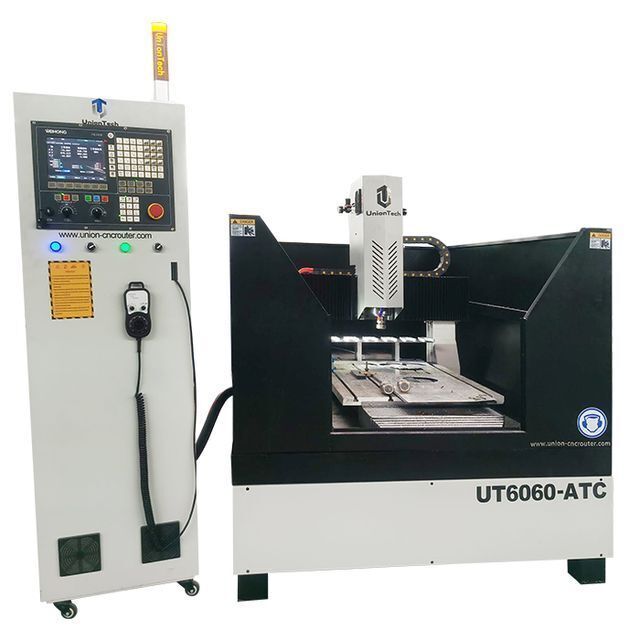

china manufacturer 6060 6040 metal small milling cnc router machine for aluminum

  • Supplier: Jinan Uniontech Machinery Co., Ltd.
  • Region: Shandong, China
  • Contact: Mr Bill Su
  • Price: $3500.00 / 1 - 2 sets
    $3300.00 / 3 - 9 sets
    $2500.00 / >=10 sets
  • Min. Order: 1 set
Product details
Warranty:1 Year;Positioning Accuracy (mm):0.02 mm;
Motor:Stepper Motor;Working Table Size(mm):600×600;
Driver:Leadshine;Repeatability (X/Y/Z) (mm):0.02 mm;
Voltage:AC380V/50/60Hz,3PH;Keyword:cnc router machine for aluminum;
Dimension(L*W*H):1100*1640*950mm;Spindle Motor Power(kW):2.2;
Spindle:2.2kw gdk metal milling;X, Y, Z Transmission:TBI ball screw;
Warranty of core components:1 Year;Condition:New;
Machinery Test Report:Provided;Key Selling Points:High Rigidity;
Package Preview:;Packaging Detail:1.Outside package :Standard export plywood case for cnc router machine for aluminum 2.Inner package:Stretch film and and plastic film for humidity.;
Travel (X Axis)(mm):600 mm;Payment Terms:L/C,Western Union,T/T,MoneyGram,Paypal;
Port:Qingdao, Ningbo, Tianjin and so on;Supply Ability:100 Sets per Month cnc router machine for aluminum;
No. of Spindles:Single;Machine Type:metal milling;
Brand Name:UnionTech;Working area:600*600*200mm;
Weight (KG):600;Number of Axes:1;
Table Surface:T-slot Aluminum table;Range of Spindle Speed(r.p.m):1 - 24000 rpm;
Control system:Mach3 control system;Machine structure:Cast iron;
Guide rails:HIWIN 20 for X, Y, Z axis;Place of Origin:Shandong, China;
CNC or Not:CNC;Core Components:Bearing,Motor,Gear,Gearbox;
Control System Brand:NC Studio,Syntec,Mach3,DSP,RichAuto;Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Advertising Company;
Travel (Y Axis)(mm):600 mm;Video outgoing-inspection:Provided;





china manufacturer 6060 6040 metal small milling cnc router machine for aluminum



Features of cnc router machine for aluminum:

1. Taiwan TBI ball screw, make the precision higher,

2. NC studio control system, connected with computer, easy to operate,

3. Imported HIWIN guide rails, make the machine working more smooth and higher precision.

4. 2200W water cooling spindle with 24000RPM, large Torque,

5. Oil cooling system, professional for working on metal.



Parameters of cnc router machine for aluminum:

Description

Parameters

X,Y,Z Working Area

600*600*200mm

Table Surface

Cast T-slot Table with PVC

Frame

Cast iron Structure

X, Y, Z Structure

20# HIWIN linear guide,

Transmission

TBI Ball Screw for all axis

Max. Power Consumption

(Without Spindle)2.5kw~3kw

Spindle Power

2.2kw metal milling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor

Working Voltage

AC380V/50-60Hz,3PH (Option: 220V/1phase)

Command Language

G Code

Operating System

NC studio control system

Computer Interface

USB

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Optional parts

Japanese YASKAWA servo motor,

Italy HSD air cooling spindle







Applications of cnc router machine for aluminum

The processing of metal mold, graphite electrode, mobile phone, camera,MP3,LED bult housing.

 metal material processing,craft industry,plastic mold,hardware,automobile tire,die bronzing processing,embossing wheel mold,high frequency mold,die casting process and so on.

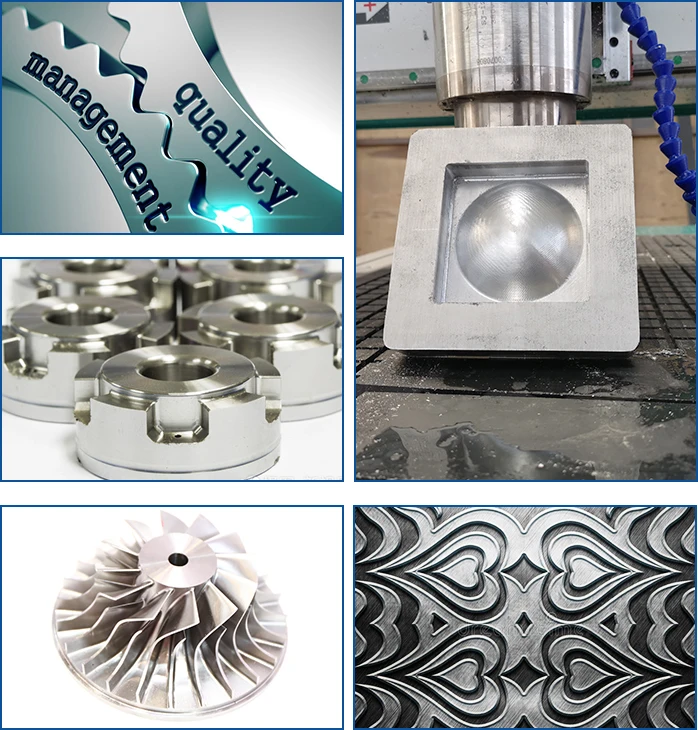

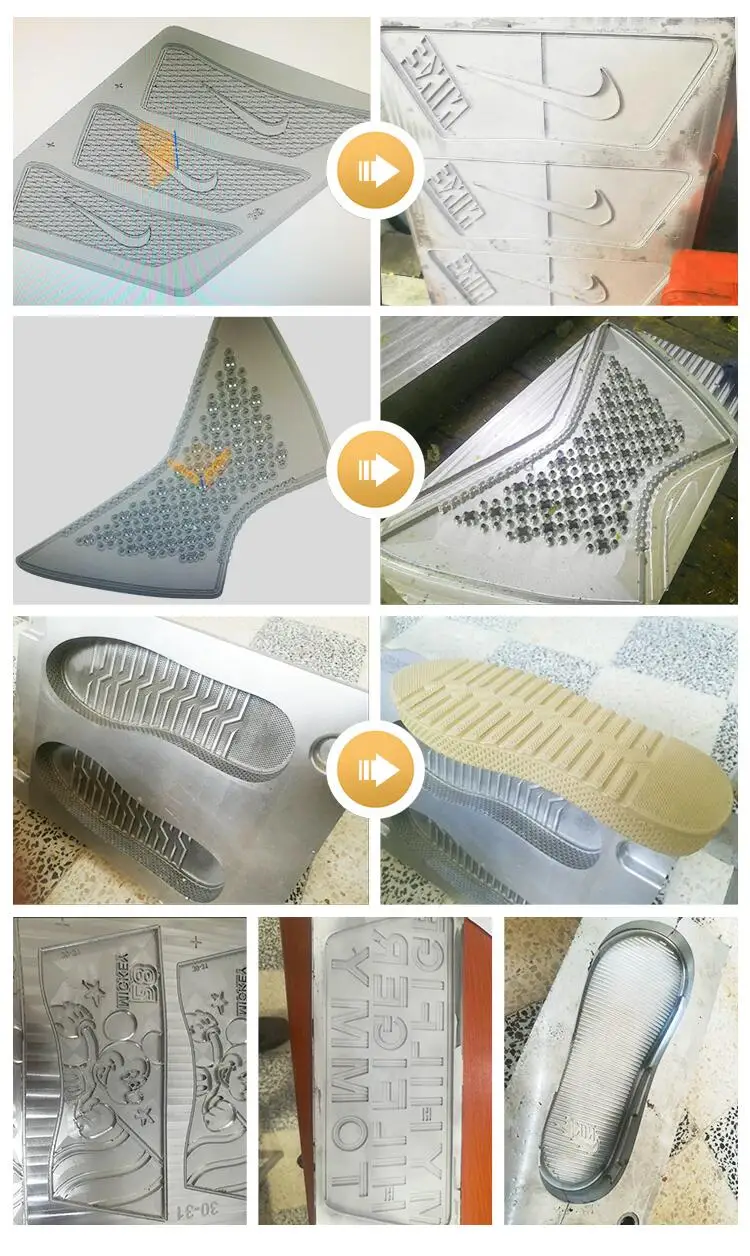

Sample pictures of cnc router machine for aluminum:

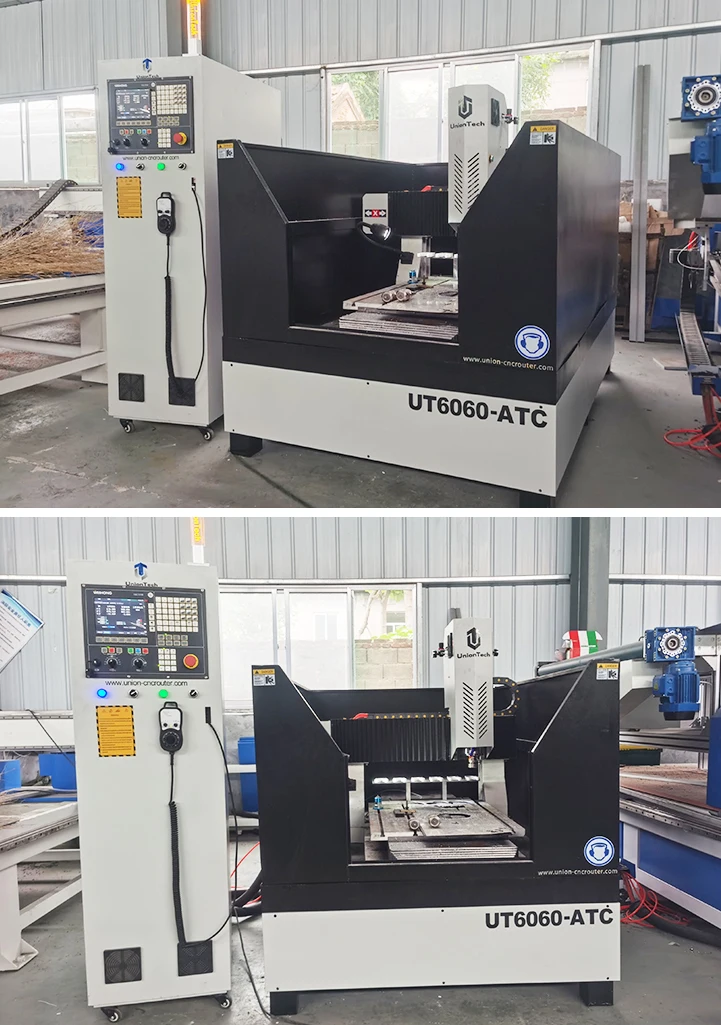

  The factory to show:



Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. With advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.











  Product process:











  Packing and delivery:
