Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine For Quilt Sewing Machine

Click here to contact
Product details
Warranty:1 Year;Condition:New;
Weight:1450;Dimension(L*W*H):3320*3200*1740mm;
Color:White or as request;Marketing Type:Ordinary Product;
Function:Sewing Quilts;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Supply Ability:100 Sets per Month;Number of Head:Single Head;
Port:Qingdao,Shanghai,Guangzhou,Ningbo;Model:Single Needle Quilting Machine;
Advantage:Efficient;Machinery Test Report:Provided;
Warranty of core components:1 Year;Max Sewing Thickness:1500gsm;
Power:Less Than 1kw;Video outgoing-inspection:Provided;
Package Preview:;Thread Type:LOCK STITCH;
Voltage:220V or as request;Keywords:Single Quilt Sewing Machine;
Applicable Industries:Home Use,Printing Shops,Textile Products Shop;Feature:Small Size;
Packaging Detail:The Package of Computerized Single Needle Quilting Machine For Quilt Sewing Machine Long Arm Quilting Machine 1.Ocean Container 2.Export Standard Wooden Case. 3.As Request;Quilting Head:Single Head;
Usage:Quilting;Showroom Location:None;
Core Components:Engine,Gear;Max Sewing Speed:2200rpm;
Moving Style:Head Moved;Brand Name:Yize;
Needle Drop Size:2200*2400;Place of Origin:Henan, China;
Product Description

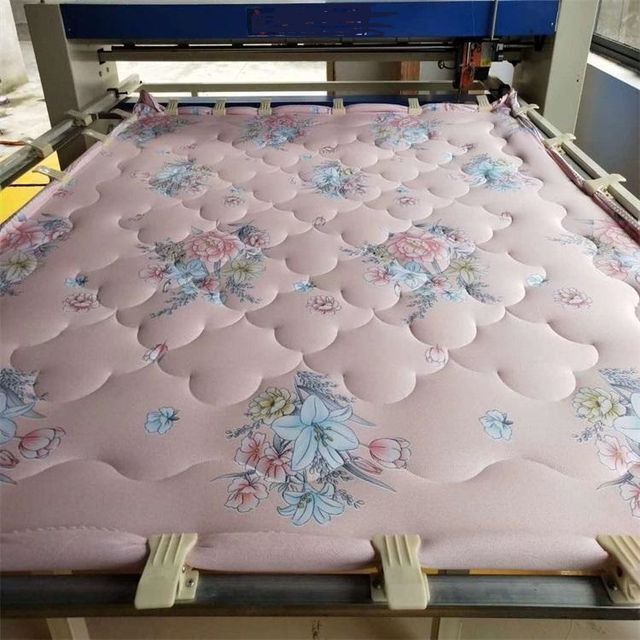

Single Needle Long Arm Quilting Machine is controlled by industrial computer, achieving the most stable and reliable working effects. With super-large capacity electronic hard disk and 3 interfaces for U disk, widely used in almost all kinds of quilts,blankets,sleeping bags, bedspreads, curtains,etc. This machine is very popular with small or large stores and factories.
Features Of Single Needle Long Arm Quilting Machine
1 computer in English layout, easy to operate
2. Needle-speed, pitch, patterns and so freely adjustable
3. Using the break detection, automatic return, automatic patching, and other functions
4.The computer screen color display job status tracking, automatic cumulative production, etc.
5. According to user needs a variety of sizes
Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine For Quilt Sewing Machine
Model
YZ-HF-22
YZ-HF-24
YZ-HF-26
YZ-HF-28
Max Quilt Size
2.2*2.4m
2.4*2.6m
2.6*2.8m
2.8*3.0m
Needle Drop Size
2.0*2.2m
2.2*2.4m
2.4*2.6m
2.6*2.8m
Power
1.0KW
Quilting Thickness
1200g/m2
Sewing Speeding
1300-2200r/min
Needle
DP5 18-22#
Voltage
220V 50HZ/60HZ
Dimension
300*300*140cm
320*320*140cm
340*340*140cm
360*360*140cm
Weight
720kg
750kg
800kg
850kg
Detailed Images

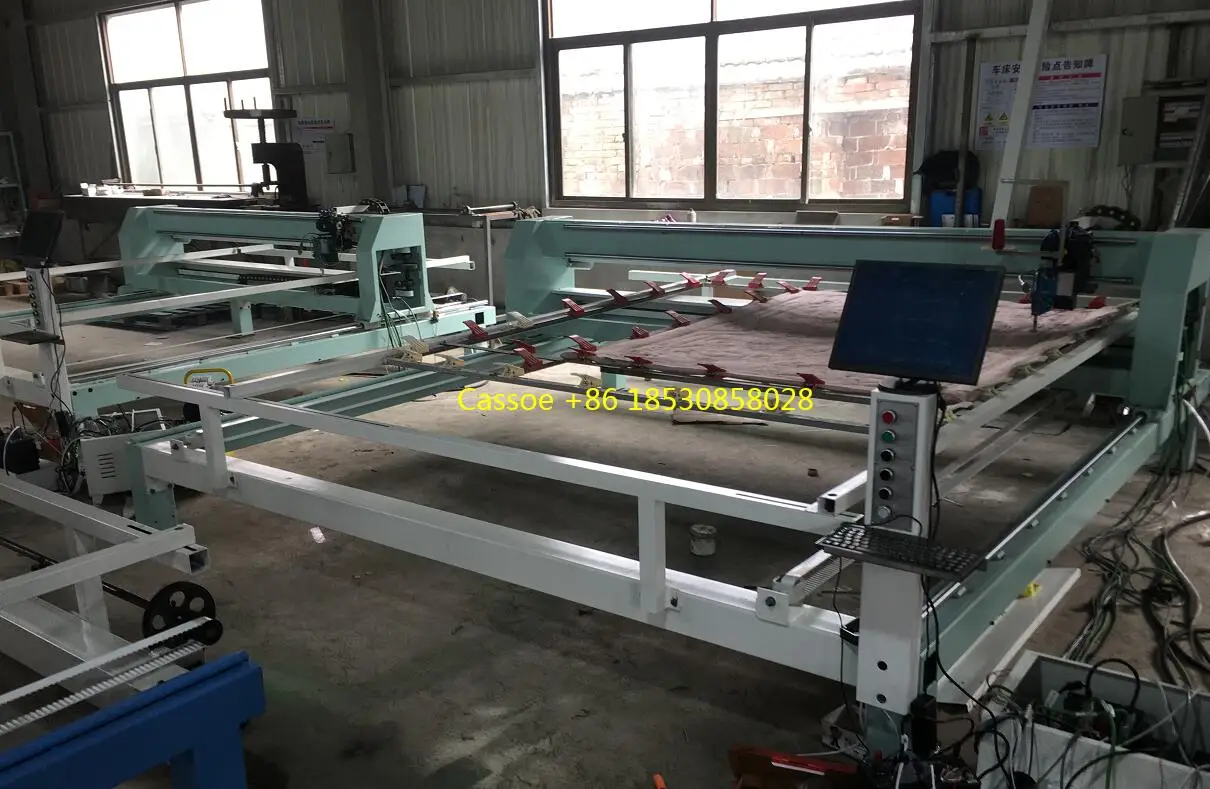

Economic design of Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine For Quilt Sewing Machine

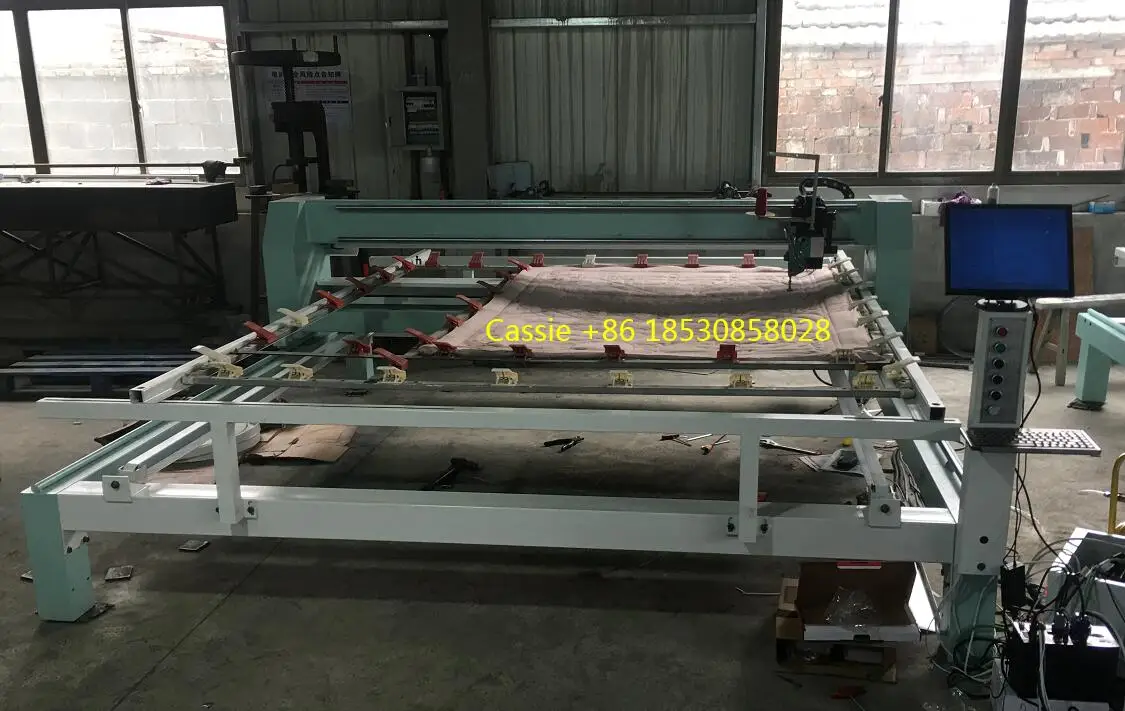

This design just have one quilting size 2.4*2.6m,suitable for small shop running business

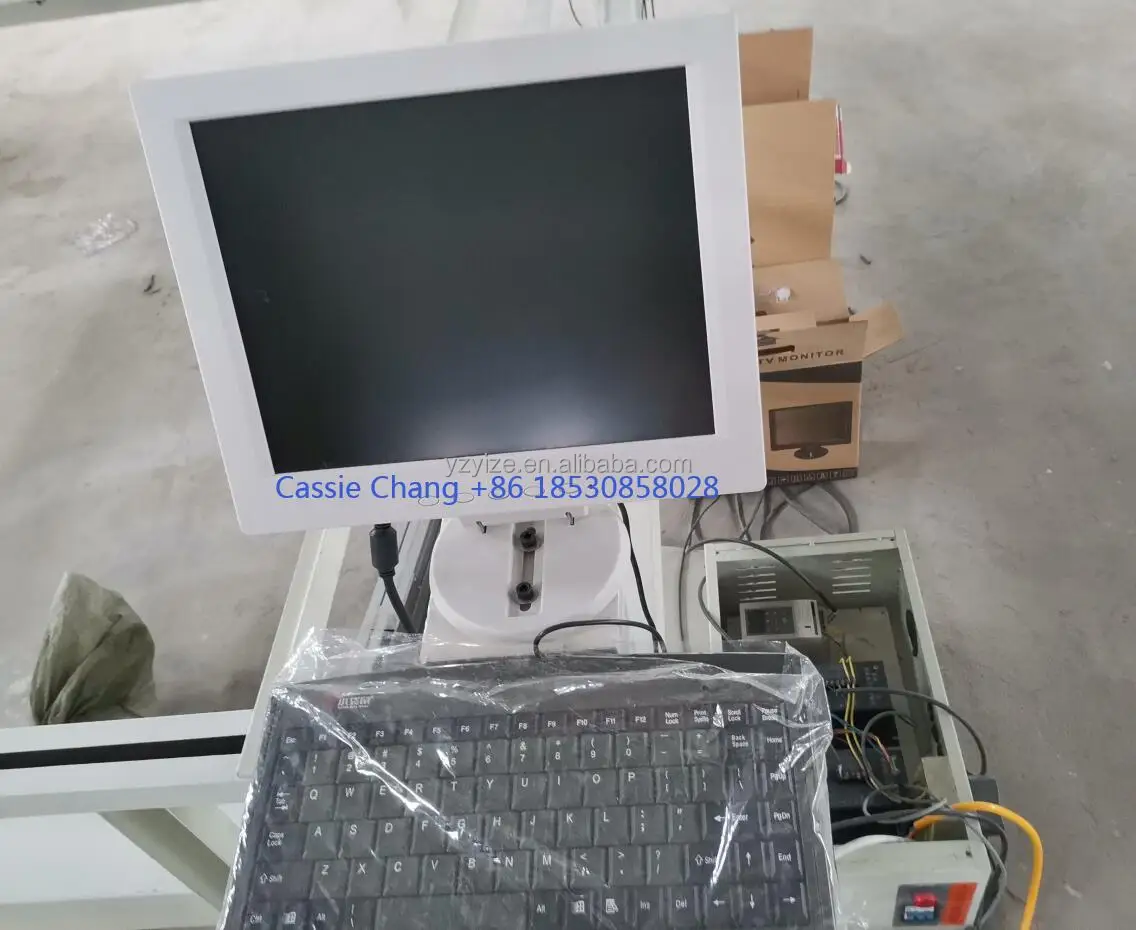

Two kinds screen for you choose

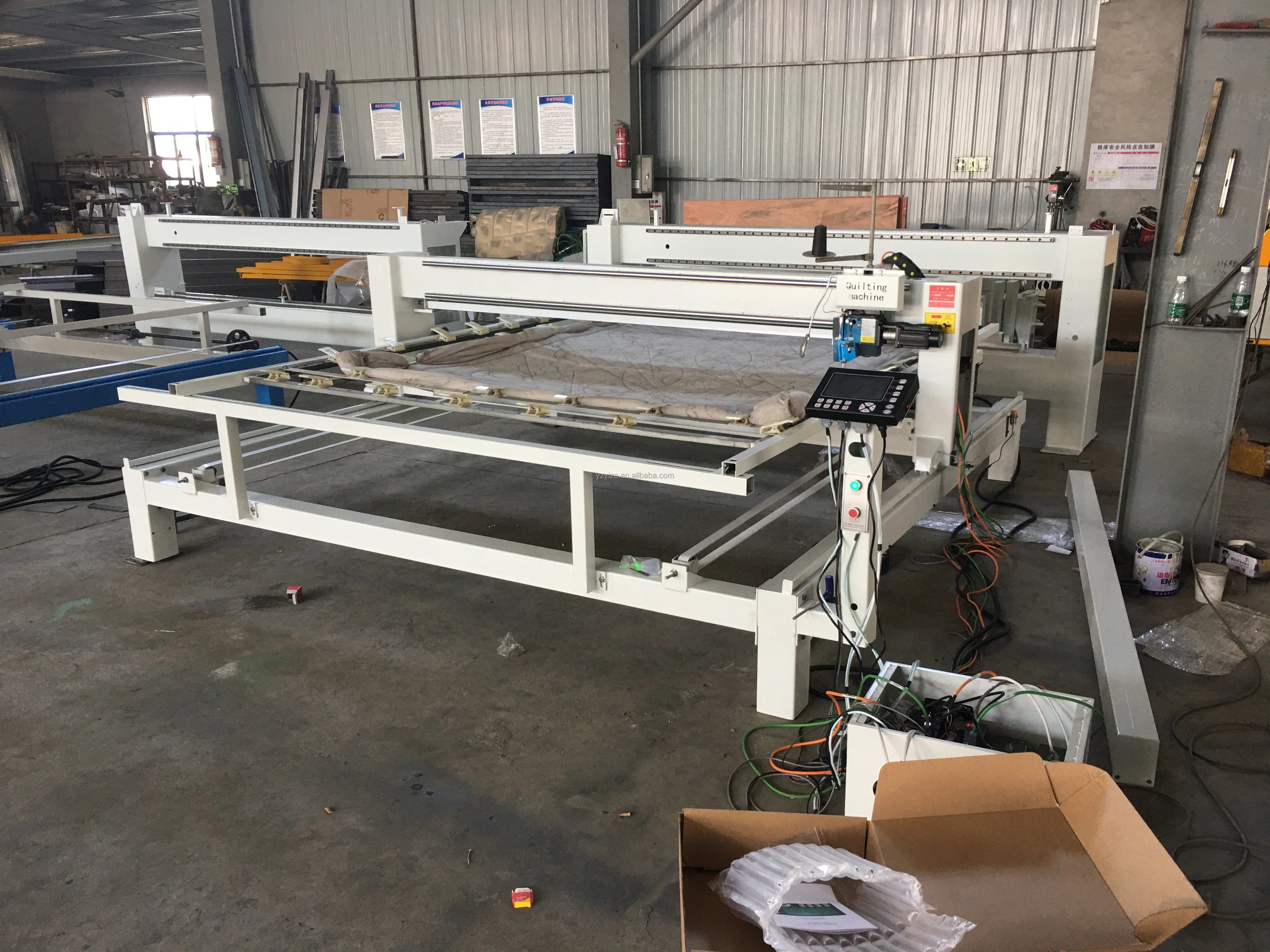

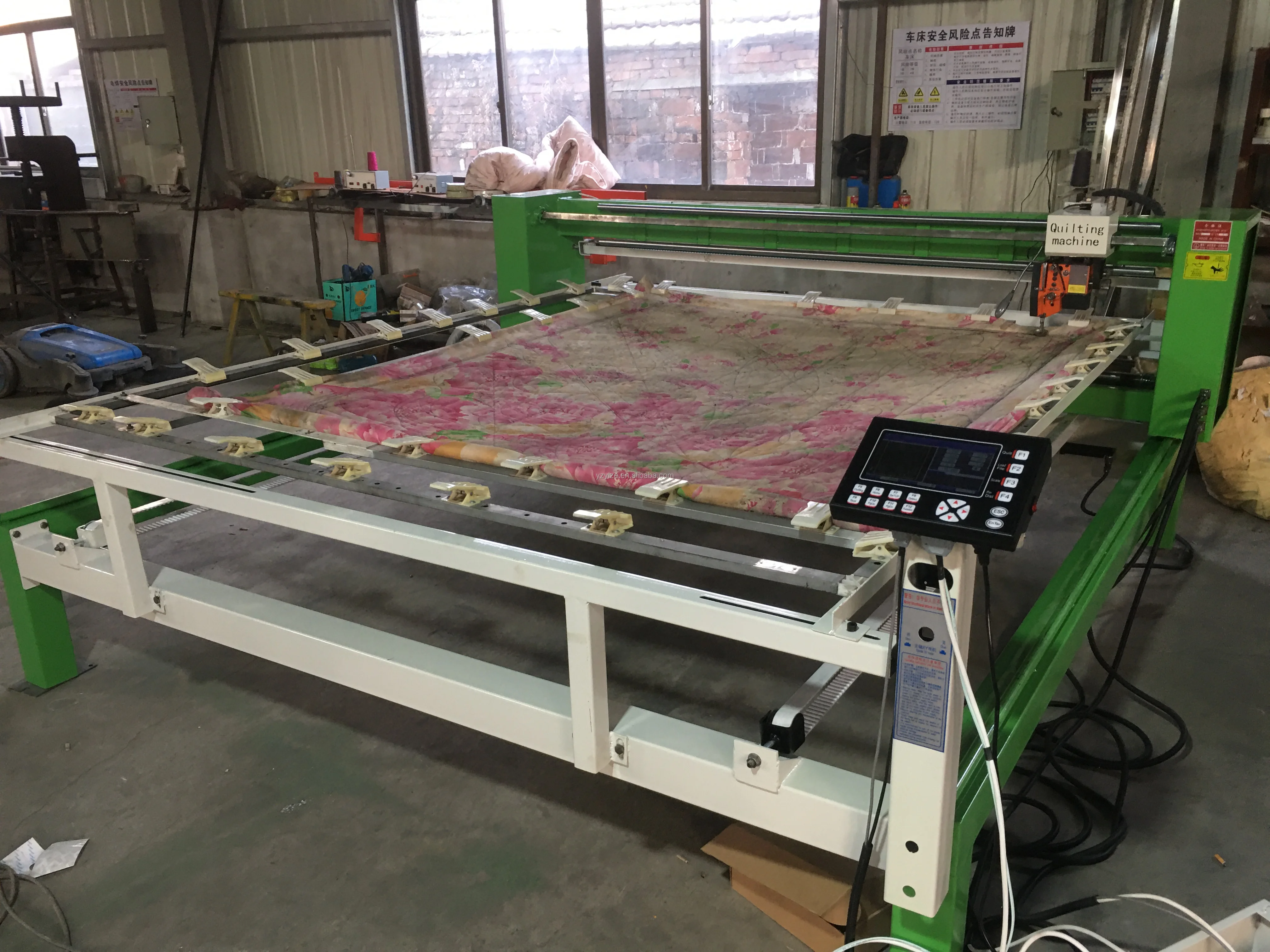

LCD Type Quilting Machine of Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine For Quilt Sewing Machine

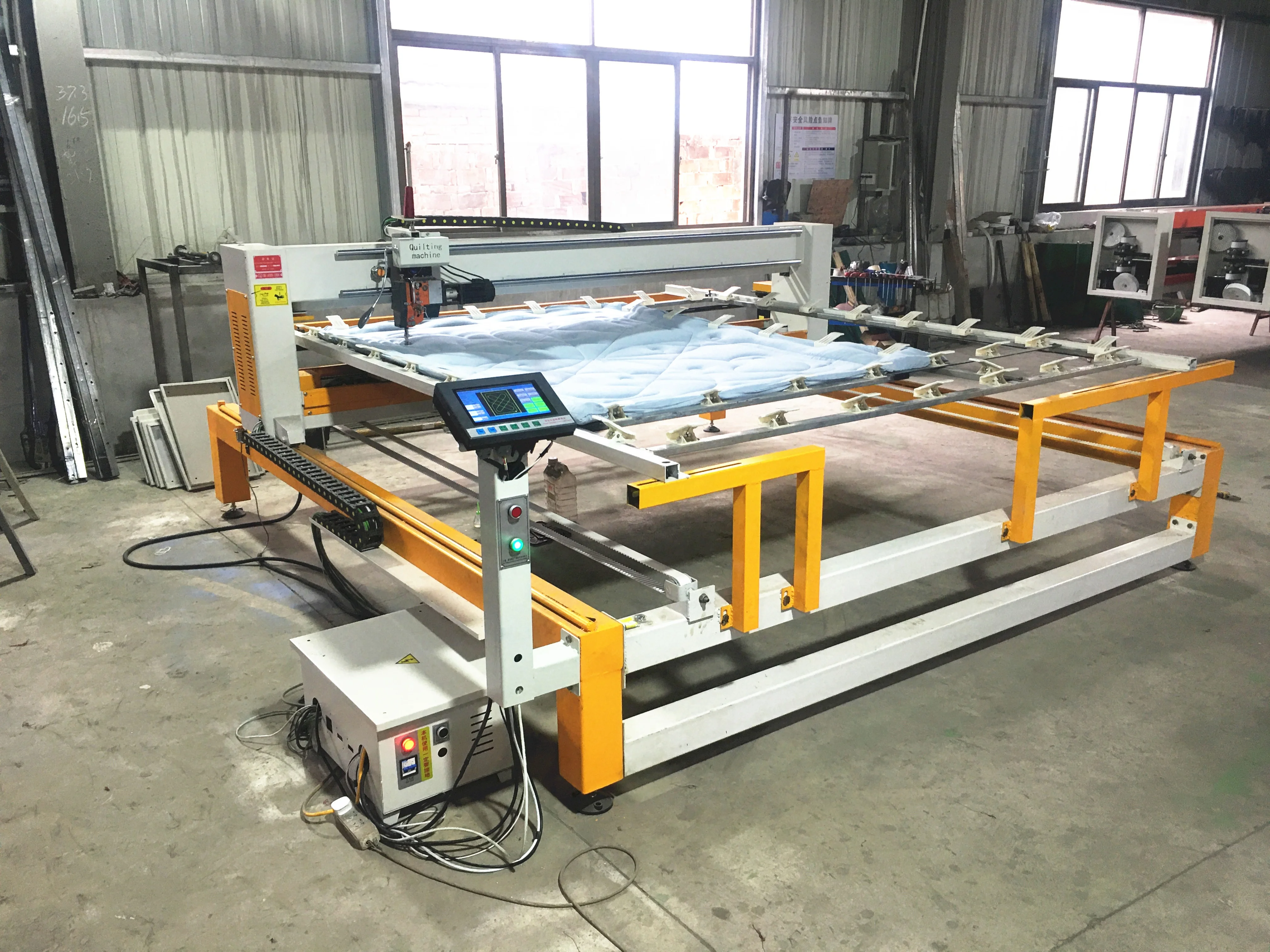

New Design Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine For Quilt Sewing Machine

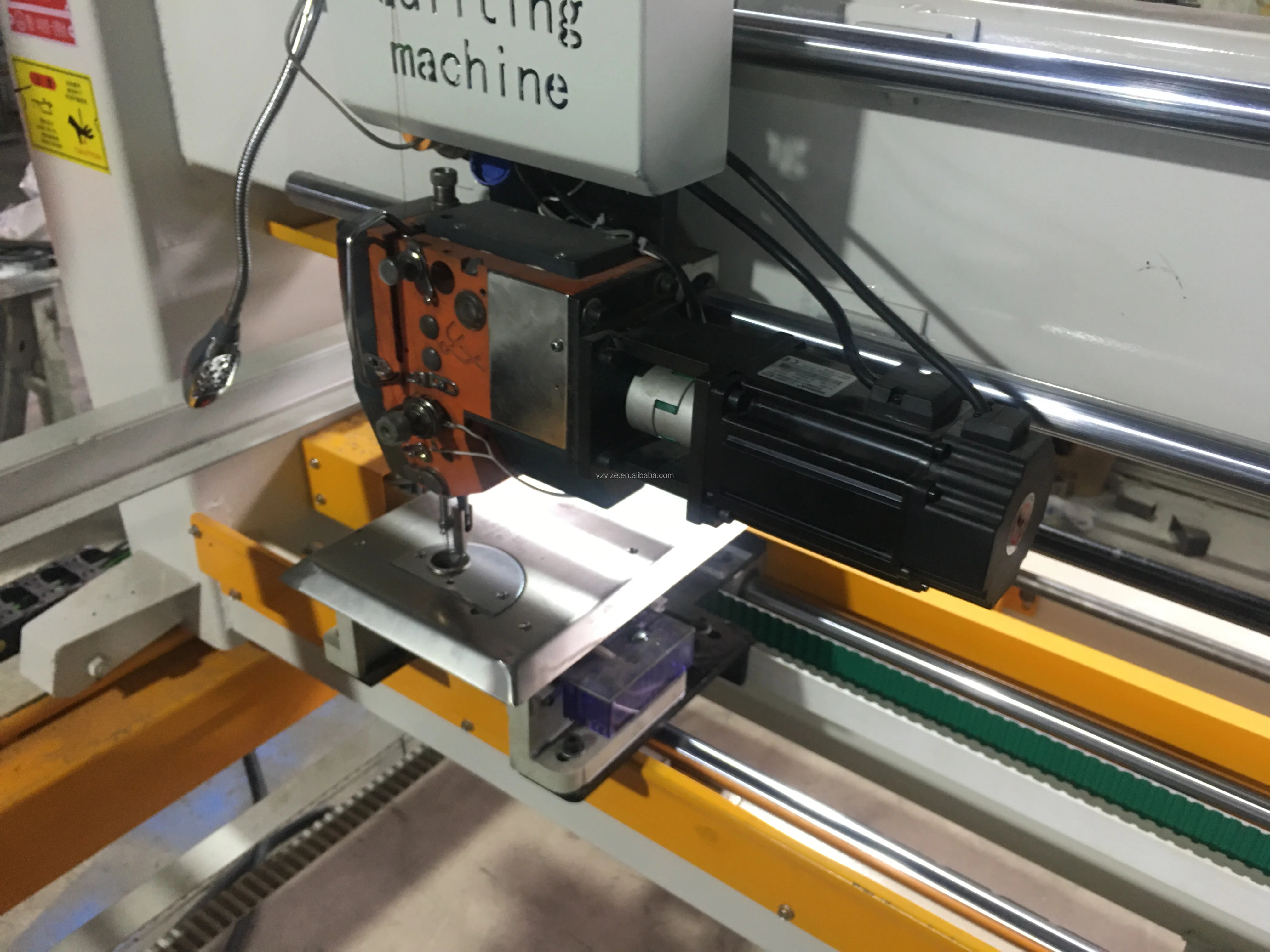

This design had improve the screen and the working speed and use direct drive nose and direct drive bottom seat

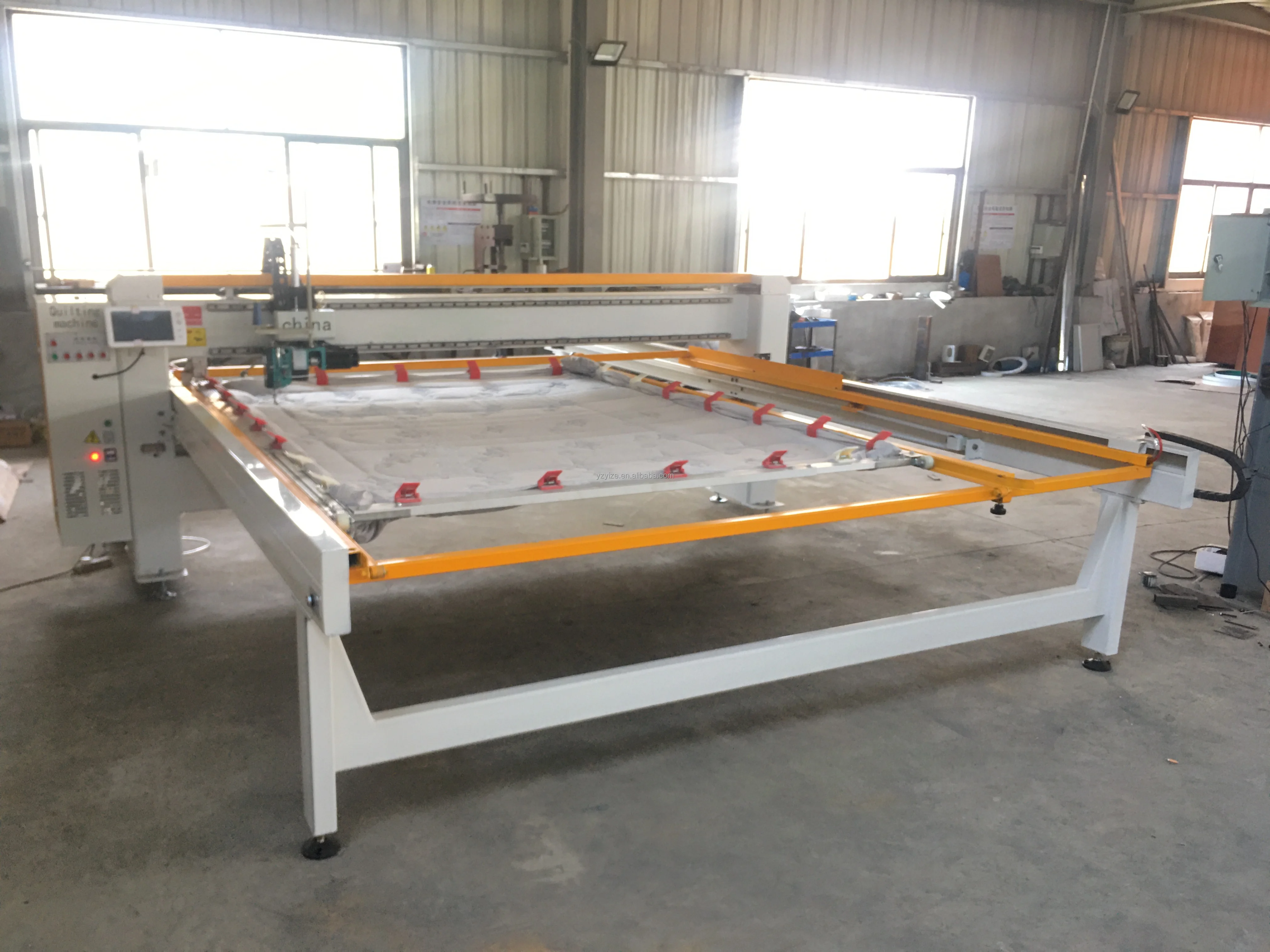

High Speed Automatic Pattern Single Needle Quilter Long Arm Computerized Single Needle Quilting Machine For Quilt Sewing Machine
This design With automatic lifting double zhengbu system, also with automatic thread cutting design
Top Configuration Flagship Zhengbu type
1:QB-ARM system (advanced technology can instantly move the frame)
2:10 inch LCD touch screen.
3: Supports 7 languages.
4:pneumatic lifting head.
5: full servo motor (4).
6: using 6 high-precision linear slide rail.
7: high speed direct drive head.
8:high speed direct drive CAM automatic line cutting bottom sit.
9: automatic timing refueling.
10: rotary shuttle automatic timing dust removal.
11: Automatically press the frame when quilting.

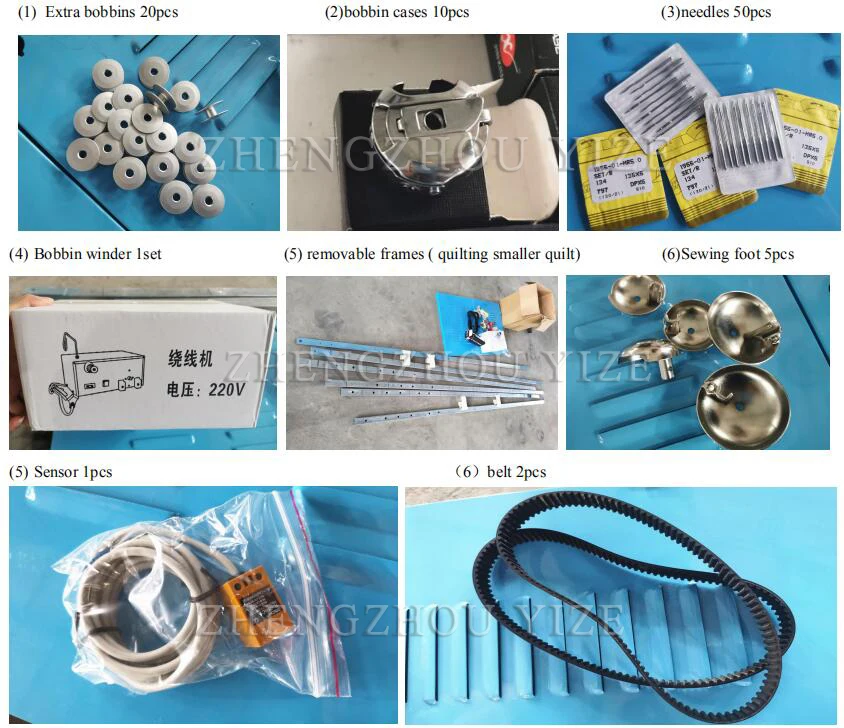

Quick-wear Parts
Transanction & Feedback

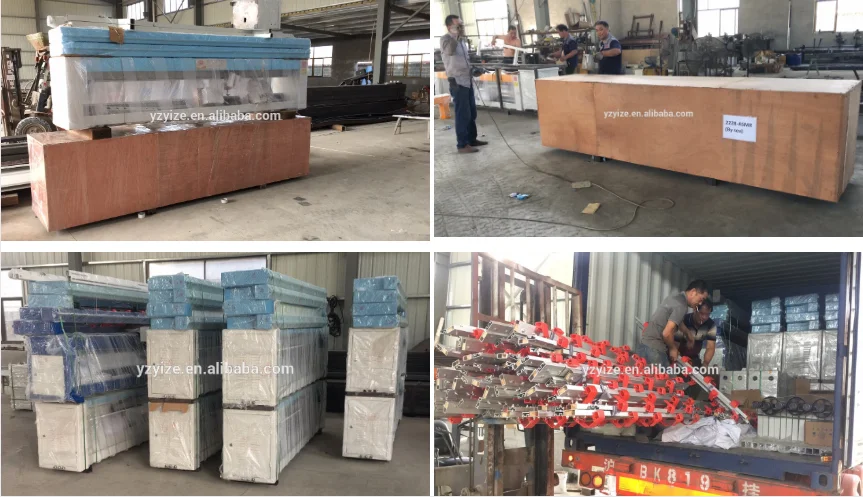

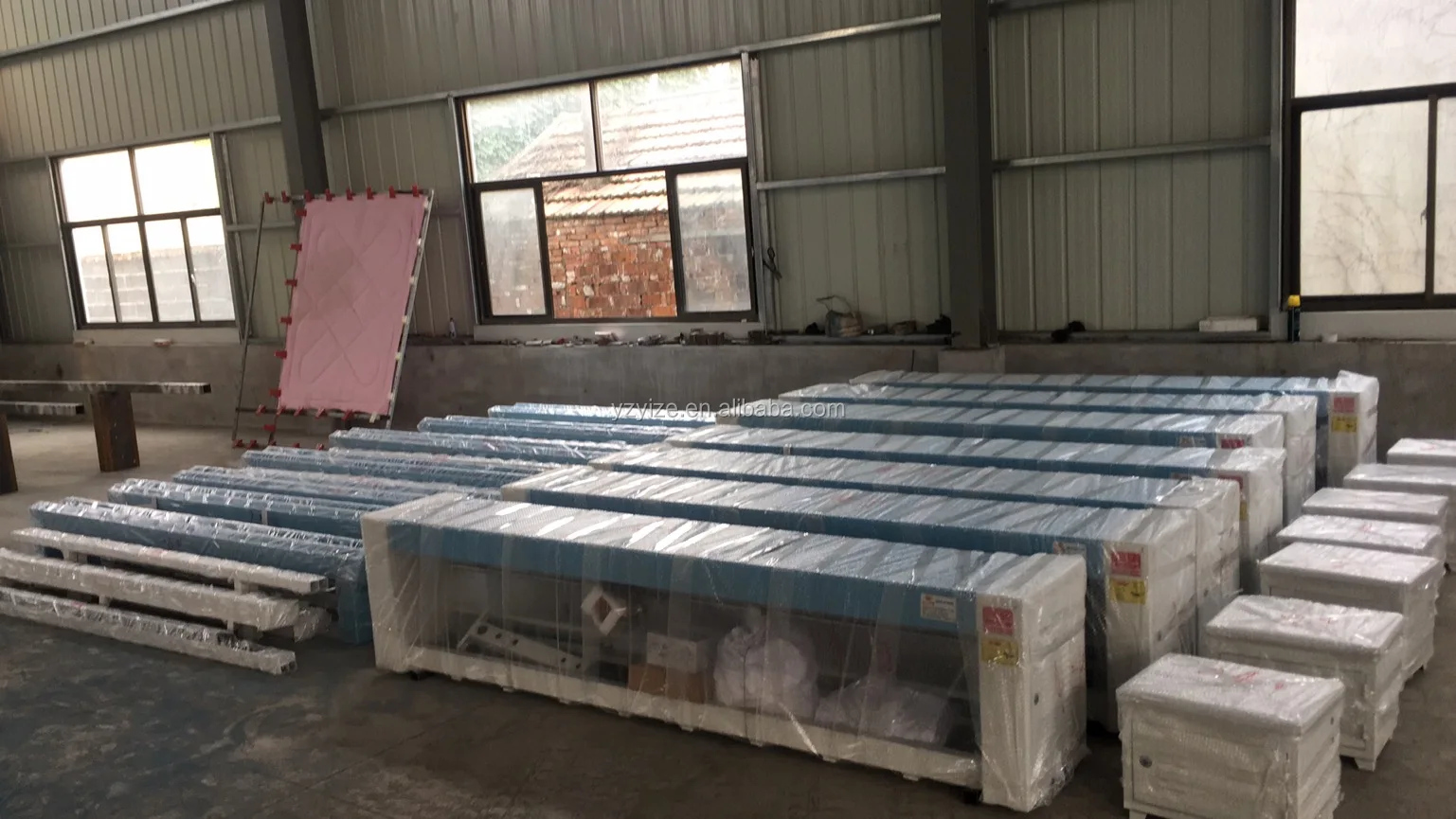

Packing & Delivery
