Packaging Detail: | Standard export packing (Stretch film+foam+Wooden case); | Warranty: | 2 years; |
Model: | 2 Person 2 Sides Air Shower; | Warranty of core components: | 1 Year; |
Core Components: | Motor; | Material: | Cold Rolled Steel; |
Dimension(L*W*H): | 1300*1000*2100mm air shower; | Brand Name: | Anlaitech air shower; |
application: | cleanroom entrance; | After-sales Service Provided: | Free spare parts; |
Showroom Location: | None; | Certification: | CE ISO9001 ISO14001; |
Payment Terms: | L/C,Western Union,T/T; | Video outgoing-inspection: | Provided; |
Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,lab clean room; | Voltage: | 380v 220V 230V; |
Condition: | New; | air showering time: | factory setting 10s/15s; |
Weight: | 350 KG; | Place of Origin: | Guangdong, China; |
air showering: | full-auto; | Marketing Type: | New Product 2020; |
Machinery Test Report: | Provided; | Power: | 750w per meter; |

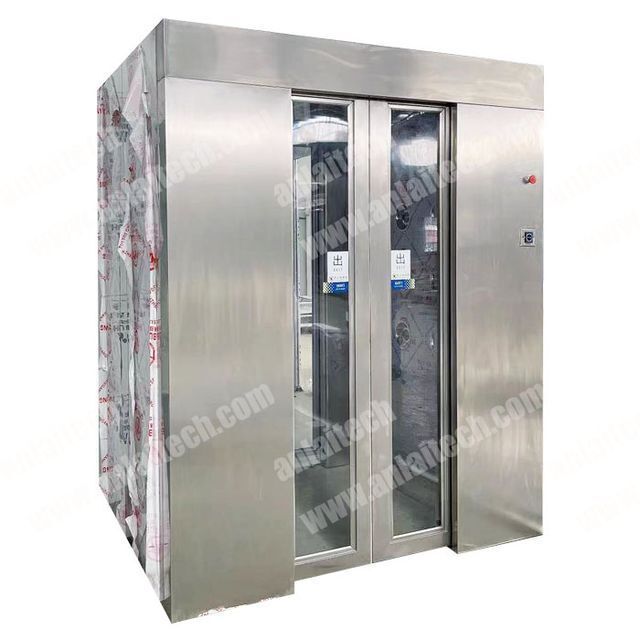

AL-AS SERIES PERSONAL AIR SHOWER

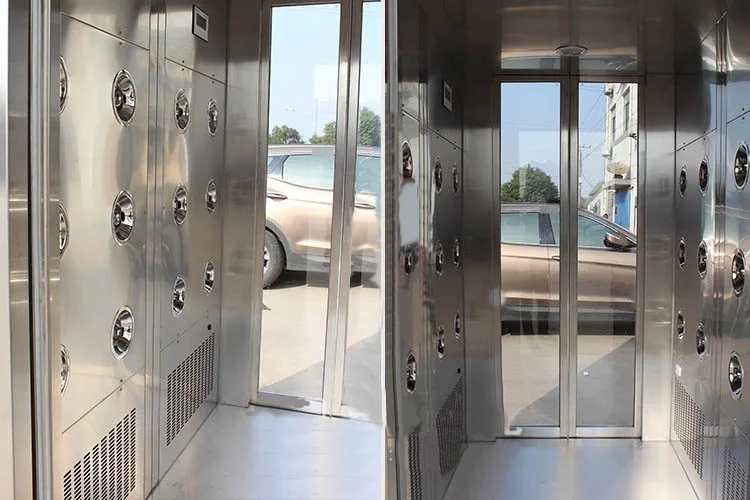

ANLAITECH brand AS Series Personal Air Shower is available in three different materials: full Stainless Steel, Stainless Steel Interior, and Steel Plate. With patented air shower design technologies that which ensures a clean seal that prevents contaminant seepage, it can educe large amounts of dust particles brought by staff, and includes 360-degree air jet nozzles that work at more than 25 m/s. with automatic air showering type and clear working indication lights that easy operation.
AL-SAS AUTOMATICALLY SLIDING DOOR AIR SHOWER FOR PERSONAL |
||||
Model |
AL-SAS-1800/1 |
AL-SAS-1800/3 |
AL-SAS-2200/1 |
AL-SAS-2200/3 |
Exterior Size LxWxH (mm) |
1800x1500x2240 |
1800x3000x2240 |
2000x1500x2240 |
2200x3000x2240 |
Interior Size LxWxH (mm) |
800x1400x1960 |
800x2900x1960 |
1000x1400x1960 |
1000x2930x1960 |
Material |
Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate |
|||
Air Shower Time |
0-99 seconds |
|||
Jet Nozzles |
18 |
36 |
18 |
36 |
Nozzle Diameter |
30 mm |
|||
Air Velocity |
> 25 m/s |
|||
Door Closer |
Dorma (German) Door Closer |
|||
Electronic Lock |
LCJ Electronic Lock |
|||
Filter Efficacy |
≥99.995% of Particles ≥0.3μm |
|||
Filter Size LxWxH (mm) |
595 ×595×80 |
595 ×595×80 |
595 ×595×80 |
595 ×595×80 |
No. of Filters |
2 |
4 |
2 |
4 |
Power Source |
380V/50Hz (Also Available in 220V and 110V) |
|||
Lighting |
1 Recessed LED |
2 Recessed LED |
1 Recessed LED |
2 Recessed LED |
Fan Power (# x Kw) |
2 x 0.75 |
4 x 0.75 |
2 x 0.75 |
4x 0.75 |
Weight (kg) |
710 |
1340 |
910 |
1680 |
CUSTOMIZED DESIGN WELCOME. |
ANLAITECH Air Shower Main Features
1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.
2. High quality infrared sensor automatically showering;
2. Time for showering can be adjusted from 0 second to 99 seconds, Adopts single chip microcomputer control, LCD display working status;
3. Imported electronic interlock device, two doors can not opened at same time;
4. With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;
5. Standard of the modular design, make field assembly faster and more convenient maintenance.
6. But according to user needs and site condition transformation function and form.
VARIOUS OPTIONAL PARTS FOR ANLAITECH AIR SHOWER
Cargo air showers are frequently put to use in a variety of manufacturing environments. Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:
(1) Manual Door Cargo Air Showers- Less common; mostly used for smaller items
(2) Automatic SWING Door Cargo Air Showers - Suitable for small trailers and/or channels that are double use for cargo and personnel
(3) Automatic SLIDING Door Cargo Air Showers - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic
(4) Assembly Line Cargo Air Showers - Suitable for cleaning products moving along an assembly line
AL-GS Series Cargo Air Shower Spec Sheet |
||||
Model |
AL-GS-1700/1 |
AL-GS-1700/3 |
AL-GS-2000/1 |
AL-GS-2000/3 |
Exterior Size LxWxH (mm) |
1700x1500x2100 |
1700x3000x2100 |
2000x1500x2100 |
2000x3000x2100 |
Interior Size LxWxH (mm) |
1200x1430x1960 |
1200x2930x1960 |
1500x1430x1960 |
1500x2930x1960 |
Material |
Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate |
|||
Air Shower Time |
0-99 seconds |
|||
Jet Nozzles |
18 |
36 |
18 |
36 |
Nozzle Diameter |
30 mm |
|||
Air Velocity |
> 25 m/s |
|||
Door Closer |
Dorma (German) Door Closer |
|||
Electronic Lock |
LCJ Electronic Lock |
|||
Filter Efficacy |
≥99.995% of Particles ≥0.3μm |
|||
Filter Size LxWxH (mm) |
595 ×595×80 |
595 ×595×80 |
595 ×595×80 |
595 ×595×80 |
No. of Filters |
2 |
4 |
2 |
4 |
Power Source |
380V/50Hz (Also Available in 220V and 110V) |
|||
Lighting |
1 Recessed LED |
2 Recessed LED |
1 Recessed LED |
2 Recessed LED |
Fan Power (# x Kw) |
2 x 0.75 |
4 x 0.75 |
2 x 0.75 |
4x 0.75 |
CUSTOMIZED DESIGN WELCOME. |
AL-GS/F Series FAST-ROLLING Door Air Shower Spec Sheet |
|||
Model |
AL-GS-2500/F1 |
AL-GS-2500/F2 |
AL-GS-2500/F3 |
Exterior Size LxWxH (mm) |
2500x1500x2700 |
2500x2000x2700 |
2500x3000x2700 |
Interior Size LxWxH (mm) |
2000x1400x2200 |
2000x1900x2000 |
2000x2900x2200 |
Material |
Available in 100% SUS304 Stainless Steel and/or High Quality 1.2 mm Cold-Rolled Steel Plate |
||
Air Shower Time |
0-99 seconds |
||
Jet Nozzles |
24 |
32 |
48 |
Nozzle Diameter |
30 mm |
||
Air Velocity |
> 25 m/s |
||
Door Closer |
Dorma (German) Door Closer |
||
Electronic Lock |
LCJ Electronic Lock |
||
Filter Efficacy |
≥99.995% of Particles ≥0.3μm |
||
Filter Size LxWxH (mm) |
595 ×595×80 |
595 ×595×80 |
595 ×595×80 |
No. of Filters |
2 |
4 |
6 |
Power Source |
380V/50Hz (Also Available in 220V and 110V) |
||
Lighting |
1 Recessed LED |
2 Recessed LED |
1 Recessed LED |
Fan Power (# x Kw) |
2 x 0.75 |
4 x 0.75 |
6 x 0.75 |
CUSTOMIZED DESIGN WELCOME. |
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Welcome to Contact us for your requirements:)
