Large tonnage double acting high pressure hydraulic ram

Supplier: Zhengzhou Gaode Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jessica Liu
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Type:	Double acting hydraulic jack;	Application:	For lifting and maintenance working;
Machinery Test Report:	Provided;	Marketing Type:	Ordinary Product;
Supply Ability:	100000 Pieces per Year;	Weight (KG):	130;
Port:	Qingdao, Shanghai, Tianjin, etc.;	Standard or Nonstandard:	Standard;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance;	Structure:	Piston Cylinder,Piston Cylinder;
Brand Name:	Gaodetec;	Warranty:	2 years;
Applicable Industries:	Construction works ;	Capacity:	50 100 150 200 320 400 500 630 800 1000 ton;
Certificate:	CE &ISO;	Power:	Hydraulic,Hydraulic;
Video outgoing-inspection:	Provided;	Condition:	New;
Place of Origin:	Henan, China;	Body Material:	Steel,Steel;
Packaging Detail:	1. First, hydraulic jack packaging is a bubble film packaging packaging. 2. The hydraulic jack packaging generally uses a square wooden box, which has better pressure resistance and impact resistance.;	Core Components:	Piston Cylinder;
Warranty of core components:	2 years;	Max Pressure:	700bar;

Products Description

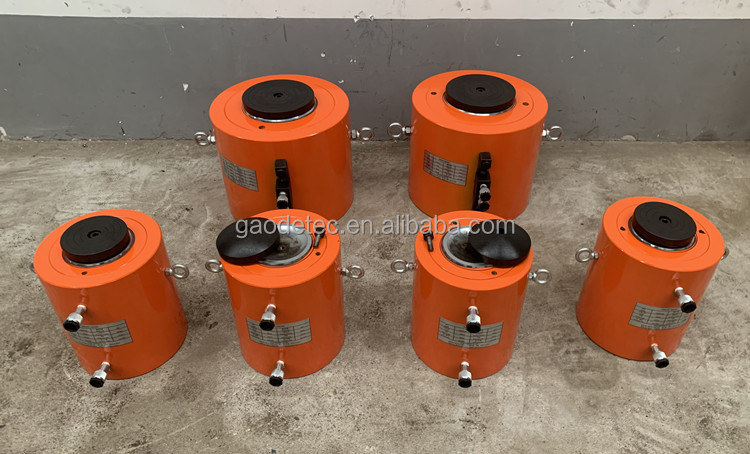

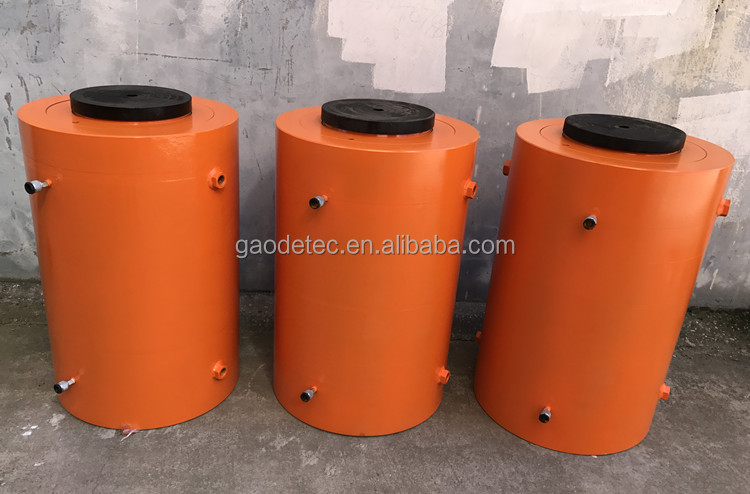

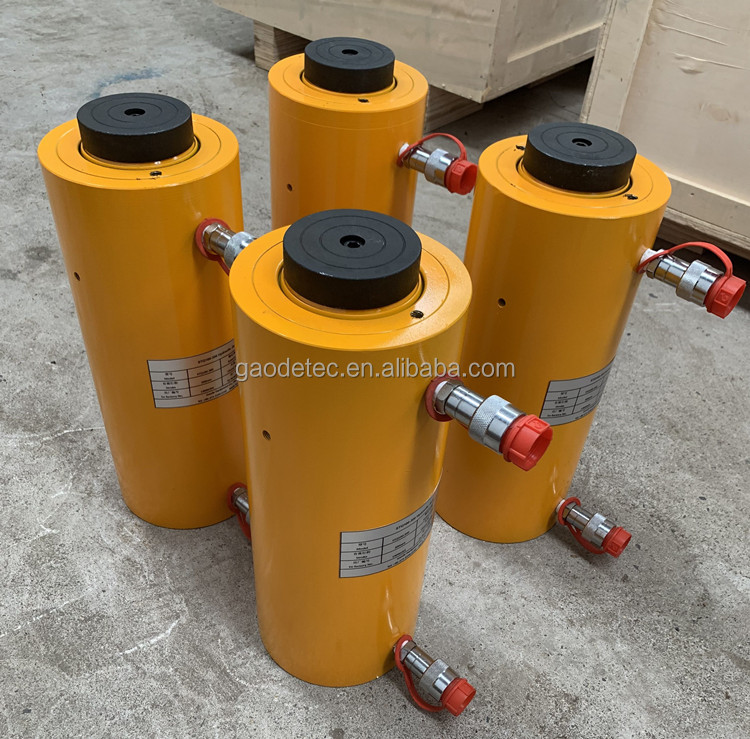

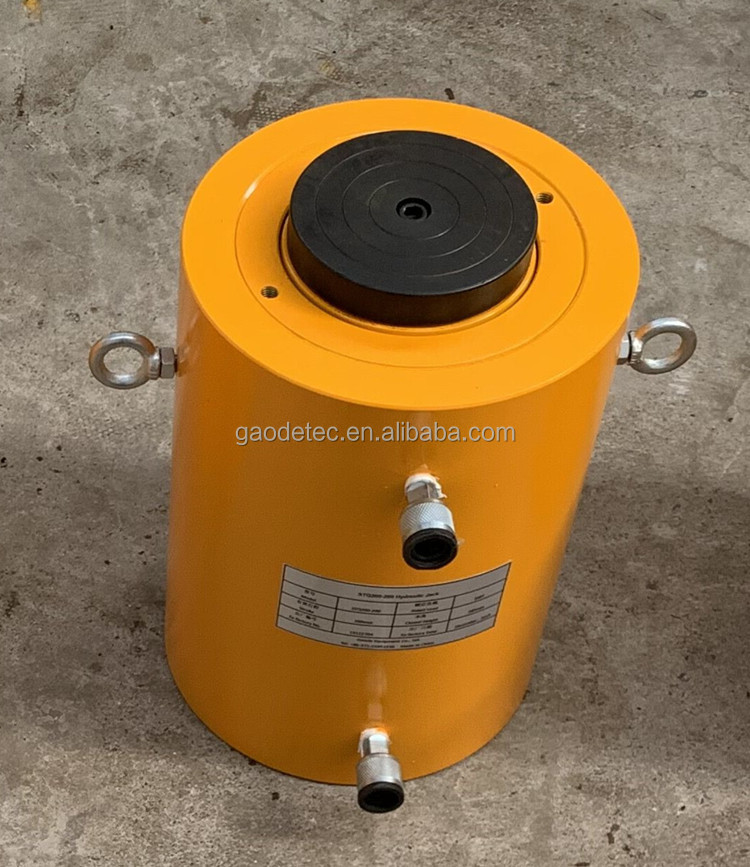

Double acting hydraulic jack

The STQ double acting hydraulic jack tonnage is 50ton to 2000ton, stroke is 100mm to 1000mm.

All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve.

Our warranty is 2 years.

Easily operate and control, Large output, light weight, remote control.

Product parameters

Model	STQ50	STQ100	STQ150	STQ200
Tonnage	50ton	100ton	150ton	200ton
Stroke	100mm/ 160mm/ 200mm/ 300mm/ 500mm/ customized
Outer diameter of oil cylinder	127mm	180mm	219mm	240mm
Dimension of plunger	70mm	100mm	125mm	150mm
Dimension of oil pump	100mm	140mm	180mm	200mm

All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.

Model	STQ320	STQ400	STQ500	STQ630
Tonnage	320ton	400ton	500ton	630ton
Stroke	100mm/ 160mm/ 200mm/ 300mm/ 500mm/ customized
Outer diameter of oil cylinder	330mm	380mm	430mm	500mm
Dimension of plunger	180mm	200mm	200mm	250mm
Dimension of oil pump	250mm	290mm	320mm	360mm

All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.

Model	STQ800	STQ1000
Tonnage	800ton	1000ton
Stroke	100mm/ 200mm/ 300mm/ 500mm/ customized
Outer diameter of oil cylinder	560mm	600mm
Dimension of plunger	300mm	320mm
Dimension of oil pump	400mm	450mm

All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.

Application

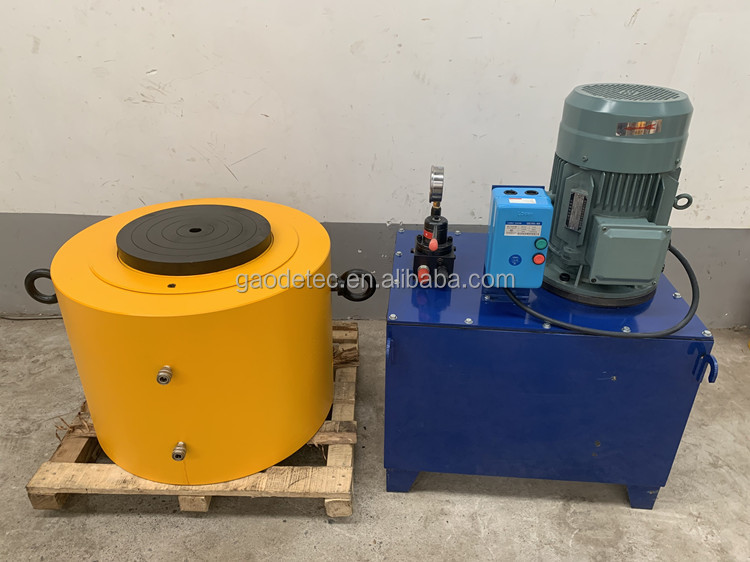

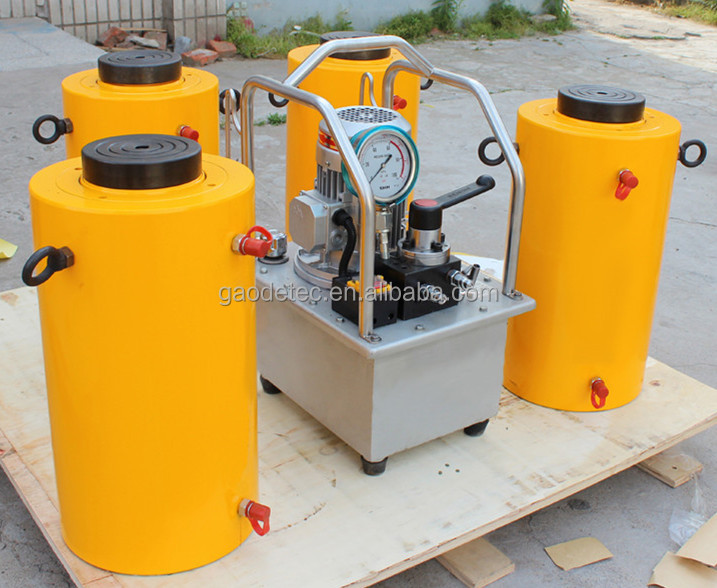

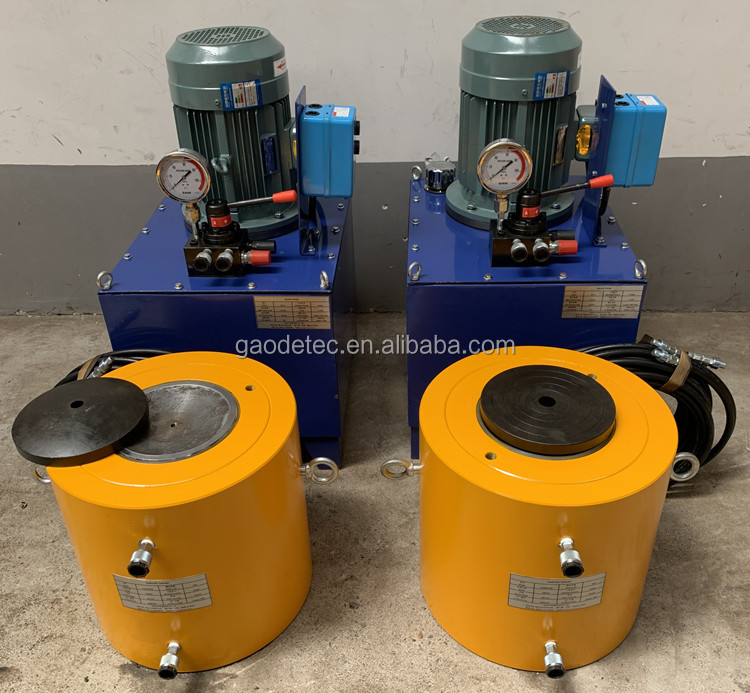

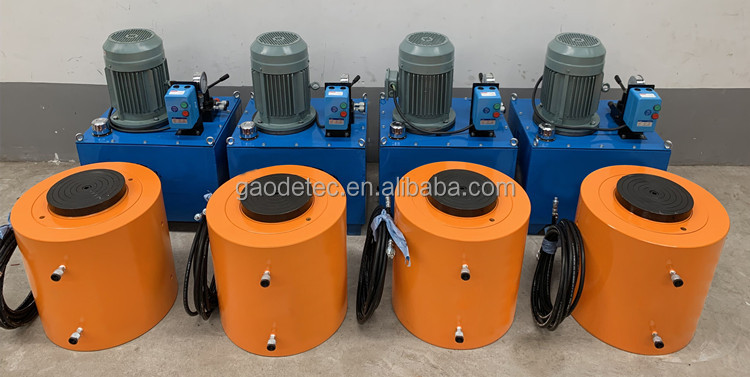

Large tonnage double acting high pressure hydraulic ram can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment, it can match with our high pressure oil pump. it can reach jack, push, pull and extrusion and kinds of working. 1. Synchronous hydraulic jack: sync lifting support construction for a long time and synchronous moving of bridges. 2. Pile foundation test: used for large-tonnage pile foundation testing. 3. Bridge top push, move: synchronous displacement of bridges.

Product Details

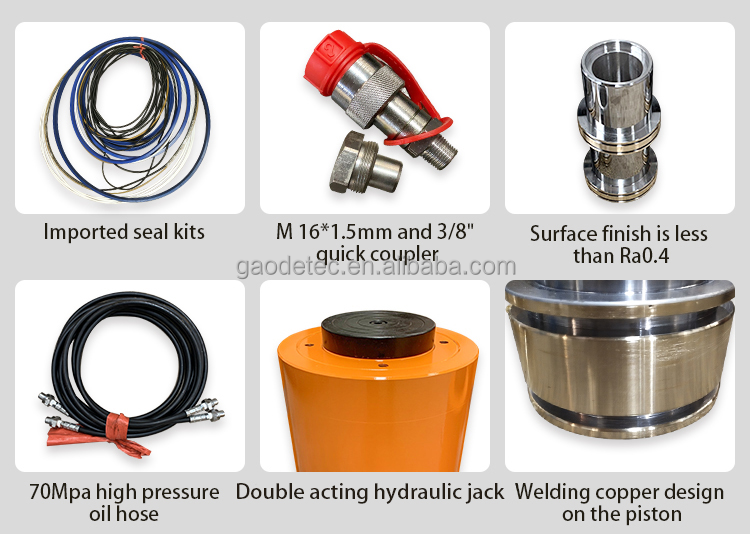

Feature:

1. Double-acting cylinder version for fast retraction. 2. Baked enamel finish for increasing corrosion resistance. 3. Safety valve in retract side of cylinder helps to prevent damage over-pressurization. 4. Interchangeable, hardened grooved saddles are standard. 5. Plunger wiper reduces contamination, extending cylinder life.

Production Process

Packaging&Shipping

Related Product

How to choose suitable hydraulic jack?

1. If you need large capacity works and piston return, you could choose large tonnage double acting hydraulic jack (50-2000 tons).
2. You could choose double acting hollow jack when you need to go through pc strand, steel wire or anchors (50-2000 tons).
3. If you want to install jack on the some working platforms, you need a flange type hydraulic jack (10-630 tons).
4. Single acting hydraulic jack is used for smaller tonnage and stroke works (10-100 tons).
5. Matching with special tool to go through cable or rabar, you could choose single acting hydraulic hollow jack (12-100 tons).
6.Single acting hydraulic jack with lock nut can be used for long time keep pressure work site (55-200 tons).
7. Ultra thin hydraulic jack is used for narrow work space (10-200 tons).
8. Electric oil pump is matched with kinds of hydraulic jacks, it has double acting and single acting for options.
9. Hydraulic hand pump is also used for matching with hydraulic jack, clients don’t have requirement for work efficiency.

All the tonnage, stroke, height can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.

Company Profile

Before we send quotation, please let me know the following question:

1. What is the tonnage and stroke you need? We could customize as per your requirement. 2. Do you need single acting or double acting? Hollow or solid? 3. Do you need electric pump for the jack? If you need, what's the voltage in your local? It is 3phase 380v 50Hz in China.
